RELIABILT 105-Degree 1-3/8-in Overlay Concealed Soft-Close Nickel plated Cabinet Hinge, 1 Pair(s) 2 -Pieces

Name: RELIABILT 105-Degree 1-3/8-in Overlay Concealed Soft-Close Nickel plated Cabinet Hinge, 1 Pair(s) 2 -Pieces
Brand: RELIABILT
SKU: 5014444873
Price: 15.48 USD
Availability: InStock
Rating: 4.7 (34 reviews)

Shop RELIABILT

4.7

Pickup

Unavailable

Shipping

Wed, Oct 14

81 available

Delivery

Tomorrow

24 available

FREE Pickup at N. Dartmouth Lowe's

Stepper number input field with increment and decrement buttons

Save to ProjectNew

Save this product to your project and plan at your own pace.

Members save more.

Here are some similar items...

RELIABILT160-Degree Full Overlay Concealed Soft-Close Nickel plated Cabinet Hinge, 1 Pair(s) 2 -Pieces

^$ 23 ^.97

$29.98

Add to Cart

BelwithMonarch 5-1/16-in , 128mm Center to Center Champagne Bronze Arch Handle Drawer Pull

^$ 22 ^.99

Add to Cart

BETTER TOGETHER

Current Item

RELIABILT105-Degree 1-3/8-in Overlay Concealed Soft-Close Nickel plated Cabinet Hinge, 1 Pair(s) 2 -Pieces

^$ 15 ^.48

Selected

KregConcealed Hinge Jig - Accurate Hinge Positioning with Indexing Tabs, Measuring Scales, and Bit Guide

^$ 39 ^.98

Selected

RELIABILTAlignRight Clear Cabinet Hinge Mounting template

^$ 14 ^.98

Selected

Scotch20 -Pack Round Rubber Cabinet Bumpers

^$ 4 ^.98

Subtotal:

^$ 75 ^.42

Best Price. Guaranteed

Find a lower price on an exact item? We'll match it. Some exclusions apply.

Price Guarantee

FREE Returns

Return it in store or ship it back for free. Eligibility rules apply.

Return Policy

FREE Shipping

Delivery is on us for orders over $45. Some exclusions apply.

Shipping Details

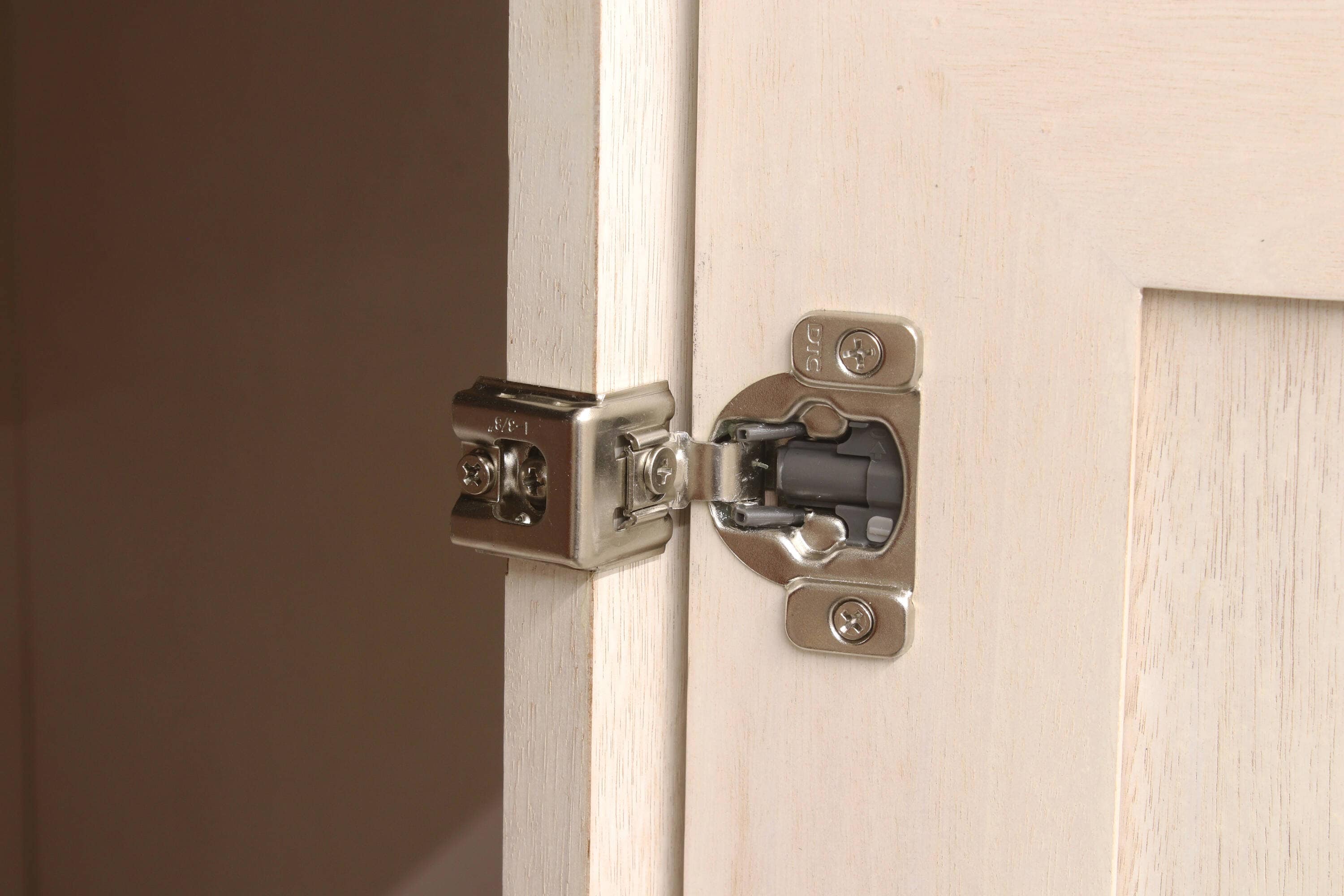

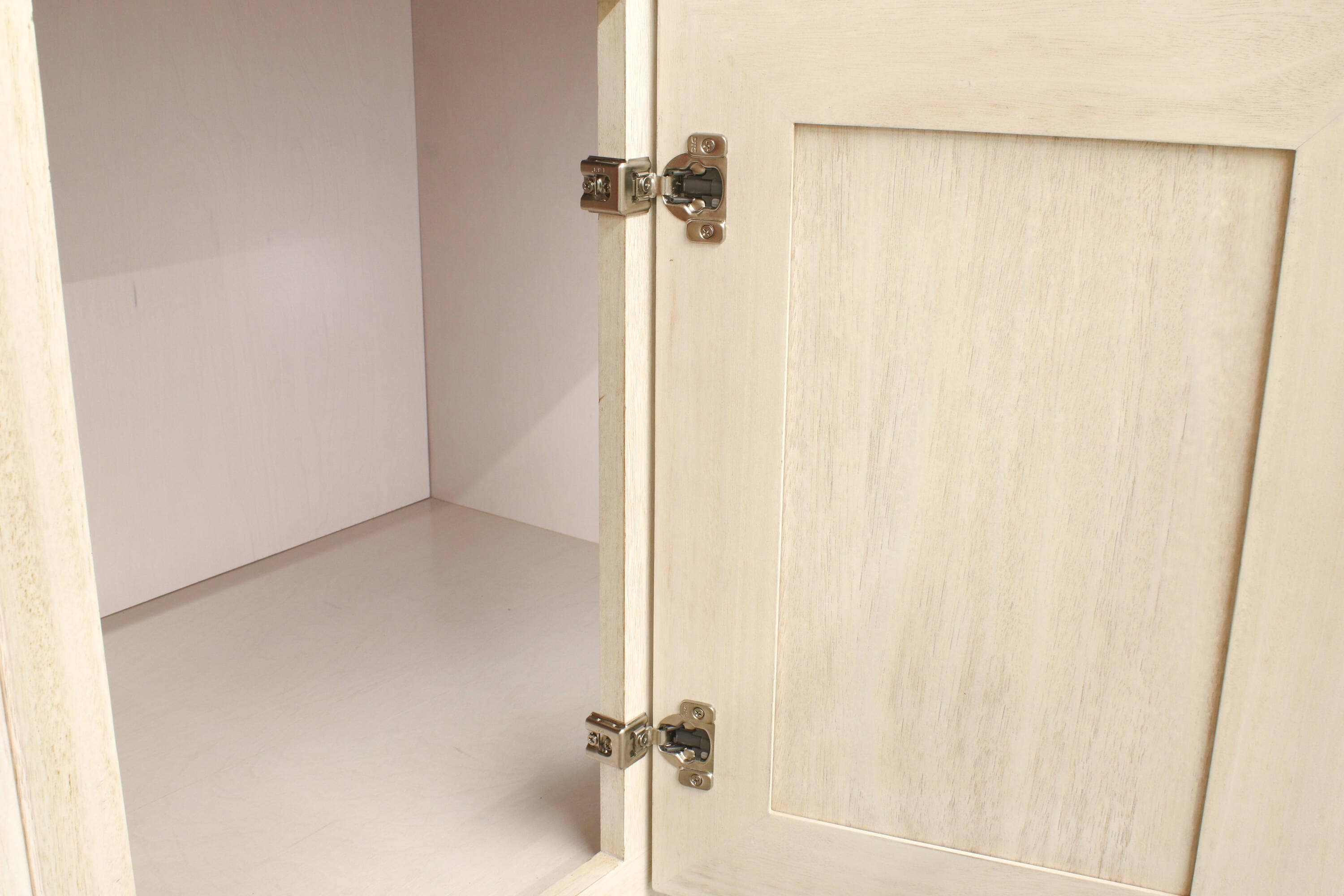

RELIABILT Soft-close face frame concealed hinges are suitable for residential and commercial installations that contains face frame cabinet doors. Quality manufacturing standards for the hinges and the soft-close mechanisms ensure smooth and stable running action. With 100,000 cycles of proven durability, they are the ideal choice in concealed hinges.

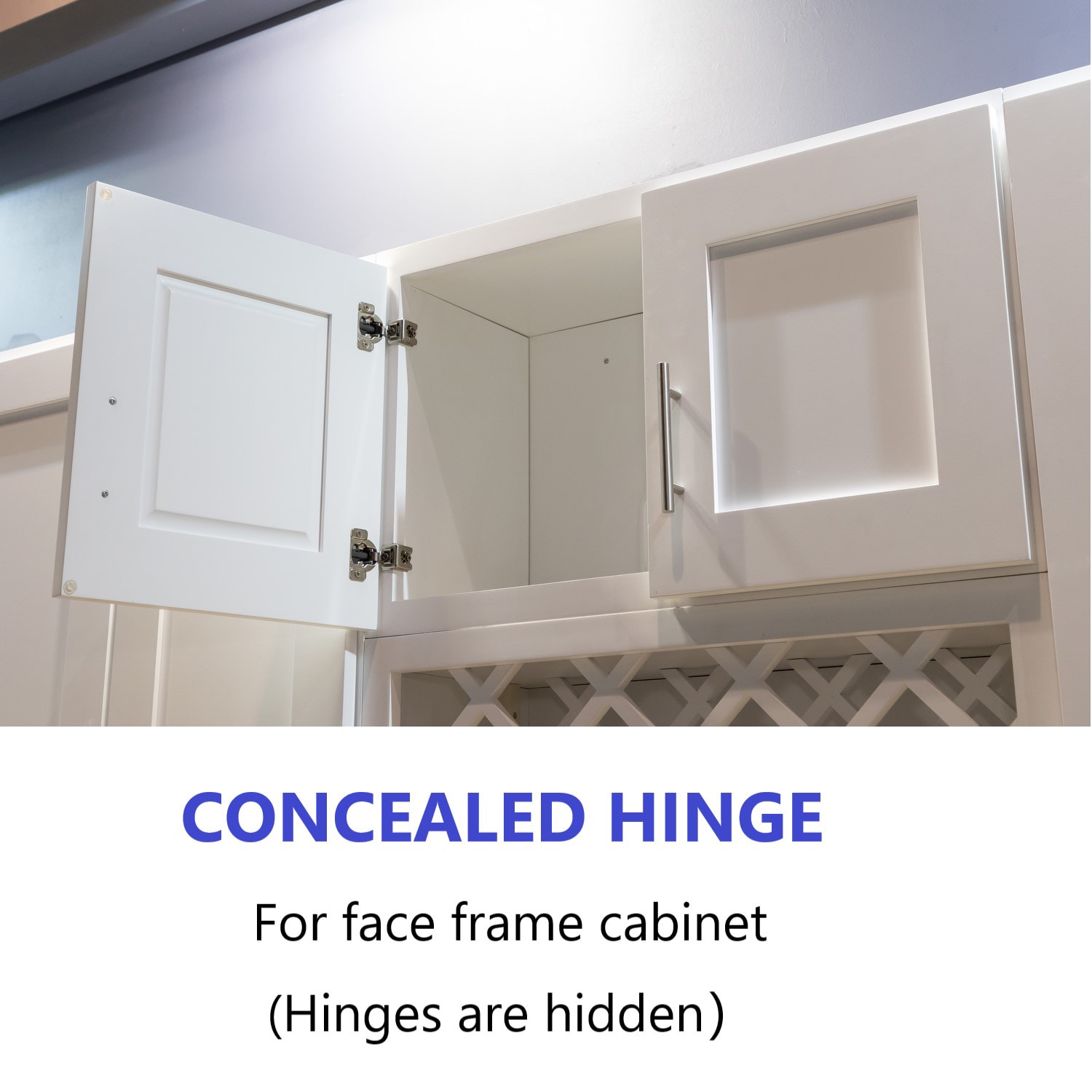

Hinge Type: Concealed soft-close hinges for face frame cabinets
Hinge Color: Nickel plated

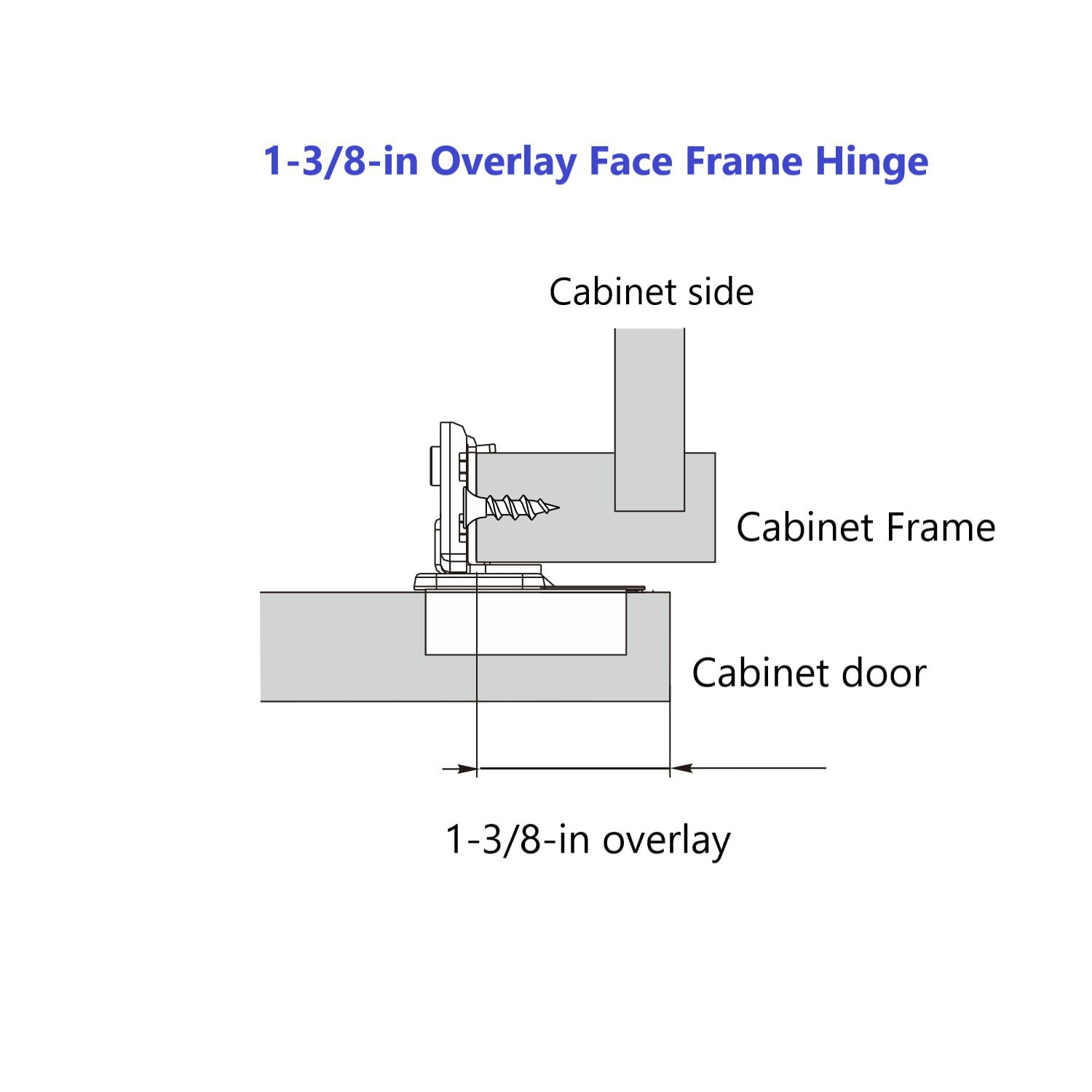

Suitable for 1-3/8-in overlay cabinet doors Hinge Opening Degree: +105°

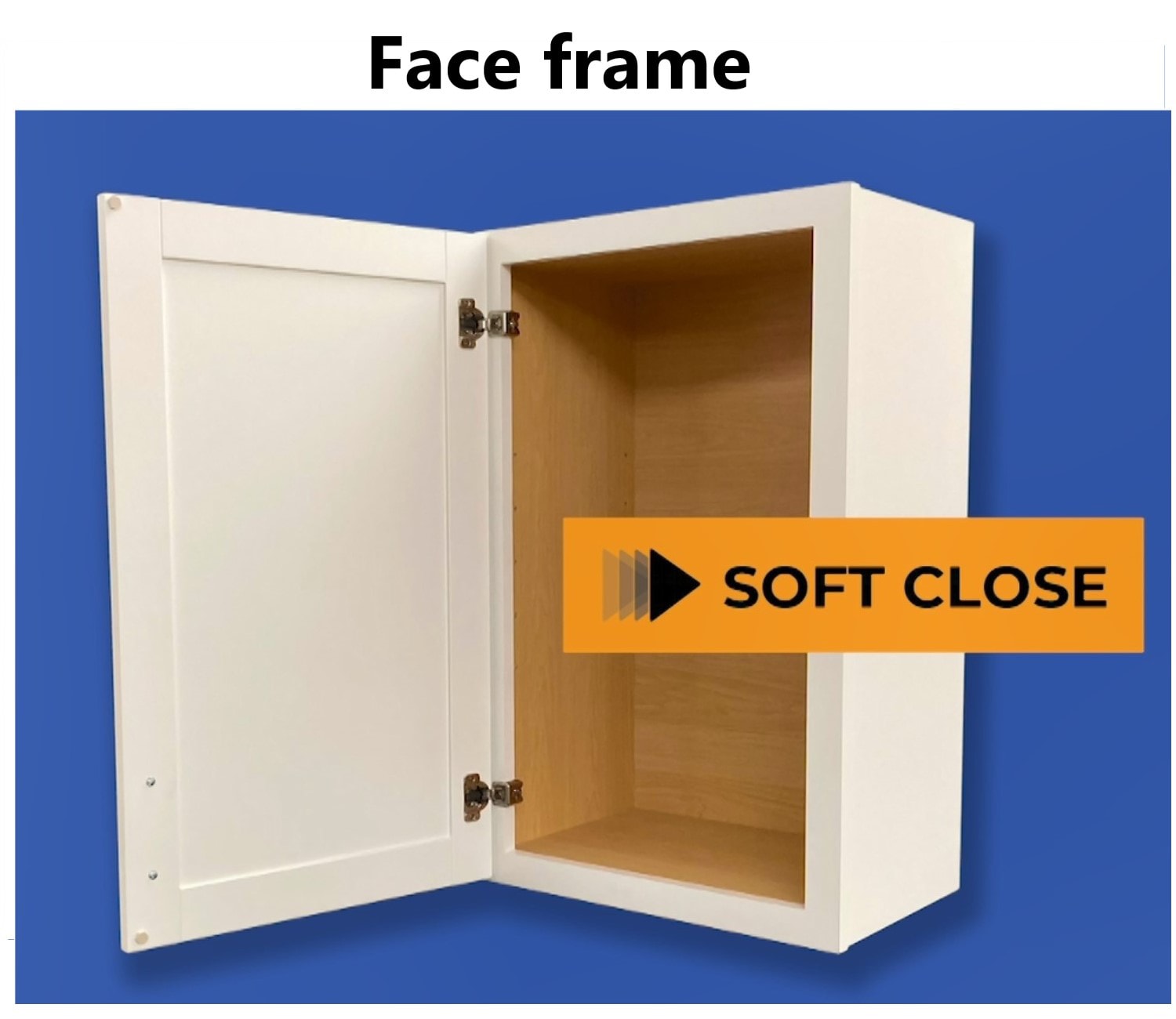

Cabinet Type: Face frame

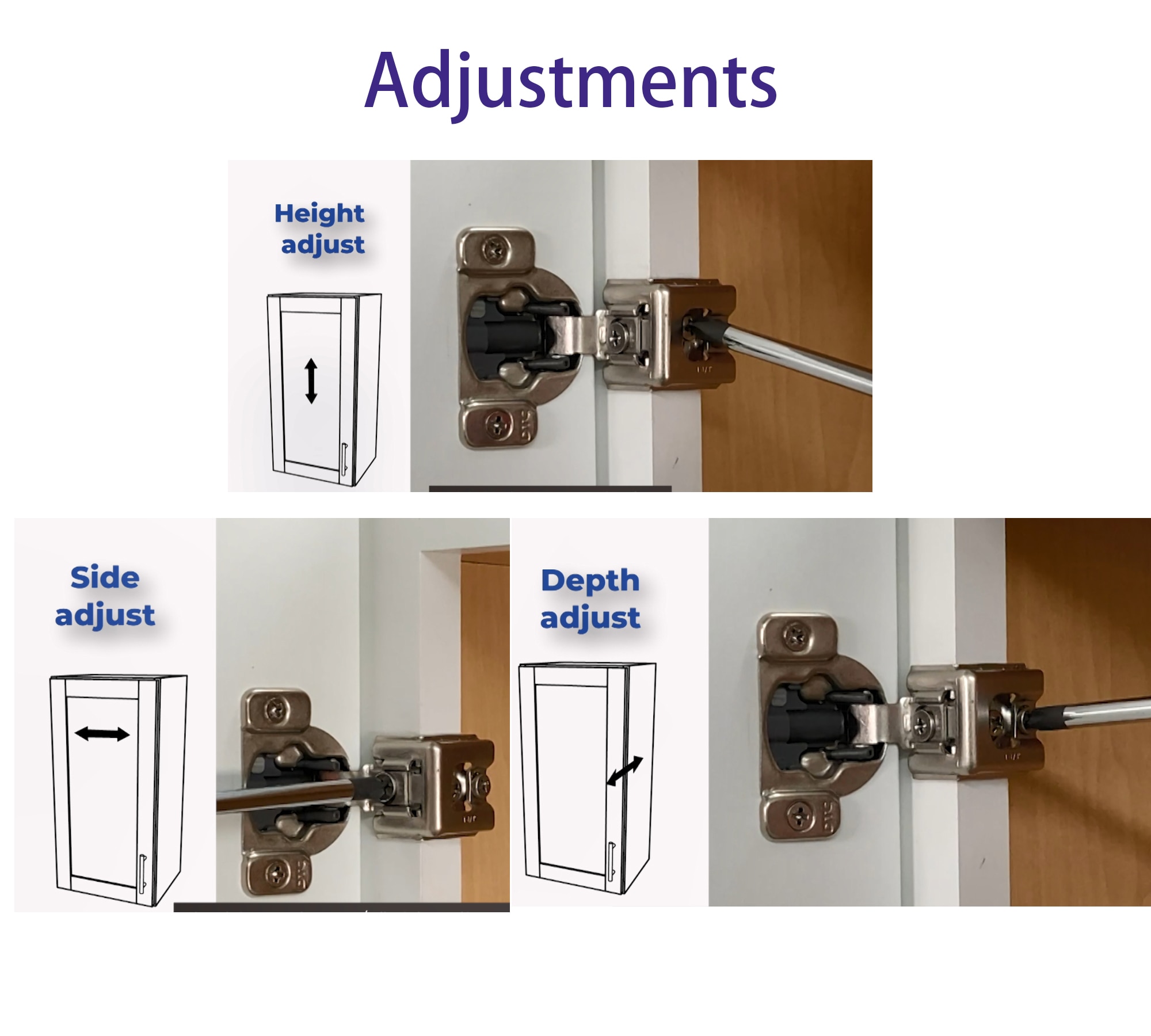

Integrated and adjustable dampening system provides soft-close functionality 6-Way adjustability
Material: Nickel plated steel

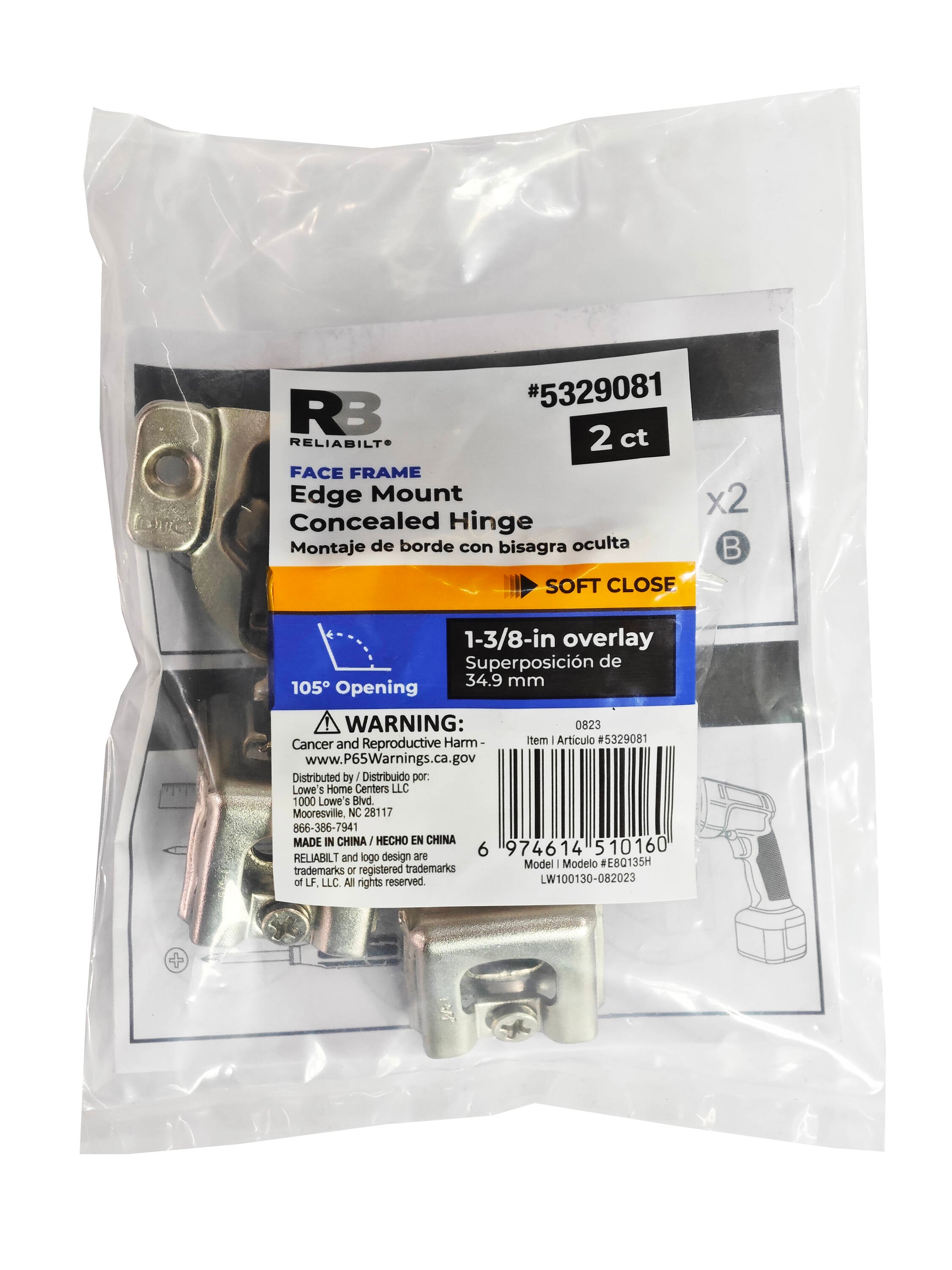

Pack Size: 2 hinges included; Number of Pairs: 1
Hardware Included: 4 pcs of flat head wood screws to mount the hinge cups and 2 pcs of pan head screws to mount the hinge arms; Hinge mounting in the door: 1-3/4” (35mm) diameter x 7/16” (11mm) deep hole, 1-3/4” (45mm) spread between mounting screws; Drill Bit Size: 3/32" (2.4 mm) pilot holes.
Limited Lifetime Warranty

General
Color/Finish Family	Chrome	Package Quantity	2
Hardware Finish	Brushed	Mounting Type	Concealed
Manufacturer Color/Finish	Nickel plated	Number of Pairs	1
Material	Steel	Hinge Type	Concealed
Style	Traditional	Cabinet Type	Face frame

Features
Hinge Opening (Degrees)	105	Self-Closing	No
Mounting Hardware Included	Yes	Soft Close	Yes
Overlay	1-3/8-in

Certifications
CA Residents: Prop 65 Warning(s)	Prop 65 WARNING(S) -

Warranty
Warranty	Limited lifetime

Miscellaneous
UNSPSC	31162400
