Simpson Strong-Tie ABA 6-in x 6-in ZMAX Wood to concrete (retrofit) Base
Item #88487 |
Model #ABA66Z
Shipping
Sat, Jul 18
242 available
Delivery
Unavailable
Attaches a post to existing concrete for decks, patio covers and other top-supported structures
Features 1-in standoff to help prevent rot at post end
Slotted for adjustability
Designed for versatility, cost-effectiveness and maximum uplift performance
Nominal post size: 6x6
Made from 14-gauge steel
ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install with 16d common nails or #10 x 1-1/2 Strong-Drive SD screws
General | |||
|---|---|---|---|
Finish | ZMAX | Material | Steel |
Manufacturer Color/Finish | ZMAX Galvanized, G185 | Package Quantity | 1 |
Series Name | ABA | Materials Connected | Wood to concrete (retrofit) |
Type | Base | Nails Required | 16D |
Dimensions | |||
|---|---|---|---|
Actual Depth (Inches) | 5.788 | Actual Width (Inches) | 5.519 |
Actual Weight (lbs.) | 1.6 | Common Measurement (T x W) | 6-in x 6-in |
Features | |||
|---|---|---|---|
Adjustable | Yes | Screws Included | No |
Gauge | 14 | Stainable/Paintable | No |
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | No | ||
Warranty | |||
|---|---|---|---|
Warranty | None | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 30102900 | ||
Check out the Best Selling Base & Cap Hardware on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
Customers overwhelmingly praise this post base for its durability, secure fit, and effectiveness in extending wood post life by preventing ground contact and moisture damage. Most highlight sturdy metal construction, easy installation, and reliable performance in deck applications. Many note the precise fit on standard posts and adjustability for alignment. While several mention the higher cost, most conclude it delivers long-term value and would purchase again. A few report fit issues with treated timber or installation concerns, but these are isolated. Overall, reviewers strongly recommend it for serious post protection.
Customer review summary generated by AI, including incentivized reviews.Easy to use
Easy to use. Sturdy, well made. Worked well for deck project.
Verified Purchaser
Ease of use
Fantastic! Made putting up my posts so much easier.
Verified Purchaser

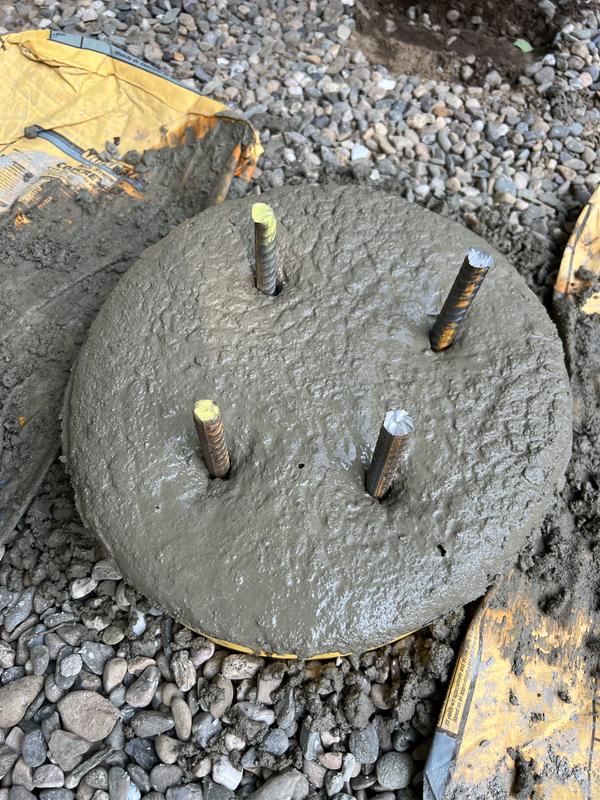

Worked great with J-Bolts for deck building
Work great to hold 6x6 to concrete. Make sure to use j-bolt wet set anchors if you want to work quickly. The screw in type need to let the concrete set for a couple weeks first. Remember these just prevent uplift - your posts will be wobbly still until adding the beams and joists, that’s normal.
Verified Purchaser
Not your average bracket
Very easy to install and a great product that’s been proven over time
No rot to bottom of wood post!
Best system for long-term preservation of wood post end when attaching the post to a concrete footing, it’s worth the investment, no more worrying about when your post will deteriorate!
Verified Purchaser
Worked really well for what I needed
Worked perfectly on the footers. I did have to ever so slightly shave down the edges of the 6x6 so it fit in the base and allowed for nailing it in, but was nothing major.
Verified Purchaser

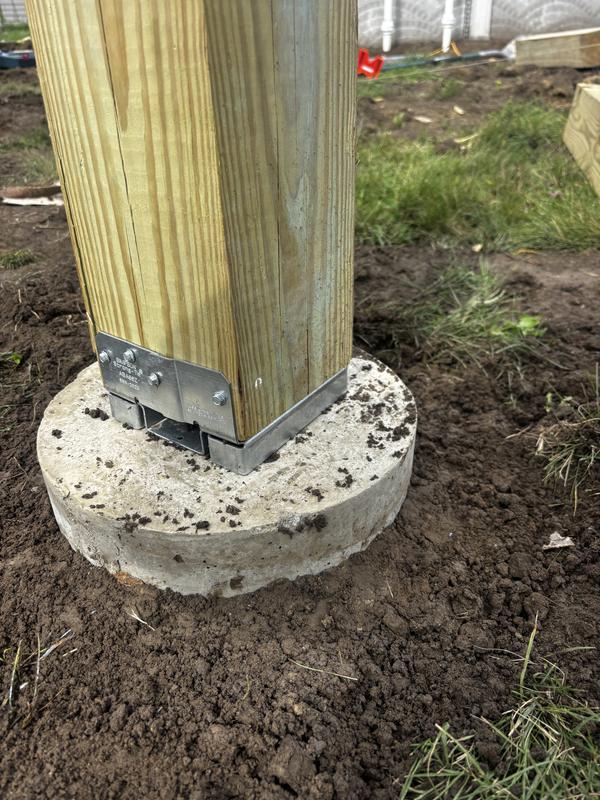

Good Support Base for 6x6 Posts
This 6x6 post metal base is a sturdy and effective product that was easy to install. I used it for my wood deck posts to secure it to the concrete and it provided a secure, sturdy and solid connection between the posts and concrete footings. The construction is durable, and the installation process was straightforward. Although they are pricey, I am very pleased with the quality and would recommend it to anyone building a deck or other outdoor structure.
Verified Purchaser
