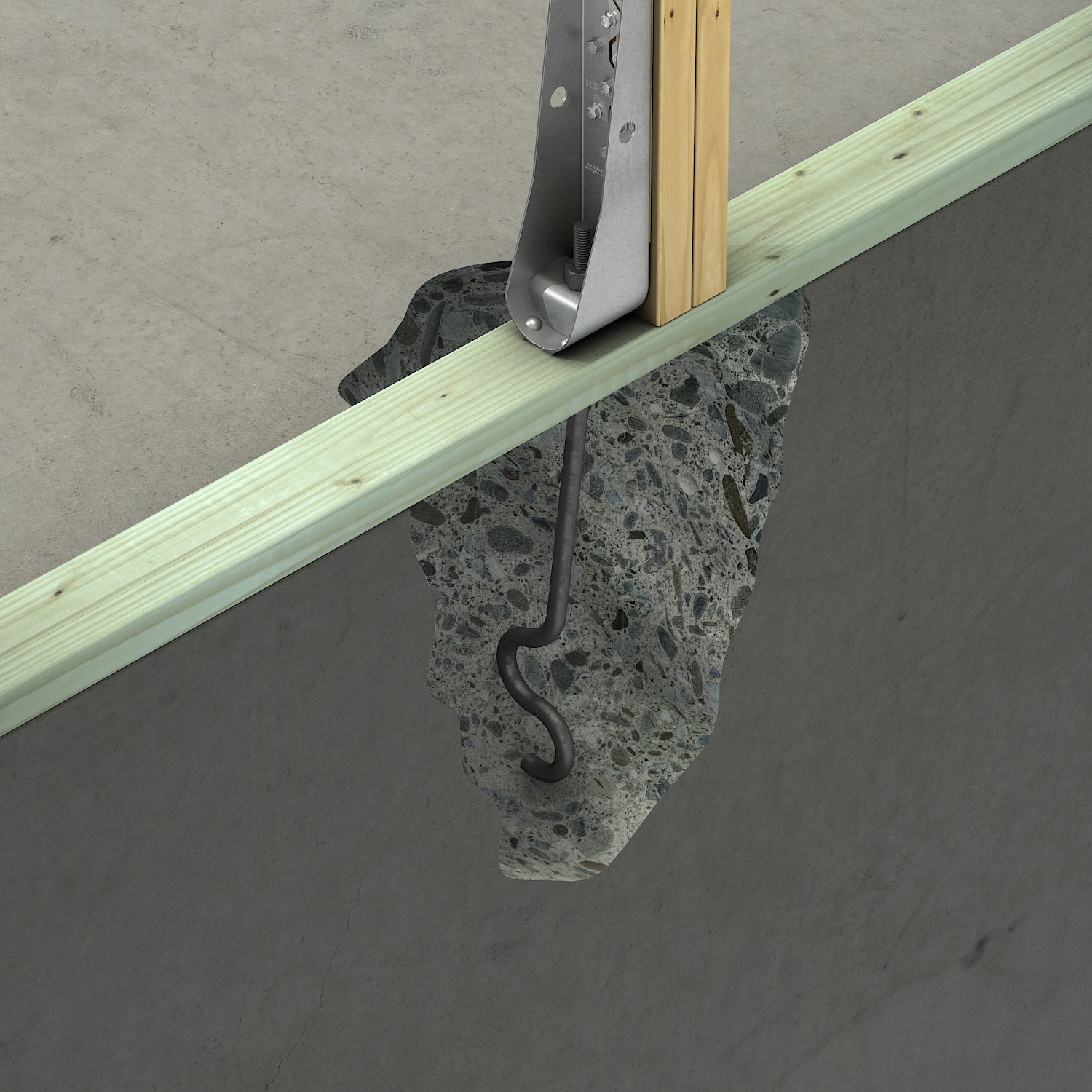

The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie Strong-Wall shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC and IRC.
Identification on the bolt head showing embedment angle and model
Offset angle reduces side bursting, and provides more concrete cover
Rolled thread for higher tensile capacity
Stamped embedment line aids installation
SSTB is suitable for monolithic and two-pour concrete applications
Diameter: 5/8-in
Length: 17-5/8-in
Material: ASTM F-1554, Grade 36
Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
