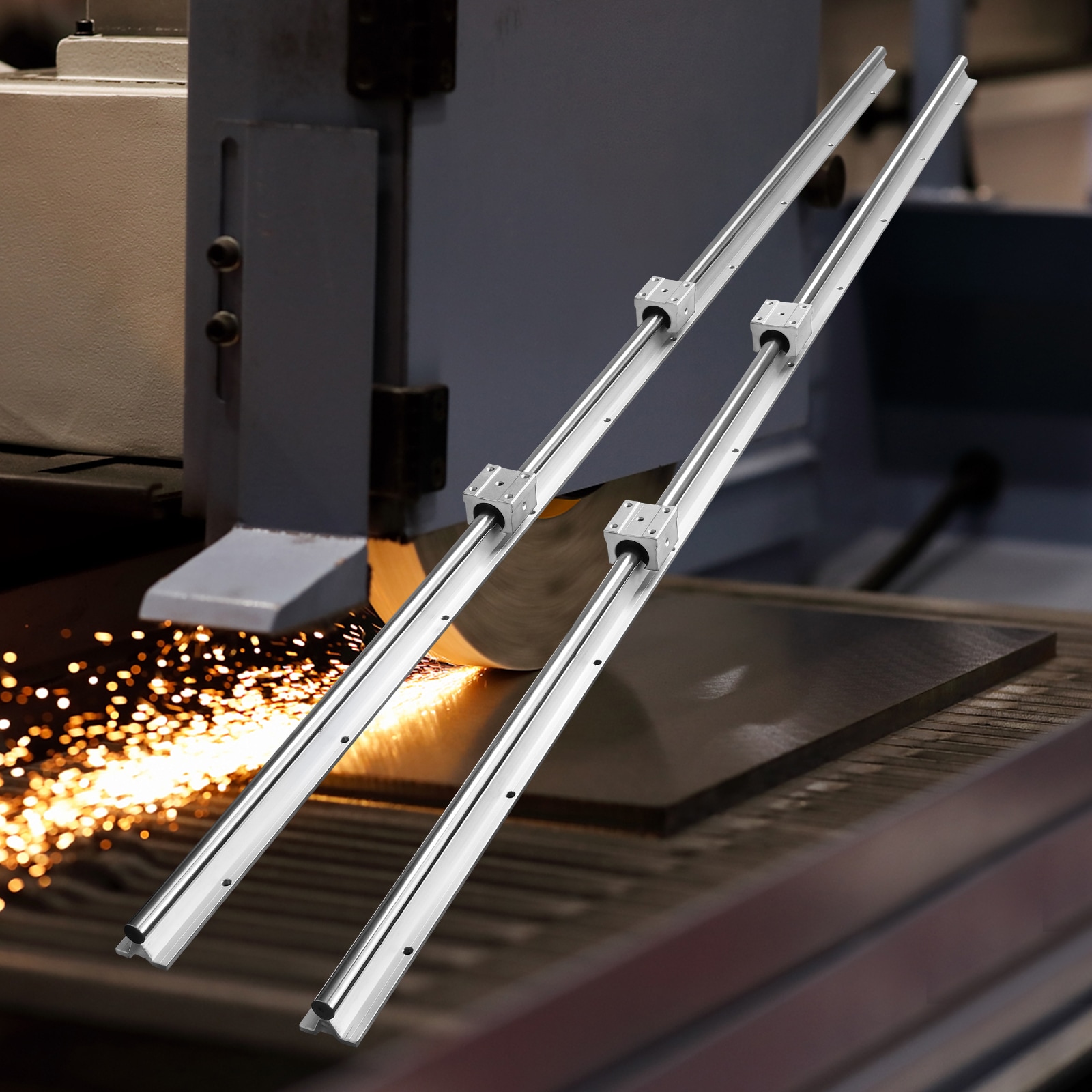

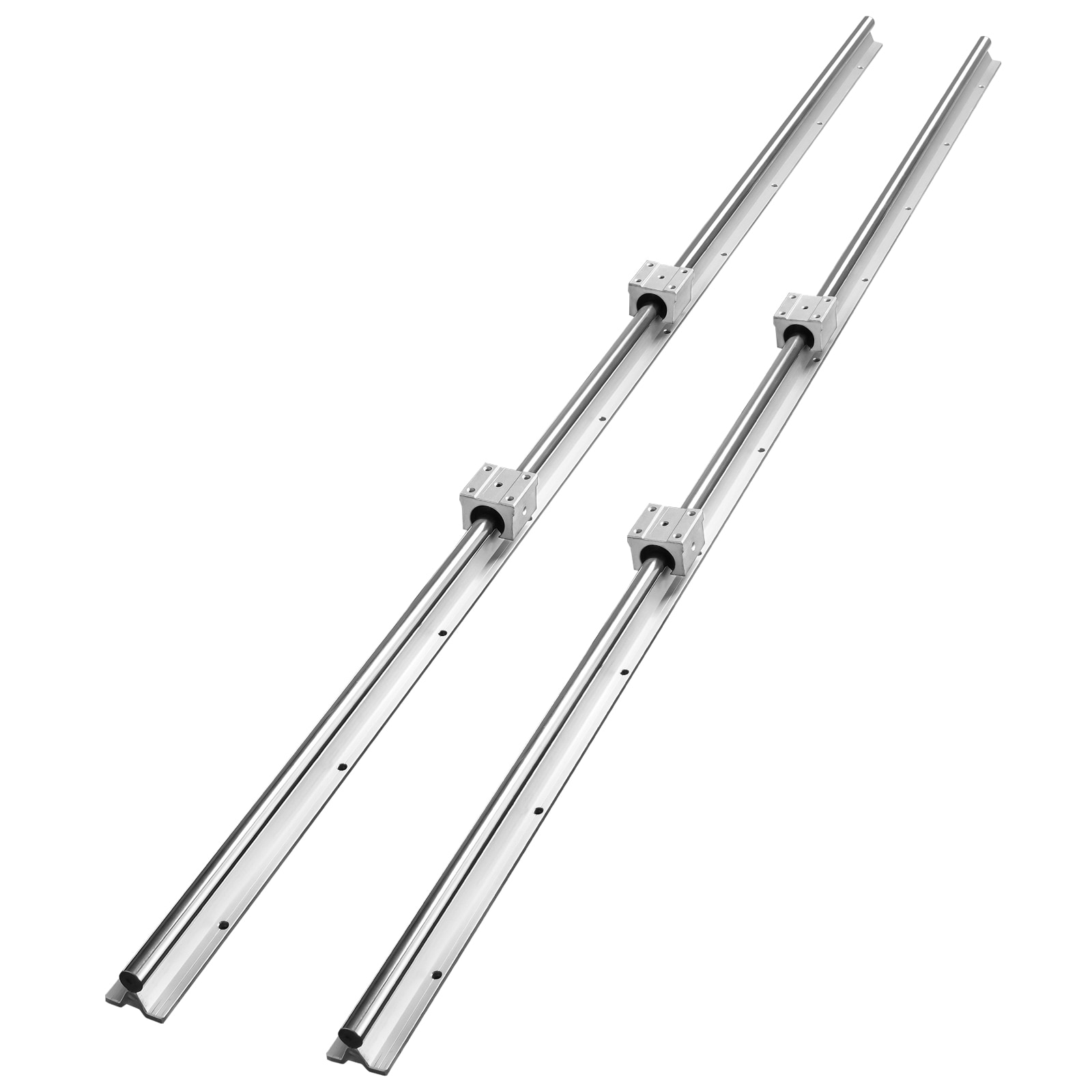

The SVOPES SBR Linear Guide Rail Set comes with two 1500mm guide rails and four SBR16UU slide blocks; Crafted from high-quality aluminum, the rails are designed for long-lasting performance, offering precise hole diameters and spacing for seamless alignment; The built-in ball bearings in the SBR slide blocks allow for smooth, frictionless movement, ensuring your equipment runs with minimal noise and wear; Ideal for CNC and other automated systems, this guide rail set is available in various sizes to meet your specific needs.

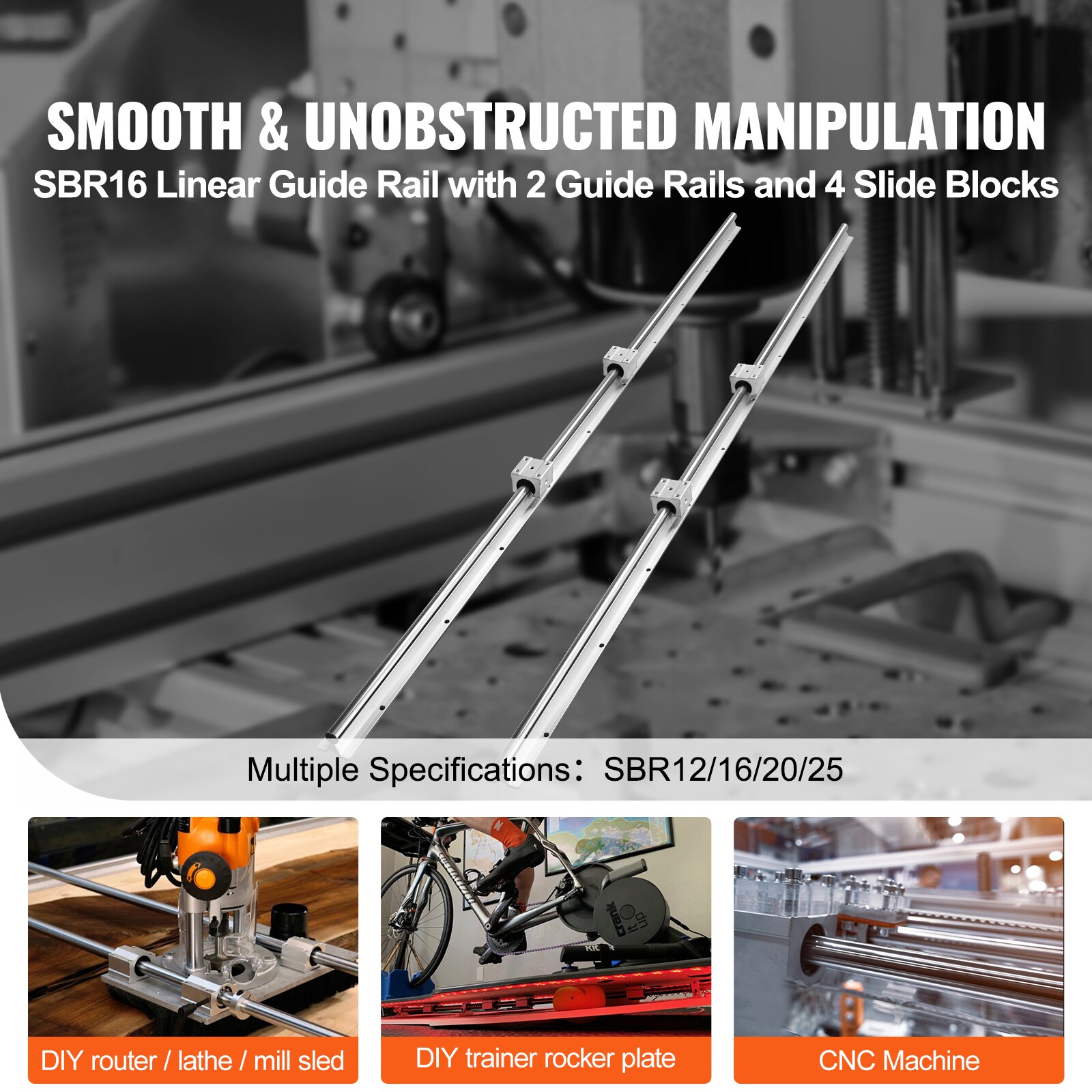

This linear rail kit is perfect for use in high-load automation equipment, CNC machines, 3D printers, laser engravers, and other DIY projects requiring reliable and precise linear motion.

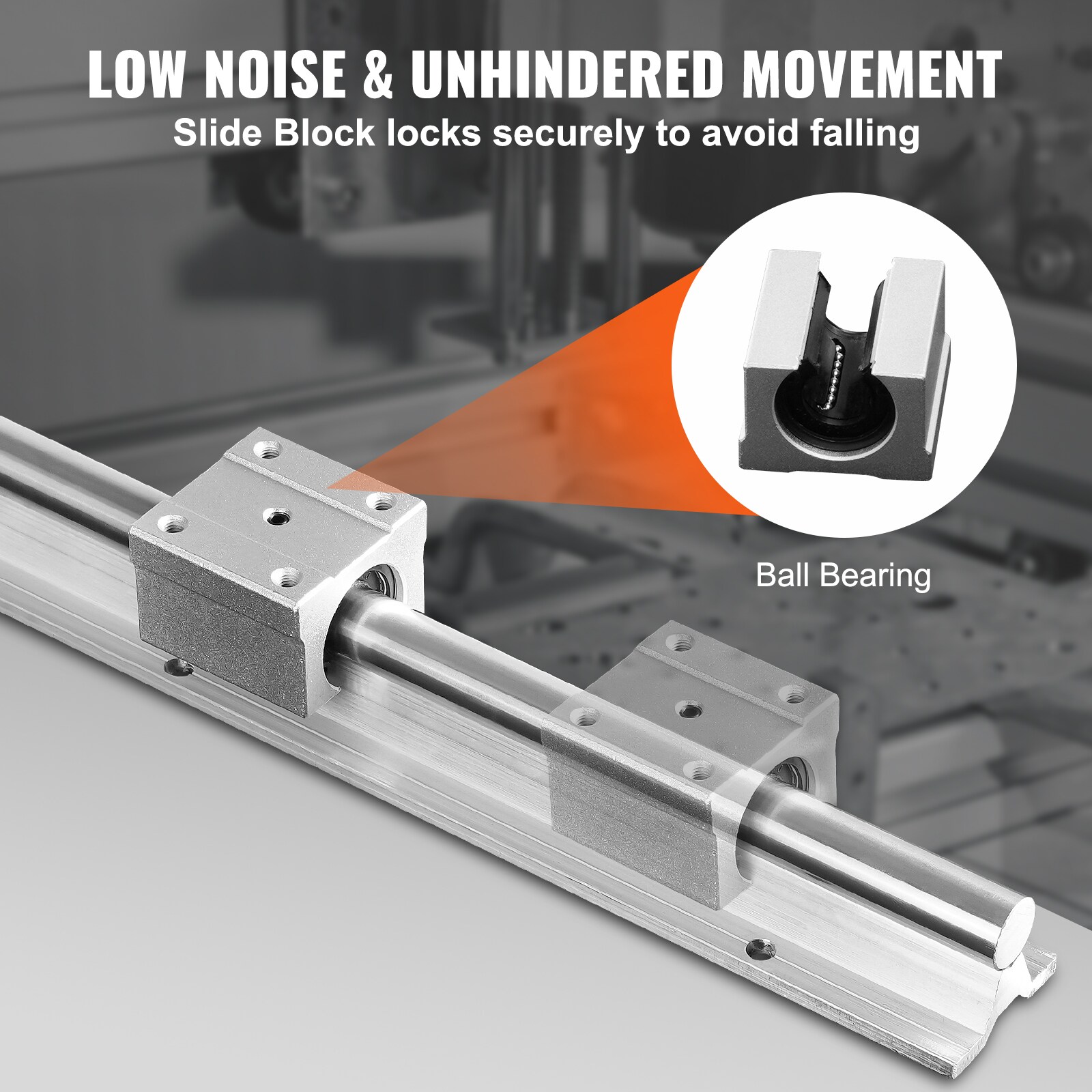

Thanks to the aluminum SBR slide block and integrated ball bearings, the linear guide rail system ensures smooth and continuous motion with minimal friction, enhancing long-term operation stability.
The chrome-plated surface of the linear shaft offers excellent corrosion resistance, making it resistant to humid conditions and providing enhanced durability even in high-temperature environments.
The system’s precise hole spacing, shaft diameter, and motion guides allow for accurate equipment setup, ensuring optimal performance and precision in automated processes and DIY projects.
The pre-assembled system includes the shaft, supports, and sliding blocks with mounting holes for easy installation; The tightness of the sliding bearings can be adjusted via a side screw hole for fine-tuning.
The all-metal bearing structure and tightly locked slide blocks ensure high load-bearing capacity, providing stability and strength for heavy-duty operations in various applications.
High-Load Capacity for Tough Tasks: This SBR16-1500mm linear guide set includes two 59-inch rails and four SBR16UU slide blocks; Designed to support heavy-duty operations, each block handles a dynamic load of 774 N and static load of 1180 N.

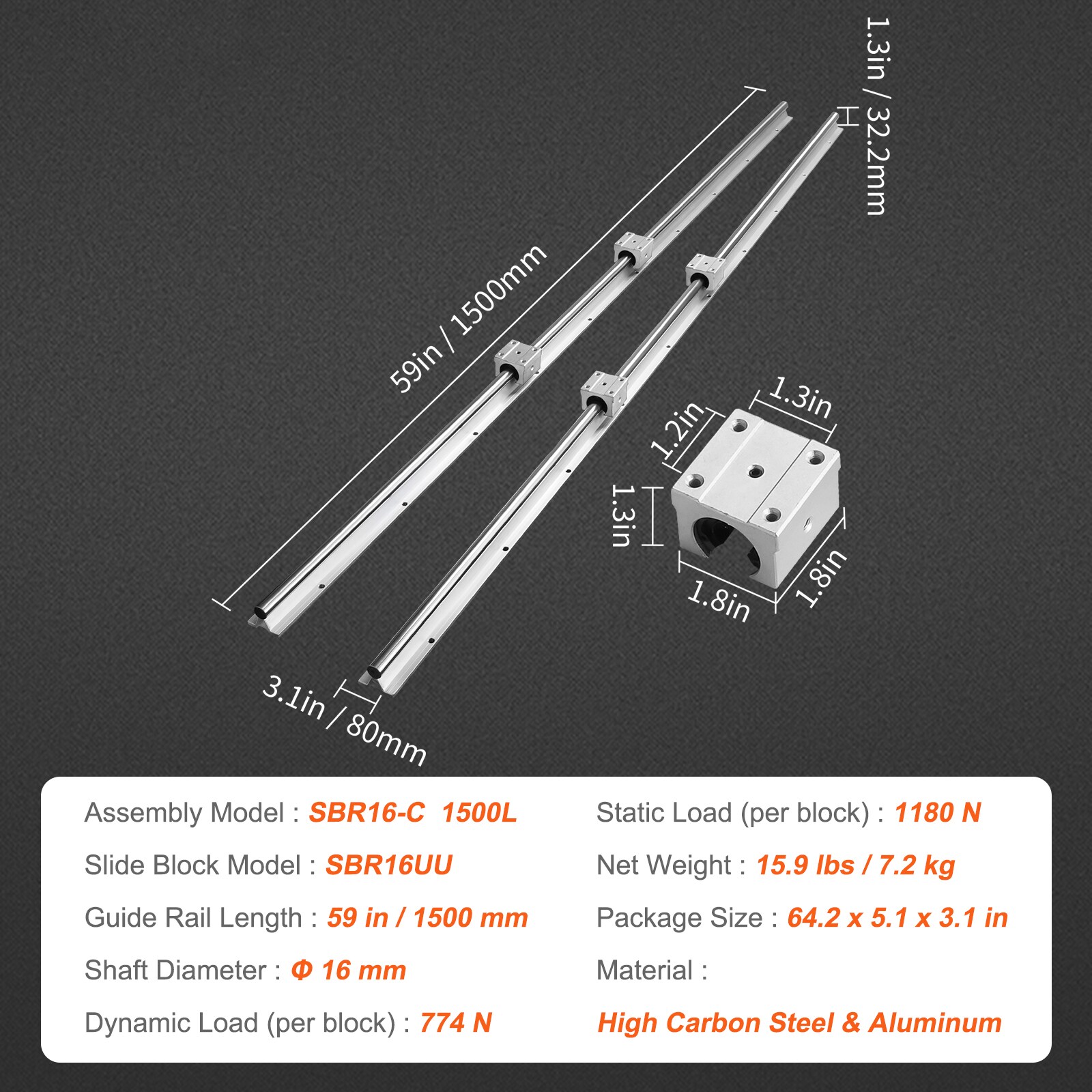

Model Number: SBR16-C 1500L,
Slide Block Model: SBR16UU,
Material: High Carbon Steel & Aluminum,
Mounting Hole Distance A: 32 mm / 1.3 in,
Mounting Hole Distance B: 30 mm / 1.2 in,
Slide Block Size (L x W x H): 45 x 45 x 33 mm / 1.8 x 1.8 x 1.3 in,
Product Dimensions (L x W x H): 1500 x 80 x 32.2 mm / 59 x 3.1 x 1.3 in,
Package Size (L x W x H): 1630 x 130 x 80 mm / 64.2 x 5.1 x 3.1 in,
Guide Rail Length: 1500 mm / 59 in,
Shaft Diameter: Φ16 mm,
Dynamic Load (per block): 774 N,
Static Load (per block): 1180 N,
Net Weight: 7.2 kg / 15.9 lbs.
4 x SBR16UU Sliding Blocks,
2 x 1500mm SBR16 Linear Guide Rails with Supports.
