The lathe features an MT2 taper for optimal precision and the flexibility to adjust your setup for secure and accurate machining; With a swing over the bed of 7.09" (180 mm) and a swing over the cross slide of 13.78" (350 mm), this machine is capable of handling large workpieces and complex projects with ease.

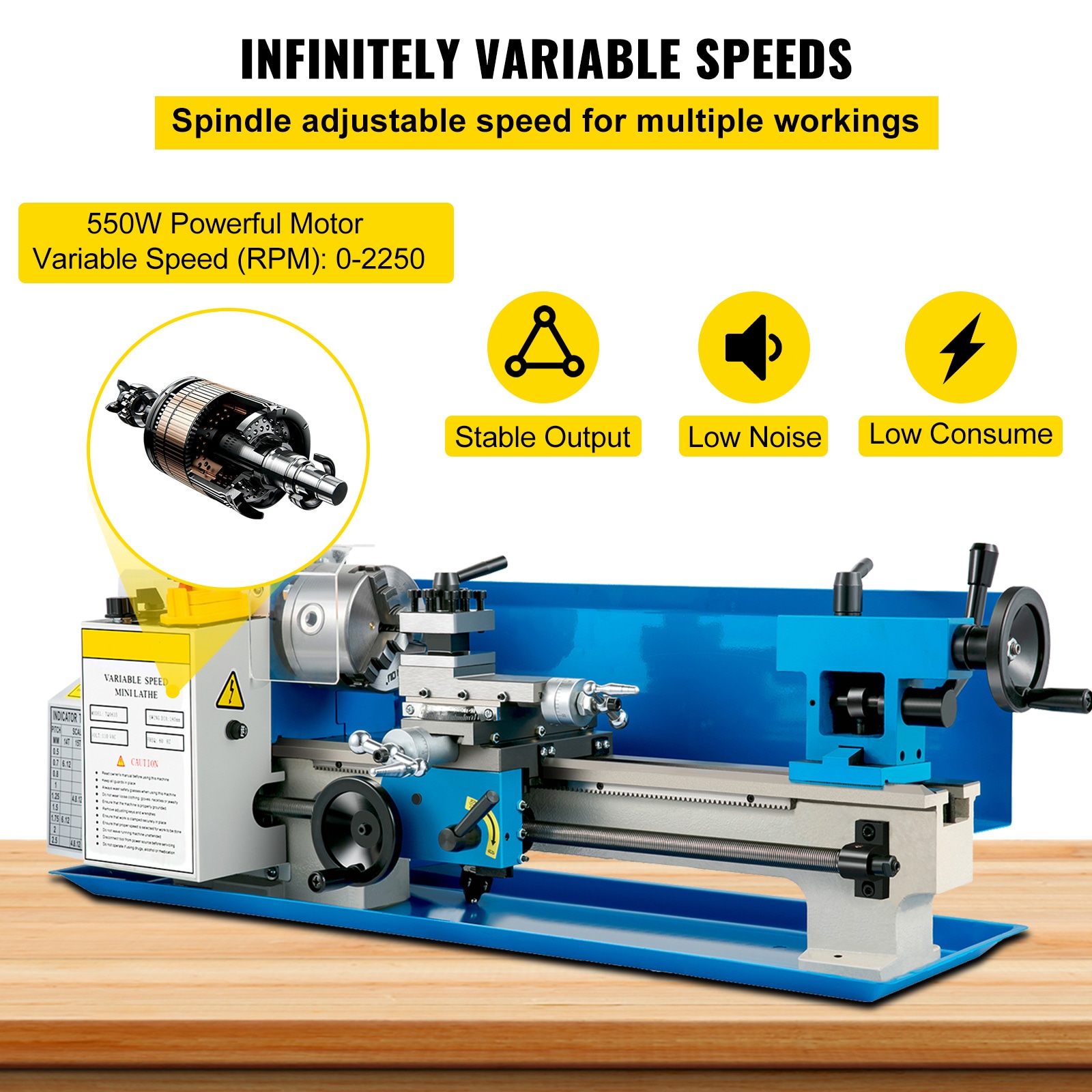

Equipped with a variable speed range from 0 to 2250 RPM, this lathe offers precise control over your work; The feed speed is customizable to meet the demands of different materials and tasks; A wide-through hole shaft is included, preventing obstruction when working with long pieces.
The lathe is built with a robust cross slide that ensures smooth blade movement; Featuring a 16 TPI reversible lead screw and v-slideways, it supports accurate cutting operations with ease; The lathe's 13.78" (350 mm) distance between centers allows for smooth, uninterrupted machining.

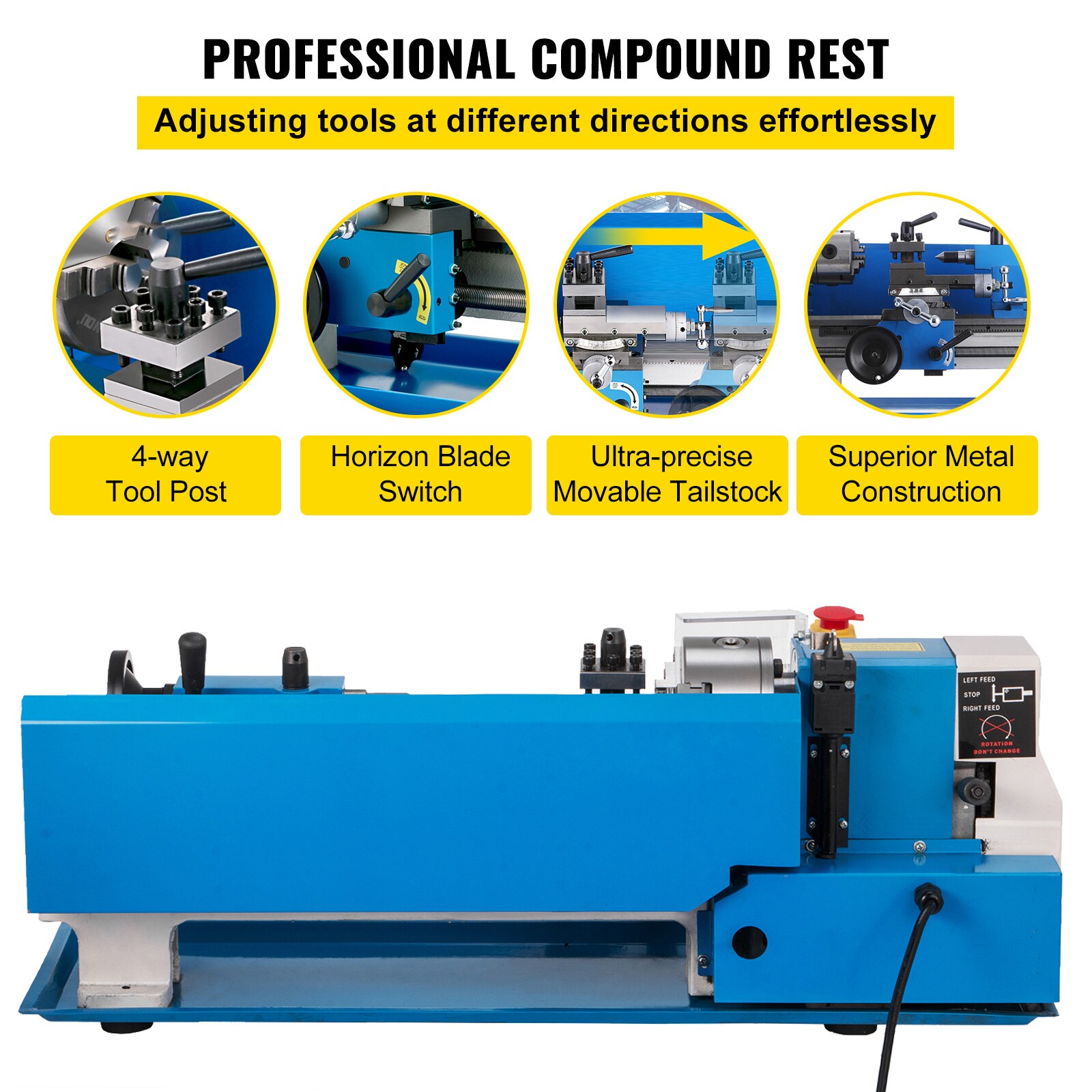

The T-slotted compound slide includes a four-way tool post, allowing you to hold up to four cutting blades at once; This setup makes it easy to switch between tools quickly; You can also adjust the compound rest to perform bevel cuts by simply rotating the lever, adding versatility to your cuts.

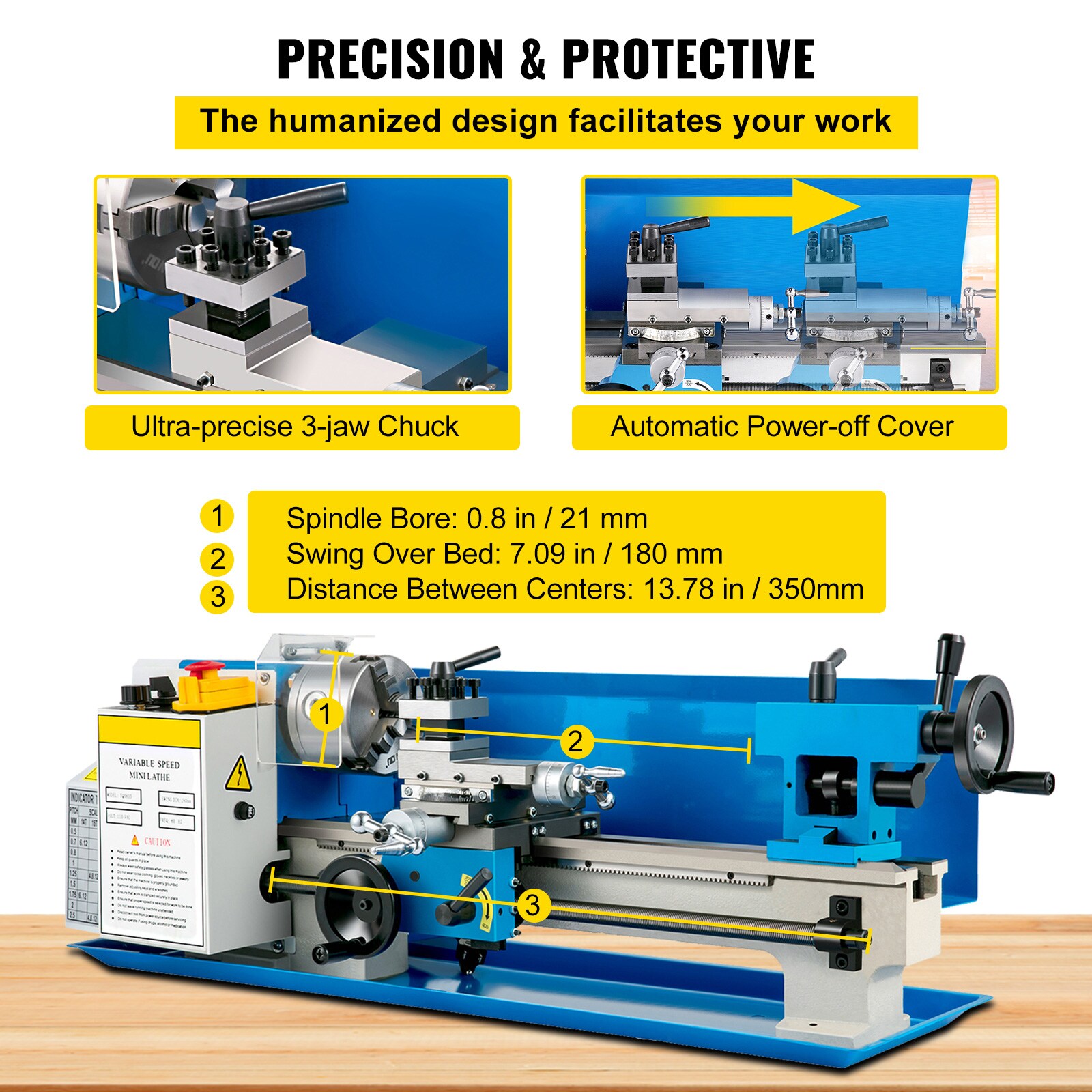

The self-centering 3-jaw chuck is designed for high accuracy and repeatability, securely holding cylindrical workpieces; With a spindle supported by precision ball bearings, you can rely on the lathe for highly accurate results, with spindle tolerance within 0.01 mm; A protective backsplash guard adds an extra layer of safety.
The tailstock is designed to support workpieces of varying lengths by sliding along the bed; Compatible with any MT2 taper, the tailstock can be easily adjusted to maintain steady and secure operation during machining, making it ideal for different types of projects.

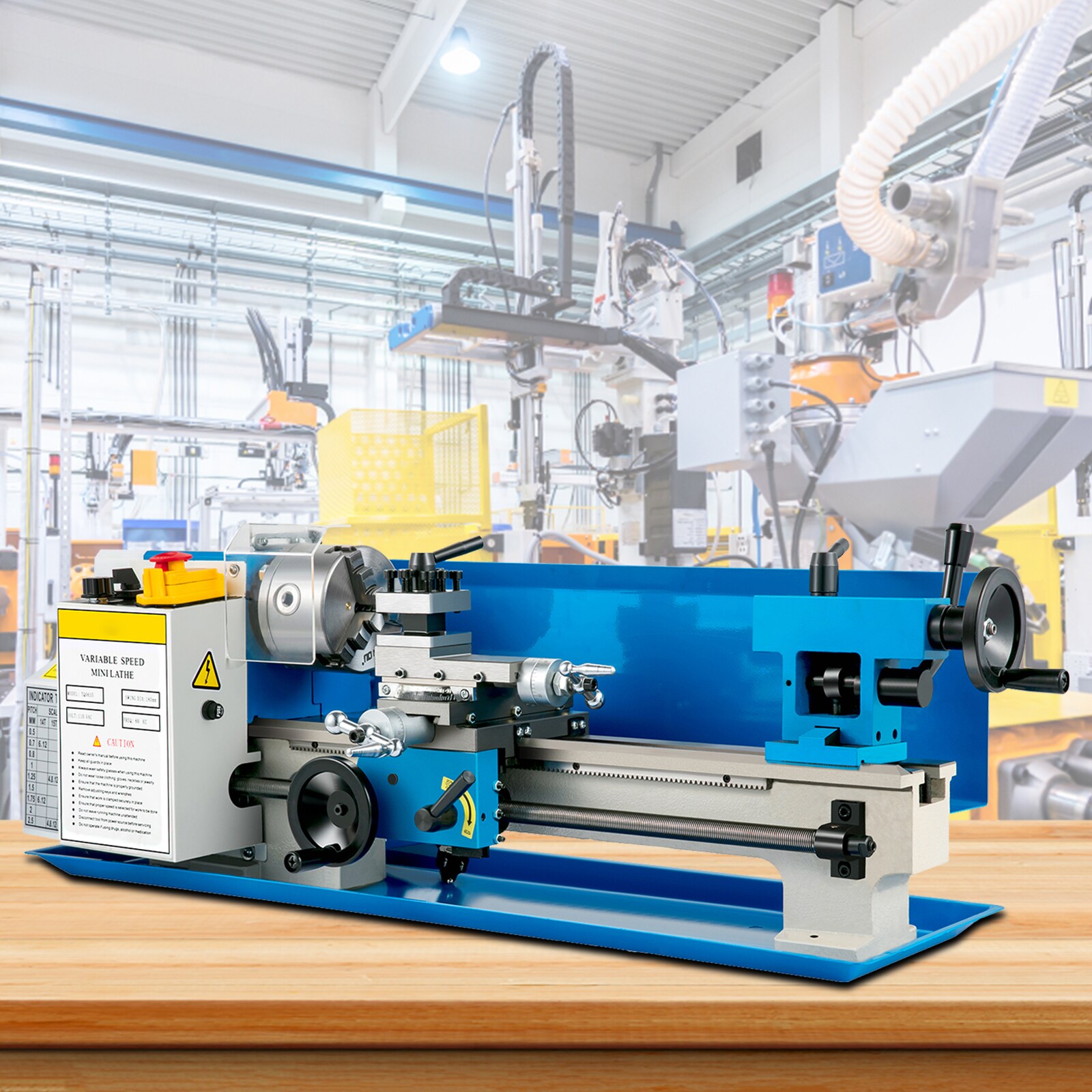

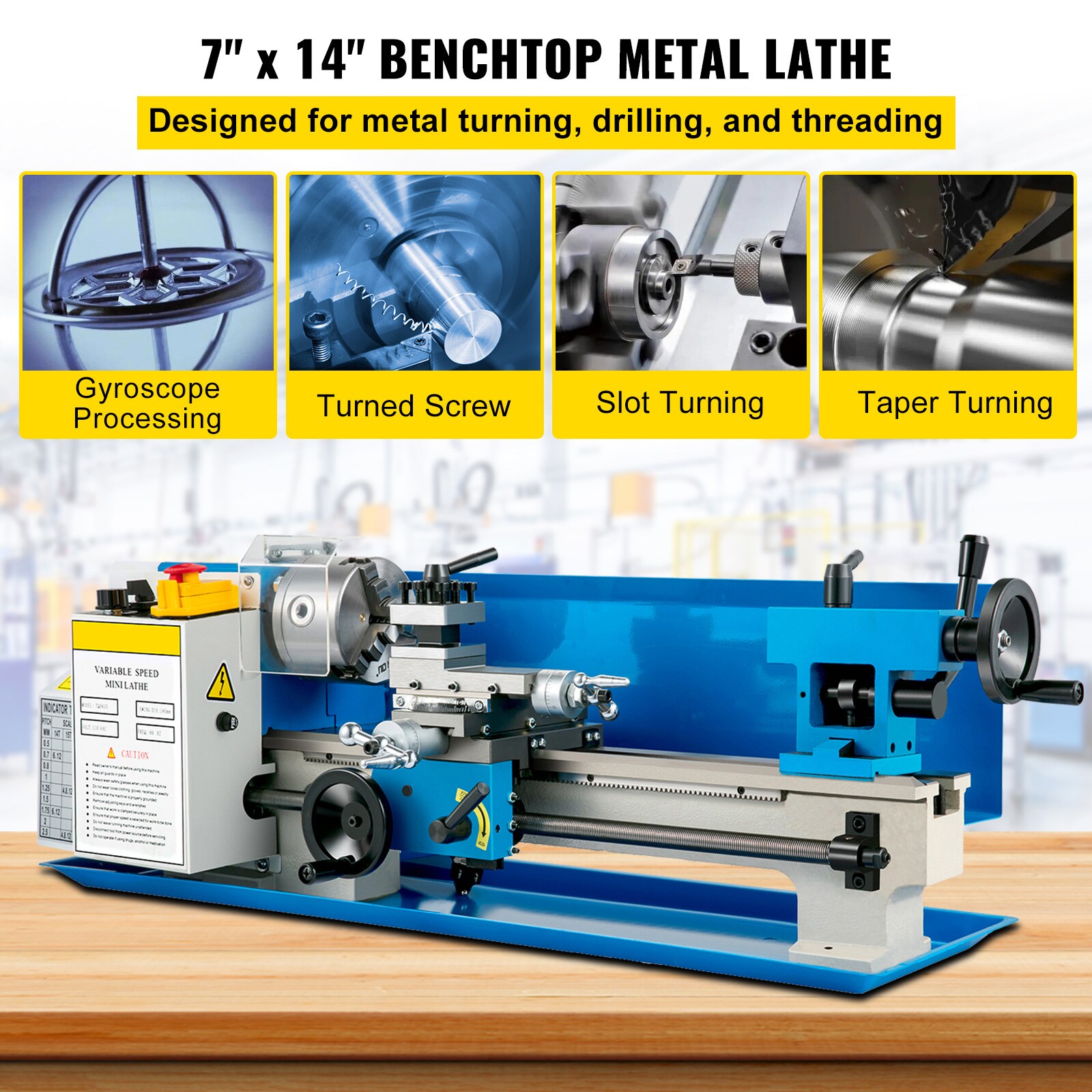

Wide Range of Applications: Powered by a DC motor, this mini lathe is ideal for precision work such as mini parts processing, prototype creation, and model crafting; Whether you're working with metals, plastics, or other materials, this versatile machine helps bring your projects to life with ease.
Power of Motor: 550W DC Single Phase,
Spindle Speed: 0 - 2250 RPM,
Swing Over Bed: 180 mm / 7.09",
Swing Over Cross Slide: 110 mm / 4.3",
Chuck Diameter: 100 mm / 3.94",
Centers Distance: 350 mm / 13.78",
Spindle Bore: 20 mm / 0.79",
Cross Slide Travel: 65 mm / 2.53",
Top Slide Travel: 35 mm / 1.36",
Spindle Accuracy: 0.01 mm / 0.0004",
Inch Thread: 12 - 52 T,P,I,
Metric Thread: 0.5 - 2.5 mm,
Net Weight: 46.6 kg / 102.7 lbs,
Item Dimensions (L x W x H): 74.7 x 22 x 27.4 cm / 29.4 x 8.7 x 10.8 in,
Spindle Taper: MT3,
Tailstock Taper: MT2.
1 x Lathe Center,
1 x Chuck Wrench,
2 x Wrenches,
1 x Oil Can,
5 x Hex Wrenches,
9 x Plastic Nylon Gears,
2 x Handles,
4 x Rubber Feet,
4 x Screws,
1 x Tool Box,
1 x Mini Metal Lathe,
3 x Chuck Jaws.
