Discover reliable protection with our linear actuator, designed with an IP65 rating to provide excellent resistance against dust and water; Built for outdoor environments and damp conditions, it is well-suited for use in applications such as lawn mowers, solar panel tracking systems, and irrigation setups.
This electric linear actuator is equipped with a 20-inch (500mm) stroke, providing a wide range of motion suitable for applications requiring significant extension.
Operating at noise levels under 60db, this 12V linear actuator seamlessly fits into various applications such as furniture, automation systems, mechanical devices, transportation, and more.
Simplify your daily tasks and operations with this linear motion actuator; Ideal for applications such as solar panel tracking, irrigation setups, mechanical devices, and lawn care equipment, it enhances convenience, efficiency, and smart functionality in both residential and professional environments.

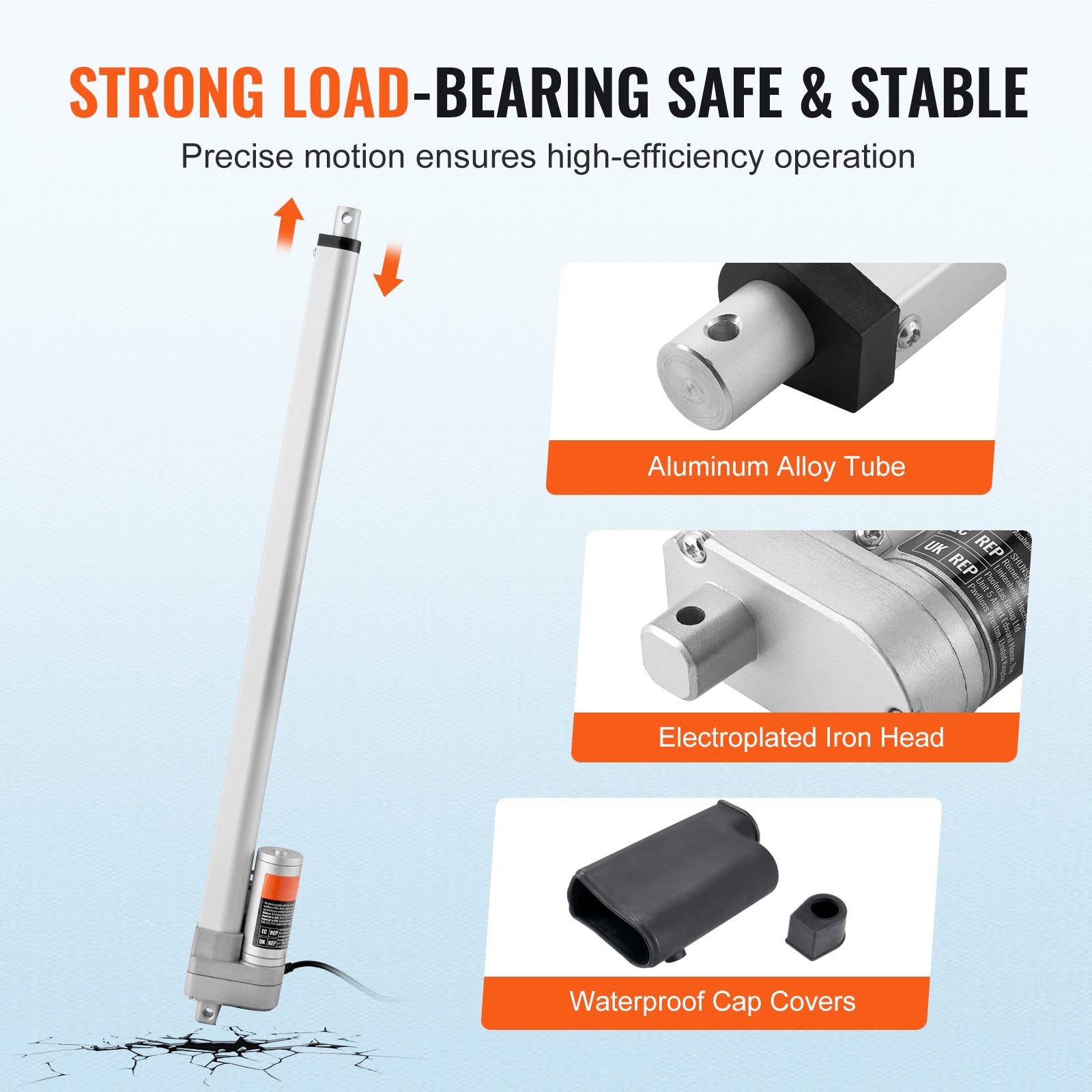

Designed with attention to detail and constructed from durable materials, this stroke linear actuator delivers reliable precision and robust performance, enhancing its longevity; Built to withstand regular operation, it provides consistent stability, ensuring dependable support for a wide range of applications.

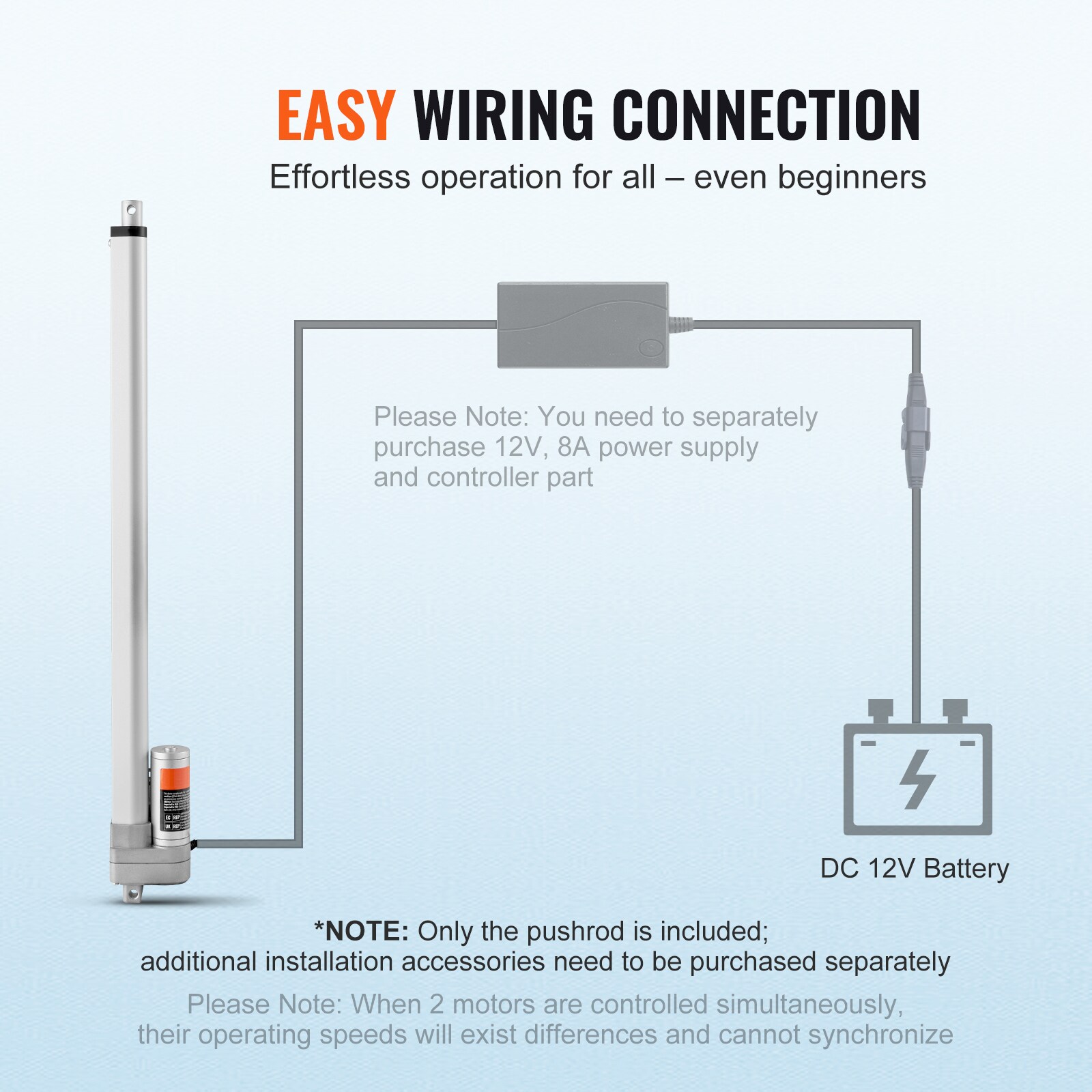

To achieve precise motion control, it is recommended to pair the linear actuator with a compatible controller; Please be aware that this package includes only the actuator rod, and any additional installation components must be acquired separately.

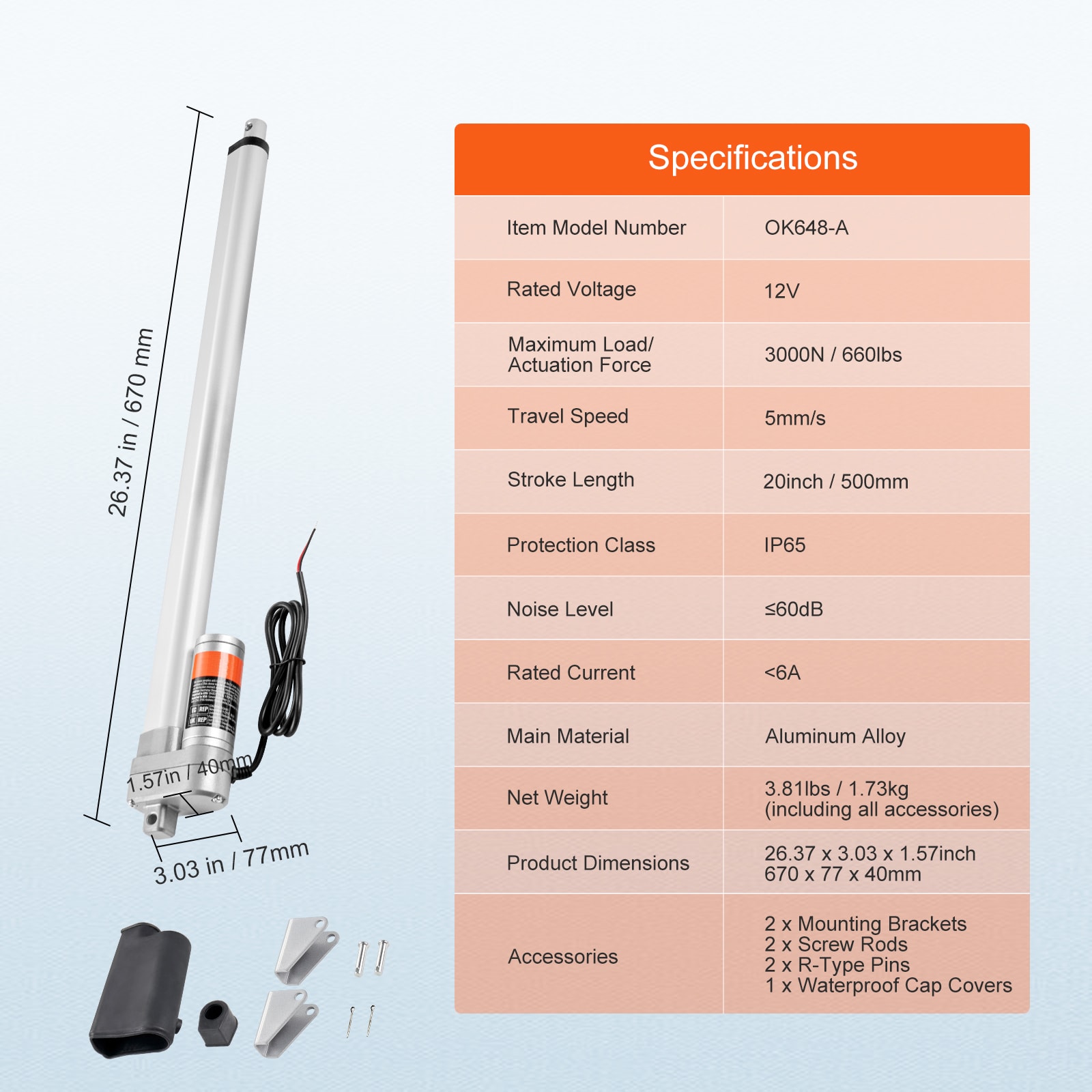

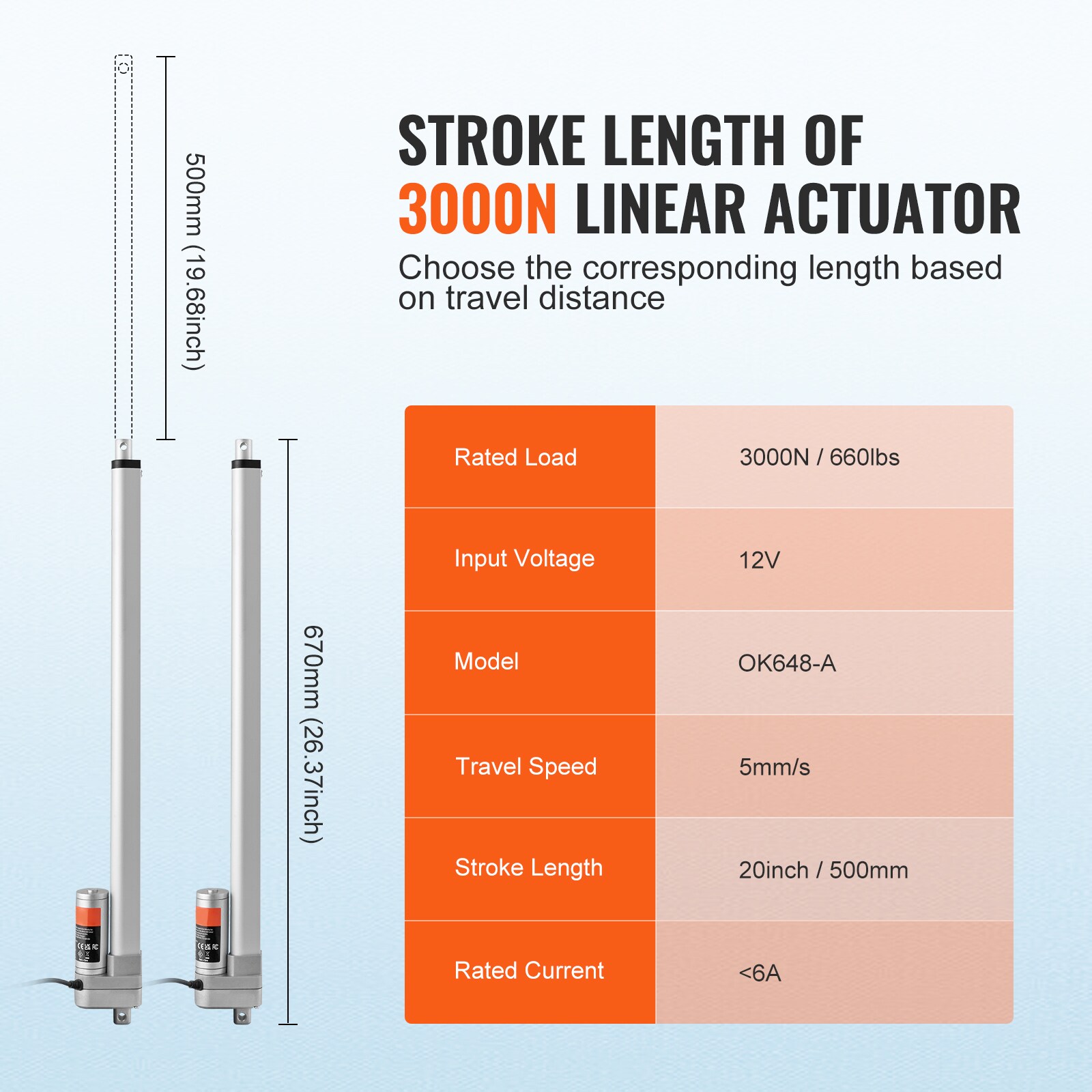

Specifications Overview: Stroke Length: 20 inches (500 mm); Movement Speed: 0.19 inches per second (5 mm/s); Collapsed Length: 26.37 inches (670 mm); Fully Extended Length: 46.37 inches (1170 mm); Power Consumption: 6 amps; Operating Voltage: DC 12V; Usage Cycle: 25%
Item Model Number: OK648-A,
Rated Voltage: DC12V,
Maximum Load/Actuation Force: 3000N,
Travel Speed: 0.19inch/s / 5mm/s,
Stroke Length: 20 inch / 500 mm,
Protection Class: IP65,
Noise Level: ≤60dB,
Main Material: Aluminum Alloy,
Net Weight: 3.81 lbs / 1.73 kg (including all accessories),
Product Dimensions: 26.37 x 3.03 x 1.57 inch / 670 x 77 x 40 mm.
2 x Mounting Brackets,
2 x Screw Rods,
2 x R-Type Pins,
2 x Waterproof Cap Covers.
