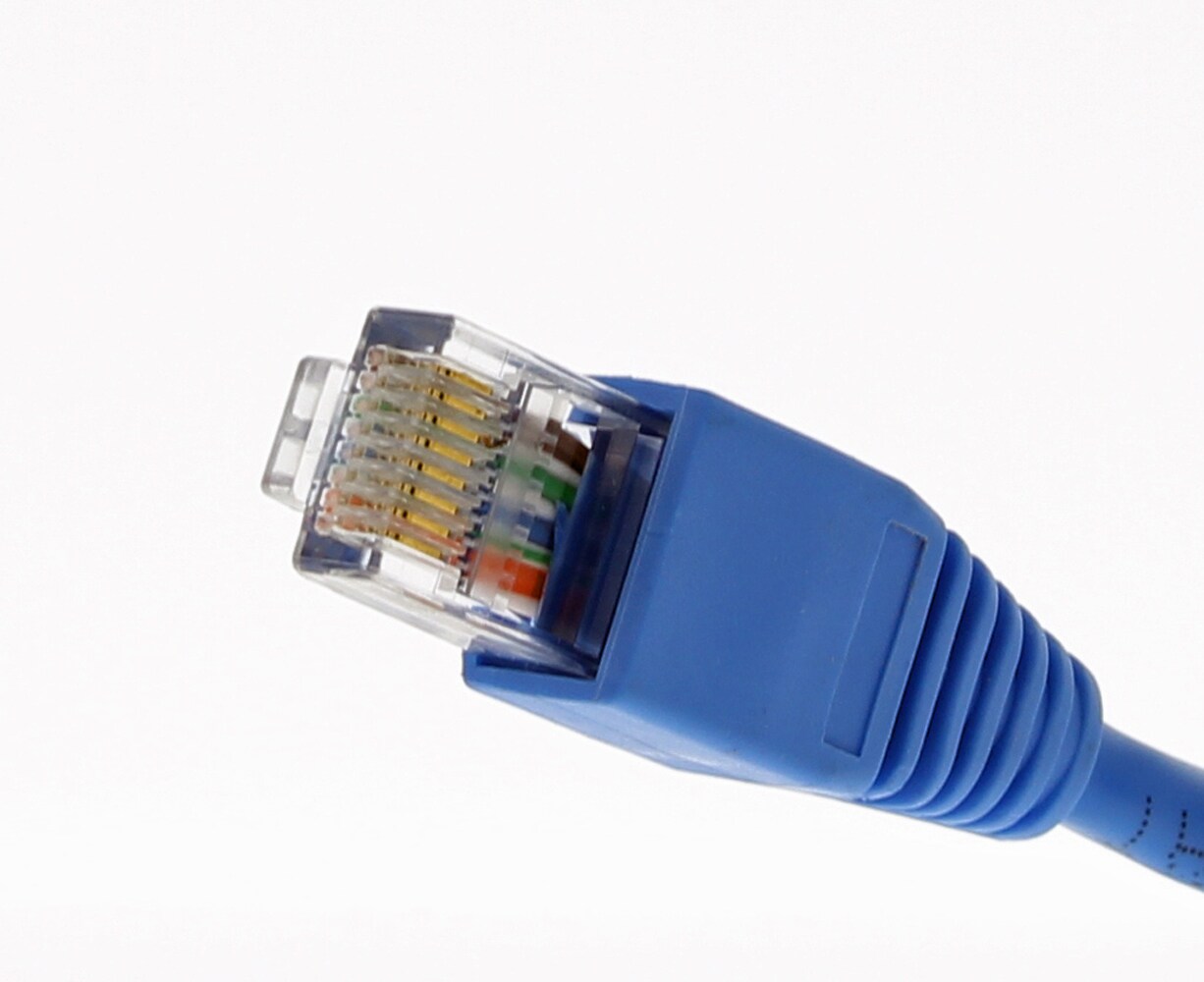

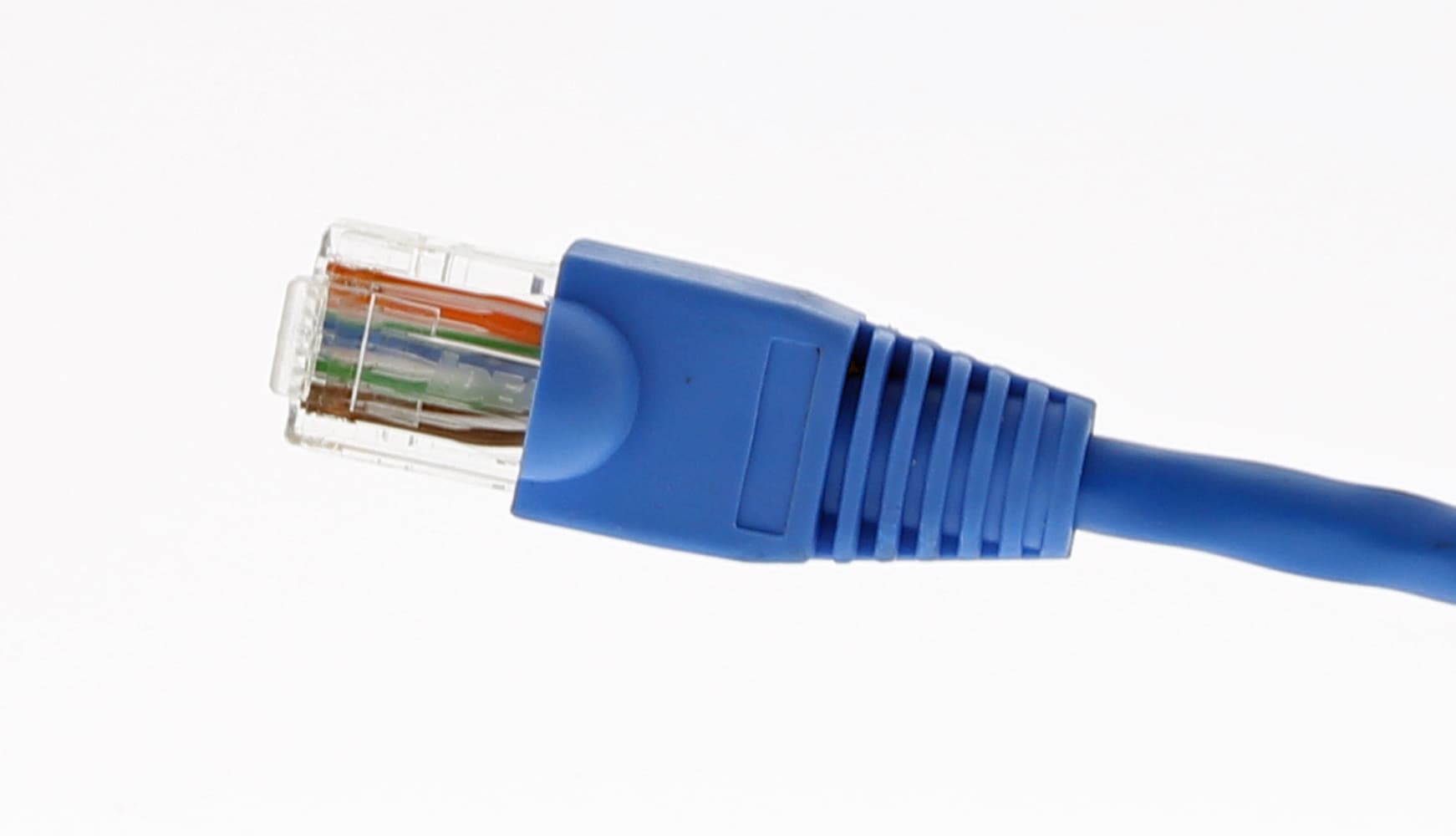

Cat 5e 8P8C (eight position/eight contact) modular plug connectors which support TIA/EIA standards for twisted pair cabling up to 100 MHz. IDEAL modular plugs are designed to work seamlessly with the IDEAL Telemaster series of modular plug Crimp Tool. Plugs are designed and manufactured to support all 100 Ohm cable wiring schemes including the widely used TIA-568A and TIA-568B configurations. IDEAL modular plugs are manufactured to strict industry standards and tolerances that utilize traditional preparation and termination methods. These proven and preferred methods allow for improved compatibility among manufacturers and devices around the world without the need for special tooling or preparation methods and eliminate the risk of shorts and crosstalk often associated with open end or feed through type connectors.
For field-terminating Cat 5e wire
8-Position, 8-contact design with 50-micron gold contacts
Suitable for use with solid or stranded 22 - 24 AWG conductors
Strain-relief boot minimizes cable bends and helps prevent broken connector tabs
Installs with a standard RJ-45 crimp die
Minimizes cable bends that can reduce data speed and result in data loss
Dampens cable movement and vibrations that can result in premature connector failure
15 Individual pieces are included in the package
