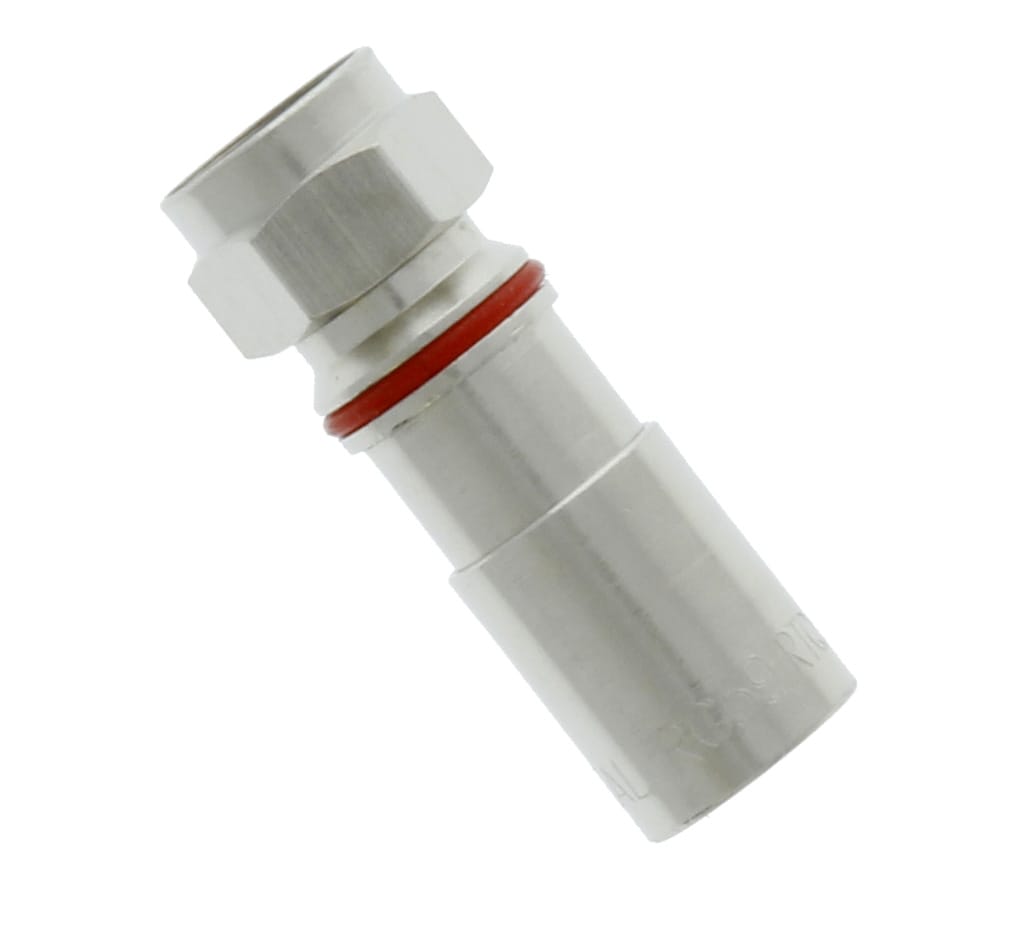

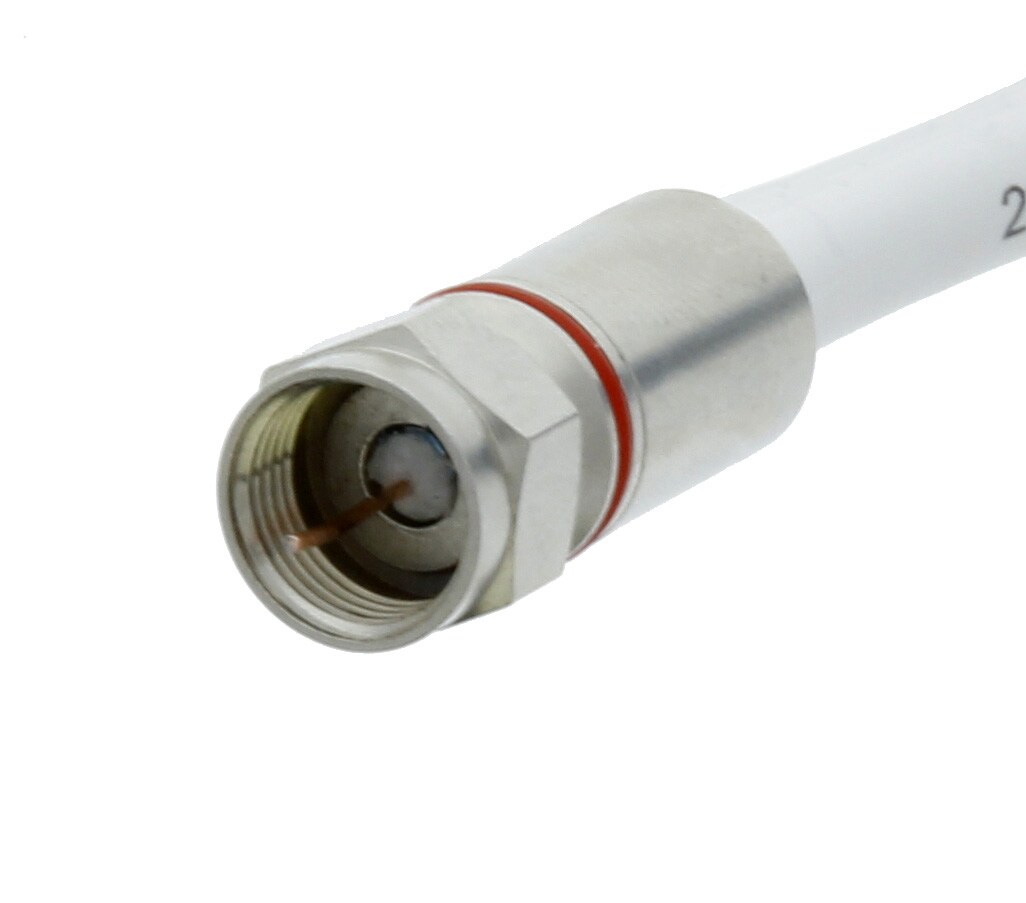

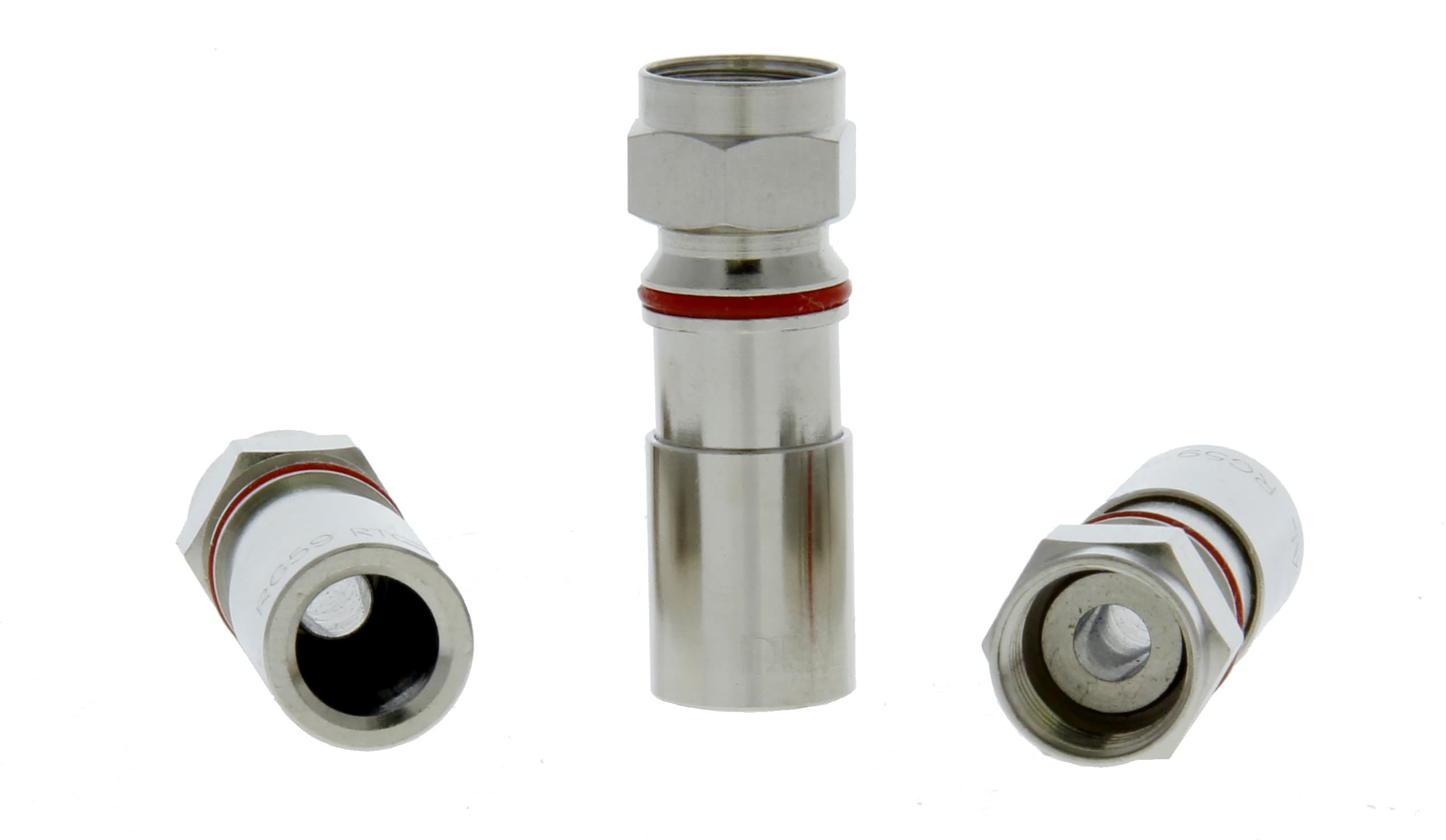

The IDEAL RTQ series of F connectors offers a single connector solution to cover a range of coax types. A patented compression sleeve design allows regular (dual), ti, and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.
Cable specific - accepts RG-59/RG-59 Quad coax cables, dielectric diameter range 0.135 in. to 0.148 in., outer jacket diameter range 0.220 in. to 0.270 in., center conductor range: all
Nickel-plated brass construction offers corrosion resistance
Fits 60% regular, tr-shield and quad-shield cables

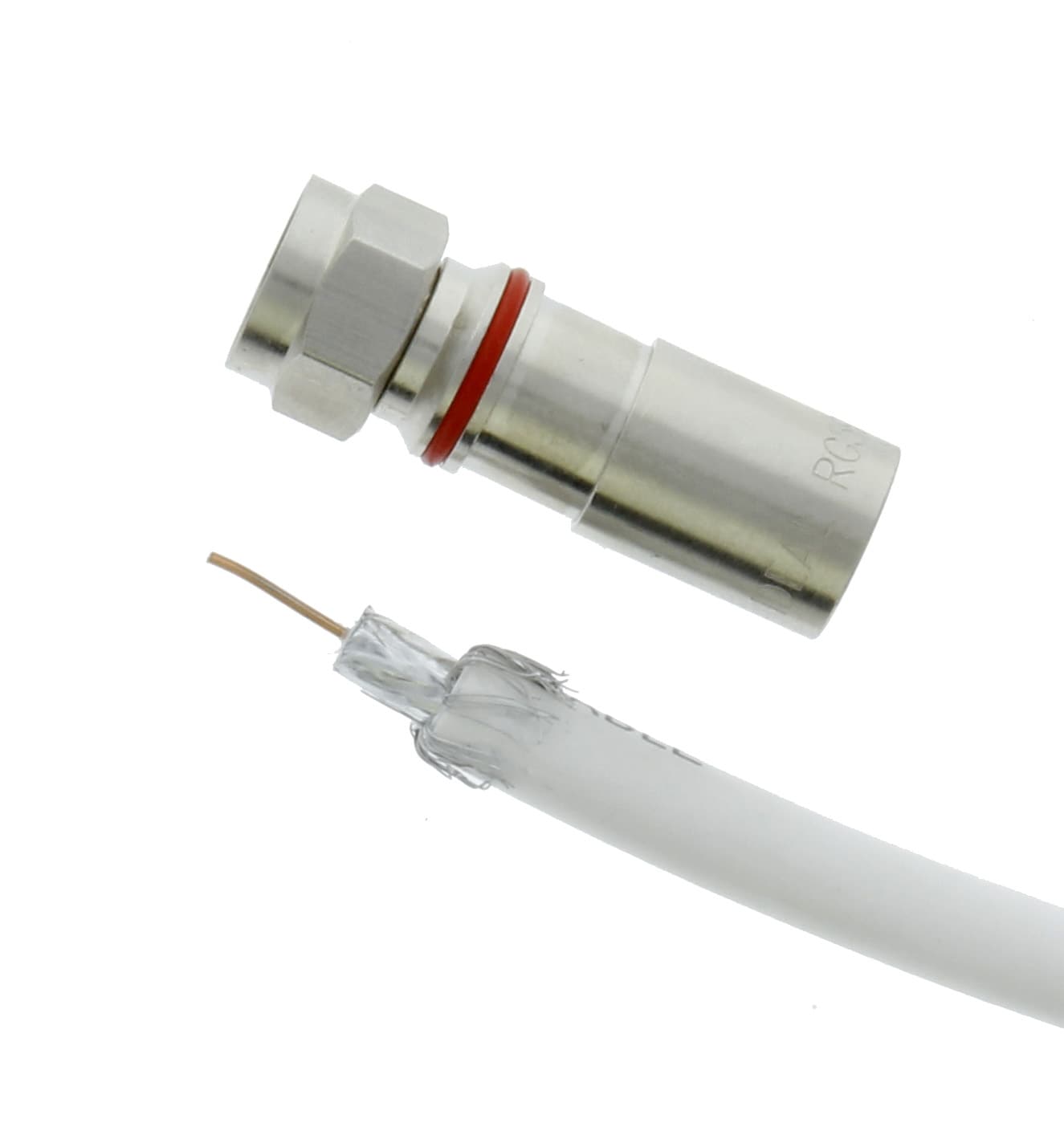

All RTQ XR and RTQ connectors require a standard 1/4 in. x 1/4 in. cable preparation
Weatherproof - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use

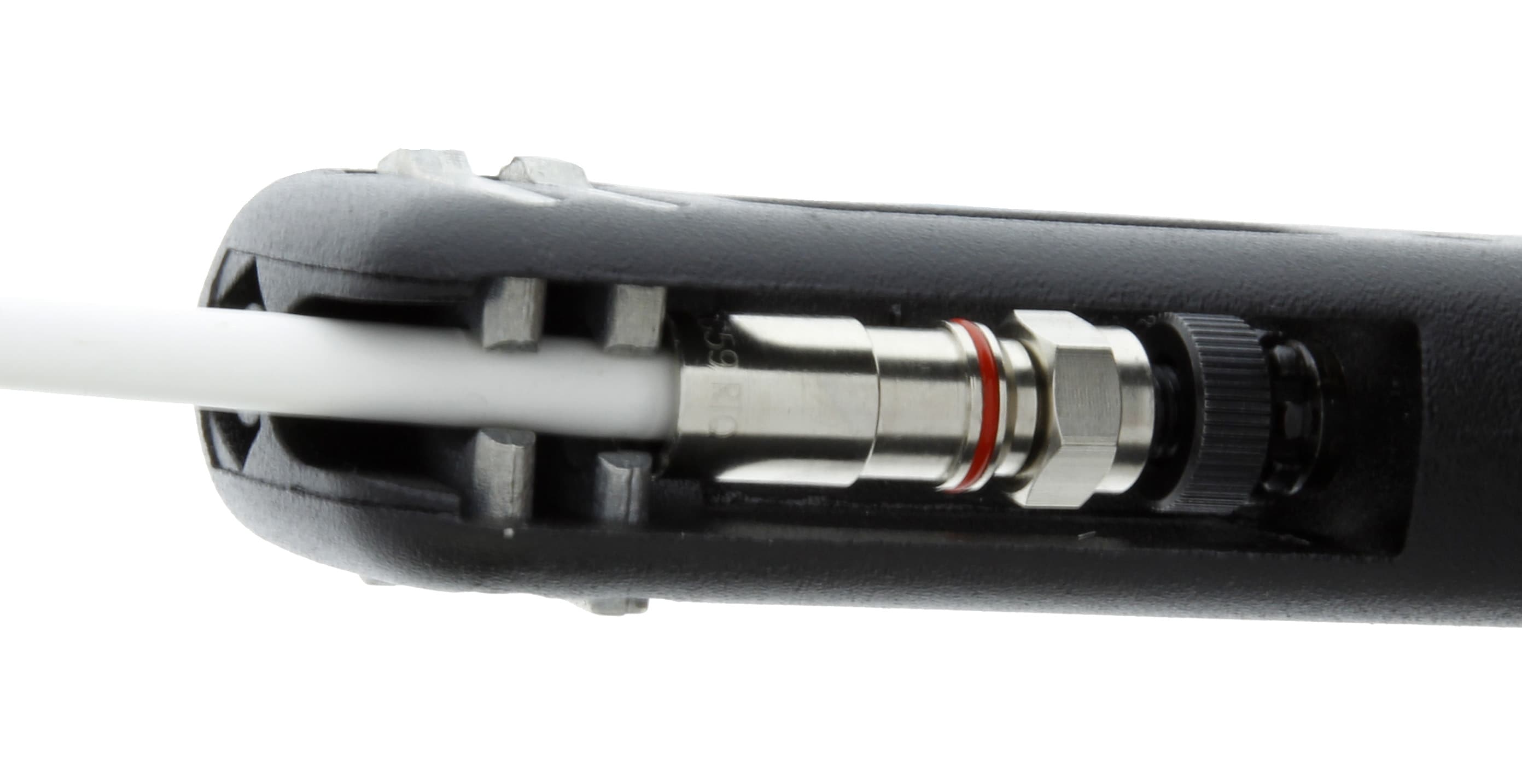

Use IDEAL OmniSeal Pro XL 30-793 or LinearX3 33-632 compression tool
Frequency range: 0 MHz to 1 GHz
7/16 in. nut diameter with 3/8-32 thread
