The Global Door Controls EDSVTBAR series fire rated "Surface Vertical Rod" exit device is the perfect choice for double doors without mullions. It's appropriate for commercial and industrial applications where heavy duty usage is anticipated. Moreover, it fits with doors up to 36 in. wide and 84 in. in height where a 12 in. rod extension is available for purchase for taller doors. It comes with a top/bottom latch and mounting hardware. However, the exterior lever trim is sold separately. These series meet the performance standards of Grade 2 and ADA compliant exit devices. Item is available in Aluminum and Stainless Steel finishes.

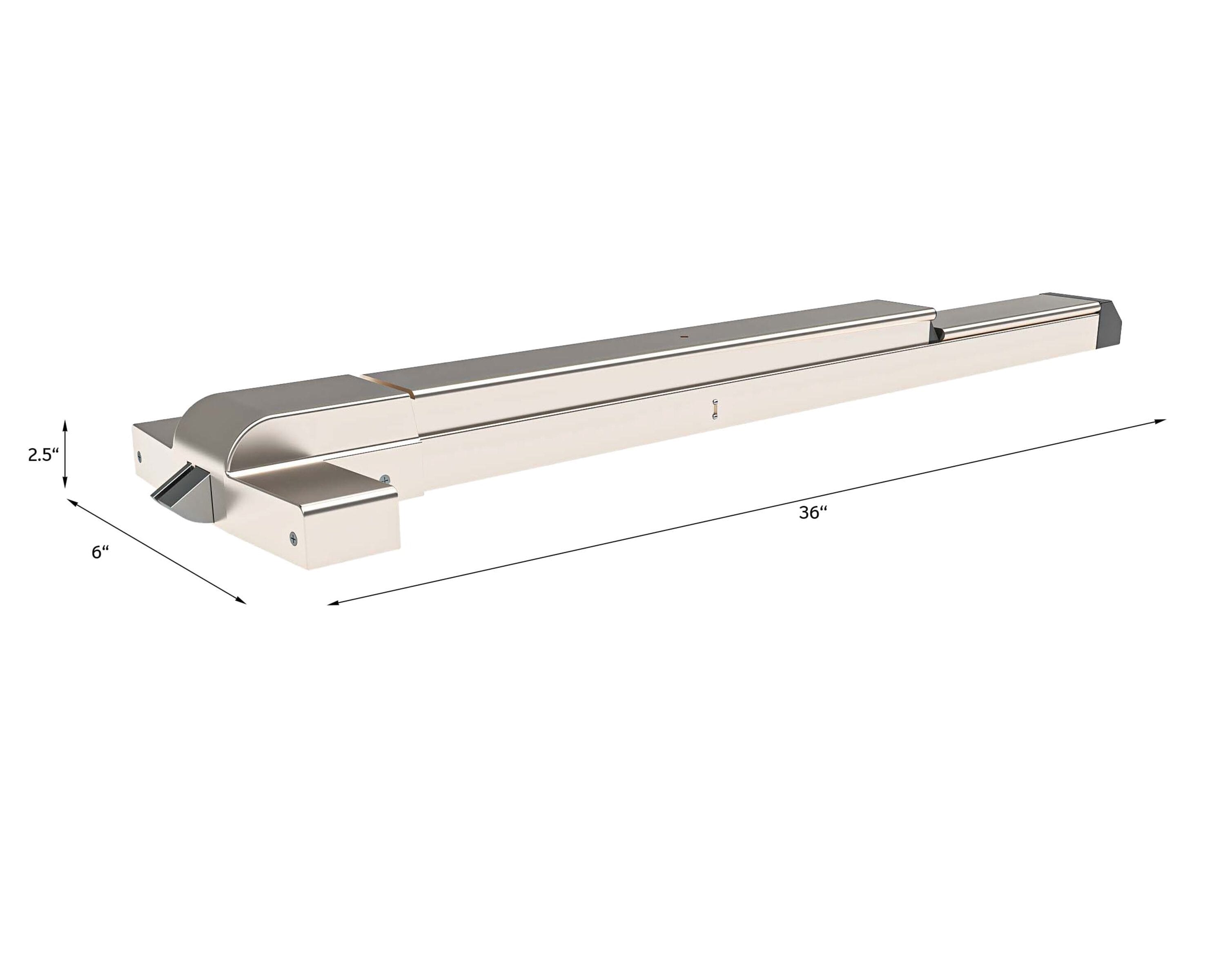

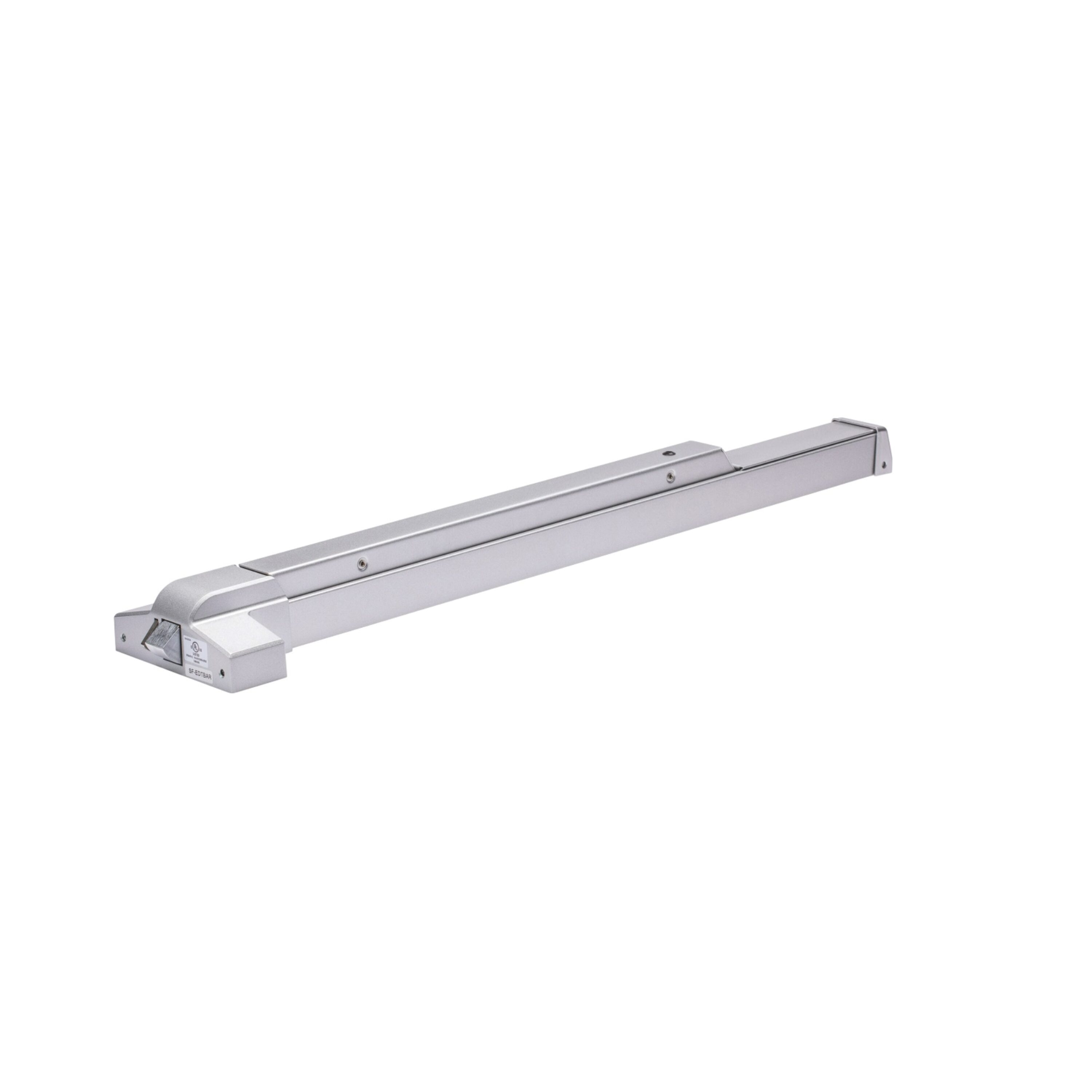

Surface vertical rod exit device of extruded anodized aluminum
Compatible with wood and hollow metal doors up to 36in wide
Meets the standards of Grade 2 and ANSI A156.3 - UL10C Fire Rated
Suitable for double doors without mullions
Set up for dogging & includes dogging hex key (½ turn 5/32 in hex key)
Recommended installation for mounting height at 41 in from finished floor to center line of push rail
Made from anodized aluminum for more durability
Comes non-handed / reversible
1 Year mechanical and finish warranty
