VEVOR 1.5 HP Cast Iron Sprinkler/Irrigation Pump 115/230 Volt 66 GPM 3450 RPM Shallow Well Jet Water Pump Booster 1in NPT Outlet 1-1/4in NPT Inlet Lake Lawn Pump for Irrigation Sprinkler System

The 1.5 HP / 1118.5 W all-copper motor can draw water from as low as 25 ft / 7.6 m and deliver it up to 98 ft / 29.9 m, suitable for lake, pond, and shallow well irrigation.

This pump supports 115/230 V dual voltage;Factory-set at 230 V but easily switchable to 115 V for stable operation based on your requirements.

The shallow well jet pump detects water flow automatically and has precise start/stop control;It starts when needed and goes standby when not in use, avoiding blockages and damage;Operating pressure: 20 - 40 PSI.

98 ft Max; Head Lift: Our cast iron sprinkler pump has a 1.5 HP / 1118.5W all-copper motor that boasts incredible suction power; It effortlessly draws water from lakes and shallow wells, fearlessly conquering elevation drops of up to 25 ft / 7.6 m; With a remarkable flow rate of 66GPM, it can pump water to a towering 98 ft / 29.9 m, making garden irrigation a breeze;

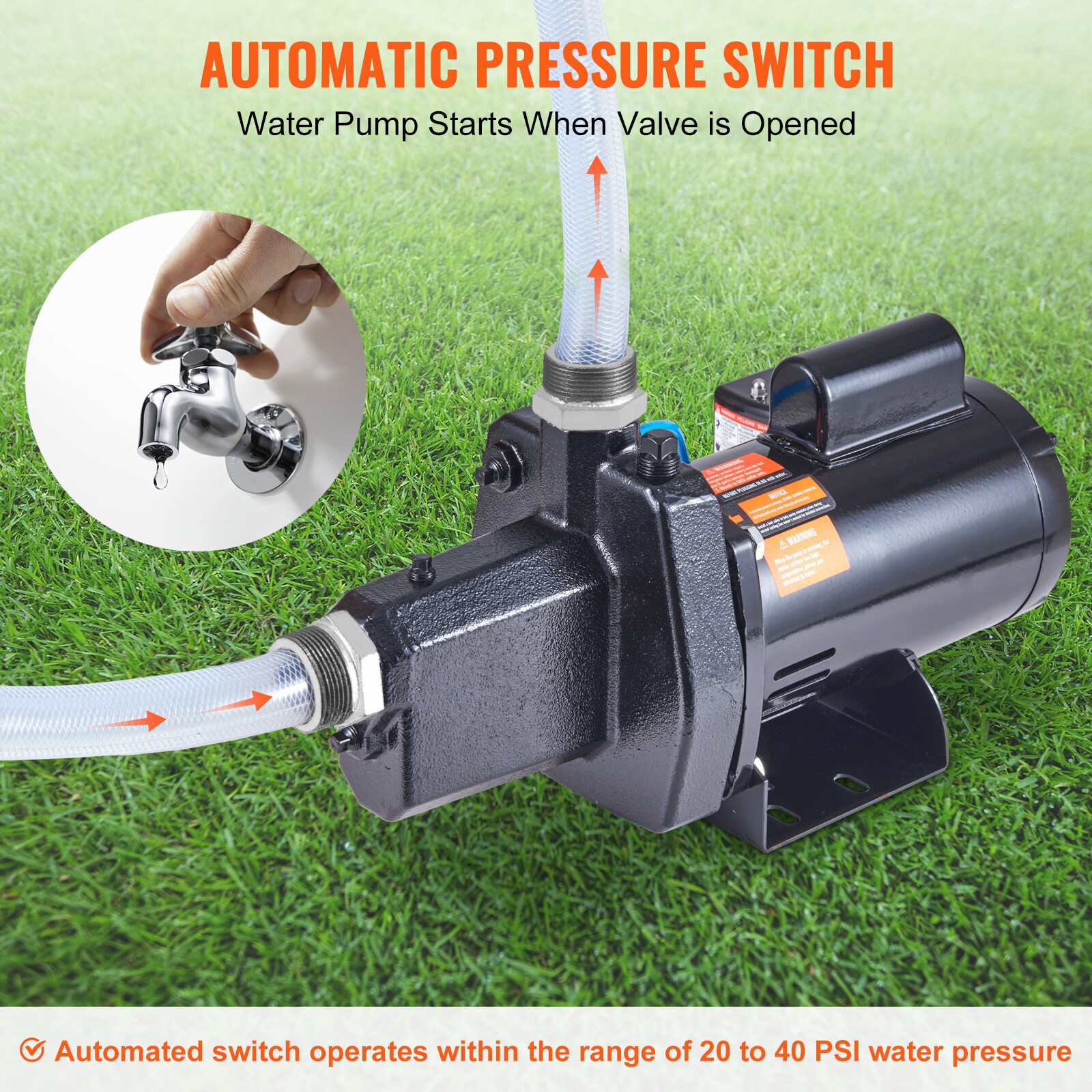

Automatic Pressure Switch: Say goodbye to manual controls! When you turn your faucet on and off, our shallow well jet pump responds automatically; It activates when water pressure falls within the 20 - 40 PSI range and automatically shuts down when beyond this range, protecting against potential pipeline blockages and damage due to low water pressure; For precise pressure monitoring, consider adding a pressure gauge to ensure your sprinkler pump operates optimally;

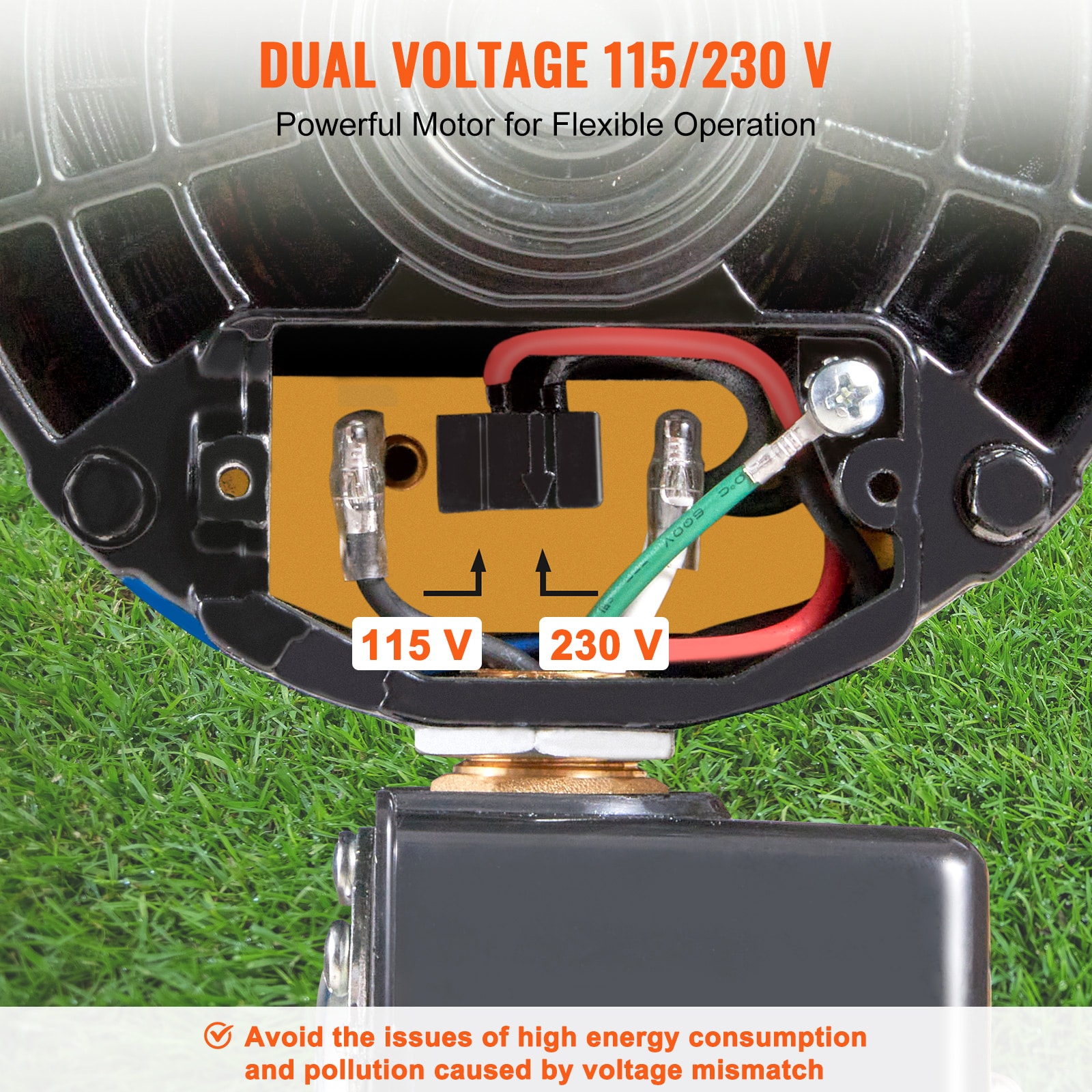

Dual Voltage Motor: Our sprinkler pump supports dual voltage operation, factory-set at 230 V but easily switchable to 115 V, accommodating various power sources and ensuring that your pump's voltage always aligns with your power supply; By avoiding the issues associated with voltage mismatch, our pump significantly reduces energy consumption and helps lower harmful emissions;

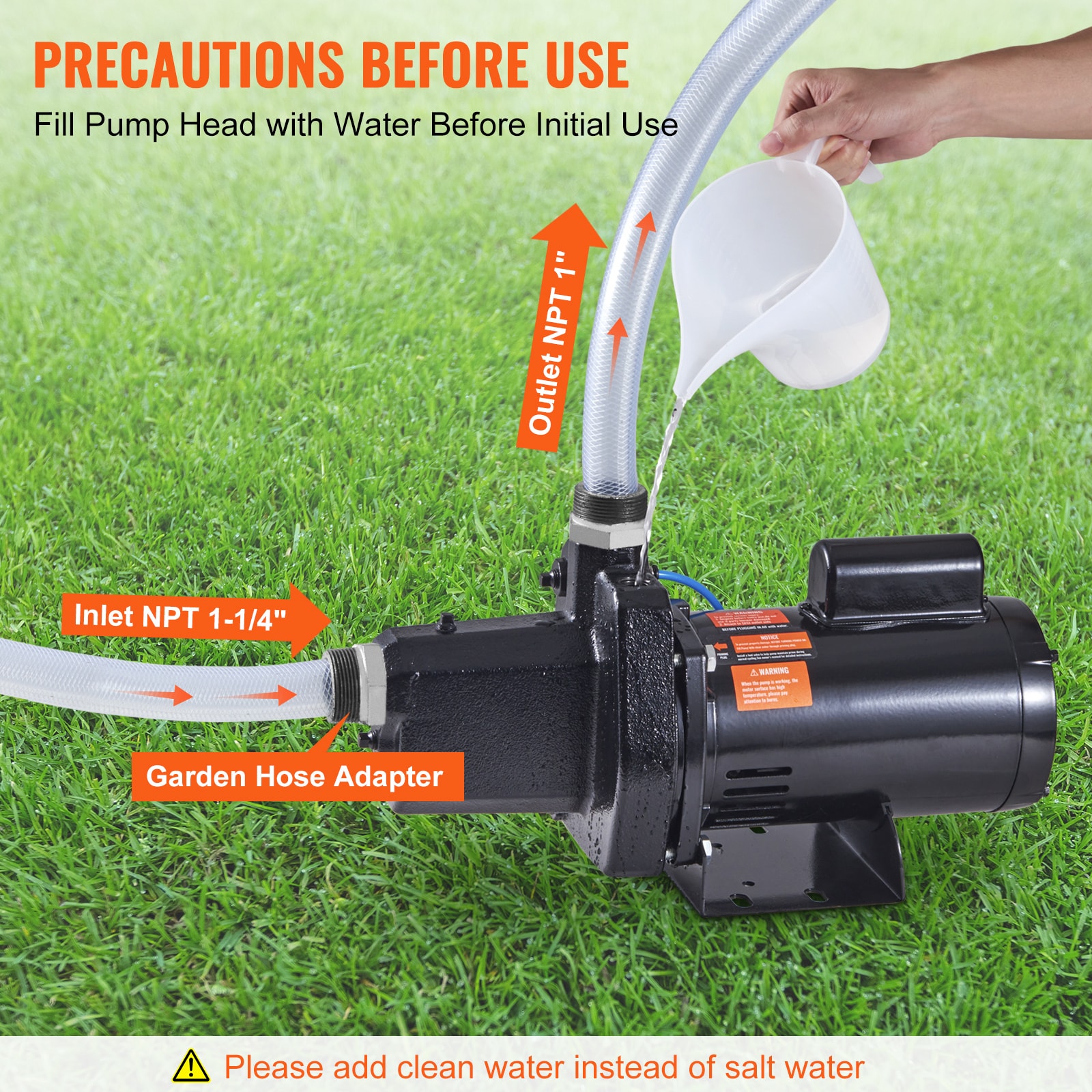

User-Friendly Operation: With the right voltage in place, simply plug it in, attach the 1-1/4'' water pipe to the inlet and 1'' water pipe to the outlet, and you're ready to go; Before use, ensure that you've filled the water inlet on the pump head with water, then simply tighten the bolts securely; Now, you're ready to start the well jet pump; If infrequently used, remember to drain the water;

Built to Last: Our irrigation pump for sprinkler system is constructed from rugged cast iron, wear-resistant and corrosion-resistant; It can confidently withstand the outdoor elements, whether in your courtyard or on your farm; It features a rear cooling vent for efficient heat dissipation and an integrated automatic thermal overload protector, ensuring consistent and reliable service for many years

Specification: Item Model Number: ZX50283; Rated Voltage: AC 115-230V, 60 Hz; Rated Current: 12A, 115V / 6A, 230V; Rated Power: 1.5 HP / 1118.5 W; Rated Flow Rate: 66 GPM, ±10%; Maximum Head: 98 FT / 29.9 m, ±10%; Operating Method: 20 - 40 PSI Pressure Switch; Operating Temperature: 0-35 degrees Celsius; Inlet Diameter: NPT 1-1/4"; Outlet Diameter: NPT 1"; Primary Material: Cast Iron; Click Speed: 3450 RPM; Product Weight: 44.8 lbs / 20.3 kg, ±3%; Product Dimensions: 18.3" x 10.3" x 9.0" / 466 x 262 x 229 mm
