Construction Hardware Overview

This guide gives a broad overview of some of the types of hardware used in construction of walls, roofs, decks, etc., but always follow building code and manufacturer specifications. Keep in mind:

• Building codes and manufacturer’s instructions determine the types of hardware that are suitable for individual construction applications, as well as the number and type of fasteners necessary.
• Some hardware is designed for structural support, some for simple household repairs. Follow the manufacturer’s instructions for use.
• Hardware has different load capacities. Follow the manufacturer’s specifications for the weight a piece of hardware can bear.
• Hardware for outdoor use must be corrosion resistant.
• Different sizes and gauges or thicknesses are suitable for different uses.
• Some fastener materials aren’t suitable for some hardware. For example, mixing galvanized steel with stainless steel will cause corrosion.
• If you’re working with pressure-treated lumber, make sure the hardware and fasteners are rated for the material.

Angles, brackets and braces strengthen joints between two or more wood members. This is a larger group of hardware, and different designs and configurations are suitable for different projects and structures.

Common Types and Uses, Depending on the Hardware:

• Angle: Reinforcing connections between a deck rim joist and end joist, connecting a wall stud to a bottom plate, reinforcing a fence gate frame, etc.
• Bracket: Supporting a shelf or countertop, installing railing, etc.
• Brace: Making general household repairs, building work benches or shelving, etc.

Base and cap hardware secures posts or columns to other elements of a structure. This type of structural hardware is for either wood-to-wood or wood-to-concrete applications. Wood-to-concrete hardware is either designed to be cast in place when concrete is poured or designed for retrofit use in cured concrete.

Common Types and Uses, Depending on the Hardware:

• Column and Post Base: Supporting a railing post on a deck or connecting a deck frame post to a concrete footing
• Standoff Column Base: Connecting a frame post to a concrete footing where the post end must be separated from the surface of the footing
• Post and Column Cap: Attaching to the top of a post to support an overhead member, such as a roof beam on a pergola.

Hangers support wood joists, beams or rafters in a structure, securing the component to a larger wood beam or ledger board on the structure. Hangers stabilize the joists, beams or rafters, helping prevent movement, warping and twisting.

Common Types and Uses, Depending on the Hardware:

• Rafter Hanger: Supporting rafter connections to a roof ridge beam
• Face-Mount Joist Hanger: Supporting floor joists on a deck or floor and ceiling joists in a home
• Concealed Joist Hanger: Connecting joists in applications where a less-visible installation is necessary

Hardware plates are flat pieces that connect to wood members of a structure either by means of integrated prongs or separate fasteners. Different types serve specific purposes.

Common Types and Uses, Depending on the Hardware:

• Bearing Plate: Creating a bearing surface, like a washer on a bolt, for securing a wall base plate to the foundation of a structure
• Mending Plate: Reinforcing the connection of two wood members
• Nail Plate: Protecting pipe or electrical lines from nails or screws

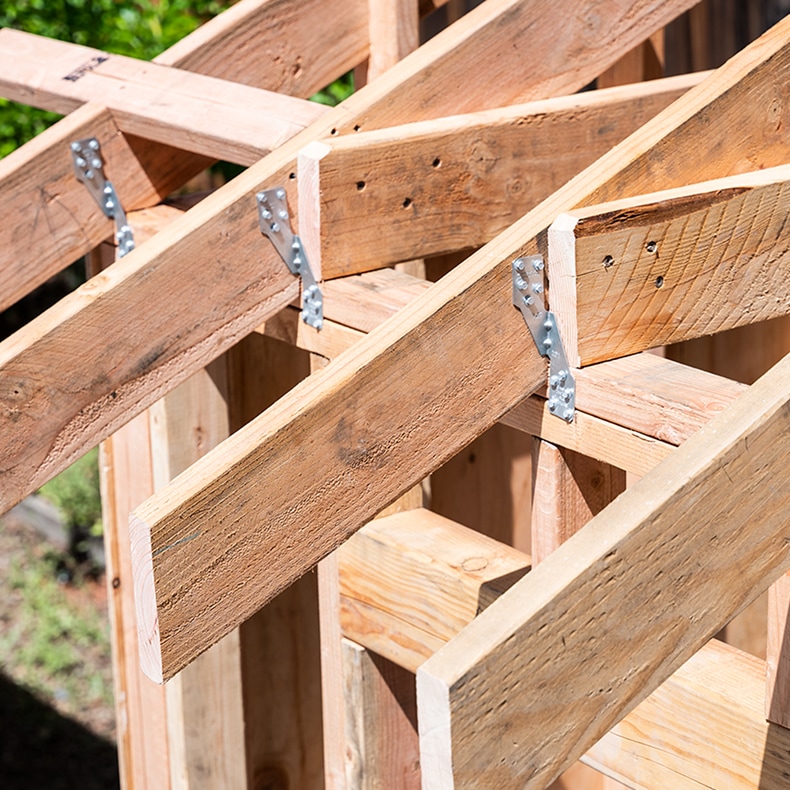

Straps and ties are two types of connectors that help control tension between two wood components in a structure and reinforce connections. Like angles, brackets and braces, there is a wide range of straps and ties for different applications.

Common Types and Uses, Depending on the Hardware:

• Hold-Down: Securing the wall of a structure to the foundation
• Rafter Tie: Connecting rafters in a roof to a wall top plate
• Foundation Strap: Securing the rim joist of a floor to a home foundation

Understanding the different types of construction hardware and when to use them can seem complicated, but it’s critical to a safe and secure construction project. Here are the key points:

• Always follow building codes and the manufacturer’s specified uses.
• Make sure the hardware can handle the load necessary for the application.
• Make sure the hardware, fasteners and components are all compatible.
