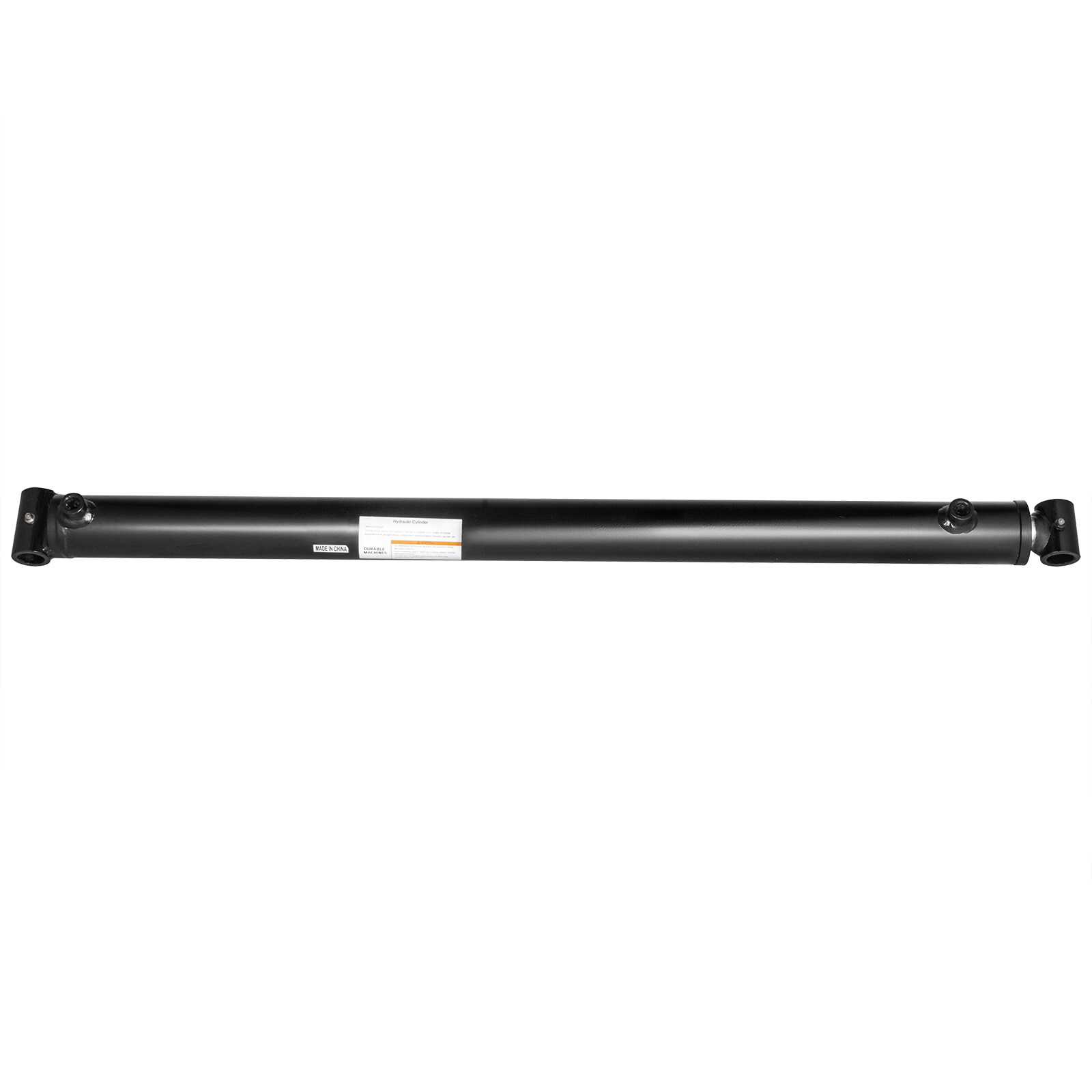

VEVOR Hydraulic Cylinder 2in Bore 36in Stroke Hydraulic Ram Cylinder 3000psi Hydraulic Cylinders Welded Double Acting Cross Tube SAE6 Port Hydraulic Lifting Cylinder (2 X 36)

The welded hydraulic cylinder, featuring a cross tube style, is designed to withstand pressures up to 3500 PSI; these cylinders are manufactured to meet high-quality standards, ensuring long-lasting durability.

Featuring a compact design with four sealing oil rings, this hydraulic cylinder is highly efficient in its function and precise in its dimensions; it excels in performance and space optimization.

Coated with a high-temperature baking finish, this hydraulic cylinder resists scratches, paint wear, and fading; it maintains an elegant appearance even in demanding environments.

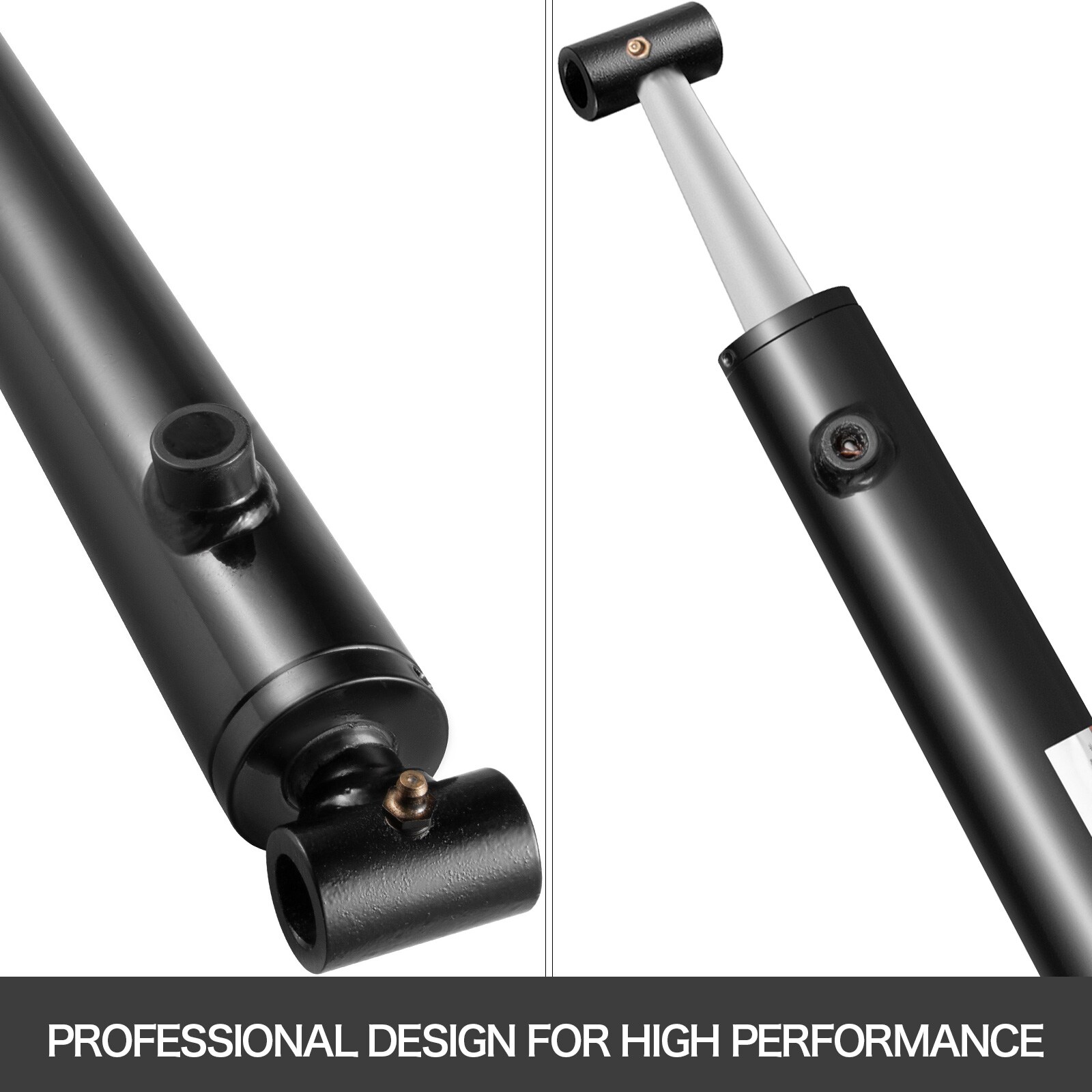

RIGID WELDED CONSTRUCTION- Rigid welded construction, high tensile welded steel end mounts, threaded gland and top quality seal components allow cylinders to work in harsh conditions;

MAX LOAD-BEARING CAPACITY- This hydraulic cylinder bore is 50mm/2inch, the longest Length is 2032mm/80inch, and the max load-bearing capacity is 4100 LBS;

STABLE SEALING PERFORMANCE- All cylinders are fully and easily maintainable and repairable; Each cylinder is pressure tested at 150% of its working pressure before packing and shipping;

CONVENIENT TO ASSEMBLE- All the components of this hydraulic cylinder are fully tested, well-designed, very sturdy and compact, easily to install and to disassemble;

WIDE APPLICATION- The product created for use in various types of mobile equipment such as waste, recycling, construction, transportation, agriculture, material handling, etc;

Specification: Cylinder Bore: 50mm/2"; Stroke: 914mm/36"; Pin: 26mm/1.0"; Diameter Of Piston Rod: 35mm/1.3"; Minimum Length: 1117mm/43.9"; Max Length: 2032mm/80.0"; Max Load-Bearing Capacity: 4100 LBS; Port Size: SAE6; Work Pressure: 3500PSI; Weight: 33LBS/15kg; Packing Size: 1160mm*85mm*85mm/45.6" x 3.3" x 3.3"
