Equipped with 1/2" NPT threads and an upgraded valve system, these couplers deliver exceptional flow efficiency and can handle pressures up to 5076 PSI; This design guarantees reliable performance and an extended operational lifespan.
Our hydraulic quick-connect couplers undergo rigorous testing for impact resistance, high-pressure tolerance, and high-temperature performance; Compliant with ISO 16028 standards, they represent a premium choice for demanding applications.
These hydraulic couplers are widely utilized across various industries, including engineering, petroleum, and coal mining; They provide a reliable and efficient solution for connecting hydraulic lines in diverse environments.

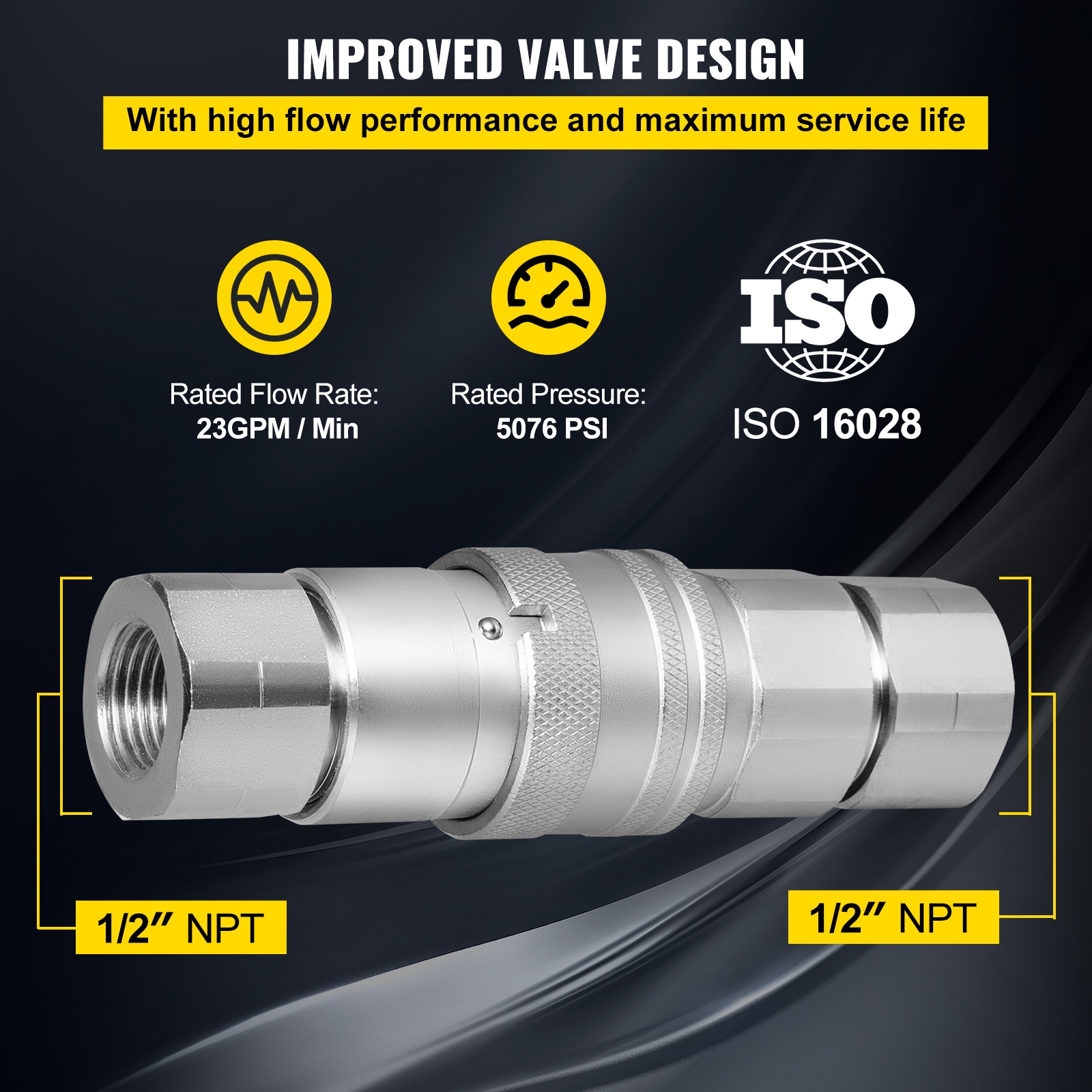

Advanced Design: This flat face hydraulic connect coupler set features an improved valve design, which allows for a rated pressure of 5076 PSI, zero fluid loss, and long service life; It meets the standards of ISO 16028, perfect for connecting your hydraulic lines;
Quick Connecting: The sleeve locking mechanism (with 1/2" NPT thread) makes the couplers easy to connect with a simple push; Rotate the collar to lock them tightly, preventing accidental disconnection; If you need to disconnect it, aim the point at the gap, then give a pull; Connection is simple, effortless, and requires minimal force;
Hardened Steel Construction: Our quick couplers are strongly built with hardened stainless steel to resist deformation and high temperatures; The zinc-nickel plating provides high resistance against rust and corrosion; They are built tough to last for years to come;
Dust Covers Included: Dust caps are included to prevent dirt from disrupting the connecting system, preventing the risk of malfunction; The retaining ring is covered by a sleeve; Additionally, a dust seal is placed within the spring area;
High Compatibility: The quick coupler set is designed for applications where hydraulic spillage is likely to occur; It can be interchanged with most types of skid steers loaders, such as Bobcat, John Deere, CAT, Case / New Holland, Kubota, and many others;
Specification: Size: 1/2 Body with 1/2" NPT Thread; PSI Rating: 5076 PSI Rating; Rated Operating Temperature of Steel: Up to 250 ° F; Replaces OEM#: Parker FE series: FEM-502-8FP, FEM-501-8FP; Safeway FFE49 series: FFE491-4, FFE495-4; Faster FFH series: FFH08 12NPT M, FFH08 12NPT F; Eaton Aeroquip FD89: FD89-1002-08- 08, FD89-1001-08-08; Snap Tite 74 series: 74N8-8F, 74C8-8F; Stucchi FIG series: 800801007, 800801006; Dixon HT series: HT4F4, 4HTF4; Fits Models: Most skid steer loaders including Bobcat, John Deere, CAT, Case, New Holland, Kubota, and many more; Packing Note: Strong Carton + SKU + Plastic Bag; ISO Standards: ISO 16028
