VEVOR 1/2in Tapered Hydraulic Couplers 1/2in NPT Skid Steer Hydraulic Quick Connect Couplers with 4 Dust Caps (ISO5675)

Compatible with most skid steer loaders, these hydraulic couplers are ideal for sectors like agriculture, construction, and forestry, where leak prevention is essential.

The hydraulic fittings come in carefully sealed packaging to prevent any damage during transport, ensuring they arrive safely and ready to use.

Featuring 1/2" NPT threads and an advanced valve design, these couplers offer a high flow rate of 25 GPM and a rated pressure of 4000 PSI, supporting a longer operational life and reduced leak risks.

Standards Compliant: This hydraulic coupler features a 1/2" body size, with a 1/2" NPT thread size for both the male and female couplers, adhering to ISO 5675 standards, making it ideal for connecting hydraulic lines;

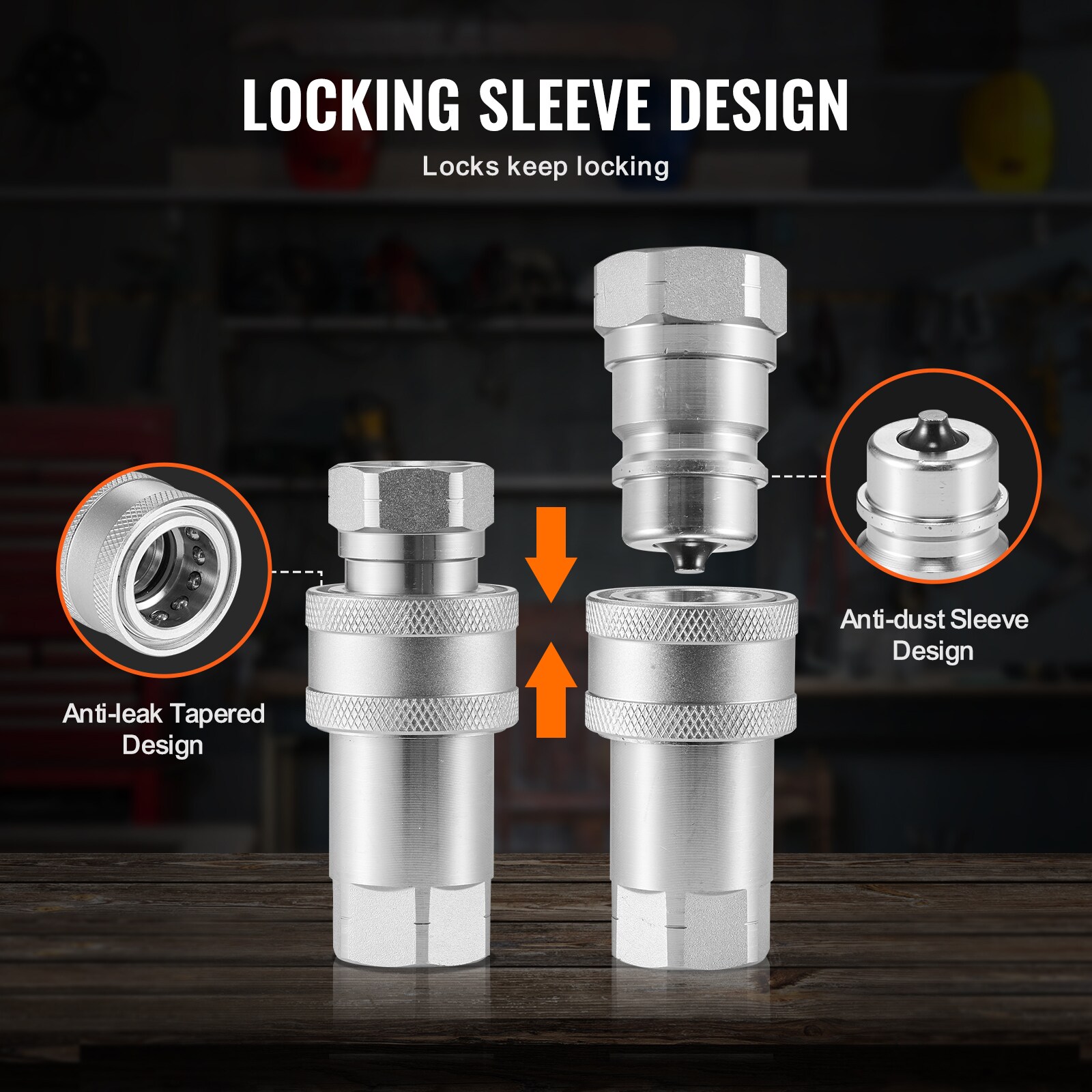

Sleeve Locking Design: The tapered hydraulic couplers features a sleeve locking design, allowing for easy connection with just a simple push; The tapered design of the coupler prevents leakage and also prevents dust from entering the hydraulic system during connection and disconnection;

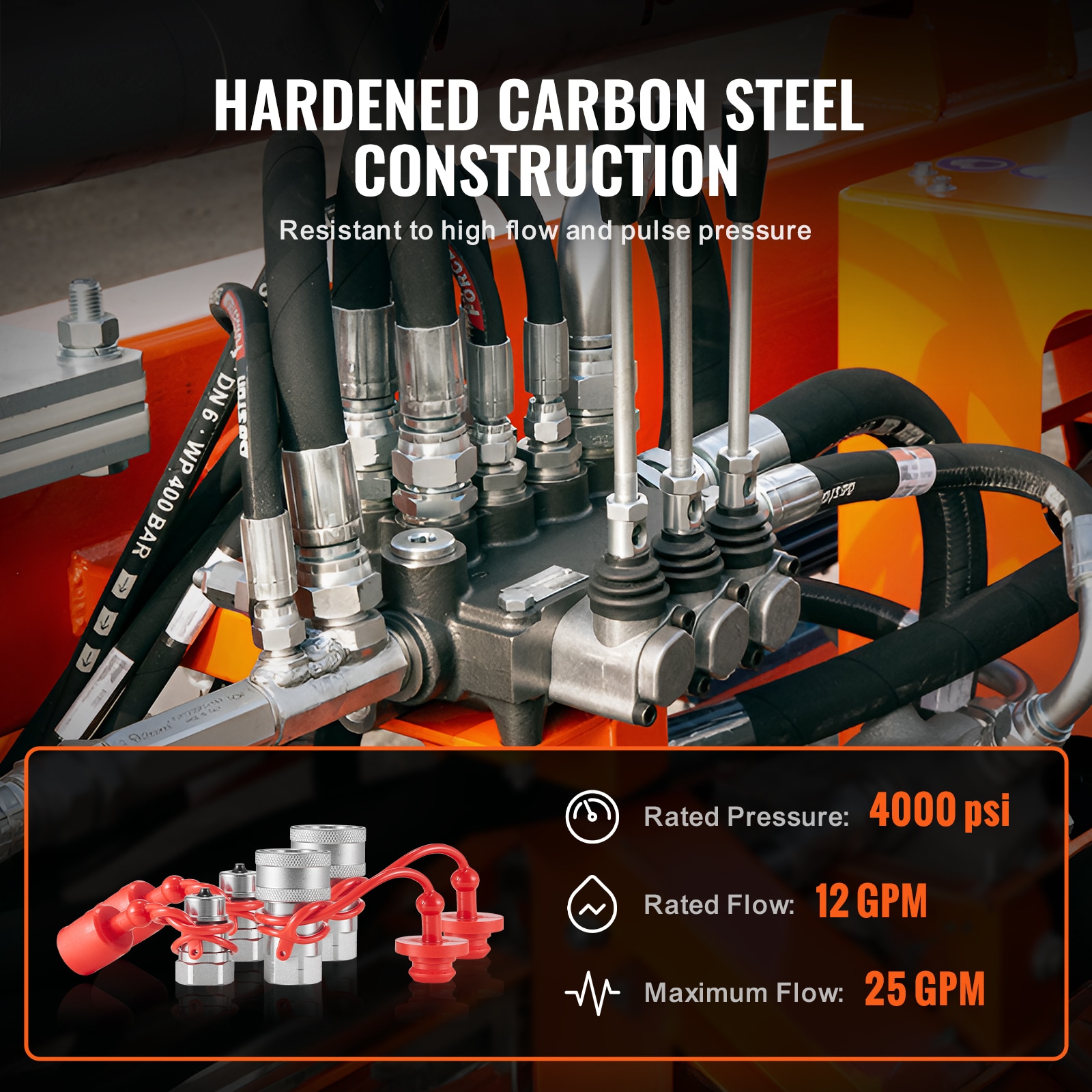

Hardened Steel Construction: The hydraulic quick connect couplers is constructed from hardened carbon steel, rated for pressures up to 4000 PSI and a high flow rate of 25 GPM, capable of withstanding high flow rates and pulse pressures, ensuring durability for years of continuous use;

Seal Dust Caps: It comes with dust caps to prevent dirt from damaging the connection system, reducing the risk of failures, and keeping the skid steer hydraulic couplers clean when not in use; Internal dust seals also ensure that the sleeve locking system operates smoothly without interference;

Non-slip Knurling: Heavy-duty knurled sleeves on the surface of the hydraulic fitting provide a non-slip grip; This valve design allows for minimal pressure drop and single-handed operation, and it can be interchanged with most types of skid steer loaders, such as Bobcat, John Deere, CAT, Case/New Holland, Kubota, etc;

Specification: Item Model Number: LSQ-S1; Coupler Type: Tapered Hydraulic Coupler; Standard: ISO5675; Coupler Body Size: 1/2"; Rated Pressure: 4000 psi; Rated Flow: 12 GPM; Maximum Flow: 25 GPM; Quantity: 2 Pairs; Male Coupler Thread Size: 1/2" NPT (Internal Thread); Female Coupler Thread Size: 1/2" NPT (Internal Thread); Configuration: Dust Caps; Color: White; Main Material: 45# Carbon Steel; Male Coupler: Φ38.5×43.5 mm (O;D; x L), 45# Carbon Steel, Chrome Plating; Female Coupler: Φ38.5×66 mm (O;D; x L), 45# Carbon Steel, Chrome Plating; Dust Cap: Φ38×298 mm (O;D; x L), Rubber, Red; Product Weight: 1.65 lbs / 0.75 kg; Product Dimensions (LxWxH): Φ1.5x3.46 in / Φ38x88 mm
