VEVOR NEMA Steel Case 20x16x8in NEMA 4X Metal Electric Enclosure IP66 Water and Dust Resistant Suitable for Both Outdoor and Indoor Use Includes Mounting Plate

Crafted from 0.059"/1.5 mm cold-rolled steel, this electrical box offers exceptional strength, resistance to pressure, and durability against rust;The exterior features an epoxy polyester powder coating for superior mechanical properties and a smooth finish.

Designed with an IP66 rating, this enclosure is fully dustproof and offers excellent protection against water, rain, snow, oils, and other environmental factors, ensuring the safety and dryness of your internal electrical components.

The box features a robust metal lock core, providing security against unauthorized access or forceful tampering;The heavy-duty hinges are built to withstand repeated opening and closing without wear, ensuring long-lasting reliability.

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded; Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments;

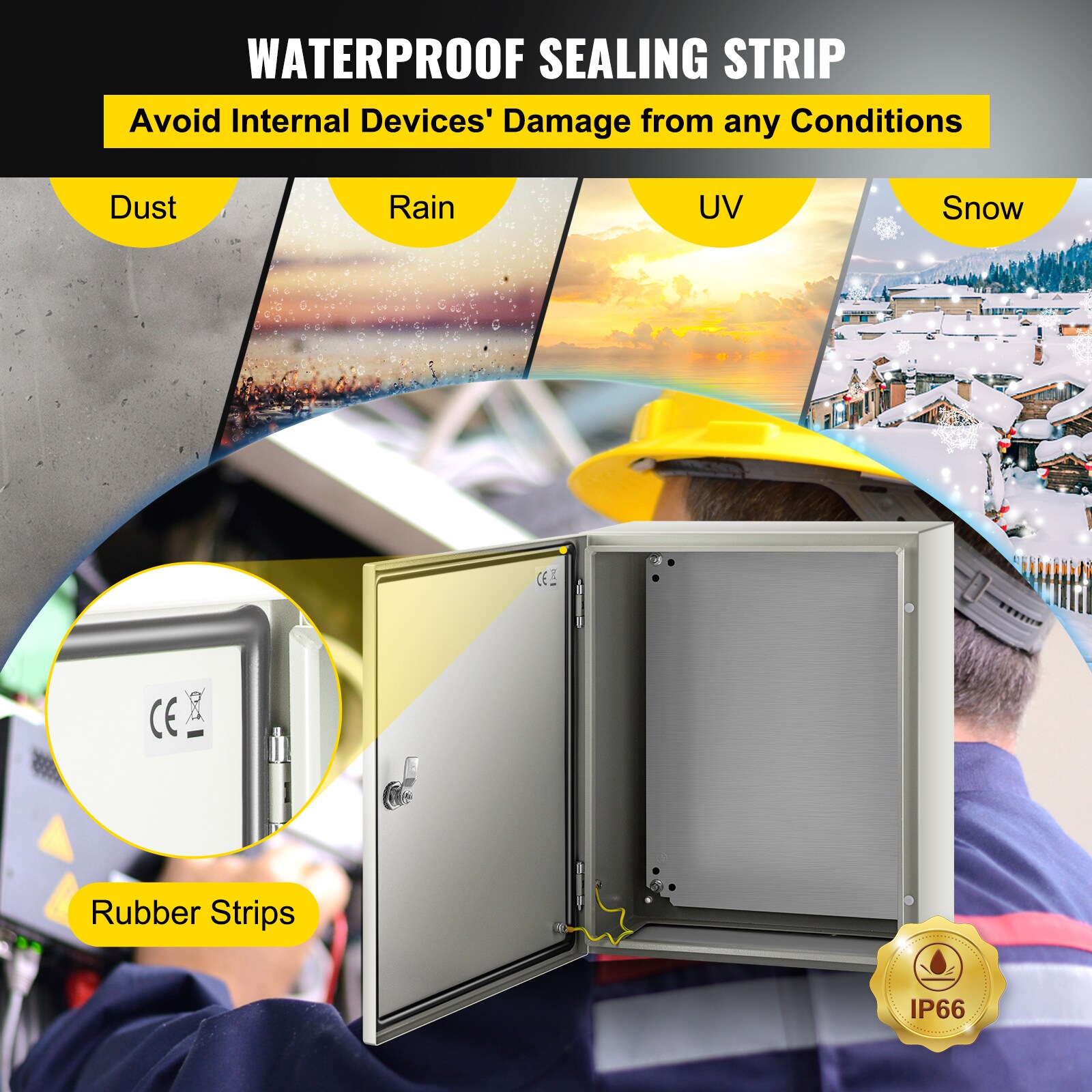

IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened; Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc;

Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing; The shell box adopts a high-quality lock core to increase safety and lockability;

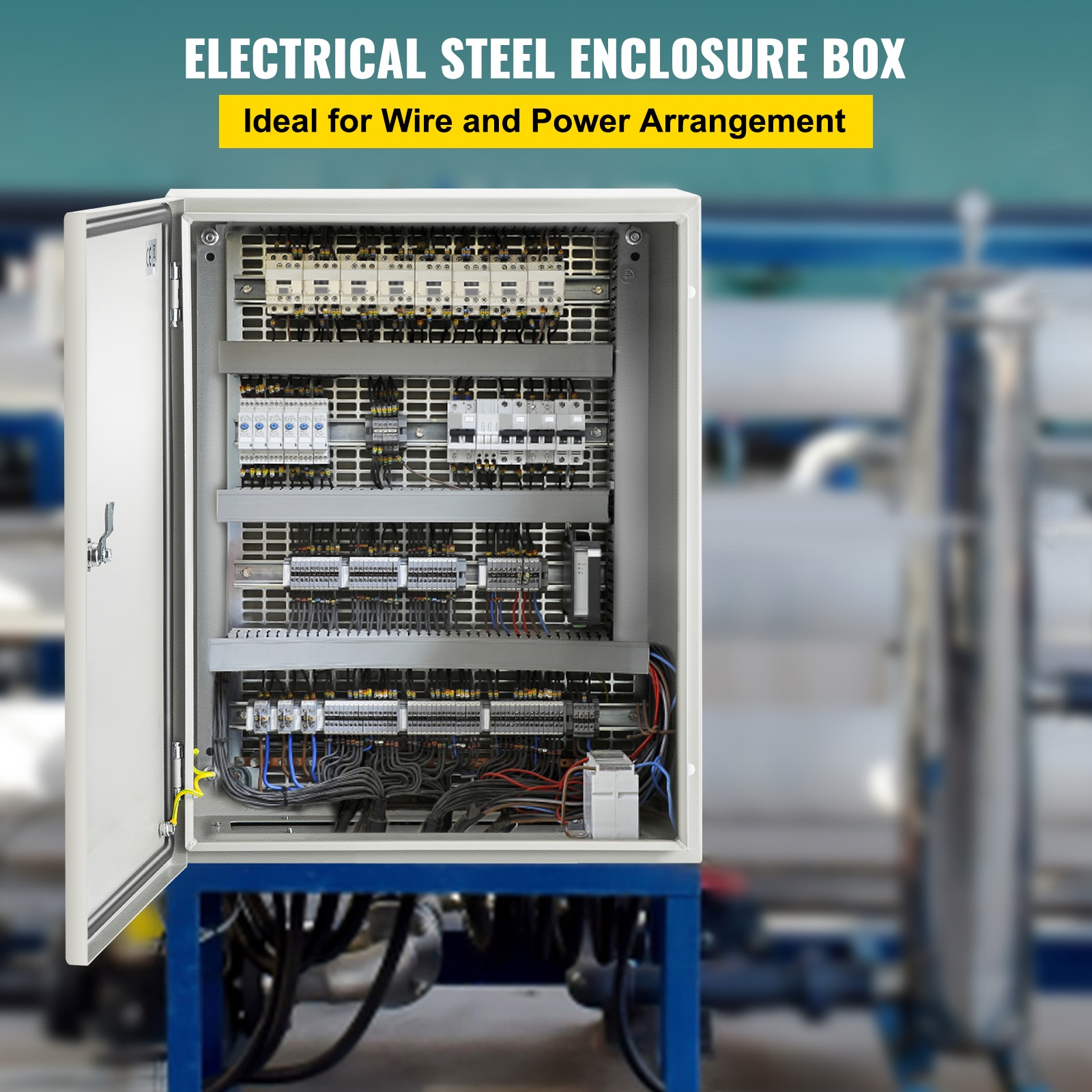

Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components; The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall;

Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading; The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables;

Specification: Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 17.7" x 13.8" / 45 x 35 cm; Outer Dimensions (H x W x D): 20'' x 16'' x 8'' / 50 x 40 x 20 cm; Inner Dimensions (H x W x D): 19.6'' x 15.6'' x 6.6'' / 49.7 x 39.7 x 16.65 cm; Product Weight: 29.32 lbs / 13.3 kg; Certification: CE / ROHS Certification
