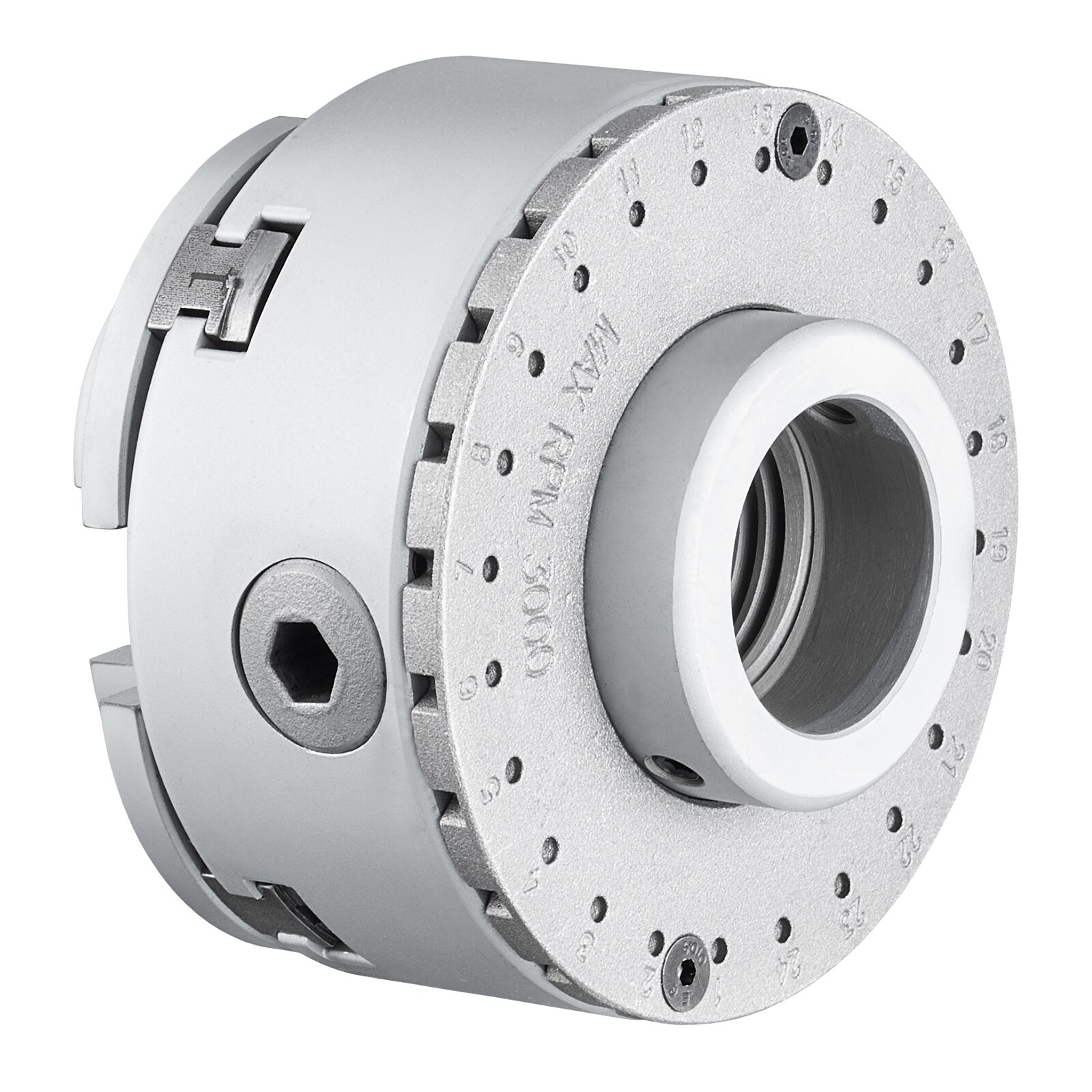

Crafted from high-strength #45 steel, this lathe chuck is designed to withstand the rigors of heavy-duty machining; Its robust construction ensures long-lasting performance, making it ideal for demanding environments where stability and strength are paramount.
Thanks to its compact and streamlined design, this lathe chuck offers outstanding stability during machining; The precision-engineered structure enhances operational reliability, allowing for smoother processes and more consistent results.
Easily adjust the chuck’s jaws to fit varying workpiece sizes and shapes; The T-handle wrench system offers smooth, precise adjustments, making it simple to expand and clamp the jaws for improved work efficiency.
High-Strength #45 Material: To meet the demanding requirements of production environments, we have utilized #45 material that has undergone quenching and tempering techniques; This process imparts exceptional hardness and rust-resistant properties; Whether it's for small-scale or large-scale workpieces, this lathe chuck delivers outstanding performance and reliability;
5-Piece Jaw Set: This comprehensive lathe chuck set includes dovetail jaws, round jaws, flat jaws, step jaws, and taper jaws – a total of 5 different types of jaws along with the necessary installation tools; From slender items like pen blanks to larger items such as plates and bowls, this assortment of jaws enables a variety of clamping options, providing you with greater flexibility;
Wide Clamping Range: Each jaw of our lathe chuck can be adjusted to accommodate a broader range of clamping sizes, enhancing its versatility; Operators can easily rotate the jaws for clamping or expanding using a T-handle wrench; This allows for precise clamping and secure fastening of items like bowls, plates, vases, and cups;
Simple & Easy Operation: The lathe chuck features a streamlined design that strikes the perfect balance between functionality and reliability; By eliminating unnecessary complex components and mechanical structures, the chuck's design remains straightforward and compact; Installation and removal only require screws and a handle, making clamping and expanding achievable with a simple twist of the T-handle wrench;
Wide Range Of Applications: Whether you're involved in woodworking, drilling, grinding, or other fields, the lathe chuck's versatility caters to your needs; By using our lathe chuck, you can enhance processing efficiency, increase operational flexibility, and achieve precise and consistent results; Whether for personal use or industrial production, this lathe chuck offers exceptional performance and reliability;
Specification: Model: KP965; Chuck Outer Diameter: 3.75 inch / φ96 mm; Clamping Range (Inner): 1.26-2.75" (32-70 mm); Chuck Internal Thread: M33*3.5TPI; Support Range (Outer): 1.77-3.4" (45-86 mm); Outer Diameter Runout: ≤0.15 mm; Test Bar Radial Runout: ≤0.40 mm at a distance of 50 mm; Test Ring End Face Runout: ≤0.15 mm; Surface Treatment and Color: ≤Ra1.6, chrome-plated natural color; Main Material: 45#; Net Weight: 10.3 lb / 4.7 kg; Product Dimensions: φ96 x 80 mm
