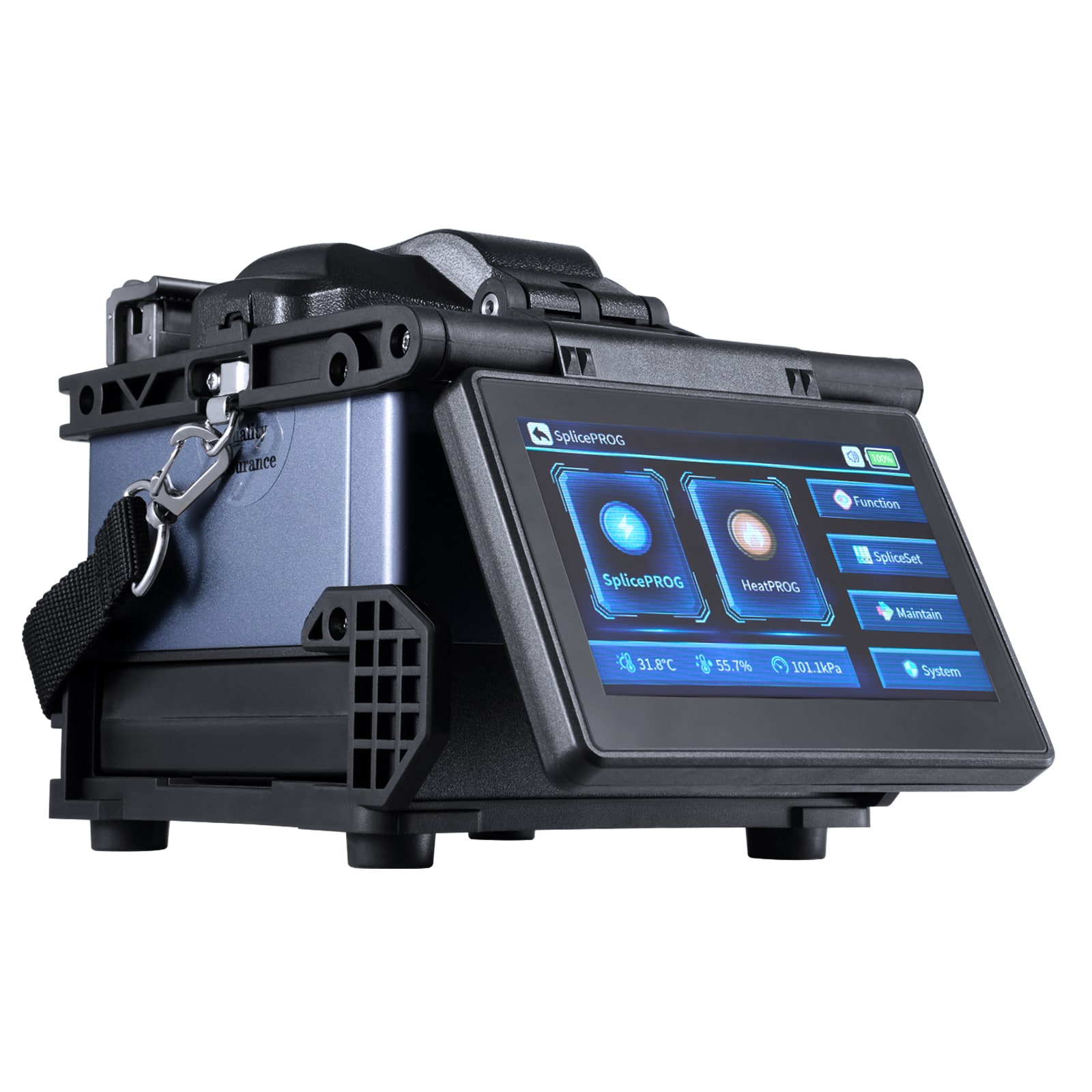

Equipped with a 5-inch LCD screen and an intuitive interface, this fiber optic fusion splicer provides various display modes to accommodate different requirements, ensuring clear visibility of every detail during the splicing process.
Equipped with integrated dual LED lights, this optical fusion splicer ensures clear visibility and accurate fiber alignment, even in dimly lit environments or outdoor settings; Perform tasks reliably regardless of lighting conditions.
Built with enhanced durability, this core alignment fusion splicer ensures consistent performance even in harsh environments such as rain, extreme heat, snowstorms, and high-altitude locations, making it suitable for demanding outdoor tasks.

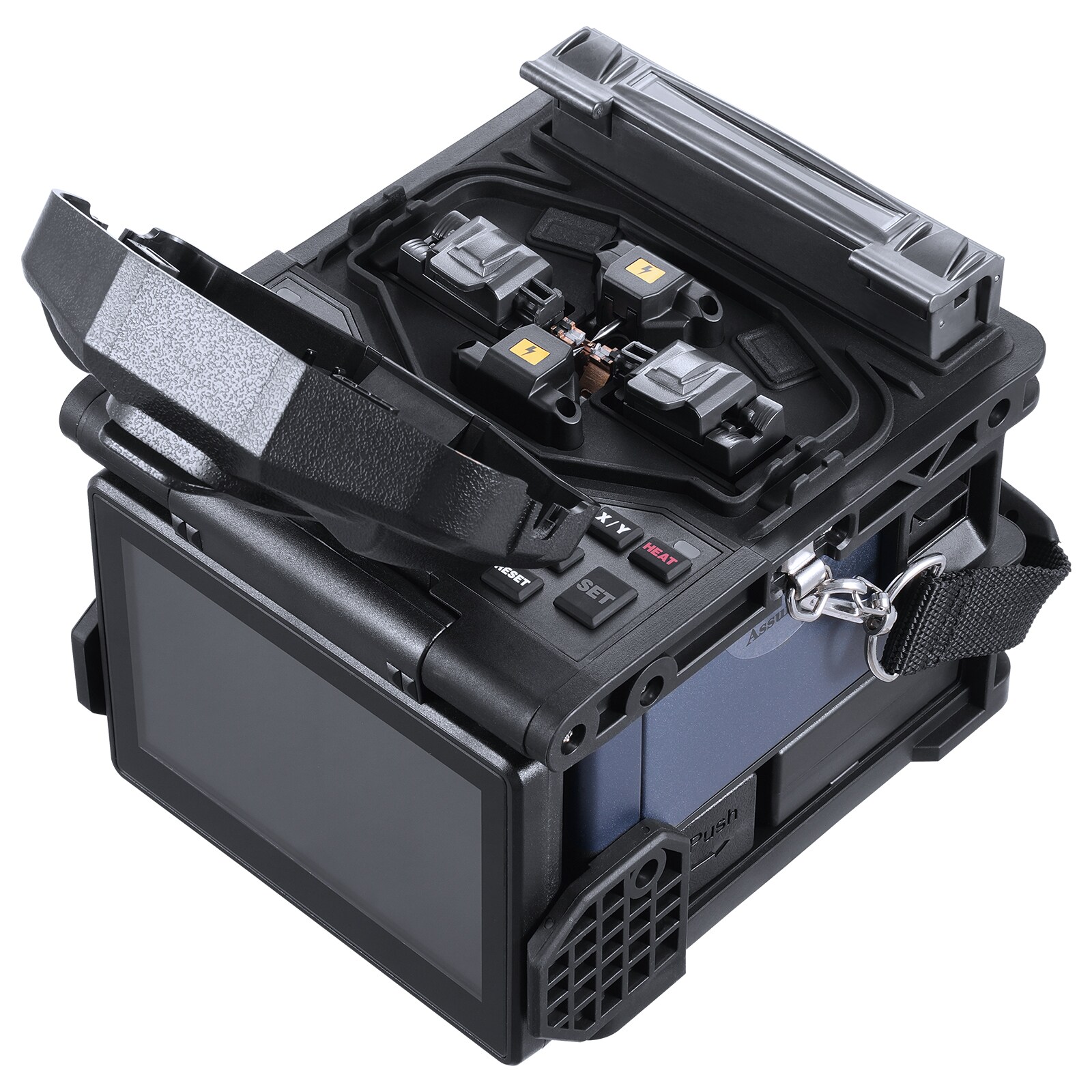

High Splicing Efficiency: Our fiber fusion splicer features 6 high-precision motors and core alignment, enabling rapid splicing in just 6s and quick heating in 13s, with a fusion loss as low as 0.01 dB (MM); It features a 3-in-1 fiber holder, compatible with SM, MM, DS, NZDS, UI, BUI, and EDF fibers;
High-Definition Display: 5-inch HD LCD screen offers multiple display modes and clear viewing; It offers an independent 330x X or Y magnification display, double-click to zoom up to 1100x ; and simultaneous 210x X/Y display—ensuring clear and visible fiber cores;
Extended Operation Time: 7800mAh high-capacity rechargeable battery allows for over 260 continuous fusion splicing and heating cycles on a full charge; The side USB port enables convenient data transfer and charging; Don't worry about running out of power during critical tasks anymore!
Sturdy and Durable: Our fiber optic fusion splicer surface is made of sturdy ABS and PC material - lightweight, compact and durable; It is dustproof, shatterproof, and shockproof, suitable for dry climates, snowstorms, high altitudes, and high-temperature environments;
Professional All-in-One Kit: Keep your accessories neatly organized with the portable case; The optical fusion splicer kit includes a fiber fusion splicer, fiber cleaver, fiber stripper, 3-hole miller pliers, alcohol bottle, air blower, cooling tray, heat shrink tubes, brush, cotton swabs, and other essential tools;

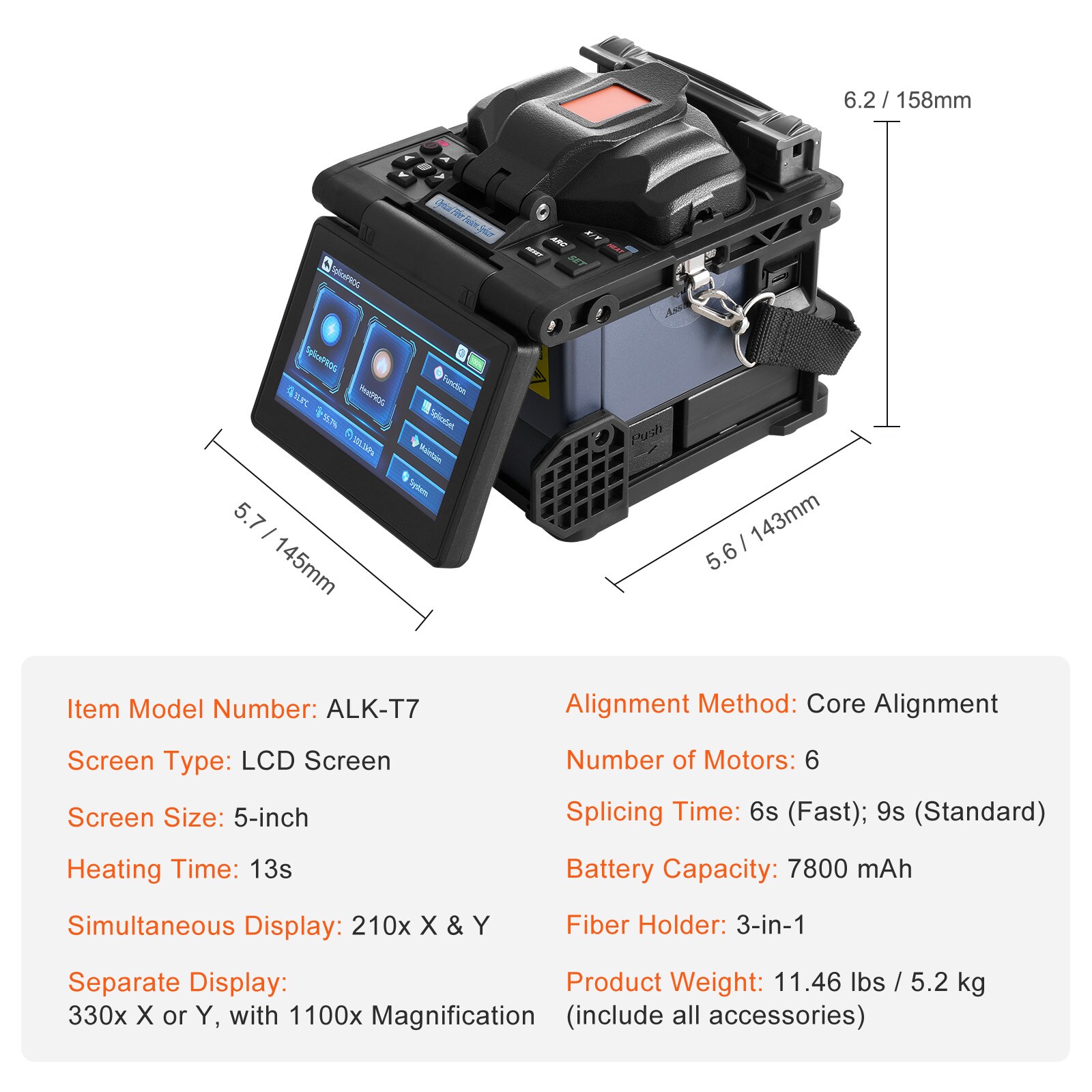

Specification: Item Model Number: ALK-T7; Alignment Method: Core Alignment; Screen Type: LCD Screen; Number of Motors: 6; Screen Size: 5-inch; Splicing Time: 6s (Fast); 9s (Standard); Heating Time: 13s; Battery Capacity: 7800 mAh; Separate Display: 330x X or Y, with 1100x Magnification; Simultaneous Display: 210x X & Y; Fiber Holder: 3-in-1; Product Weight: 11.46 lbs / 5.2 kg (include all accessories); Product Size: 5.7 x 5.6 x 6.2 in / 145 x 143 x 158 mm
