With 5.8 CFM @ 90 PSI and a maximum working pressure of 116 PSI, the 3HP twin-cylinder air compressor pump ensures a continuous and reliable air supply, making it ideal for various tasks requiring steady airflow.
From auto repair to woodworking, home garages, and renovation projects, this twin-cylinder air compressor pump serves a wide range of applications; It delivers consistent air supply, boosting work efficiency in diverse settings.
To ensure optimal performance, make sure the motor pulley and belt pulley are aligned in a straight line during installation; This helps prevent bearing displacement, ensuring smooth and efficient operation.

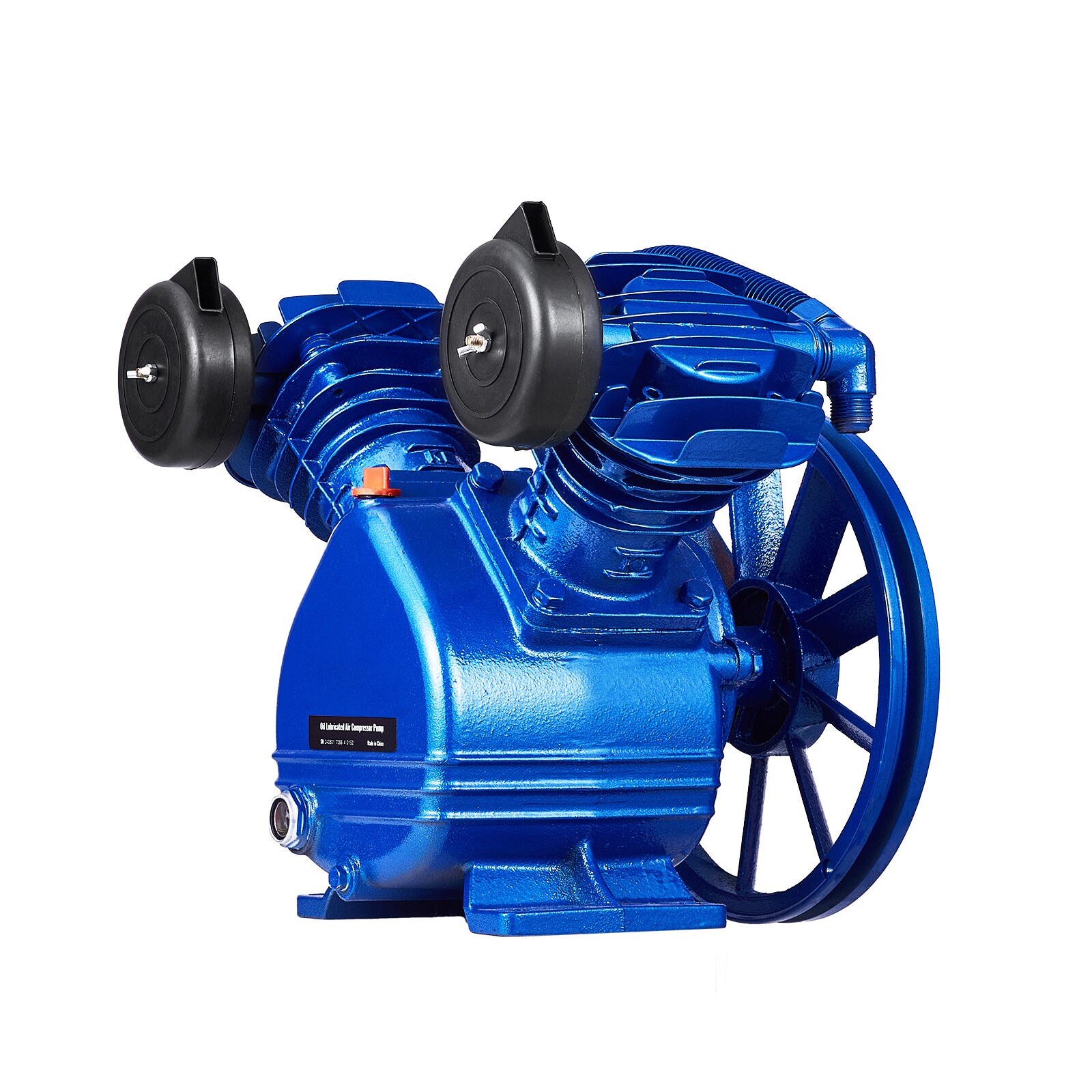

3HP Air Compressor Pump Head: VEVOR 3HP twin-cylinder air compressor pump head features 6.25 CFM @ 90 PSI air delivery rate and 116PSI max working pressure, provides a continuous and sufficient air supply for a wide range of equipment, ideal for tire inflation, spray painting, woodworking, and more tasks; (NOTE: Motor Not Included)

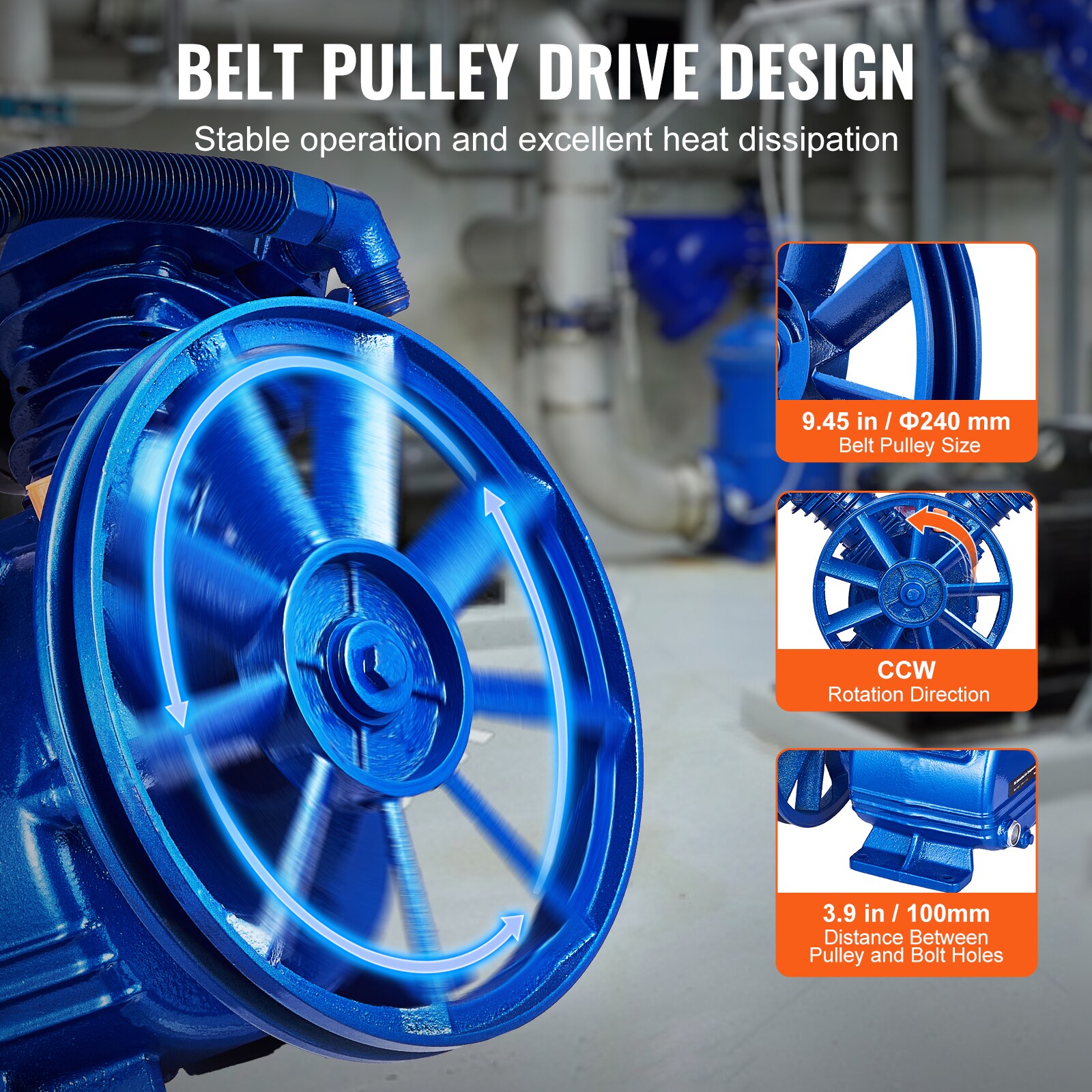

Proven Belt-Driven Design: Utilizing the proven belt-driven design to avoid bearing displacement, our single-stage V type pump head provides excellent compression and smooth running; (Installation notes: When placing the pump head, the motor pulley and the belt pulley must be in the same straight line; The more aligned, the less vibration;)
Superior Features: This oil lubricated air compressor pump features an high-quality intake and exhaust valve design, precision cylinder, efficient heat dissipation fins, and air filter to enhance stability and extend service life, and the convenient oil observation mirror allows users to easily monitor the oil level;
Durable and Efficient: The compact piston pump head is mainly made of durable cast iron, which offers excellent wear resistance and is not easily damaged; Coupled with its high efficiency and low energy consumption, it delivers powerful pneumatic performance while helping you save on operational costs;
Wide Applications: VEVOR 3HP air compressor pump head is widely used in chemical, light industry, textile, mining, construction, home decoration, woodworking shops, auto repair, etc; It delivers reliable compressed air to meet the demands of various equipment and tools, greatly enhancing your work efficiency;

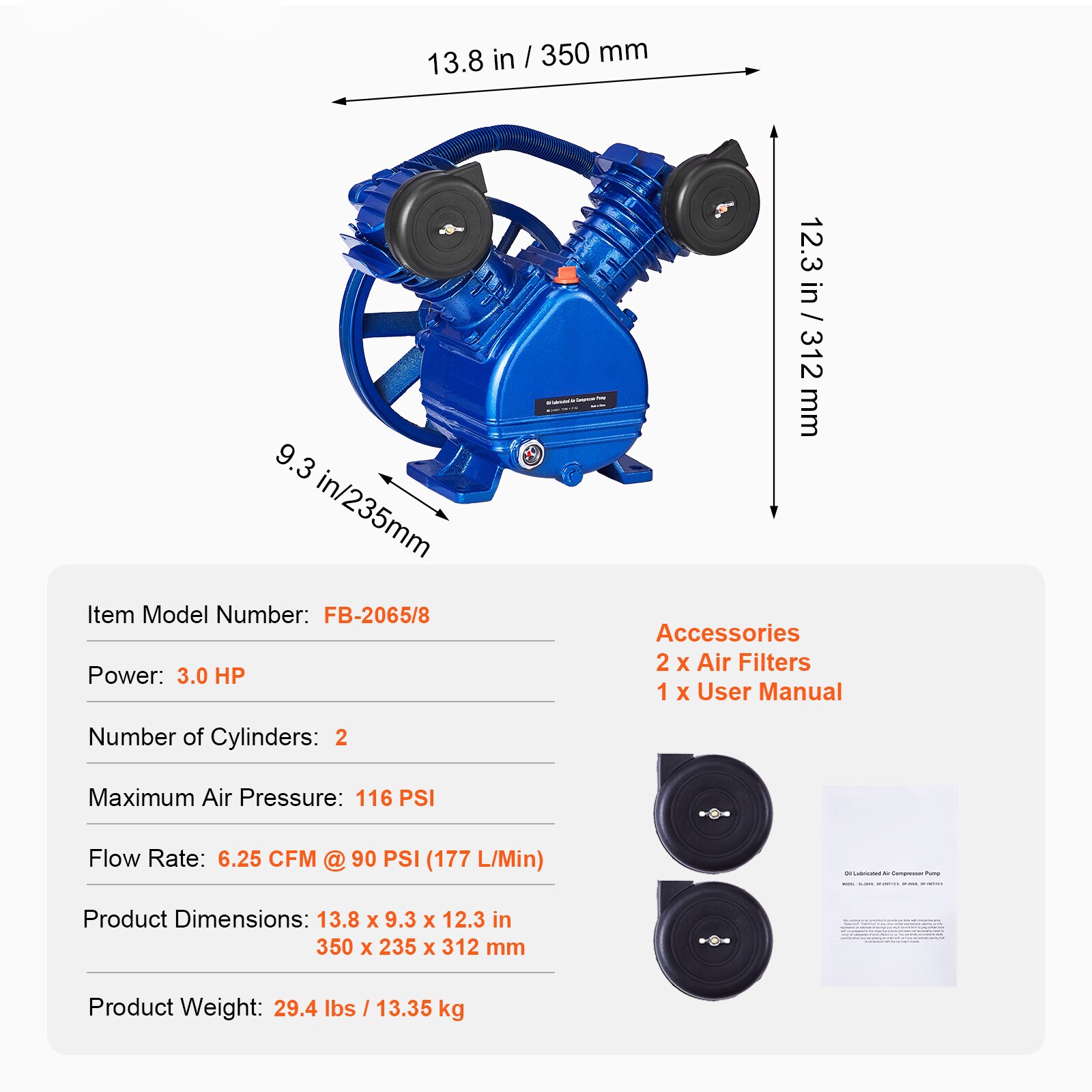

Specification: Item Model Number: FB-2065/8; Power: 3.0 HP; Number of Cylinders: 2; Maximum Air Pressure: 116 PSI; Flow Rate: 6.25 CFM @ 90 PSI (177 L/Min); Product Dimensions: 13.8 x 9.3 x 12.3 in / 350 x 235 x 312 mm; Product Weight: 29.4 lbs / 13.35 kg
