VELUX 22-1/2-in x 22-1/2-in Solar-powered venting Curb mount Aluminum Skylight with Laminated Low-E argon Glass Room Darkening Shade
Item #3789433 |
Model #VCS 2222 2004CS00W
VELUX "Go Solar" skylights with a solar powered shade require no wiring
VCS 2222 models are designed to fit a site-built curb (not included) with outside dimensions 25-1/2 in width x 25-1/2 in length
Qualifies for a 10-year installation warranty when installed with ECL flashing on a shingle roof with a pitch between 10° and 60° or ECW flashing on a tile roof with a pitch between 14° and 60° (flashing kits are sold separately)
This item is no longer sold on Lowes.com
VELUX "Go Solar" skylights with a solar powered shade require no wiring
VCS 2222 models are designed to fit a site-built curb (not included) with outside dimensions 25-1/2 in width x 25-1/2 in length
Qualifies for a 10-year installation warranty when installed with ECL flashing on a shingle roof with a pitch between 10° and 60° or ECW flashing on a tile roof with a pitch between 14° and 60° (flashing kits are sold separately)
Features Clean, Quiet and Safe LowE3 laminated glass with a Neat® glass coating that keeps your skylight cleaner, reduces unwanted outside noise, and comes with a 10-year hail warranty against glass breakage
Consists of double paned argon gas filled LowE3 glass that provides excellent energy performance for year round comfort, plus the added safety of laminated glass, which building codes require for out of reach applications
An integrated rain sensor will close the skylight automatically, in case of inclement weather
Easy to use remote controls and insect screen are included
Factory-installed blind color: white
Order VELUX ECL 2246 flashing if you have a shingle, shake, or slate roof, or VELUX ECW 2246 flashing if you have a tile roof
General | |||
|---|---|---|---|
Color/Finish Family | Gray | Shade/Blind Color | White |
Frame Color/Finish | Neutral Gray | ||
Dimensions | |||
|---|---|---|---|
Actual Height (Inches) | 5.625 | Common Size (L x W) | 22-1/2-in x 22-1/2-in |
Actual Length (Inches) | 27.375 | Glass Thickness | 5/16-in |
Actual Length Measurement | 27-3/8-in | Outside Frame/Curb Height (Inches) | 25.5 |
Actual Width (Inches) | 27.375 | Outside Frame/Curb Width (Inches) | 25.5 |
Actual Width Measurement | 27-3/8-in | Rough Opening Height (Inches) | 5.625 |
Clear Opening Height (Inches) | 19.5 | Rough Opening Length (Inches) | 22.5 |
Clear Opening Size (W x H) | 19-1/2-in x 19-1/2-in | Rough Opening Width (Inches) | 22.5 |
Clear Opening Width (Inches) | 19.5 | Weight (lbs.) | 54.9 |
Features | |||
|---|---|---|---|
Actual Height Measurement | 5-5/8-in | Interior Frame Material | Woodbase |
Clear Opening Height Measurement | 19-1/2-in | Maximum Roof Pitch (Degrees) | 60 |
Clear Opening Width Measurement | 19-1/2-in | Minimum Roof Pitch (Degrees) | 0 |
Exterior Material | Aluminum | Outside Frame/Curb Height Measurement | 25-1/2-in |
Flashing Included | No | Outside Frame/Curb Width Measurement | 25-1/2-in |
For Use with Flat Roofing | Yes | Remote Control Included | Yes |
For Use with Metal Roofing | Yes | Rough Opening Height Measurement | 5-5/8-in |
For Use with RV Roofing | No | Rough Opening Length Measurement | 22-1/2-in |
For Use with Shingled Roofing | Yes | Rough Opening Width Measurement | 22-1/2-in |
For Use with Tile/Clay Roofing | Yes | Screen Included | Yes |
Glass Insulation | Low-E argon | Shade/Blind Included | Yes |
Glass Tint | Yes | Shade/Blind Operation | Remote control |
Glass Type | Tempered glass over laminated glass | Shade/Blind Power Source | Solar-powered |
Glazing Type | Laminated | Shade/Blind Style | Room Darkening |
Hardware Included | Yes | Skylight Style | Solar-powered venting |
Installation Type | Curb mount | U-Factor | 0.52 |
Compatibility | |||
|---|---|---|---|
App Compatibility | Yes | Smart Compatible | Yes |
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | ENERGY STAR Certified South/Central Zone | Yes | |
ENERGY STAR Certified North/Central Zone | Yes | ENERGY STAR Certified Southern Zone | Yes |
ENERGY STAR Certified Northern Zone | Yes | ||
Warranty | |||
|---|---|---|---|
Warranty | 10-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 30171800 | ||
Ratings may include incentivized customer reviews.
What Customers Are Saying
The solar-powered skylights are highly praised for their quality, ease of use, and ability to improve indoor comfort by bringing in natural light and fresh air. Customers highlight the convenient remote-controlled operation and automatic rain sensor. The skylights are reported to perform reliably for many years. While a few users experienced minor issues with the rain sensor, battery life, or screen access, the overall feedback is very positive.
Customer review summary generated by AI, including incentivized reviews.Great Skylights!
Just had 4 of mine replaced & am thrilled over them.
From whyskylights.com
Best invention ever
I have 8 of the solar powered skylights with the partial light blocking shades. I did have some leaks in two skylights initially, but it was errors in the installation, not the skylight. I have had them for at least five years now and I can say that I absolutely love them. We live in the mountains in Utah so it is a fairly dry climate and cools off a ton at night. We have no air conditioning so we open all of the skylights in the evening on hot days and with a couple of downstairs windows ope...
From skylightspecialist.com
Replaced three and fit perfectly!
[This review was collected as part of a promotion.] I bought these to replace my 15 year old VELUX skylights. They old ones did not leak... but since we were doing the roof, wanted new sky lights and a new warranty. We have them in fixed and solar! They fit in the old opening perfectly and had minimal disruption to interior sheetrock. I think they are upgraded to the previous design and look well made. We've had VELUX brand skylights in our home for 40 years! Our first ones had a crank and...
From whyskylights.com
WiFi Gateway = Garbage
I just purchased a home that has 8 solar Velux Skylights. Each Skylight has a shade in it, which is run on a separate remote. Beyond that, I have a lock and sensor switch. There are 18 battery operated devices to manage. This is just stupid. The second issue is the Gateway. Stay away form this option to consolidate the remotes. It only operates on a 2.4 ghz network. If you have a modern WiFi mesh network, it will never work. If I were making the decision on these skylights, I would have wa...
From veluxusa.com
Thanks for your feedback. The gateway can be used with a mesh network, you may just need to speak with one of our representatives to help you configur...
Not Happy At All
This solar skylight model KLI110 came with my newly constructed house. I am very unhappy that about 2 years after I moved in the skylight no longer opens or closes. I thought it was the battery but I changed the batteries of the remote. I do not see the LED diode light up so I thought maybe the remote was broken (Why I have no idea...it's never been dropped and has hardly been used. We mostly keep the skylight closed.). So I saw online that to set the skylight you put the end of a bent pape...
From whyskylights.com
We are sorry to hear that you are having an issue with your VELUX Skylight. Please call our Technical Support team @ 1-800-888-0361 to help you troubl...
Great design and functions!
We had 2 Velux solar powered ‘fresh air’ skylights recently put in our living room. It is a relatively small room and we had the ceiling taken out to the roof in a small front portion of the room. I always wanted to put skylights in to bring in more light and bring a feeling of more space above our heads! They are wonderful and look great, and the solar bar is such a unique feature and was very important to me to have the solar option! The remote for operation of the windows is so easy and the f...
From whyskylights.com
Remote no longer working
I have had Velux skylights since 2000 - and I love them. About ten years ago, we replaced the master bedroom 4x4' Velux skylight with a Velux solar skylight with blackout blinds. We loved it. However, the 3LR A02 US remote controller no longer works - so I have not been able to open or close, or open & close the shade, in about two years. Do you have a replacement remote?
From veluxusa.com
Yes, there is a new remote control that will work for your VELUX products! Please click on the following link that goes to our website: https://skyli...
Great skylight. Horrible remote
I love the skylights. I would give it 5 stars, but the design/implementation of the remote controls is horrible. First, there is no backplate. They are designed to be wall mounted. One benefit of a remote control is that you don’t have to get up to walk to the wall switch. Where is the option to not be wall mounted? However, the worst part is the firmware design and documentation. I started following along in the documentation, trying to set up one remote to control both skylights. The ...
From whyskylights.com
Removable screens on Velux Solar Skylight?
Our former manual Velux skylight screens could be removed from the interior, as needed for cleaning. Recently had several replaced with Velux Solar Skylights and somehow, the way they are installed is not enough allowance remove the screens from below. Roofer says they can be removed from the top, ie from the roof! SO one has to climb a ladder to the roof in order to remove/clean Vellux Solar skylight screens? Please confirm ASAP if this is correct.
From veluxusa.com
Thank you for your question and comments. The insect screen for a VELUX solar powered venting skylight can be removed from the interior, so I'm not su...
Kitchen transformation
I replaced the original skylights with the solar powered fresh air skylights wnd WOW! It’s the first time since I purchased my home that my kitchen has been this bright, and now I can vent the windows when I cook to release the heat in there as well. This was part of my kitchen upgrade and I am so glad I went with them. I can’t believe how much light I was missing, because the old ones required the 10 ft poll to just open the shade, and neither I nor the previous owner had ever opened them.
From whyskylights.com
0 Questions
Be the first to ask a question

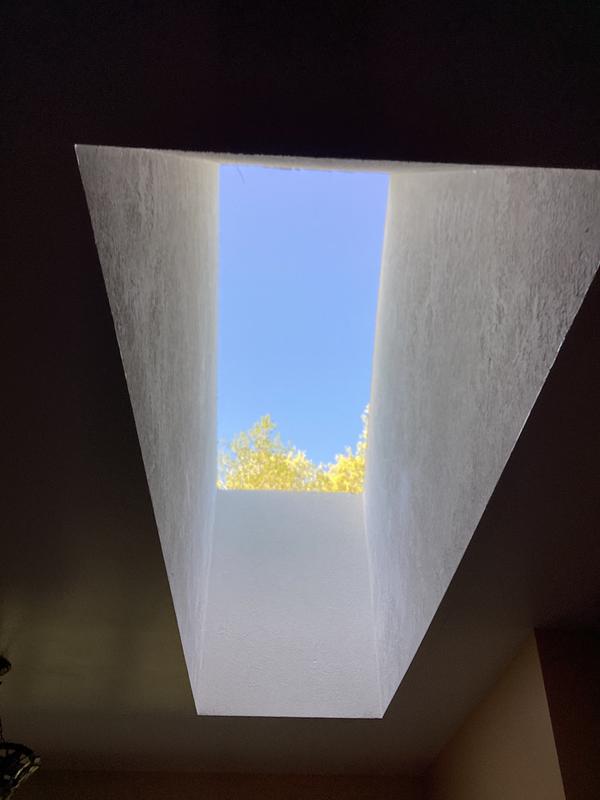

Queen Bee, excellent photo! Solar is an excellent source of sustainable light and ventilation. You picked the perfect time to upgrade to solar and tak...
