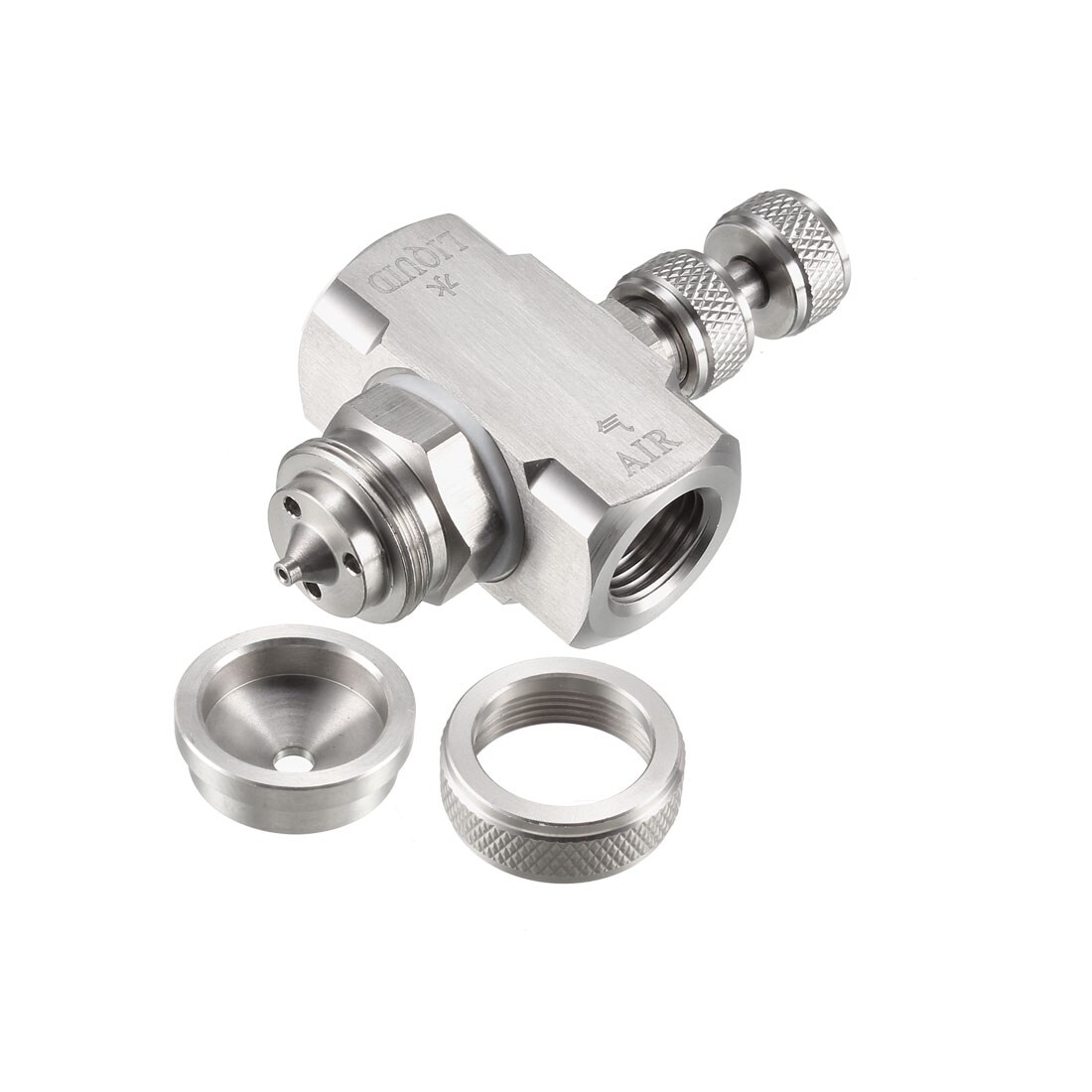

Unique Bargains Air Atomizing Nozzle 1/4BSPT Misting Low Pressure Siphon Cone-Shape Spray Tip

- Suitable for space dust, cooling, humidification.

- Air atomizing nozzles produce the finest mist of any nozzle type.

- The special internal structure of the air atomizing nozzle can make the liquid and gas evenly mixed, producing a fine spray.

- The fluid line can be pressurized or supplied using a siphon or gravity fed configuration.

- With adjustable needle on the back that has two functions: One is to adjust the spray flow of the product, and the other is to clear the blockage when the nozzle is blocked.

Specification:

Material: 304 stainless steel

Thread Size: 1/4BSPT

Spray Angle: 30 Degree

Total Size: 70mm x 40mm x 22mm / 2.76" x 1.57" x 0.87"(L*W*H)

Package Content:

1 x Air Atomizing Nozzle
