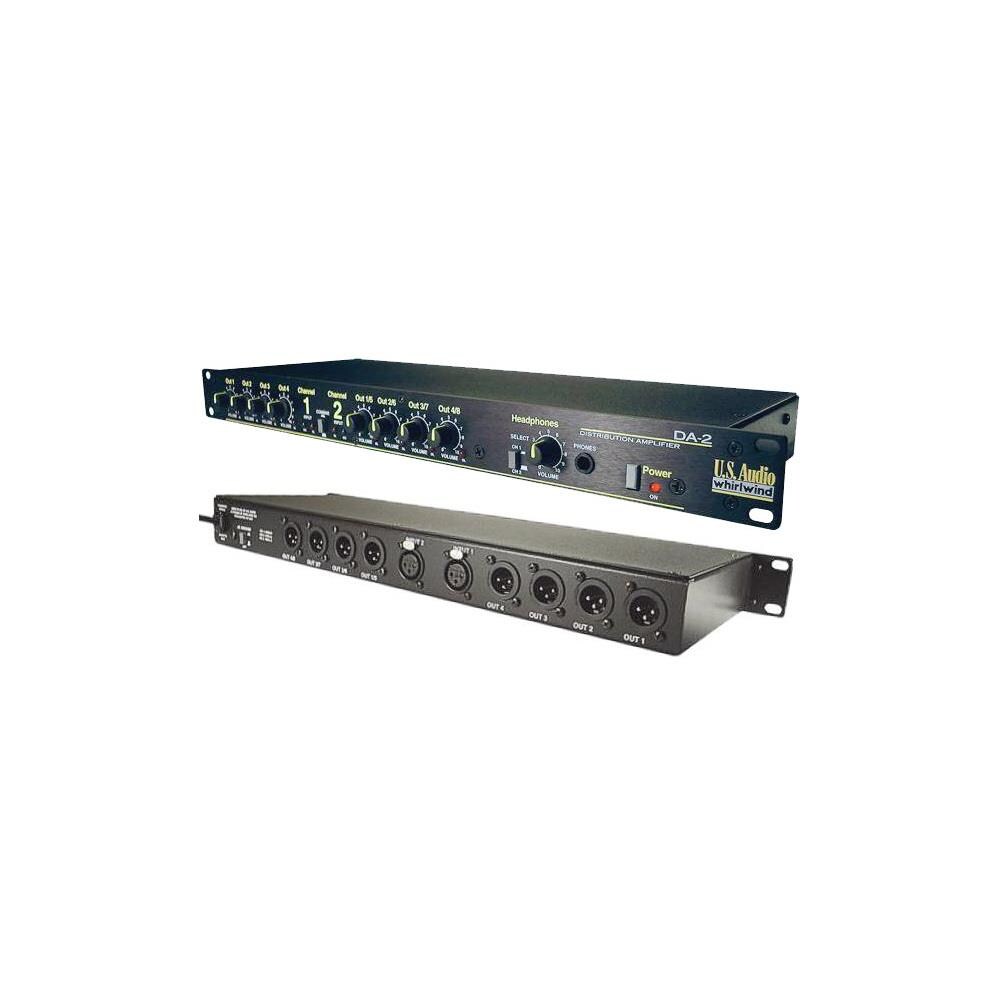

Whirlwind DA2 US Audio Distribution Amplifier

US Audio Distribution Amplifier The DA-2 drives multiple isolated line feeds from a single input source. It is ideal for driving lines to multiple amps in live sound applications, distributing audio to multiple tape decks, feeding signals to multiple zoned locations, etc. In normal ( stereo) mode, the DA-2 provides four outputs per each of two inputs. A front panel COMBINE switch applies both inputs to all 8 outputs, where the DA-2 becomes a one or two in, eight out DA. Each output is ground lifted and has its own level control and clip indicator light. Input signals are monitored by signal-present LEDs and clip LEDs. The headphone circuit can be switched to monitor either channel. Specifications Frequency Response: 20Hz-20kHz 0.3dB Maximum Input level: +22dBu Input Impedance: 1Meg Ohm Common Mode Rejection: 90dB at 60Hz Maximum Output Level: +22dBu Output Impedance: 112 Ohm S/N at 0dB Input, 0dB Gain: 87dB Rise Time: 3 S Total Harmonic Distortion: 0.004 1kHz Output Channel Separation: 74dB Headphone Impedance: 75 Ohm minimum Channel Output Gain: 18dB
