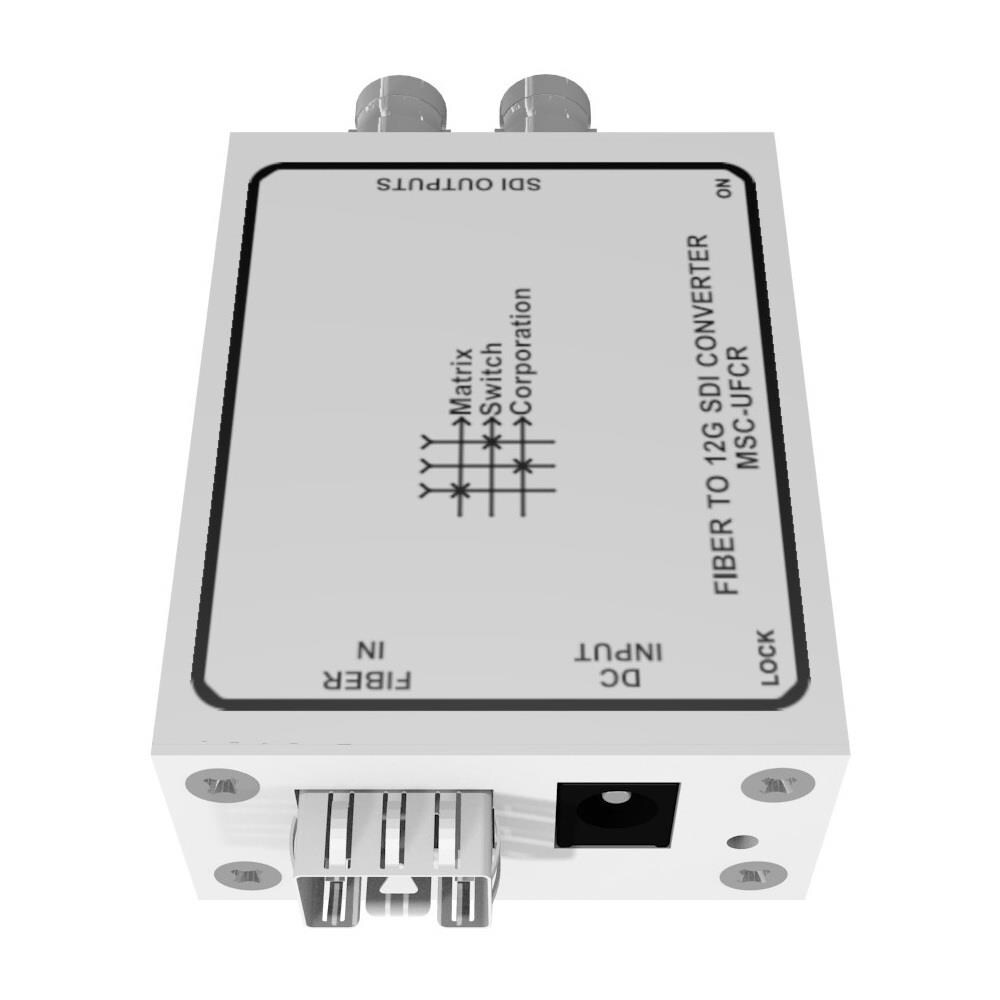

Matrix Switch Corporation SDI SFP converters provide compact, flexible, and low cost solutions for converting between SDI over coax and MSA compatible SDI SFP transmitter and receiver modules. The MSC-UFCR converter provides 12G-SDI conversion from an SFP input to an output with dual redundant BNC connectors. The MSA compatible SFP slot supports our Fiber Optic and HDMI transmitter modules as well as compatible 3rd party modules. Features Dual BNCs per output often eliminates the need for additional distribution amplifiers Re-clocks standard SDI rates 12G/6G/3G/HD/SD ( 11.88/5.94/2.97/1.485/0.270 Gbit/s) Auto bypass of non-standard SDI rates from 20 Mbit/s to 12 Gbit/s Passes SDI embedded audio and ancillary data Compact enclosure design with a depth of only 2 inches Less than 1 pound External DC power supply Complies with all relevant FCC, U/L, CE, and RoHS requirements Specifications Inputs: 1 Outputs: 1 Power: 5 VDC 4A Adapter Power Connector: 5.5mm OD 2.5mm ID coaxial Made in: USA MTBF: 50,000+ Hours MTTR: Lessthan 48 Hours Weight: 1 lbs
