Matrix Switch MSC-SFL-105 4 Channel 3G-SDI- SDI and HDSDI Over Fiber Extender for Fiber Link Product Solution

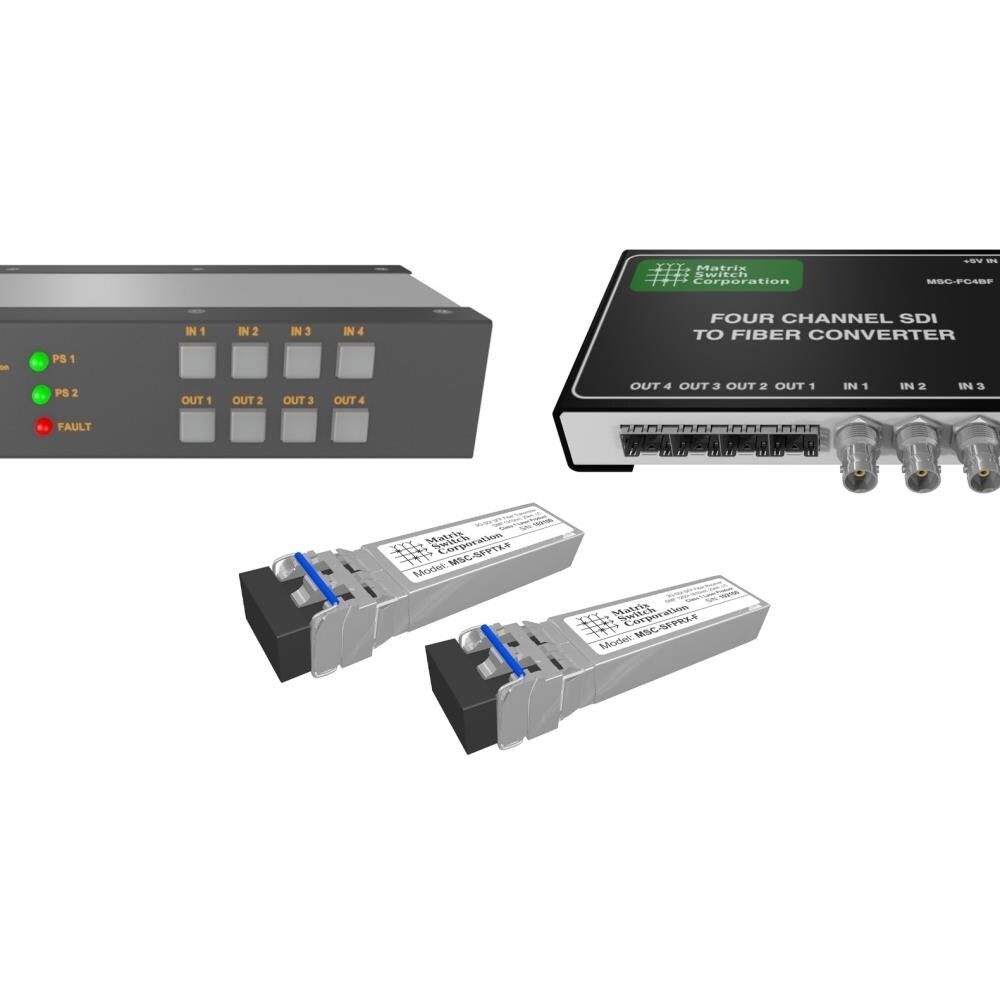

Matrix Switch Corporation MSC-SFL-105 fiber solutions are complete systems. These systems take SDI copper BNC inputs and then convert them using SMPTE MSA SFP plug in's, to single mode optical fiber for distances of up to 20KM and back to SDI BNC copper video outputs. The Model MSC-SFL-105 System provides four 3G-SDI channels like the Model MSC-SFL-103 System, except the four channel fiber to 3G-SDI BNC receiver has a built in 4x4 routing switcher, with RS232, RS485, Ethernet, web page interface and integrated button control panel. The fiber transmit unit is the same compact passive device as used with the Model MSC-SFL-103 System. Features Re-clocks standard SDI rates 3G ( 2.97 Gbit/s), HD ( 1.485 Gbit/s), and SD ( 270 Mbit/s) Auto bypass of non-standard SDI rates from 20 Mbit/s to 3 Gbit/s Passes SDI embedded audio and ancillary data Complies with all relevant FCC, U/L, CE, and RoHS requirements Specifications Outputs: 4 Made in: USA MTBF: 50,000+ Hours MTTR: SDI Inputs Connector Type: BNC Data Rates: 19 Mbit/s through 3.0 Gbit/s Input Return Loss: 15dB HD, 12dB 3G Input Impedance: 75 Ohms +/- 1 Input Level: 800 mV P-P +/- 20 Cable Equalization: 400m SD, 140m HD, 120m 3G ( 1694A coax)SDI Outputs Connector Type: BNC Data Rates: 19 Mbit/s through 3.0 Gbit/s Re-clocking Data Rates: 2.97 Gbit/s, 1.485 Gbit/s, 270 Mbit/s Output Return Loss: 15dB HD, 12dB 3G Dimension: 6.60-" x 1.75-" x 4-" Weight: 3.4 lbs
