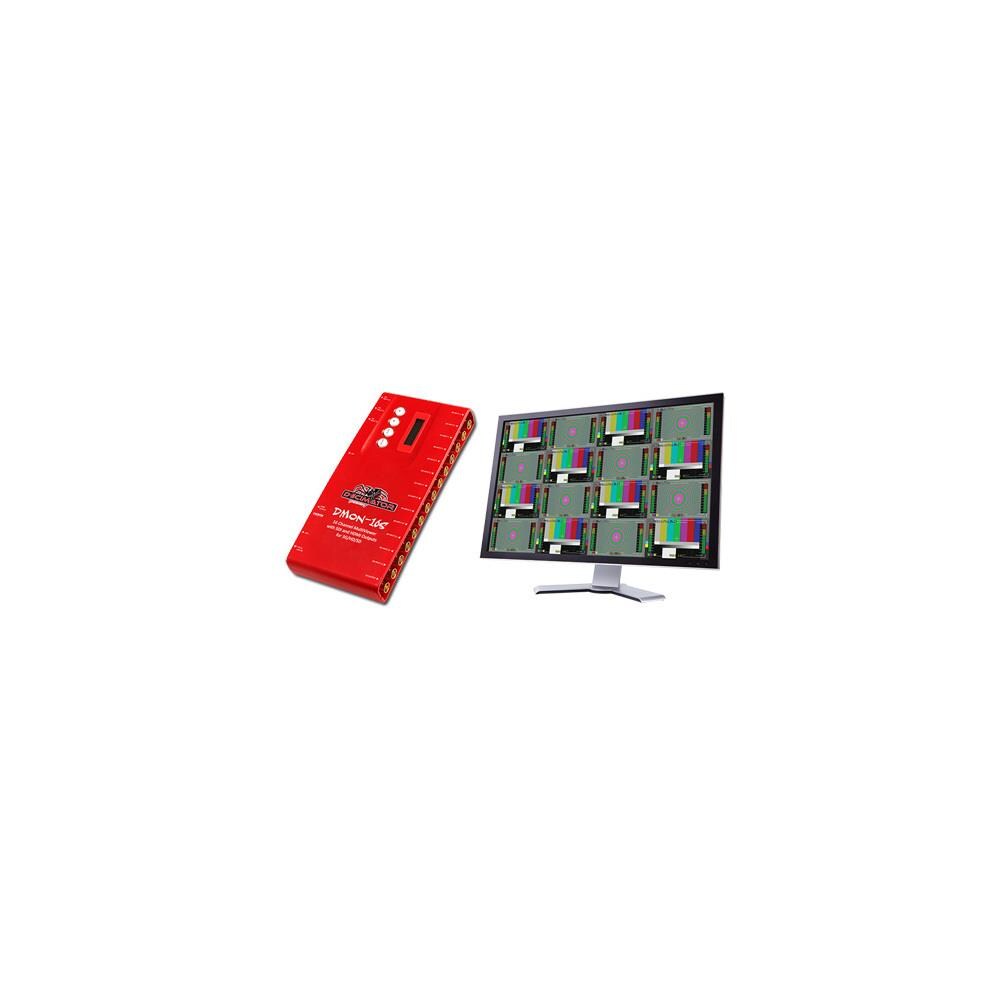

The Decimator Design DMON-16S is a low cost miniature (3G/HD/SD)-SDI 1 to 16 Channel Multi-Viewer or 16 to 1 input multiplexer with SDI and HDMI outputs for 3G/HD/SD and Custom Layouts, UMDs, Audio Meters, Graticules and Tallies.The DMON-16S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.New UCP (USB Control Panel) Version 2.0.6 Released for both the Mac OS X and Windows 32/64-bit: Support added for 3G level B.The 3G output level of either A or B, can be selected on units with SDI outputs. This allows for easy conversion between 3G level A or B.Click here for the latest USB Control Panels. FeaturesCustom Layouts with various standard layouts16 Character UMD overlay per window with individual enables, custom positioning and size8 Channel Audio Metering overlay per window with individual enables, custom positioning and sizeSafe Action and Safe Title overlay per window with individual enables and adjustmentCentre Cross overlay per window with individual enableAudio ID overlayTallies can be applied to either Tally Boxes Default, Outside Safe Action Area or BorderTally boxes allows for up to 4 Tallies per windowFast switching between inputs using Full-Screen scalingSelectable output format in both Full-Screen and Multi-Viewer modeLow latency buffering for each input allowing non-synchronous inputsLinked (3G/HD/SD)-SDI and HDMI outputs16 x (3G/HD/SD)-SDI inputs with auto detection 26 Formats supported in totalEach window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneouslyVariable aspect ratios per windowIn Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputsIncludes32 GPI on 37-pin D-SUB for Tallies and Remote
Custom Layouts with various standard layouts
16 Character UMD overlay per window with individual enables, custom positioning and size
