Specifications
Self-leveling range: ±5 degrees
Accuracy: ±1/8 inch at 100 feet (±1.5 mm at 30 meters)
Working range (diameter): Up to 2,600 feet (800 meters) with detector
Rotation speed: 600 RPM
Battery life: Approximately 100 hours (alkaline batteries)
Operating temperature range: -4°F to 122°F (-20°C to 50°C)
Water and dust protection: IP66 rating
Dimensions: 7.7" x 8.3" x 6.9" (195 x 210 x 175 mm)
Weight: 5.5 lbs (2.5 kg)
Laser diode: 635nm (visible)
Laser class: 3R
Scan mode: Allows for continuous movement of the laser beam in a horizontal or vertical direction
Sleep mode: Conserves battery life by automatically turning off the laser after a period of inactivity
Dual-sided LCD display: Shows level, battery status, and other information from both the front and back of the laser
Product Description

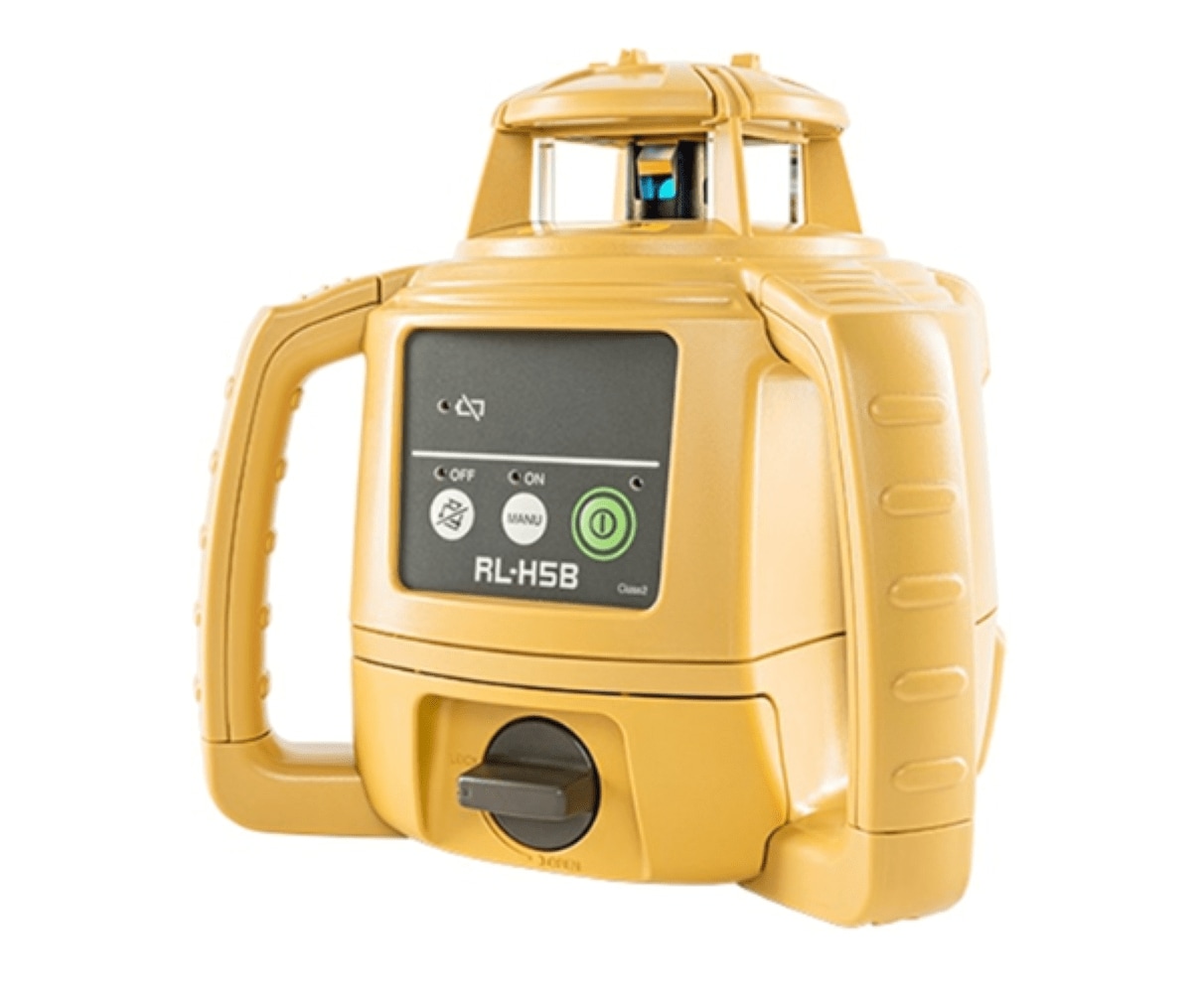

Topcon RL-H5B is a high-precision, self-leveling rotary laser level used in the construction industry for a variety of applications, including grading, excavation, and site preparation. It is manufactured by Topcon Positioning Systems, a leading provider of precision positioning and measurement solutions.
The RL-H5B offers a range of features that make it well-suited to construction projects, including an accuracy of ±1/16 inch at 100 feet, a working range of up to 2,600 feet with a detector, and a self-leveling feature that ensures accurate readings even on uneven surfaces. The laser also includes a long-lasting battery that can operate for up to 100 hours on a single charge.
In addition to its performance features, the RL-H5B is designed for durability and ease of use on construction sites. It has a rugged, weatherproof housing that can withstand harsh conditions, and its intuitive interface and simple controls make it easy to set up and operate. The laser also includes a variety of accessories, such as a remote control and a carrying case, to further enhance its utility and convenience.

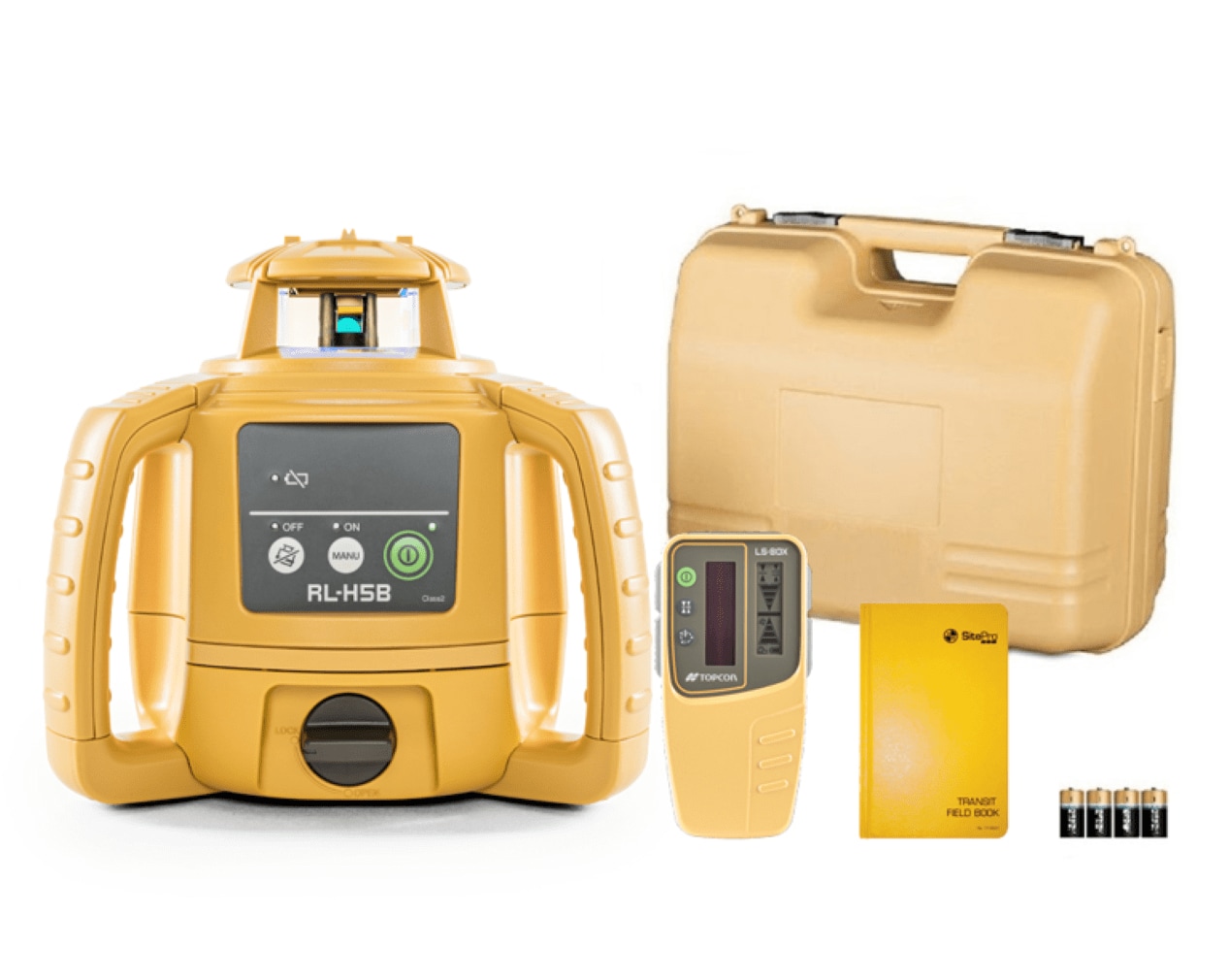

In the Box
RL-H5B Rotary Laser
LS-80L Receiver
Receiver Rod Clamp Holder
Alkaline Batteries
Field Transit Book
Hard Shell Carrying Case
Brochures and Manuals
RL-H5B Rotary Laser Brochure
