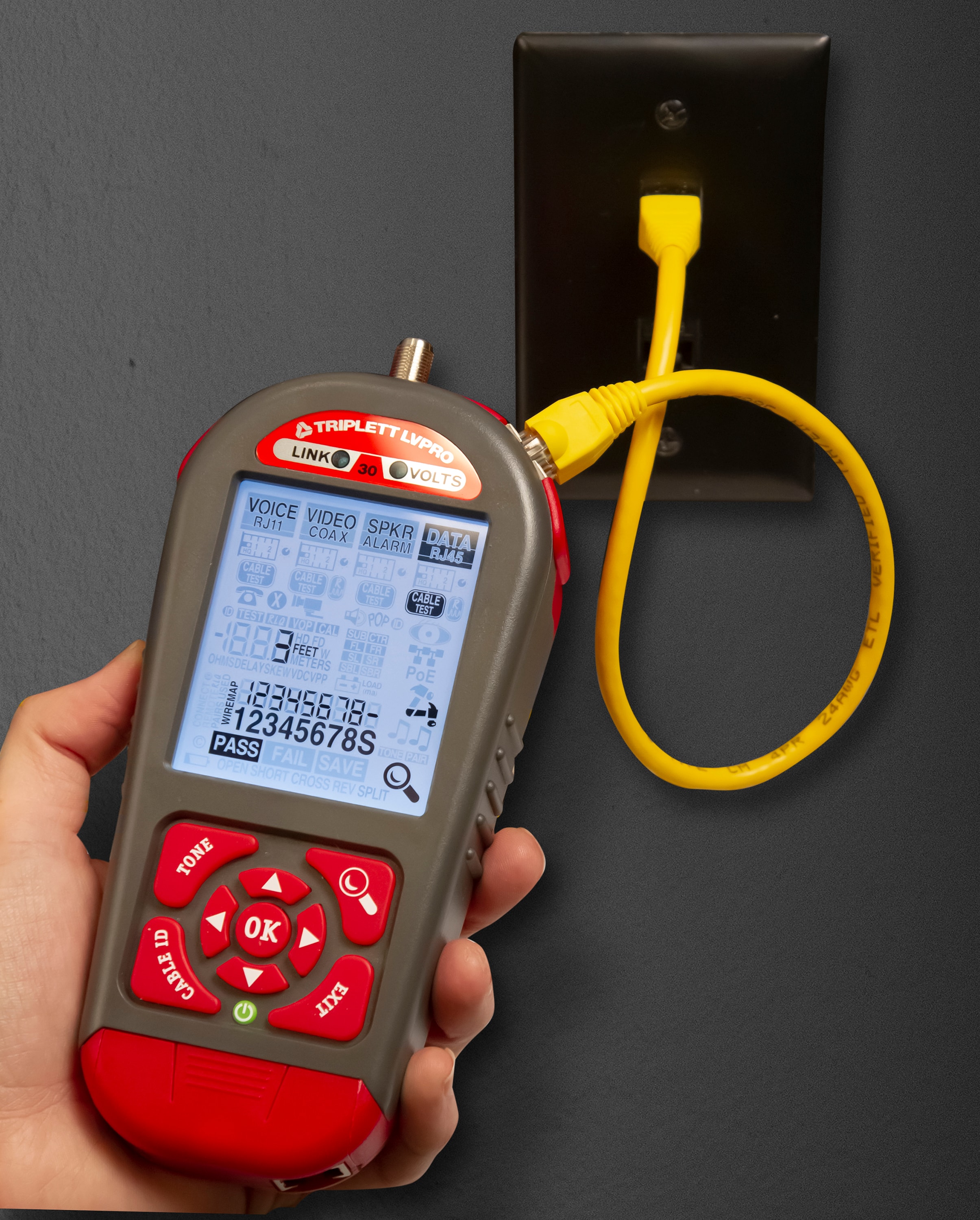

The Triplett LVPRO is a cable tester that runs a variety of cable testing procedures such as wiremap, timing tests (delay, skew), impedance measurement, Ethernet switch port blink, speaker pop, cable length, PoE volts, loaded battery test and 10/100/1000 indication, plus it gives you the ability to store and print up to 250 test reports. Two models to choose from. Model LVPRO30 has 13 test apps. Model LVPRO30SR adds Smart Remotes to Model LVPRO30. The LVPRO comes complete with Detachable Remote, F Male to BNC Male, F Male to BNC Female, (2) RJ45 patch cables, RJ45 to alligator clip adapter, 10 RJ45 remotes, 10 Coax remotes, 3 RLQ adapters, USB cable, (4) AA batteries and carrying case. In addition, Model 30SR includes 8 Smart Remotes.
Works with virtually all cable types including speaker cable, coax, alarm cable and Category cable (CAT5,6). If you have a unique cable, the LVPro has adjustable VOP, a technology that allows the LVPro to be tuned to your cable
Perform detailed wiremap, measure cable distance to open or short, test coax and RJ11 cables for faults
Check line voltage on RJ45 (PoE) and telephone lines, measure incoming data speed, store and print up to 250 Reports (Model 30 or higher)
Test modules available with additional features, Web upgradeable using the LVPro Manager software and included USB cable
