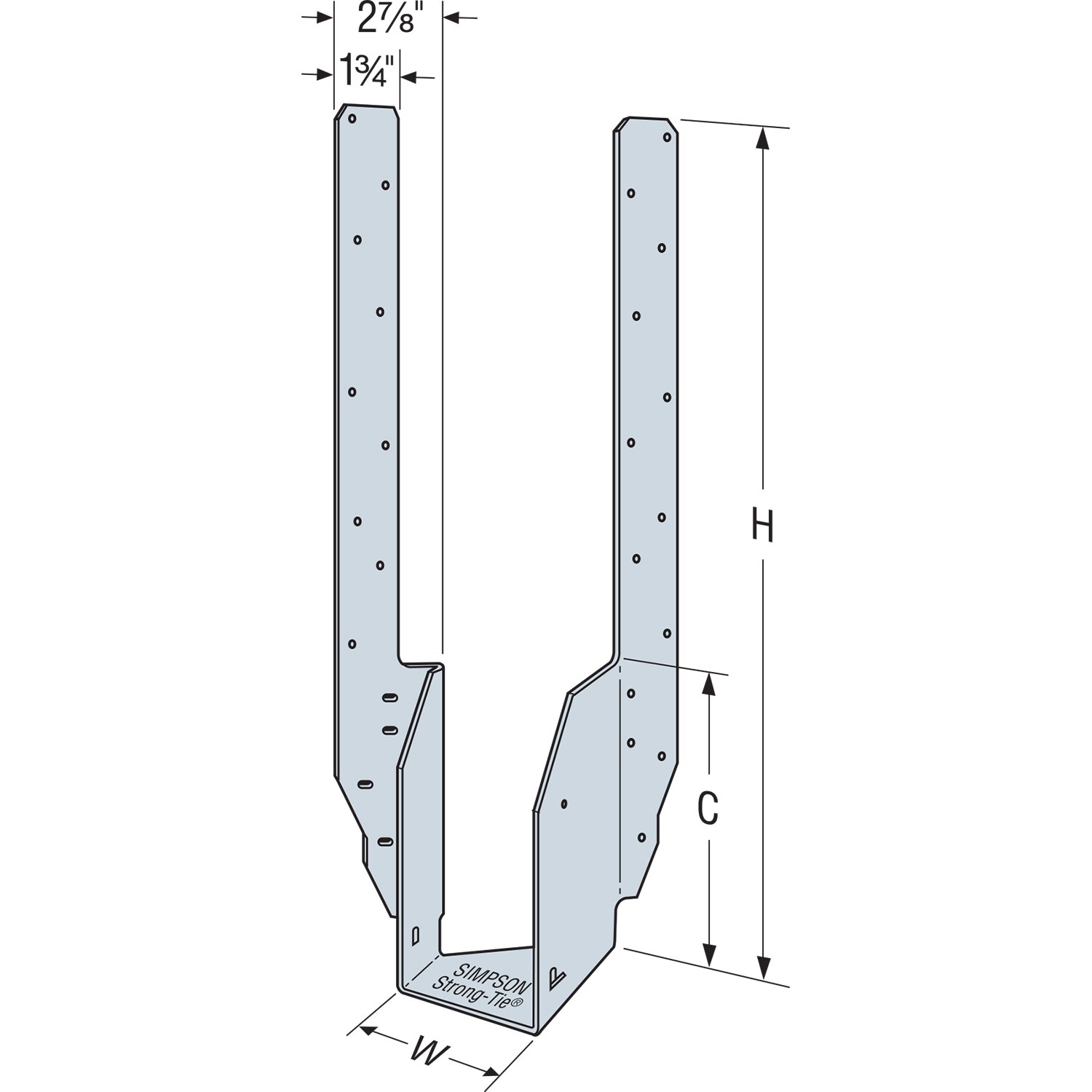

The THAR/THAL is designed to support 4x2 trusses and 4x beams. This versatile U-shaped truss hanger features positive-angle nailing (PAN) to help eliminate splitting of truss bottom chords. The field-adjustable THAR has a 45-degrees skew to the right, while the THAL has a 45-degrees skew to the left.
Eliminates the need for special orders
Can be used for top-flange or face-mount installation
Extra-long straps for height adjustability and top-flange installation convenience
Minimum carried member: 4x10
Seat width: 3-5/8-in
Height: 22-5/8-in
Made from 16-gauge steel
Galvanized (G90) for extra corrosion resistance
Install with 0.148 x 1-1/2-in nails and 0.148-in x 3-in nails
