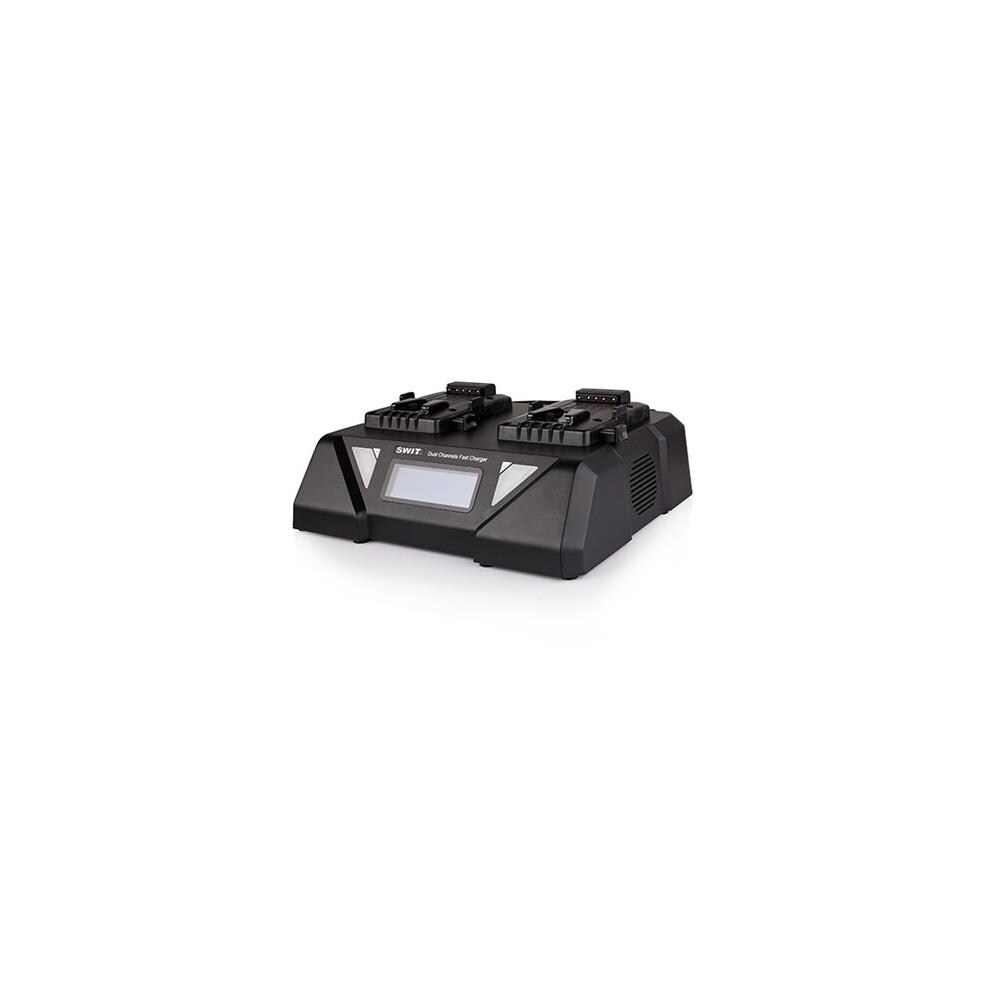

SWIT Electronics Swit Electronics America SWIT-S-3812S 2-Channel Simultaneous Fast Charger or Adaptor for V-Mount Battery

The 2-Channel, simultaneous charger/adaptor at Max 6A fast chagring current for SWIT particular battery. The charging speed is quite faster than normal chargers. The following battery models support 6A fast charging: S-8340S, S-8360S, D-8161S/R. For other Sony V-mount and SWIT batteries, the charging current is 3A. The S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR or DC output from attached battery on S-3812S to 4-pin XLR output. By S-7102 (4-pin XLR female to male) cable, the S-3812S can supply 16.8V DC power to the other equipments, Max load 200W/12A. FeaturesV-mount battery charger2-ch simultaneous chargingIdentifies battery type and adjusts charging method6A fast charging for SWIT particular batteries3A charging for normal batteriesLCD display panel for charging statusSupport AC-DC to 4-pin XLR output (16.8V)Support battery to 4-pin XLR output(16.8V) LCD display charging/adapting informationIncludesS-3812S chargerSpecificationsInput: AV 120V-240V, 50/60 HzPower Consumption: Max 260WCharging Output: DC 16.8V, Max 6Ax2-chAdapting Output: DC 16.8V, Max 12AWorking Temperature: 0 deg C to +40 deg CWorking Humidity: 10% to 90%Weight: 5 lbs
