This indexing head is designed to enhance the functionality of your milling machine by enabling precise angle measurements and evenly dividing a circle into specific segments; It includes three interchangeable indexing plates and a tailstock, providing greater accuracy and stability during operations; This tool is ideal for machining tasks such as creating flutes on milling cutters, cutting gear teeth, milling curved slots, or drilling bolt hole patterns around a part's circumference.
This indexing head is built for durability, featuring robust construction that ensures extended use; Its polished surface is resistant to wear and damage, offering a sleek and understated appearance.

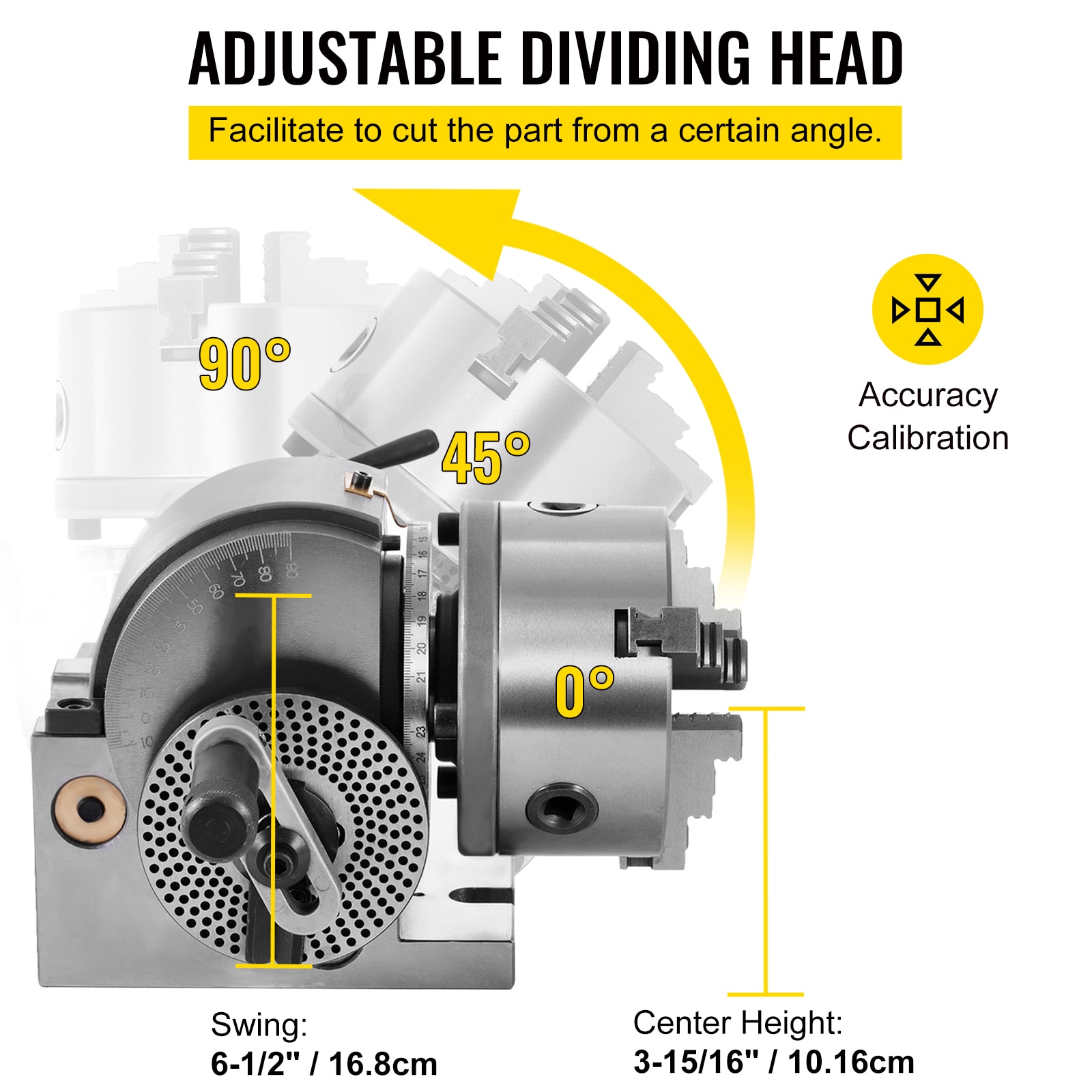

This dividing head is designed to adjust its tilt angle from 10 degrees below the horizontal position to 90 degrees vertically; This feature allows for precise cutting at various angles, offering enhanced flexibility for your projects.
The first adjustment allows the pin to extend into the plate, enabling the division of a complete circle into 2, 3, 4, 6, 8, 12, or 24 segments; The second adjustment secures the spindle to minimize vibrations during machining operations.

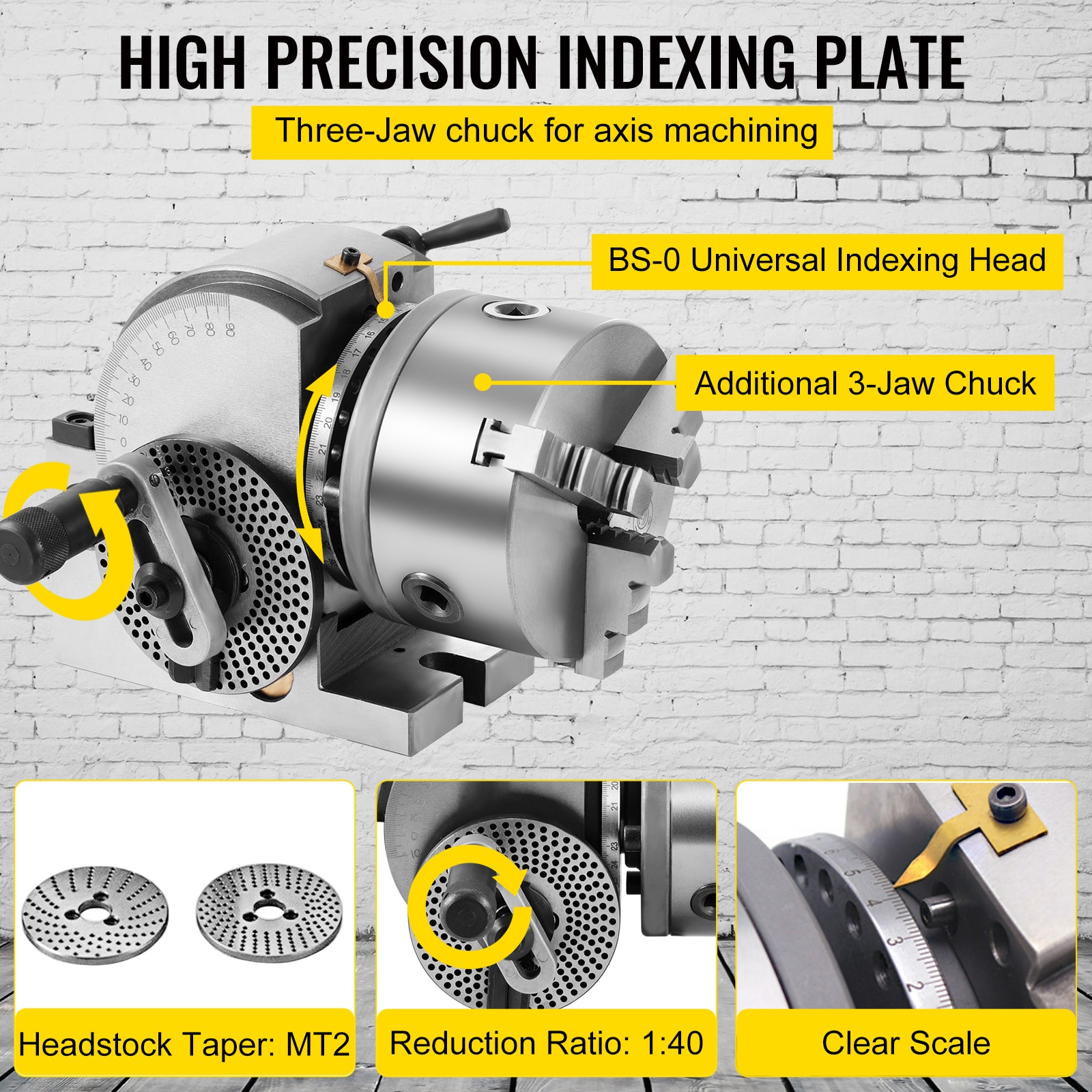

This indexing head delivers precise performance through the use of indirect indexing plates labeled A, B, and C; It supports divisions ranging from 2 to 50, though certain divisions between 51 and 380 may not be achievable; Refer to the manual for detailed setup instructions.
The MT2 tailstock provides reliable support for machining tasks, especially when working with long and narrow workpieces.

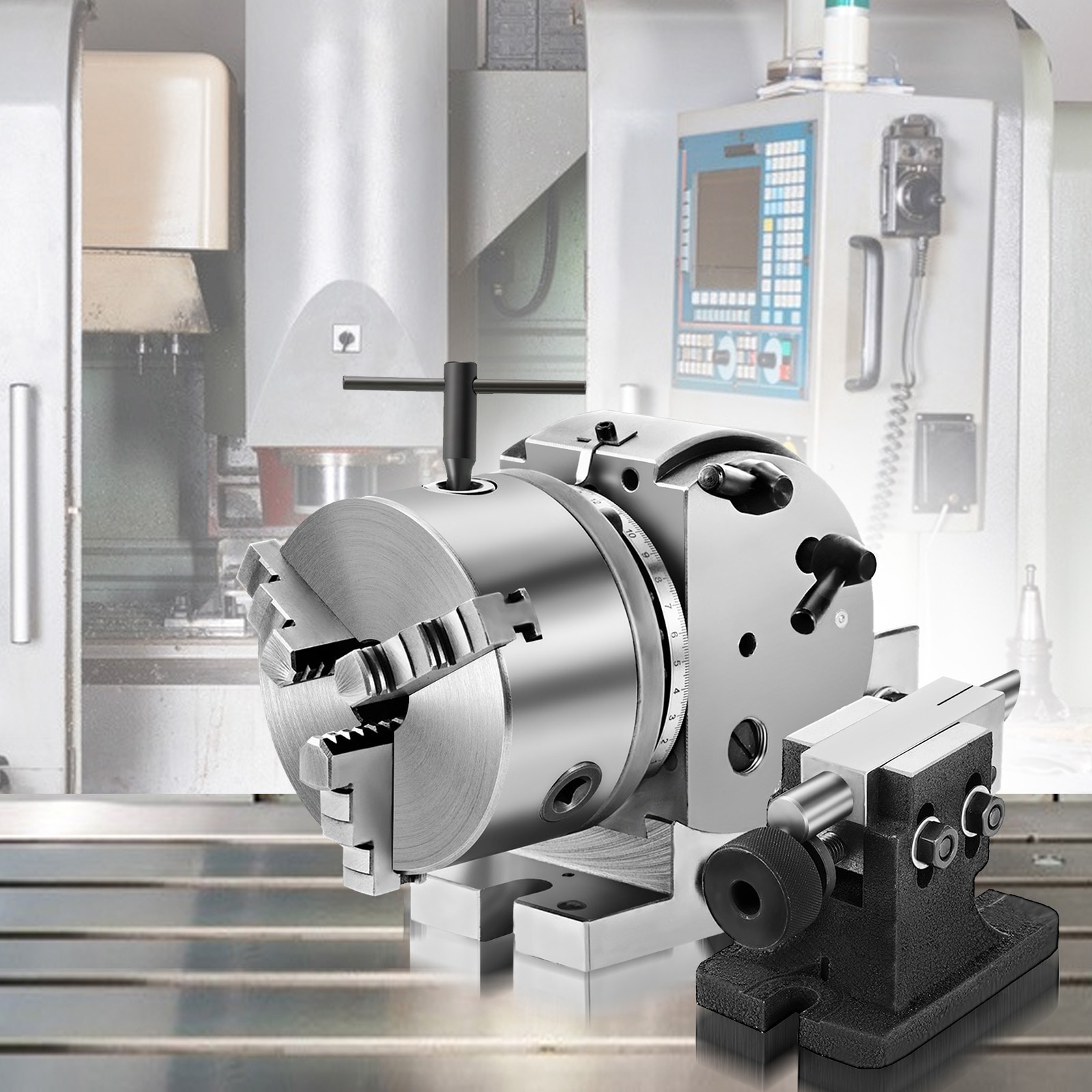

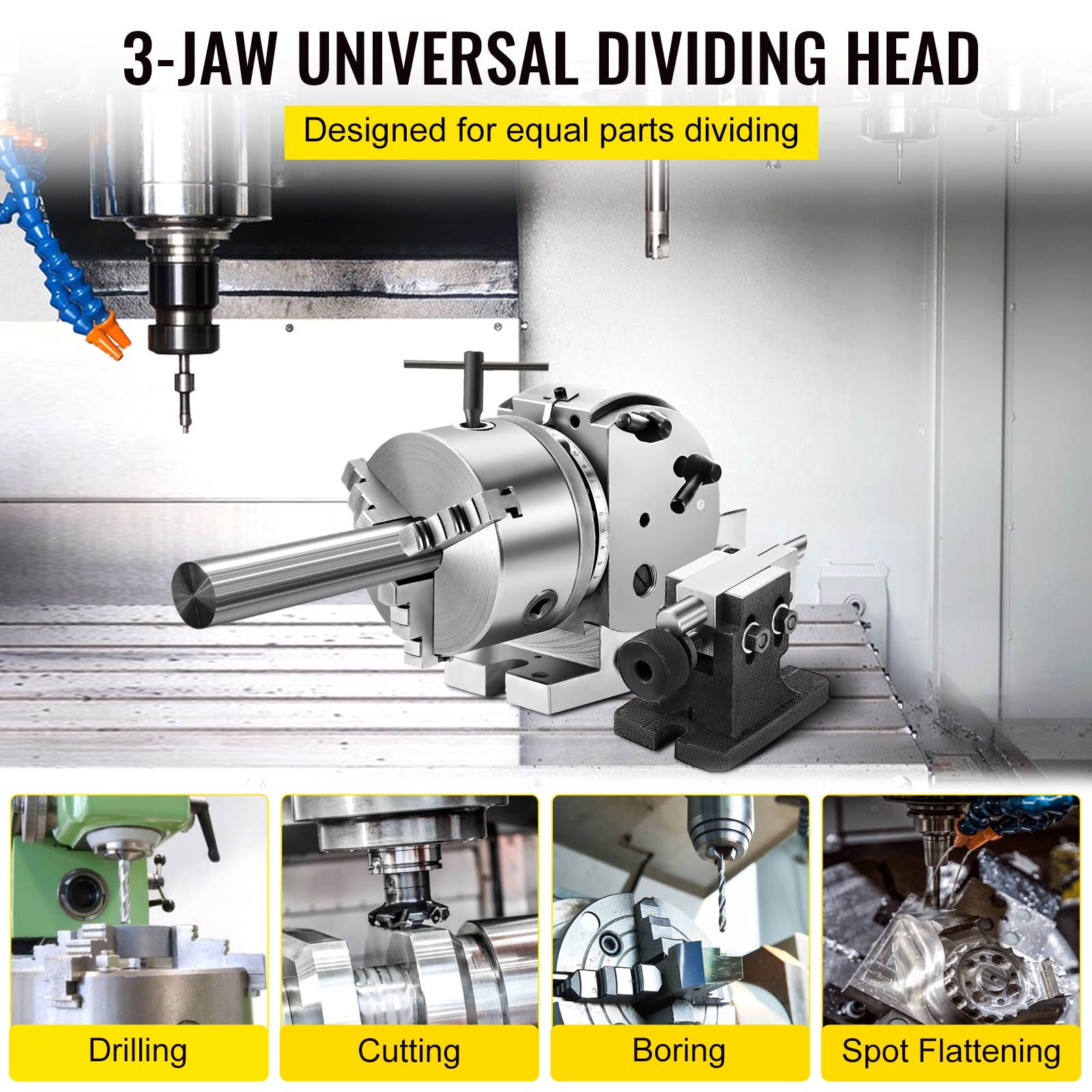

This rotary indexer is designed for use on milling machine tables and various other equipment, such as drill presses, grinders, and boring machines.
Wide Range of Uses: This rotary indexer is designed for use with milling machine tables and various other equipment, such as drill presses, grinding machines, and boring tools.

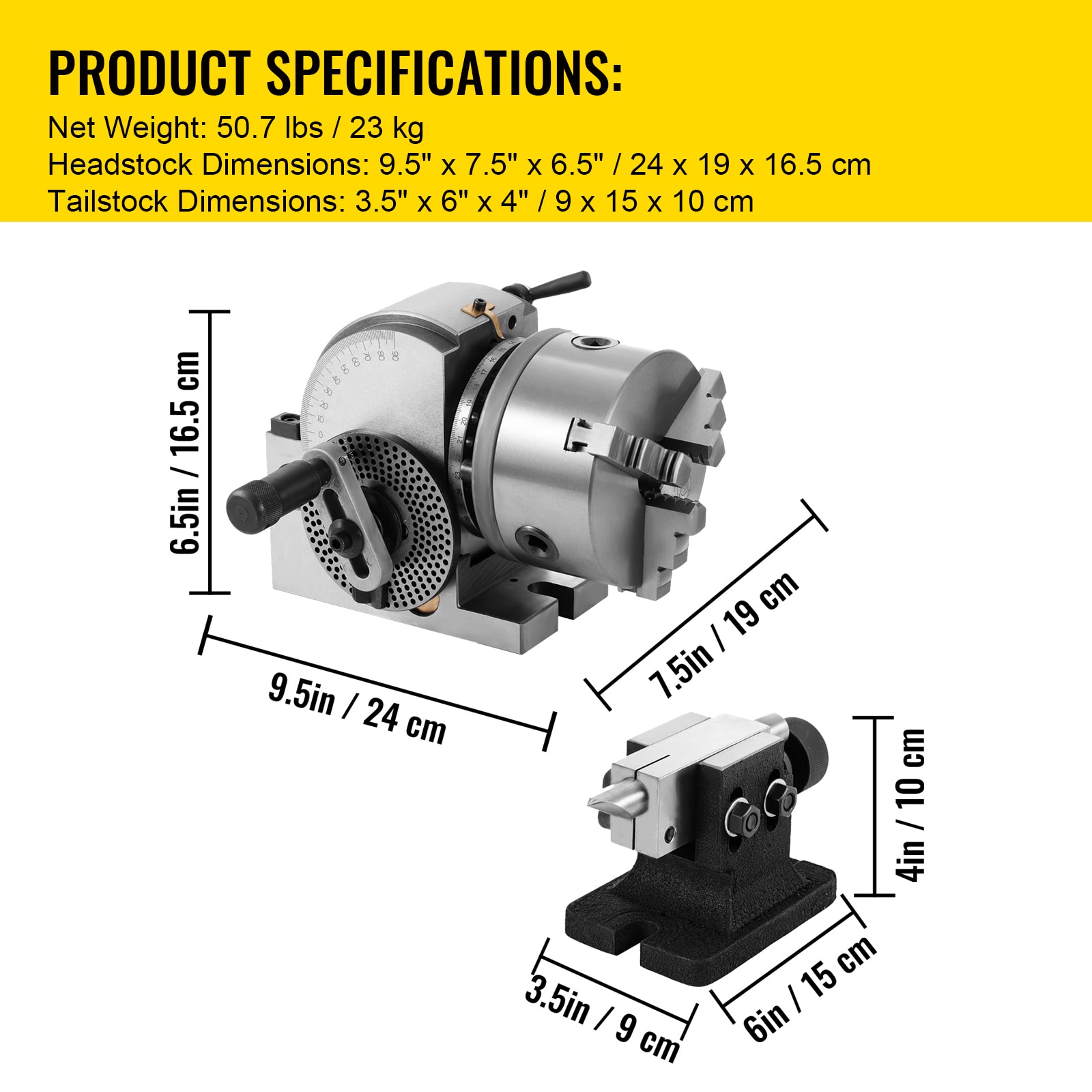

Swing: 6-1/2" (16.5 cm),
Center Height: 3-15/16" (10 cm),
Headstock Taper: MT2,
Net Weight: 50.7 lbs (23 kg),
Headstock Dimensions: 9.5" x 7.5" x 6.5" ( 24 x 19 x 16.5 cm),
Tailstock Dimensions: 3.5" x 6" x 4" (9 x 15 x 10 cm).

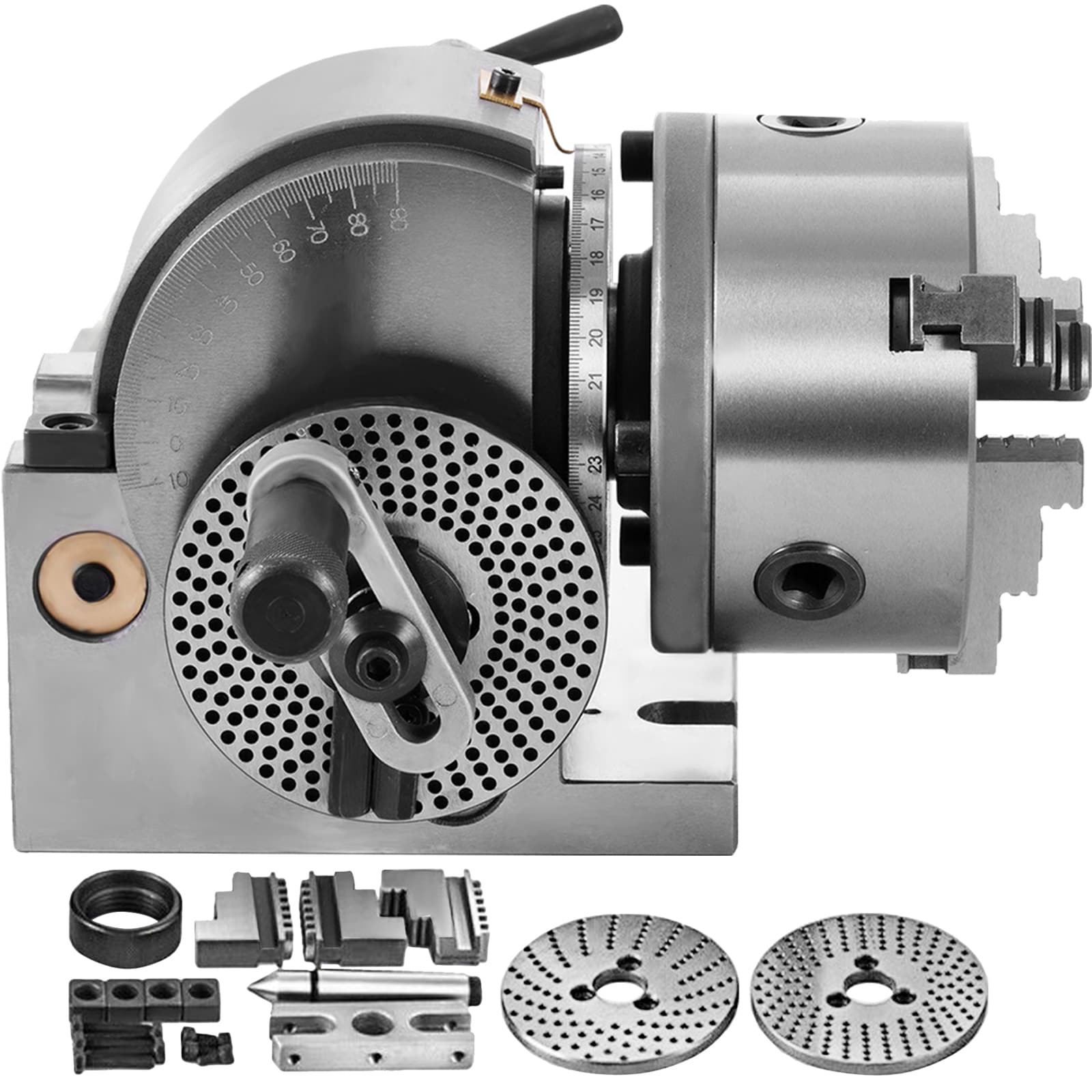

1 x Dividing Head,
3 x Dividing Plates,
1 x Tailstock,
1 x 125 mm 3-Jaw Chuck.
