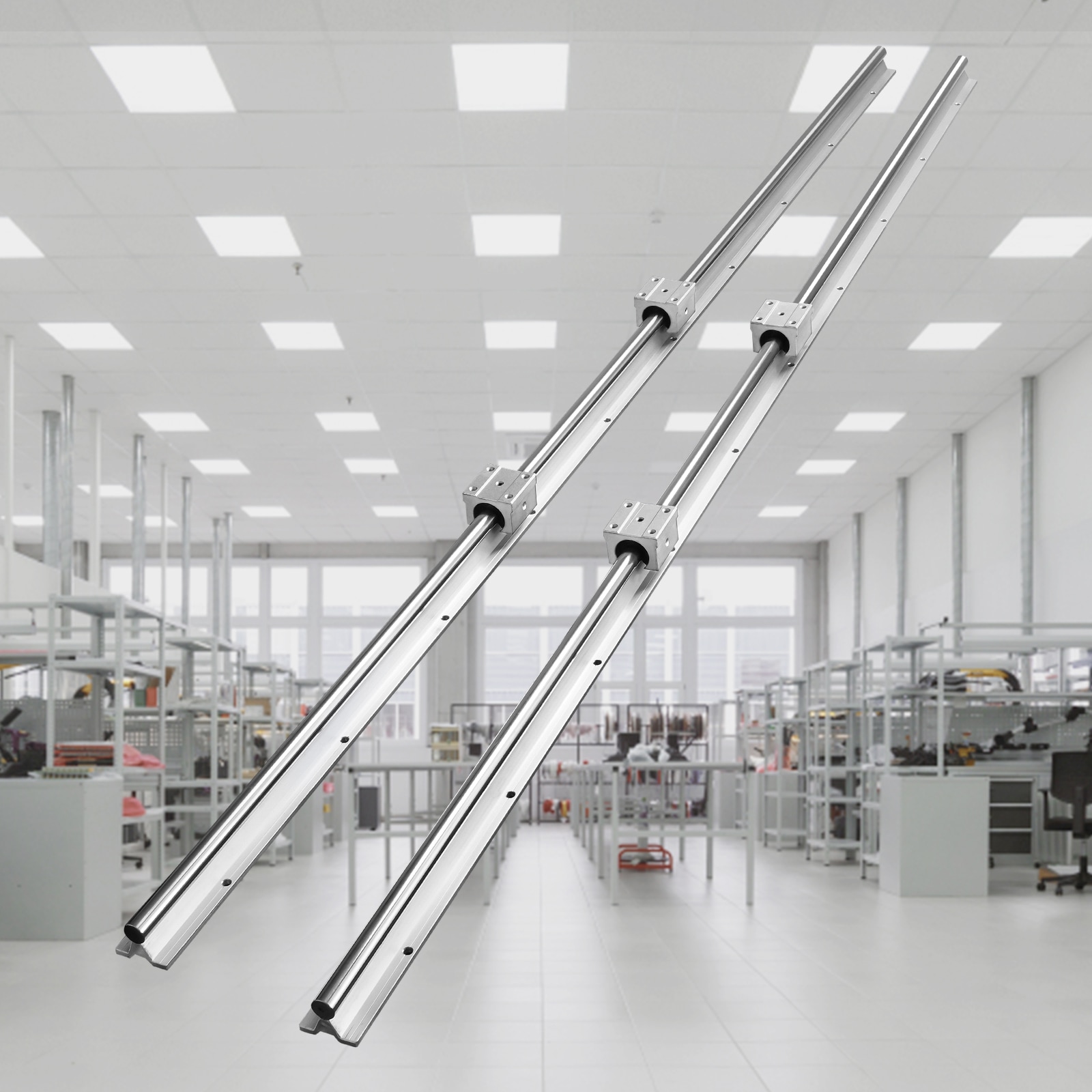

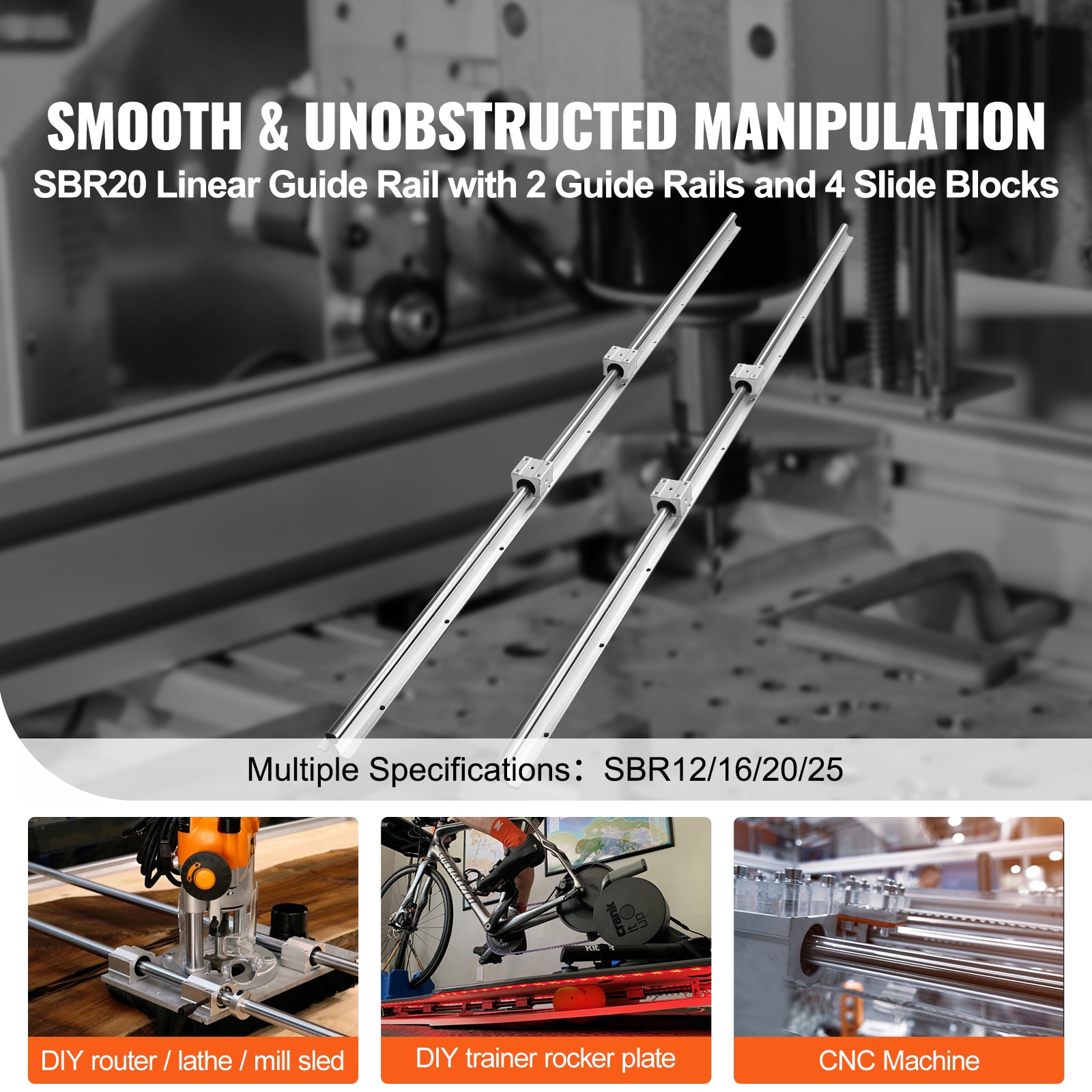

This linear motion rail set is ideal for a variety of projects, from high-load automation systems to DIY CNC machines, lathes, and other custom builds that require smooth, reliable motion.
The all-metal structure of the linear bearing ensures superior strength, with the slide block securely locked onto the shaft, providing an impressive load-bearing capacity for demanding applications.

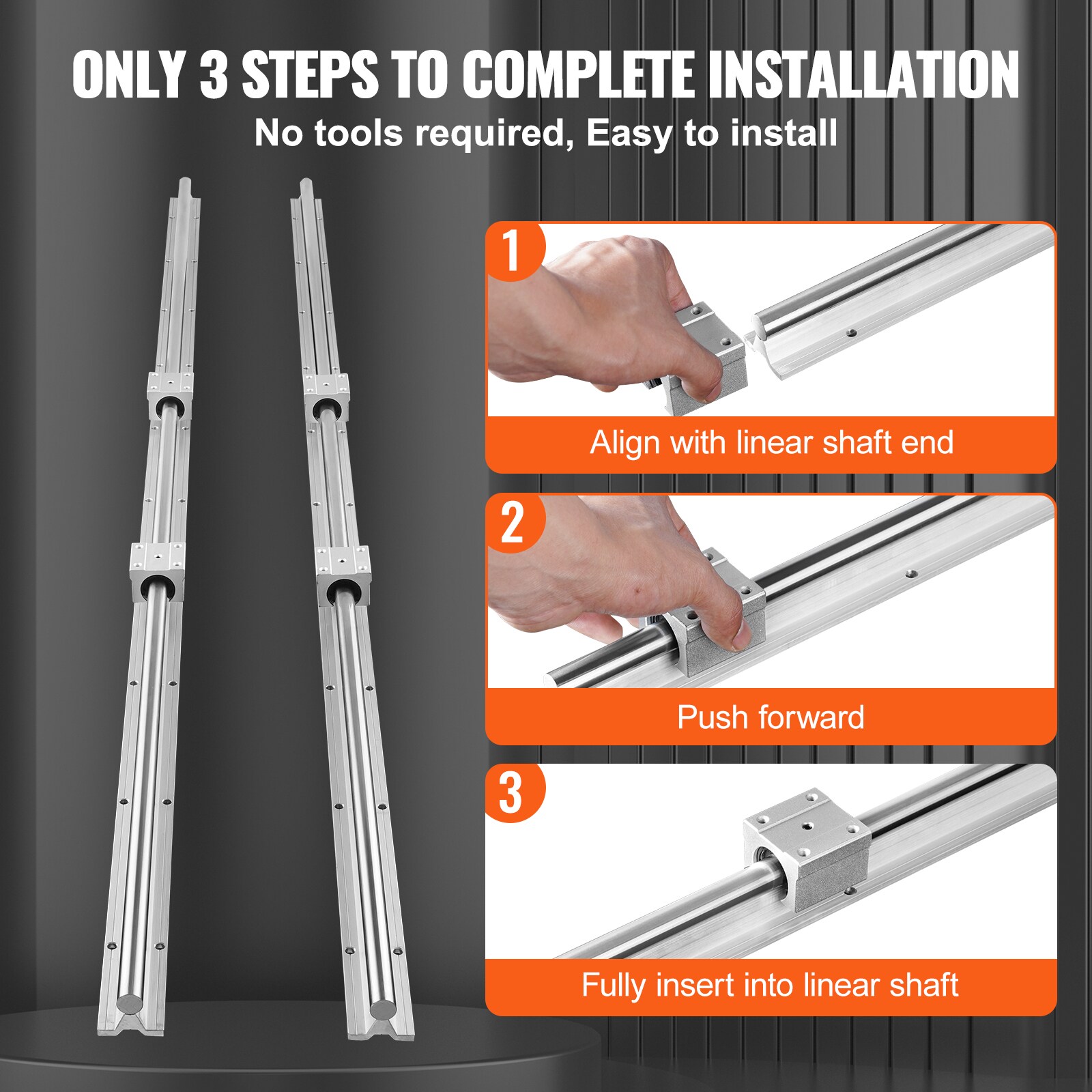

With pre-assembled components, including the shaft, support, and sliding blocks, installation is quick and hassle-free; Mounting screw holes and adjustable slide block tightness make setup even easier.
Chrome-plated linear shafts offer excellent resistance to corrosion, making them suitable for humid environments while also providing strong heat resistance for more challenging conditions.

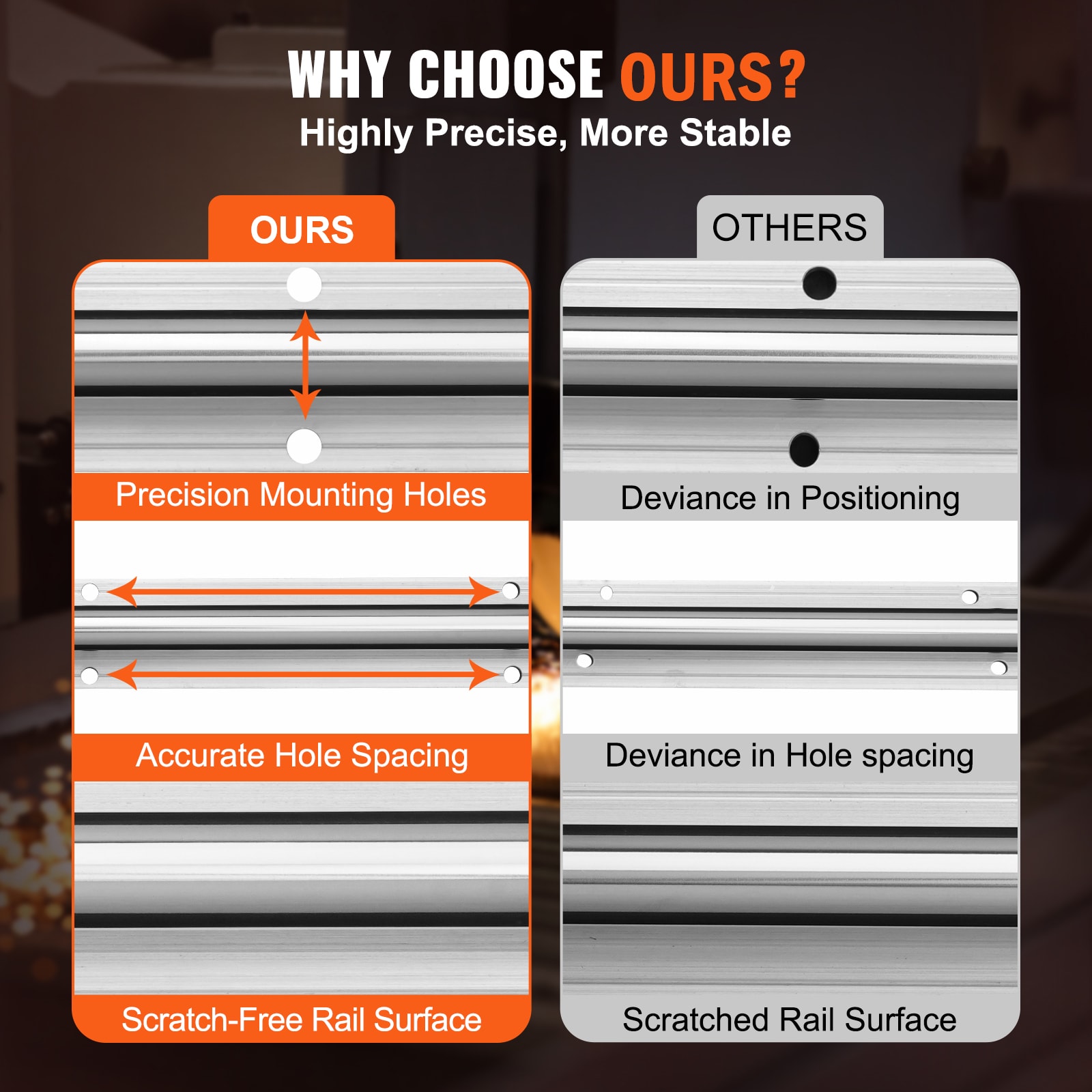

The motion guides feature accurate hole distances, precise hole diameters, and a standardized shaft diameter, allowing for easy and highly accurate installation of your equipment.

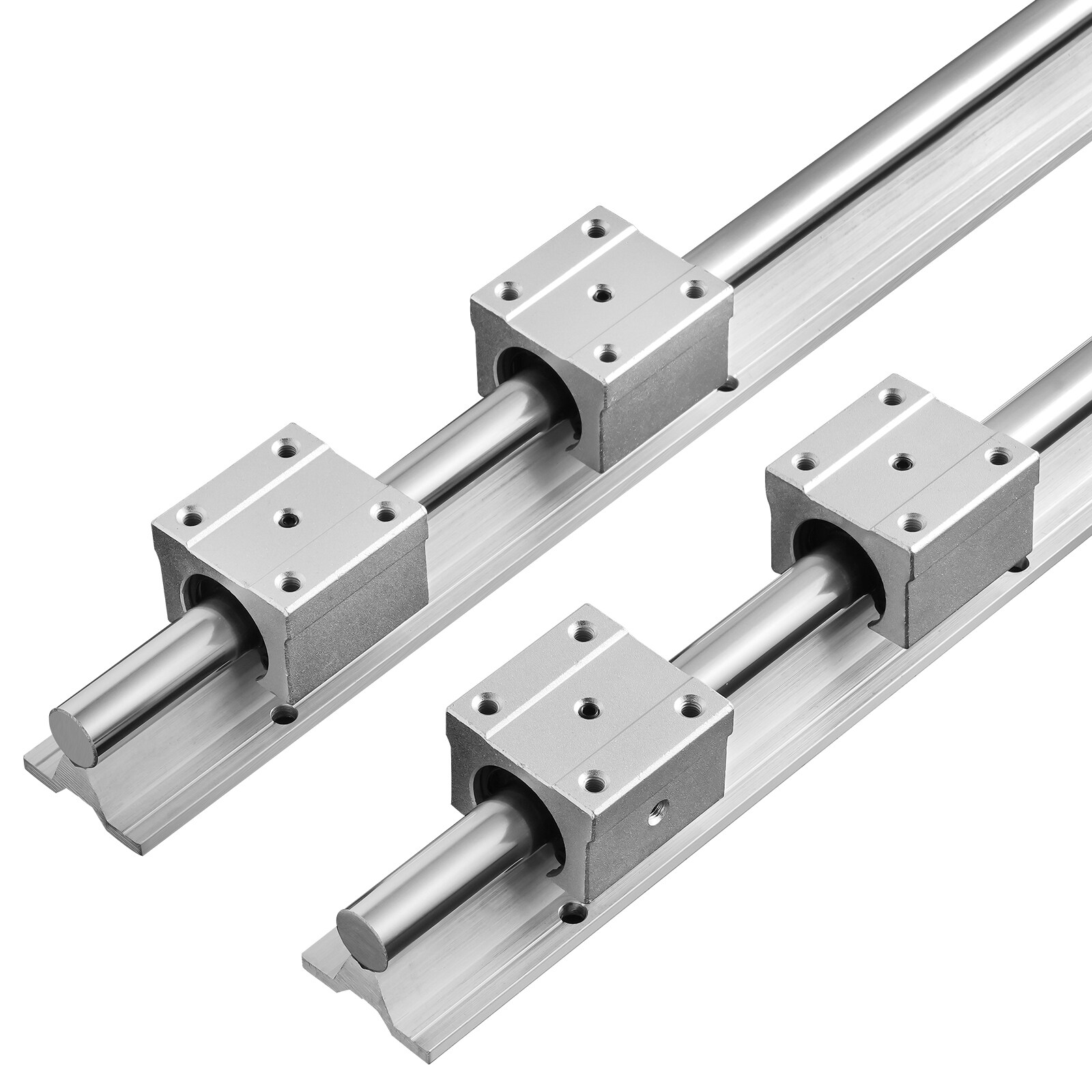

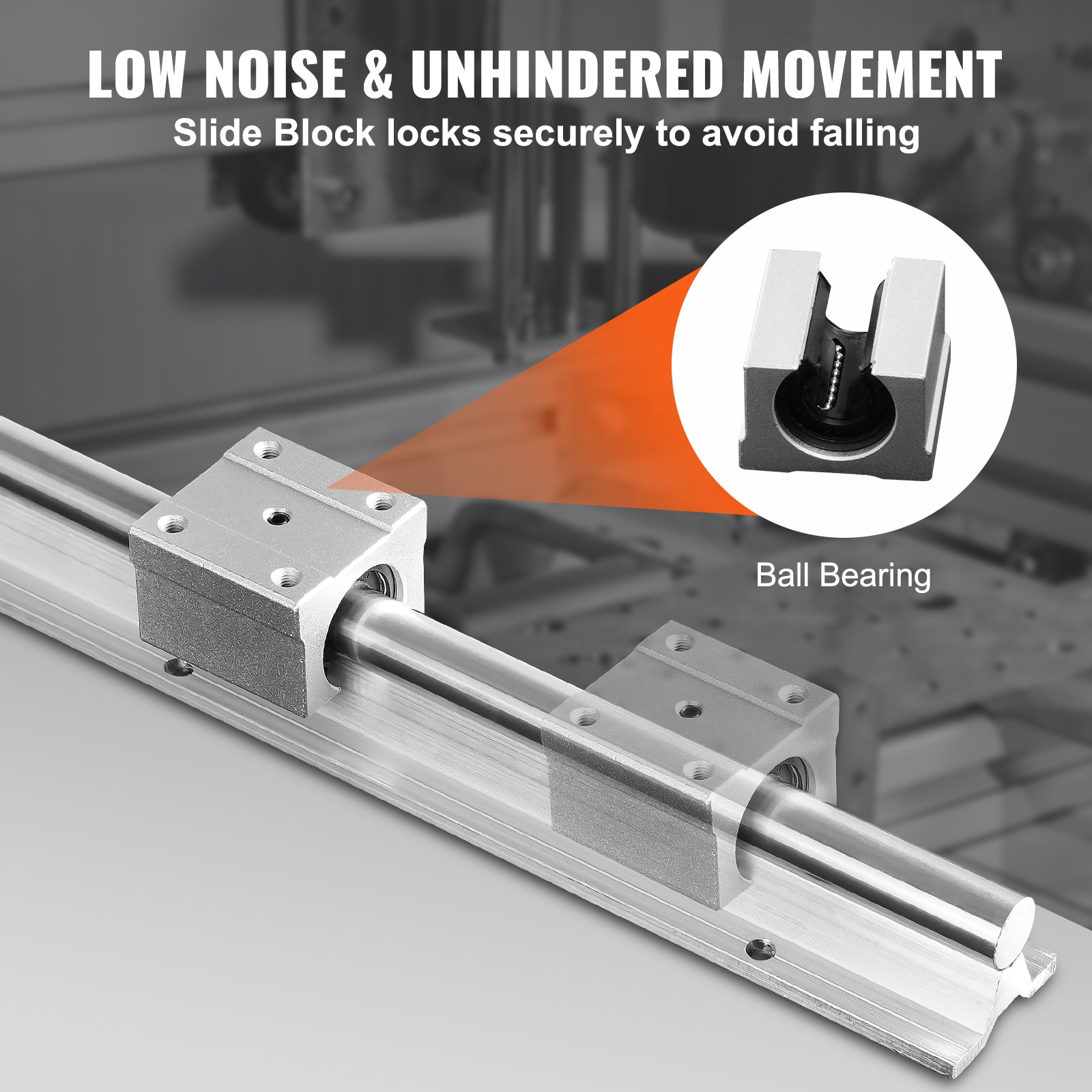

Thanks to the aluminum SBR slide block and built-in ball bearings, this system slides smoothly with minimal resistance, offering stable, long-term performance without stuttering or jerking.
Impressive Load Capacity: Each SBR20 slide block can support a dynamic load of 882 N and a static load of 1370 N, making this linear motion rail set suitable for a wide range of high-load applications and heavy-duty use.

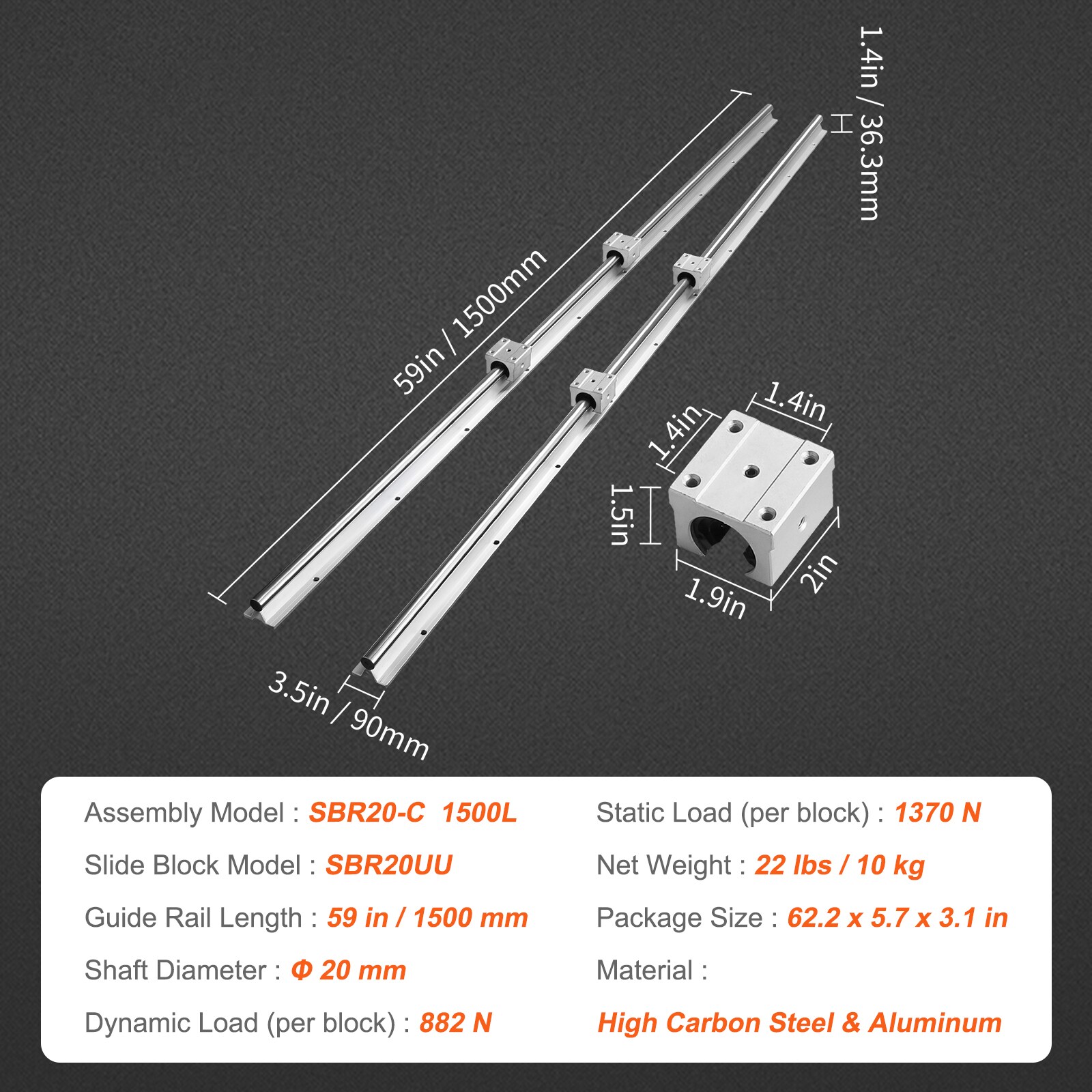

Model Number: SBR20-C 1500L,
Static Load (per block): 1370 N,
Material: High Carbon Steel & Aluminum,
Mounting Hole Distance A: 35 mm / 1.4 in,
Mounting Hole Distance B: 35 mm / 1.4 in,
Slide Block Size (L x W x H): 50 x 48 x 39 mm / 2 x 1.9 x 1.5 in,
Product Dimensions (L x W x H): 1500 x 90 x 36.3 mm / 59 x 3.5 x 1.4 in,
Package Size (L x W x H): 1580 x 145 x 80 mm / 62.2 x 5.7 x 3.1 in,
Slide Block Model: SBR20UU,
Guide Rail Length: 1500 mm / 59 in,
Shaft Diameter: Φ20 mm,
Dynamic Load (per block): 882 N,
Net Weight: 10 kg / 22 lbs.
4 x SBR20UU Sliding Blocks,

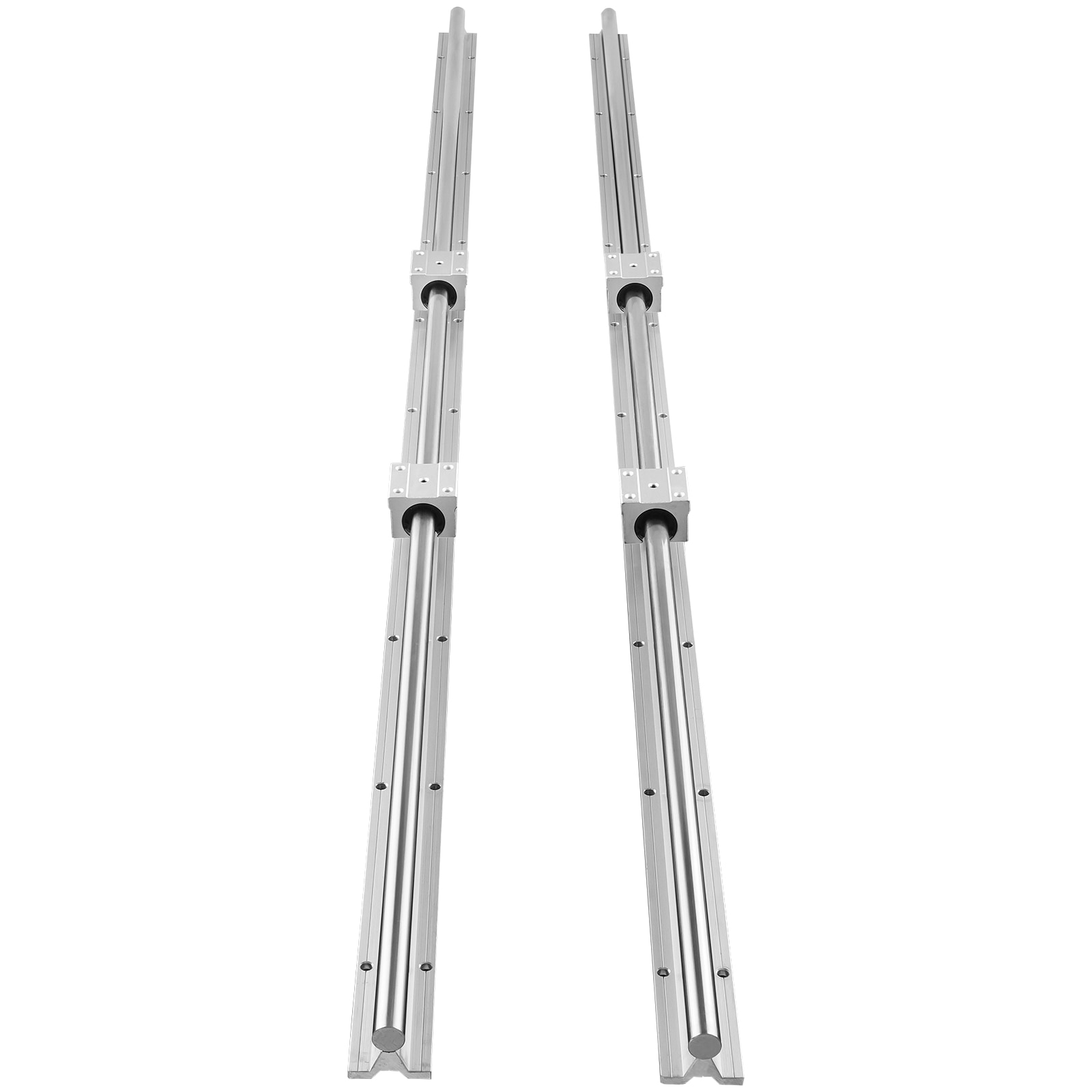

2 x SBR20 1500mm Linear Guide Rails with Supports.
