The SVOPES linear bearing features a solid all-metal design, ensuring the slide block is firmly secured to the linear shaft for maximum load-bearing capacity and stability.
With chrome-plated linear shafts, the system is designed to withstand humid environments and resist rust, offering enhanced corrosion resistance and excellent heat tolerance for lasting performance.

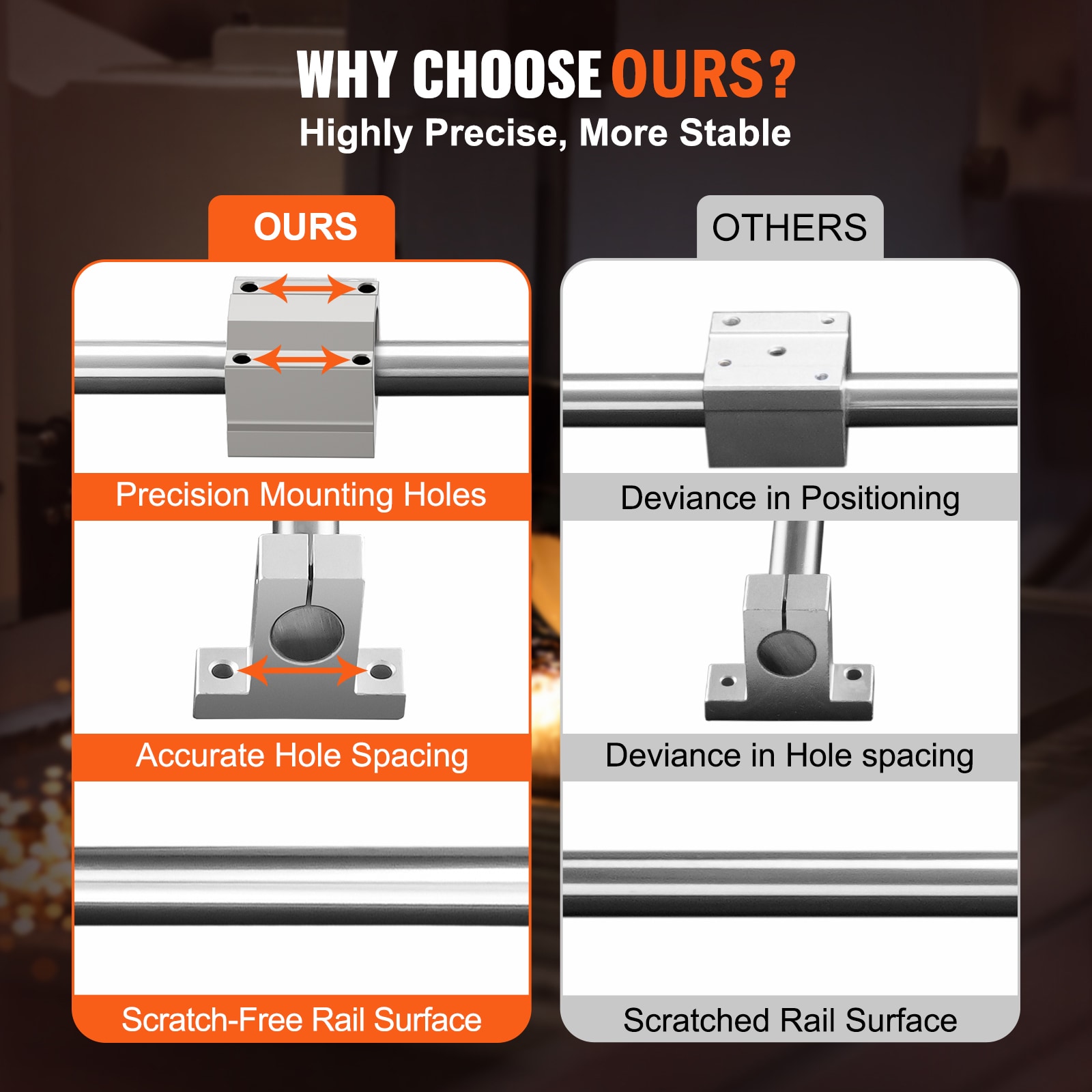

SVOPES linear motion guides are crafted with precise hole spacing, diameters, and standardized shaft measurements, allowing for easy, accurate installation and dependable, high-precision operation.

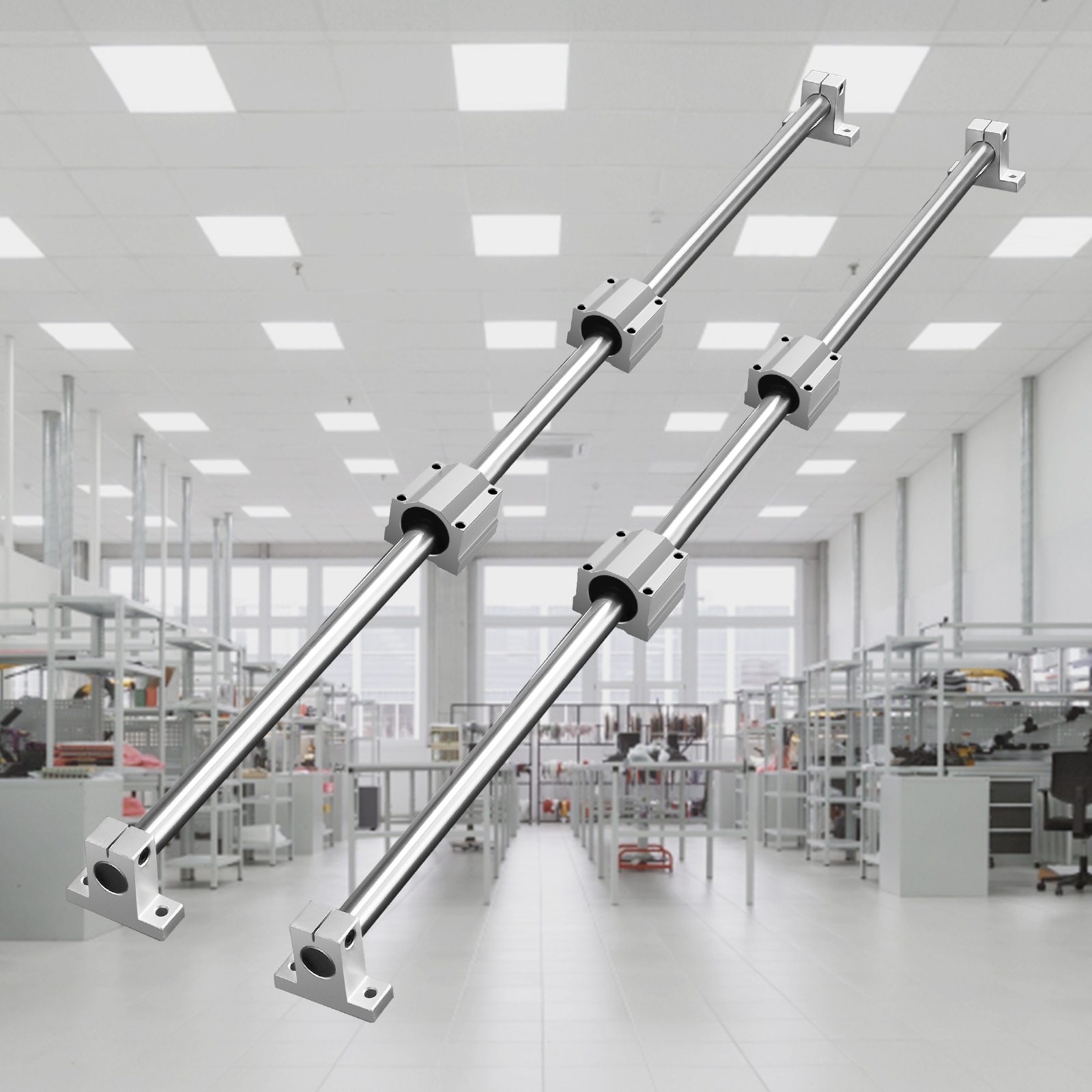

Pre-assembled with the shaft, supports, and slide blocks, the SVOPES linear guide system features convenient mounting screw holes in both the blocks and rail supports for effortless setup and easy adjustment of the sliding bearing tightness.

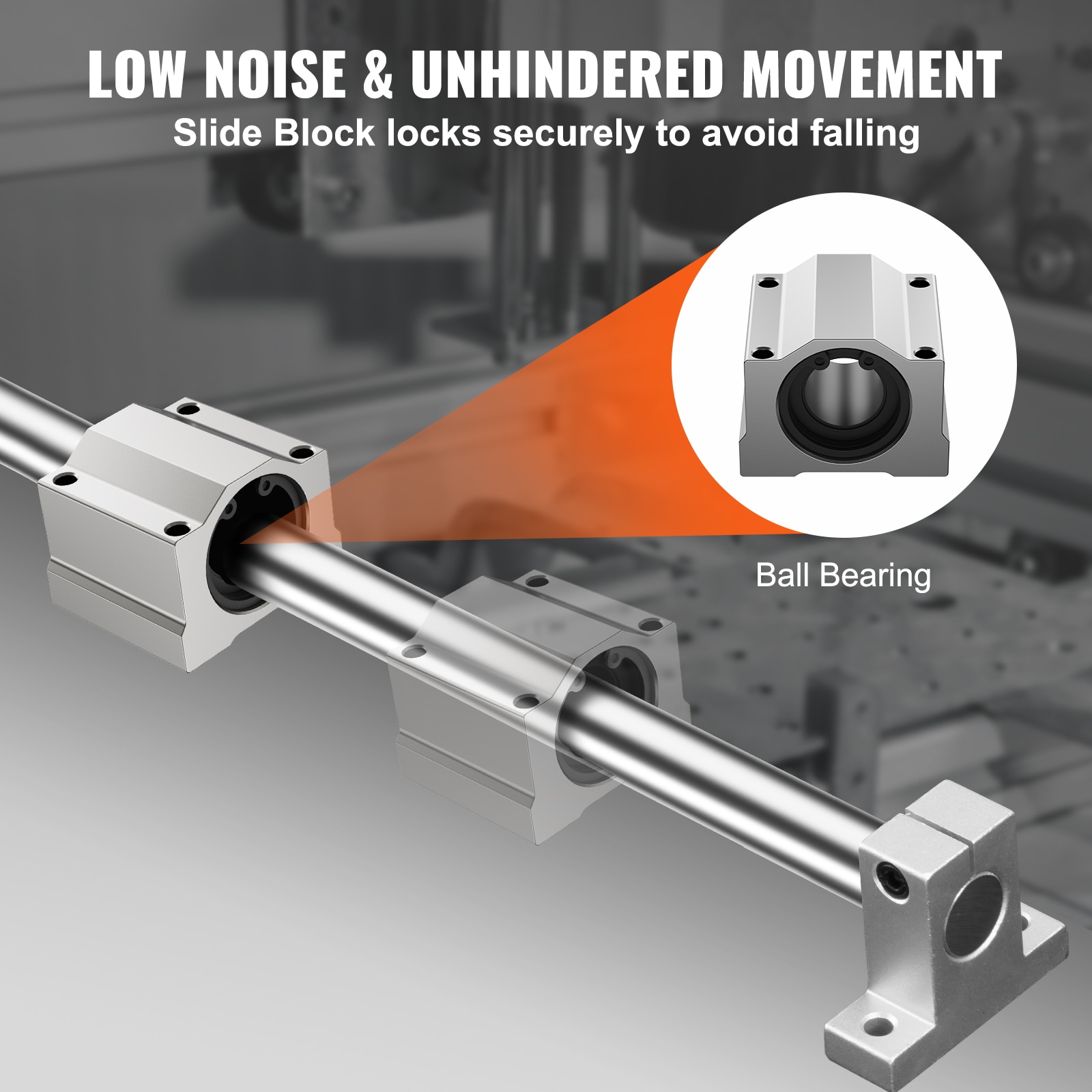

Thanks to the precision-machined aluminum slide blocks and integrated ball bearings, the system offers smooth, frictionless motion, ensuring consistent performance and long-term reliability.

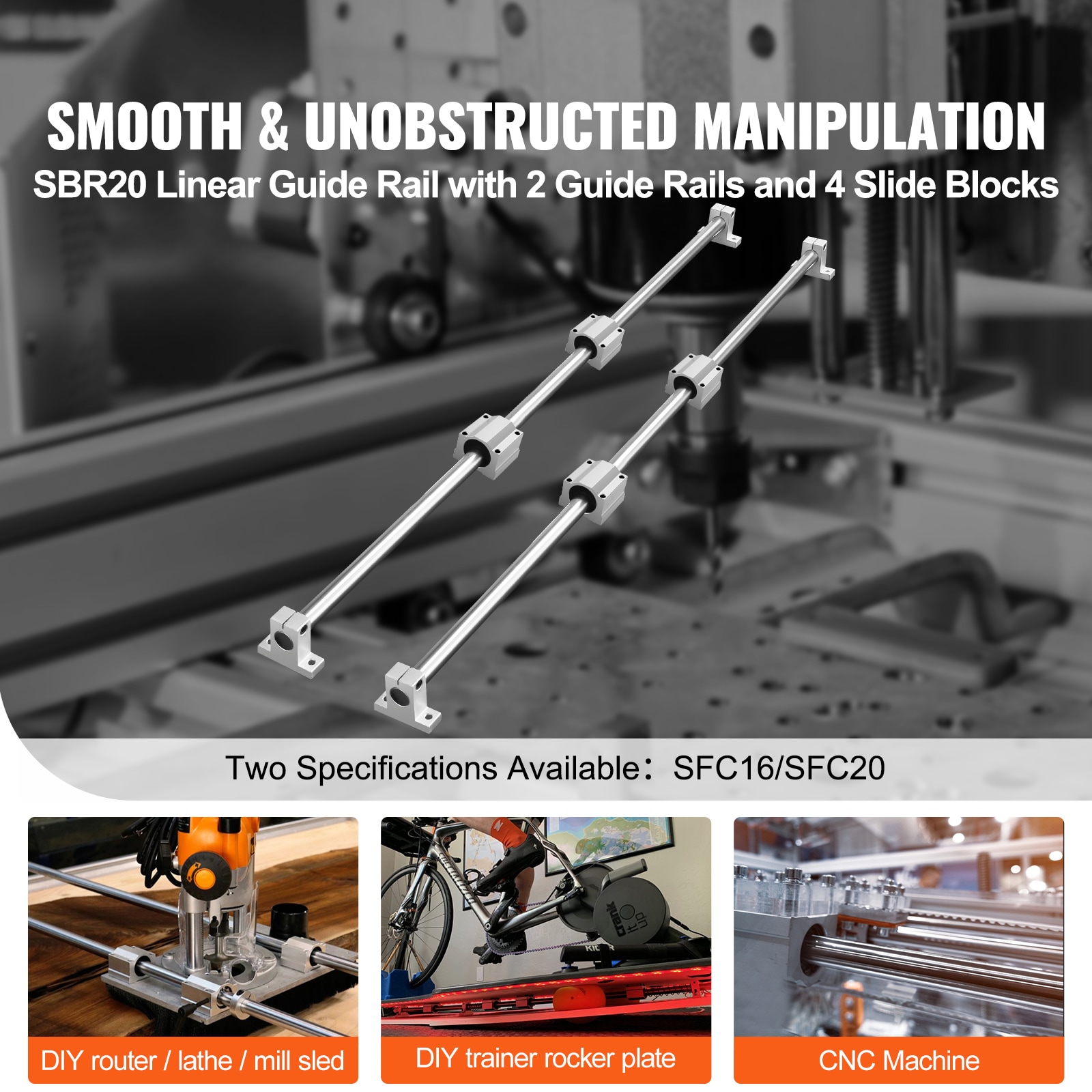

Ideal for high-load automation systems and DIY projects, SVOPES linear rail kits are commonly used in CNC machines, engraving machines, lathes, and other heavy-duty applications requiring smooth motion.
Versatile & Widely Compatible: Ideal for a wide range of automation systems and DIY projects, including CNC routers, 3D printers, laser engravers, lathes, and other high-load machinery, this guide set is versatile and adaptable to different types of equipment.

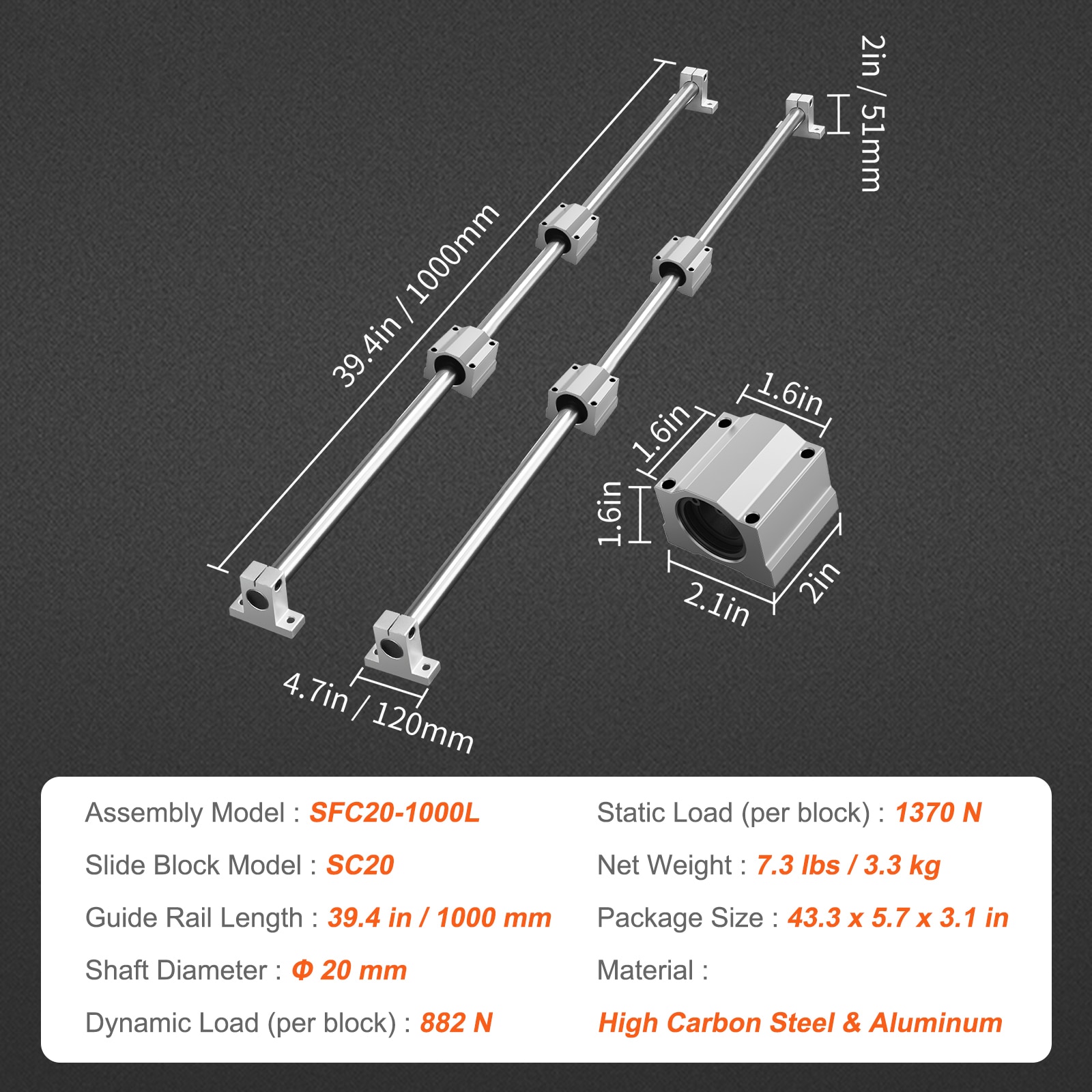

Guide Rail Length: 1000 mm (39.4 in),
Shaft Diameter: Φ20 mm,
Slide Block Model: SC20,
Dynamic Load (per block): 882 N,
Static Load (per block): 1370 N,
Material: High Carbon Steel & Aluminum,
Mounting Hole Distance A: 40 mm (1.6 in),
Mounting Hole Distance B: 40 mm (1.6 in),
Slide Block Size (L x W x H): 50 x 54 x 41 mm (2 x 2.1 x 1.6 in),
Product Dimensions (L x W x H): 1000 x 120 x 51 mm (39.4 x 4.7 x 2 in),
Package Size (L x W x H): 1100 x 145 x 80 mm (43.3 x 5.7 x 3.1 in),
Net Weight: 3.3 kg (7.3 lbs),
Model Number: SFC20-1000L.
4 x SC20 Sliding Blocks,
2 x SFC20 1000mm Linear Shafts,
4 x Rail Supports.
