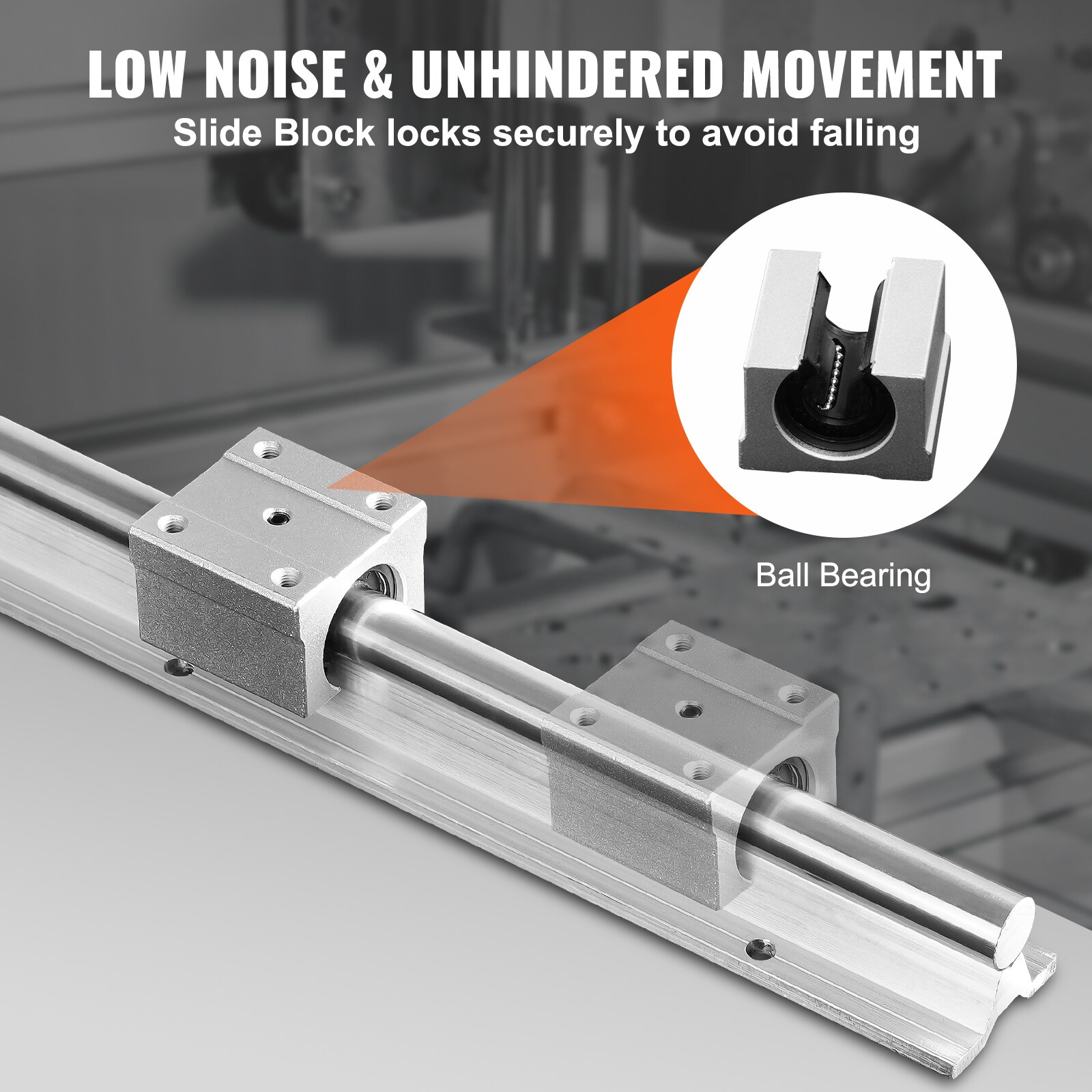

Equipped with built-in ball bearings, the aluminum SBR slide blocks glide smoothly along the carbon steel shaft, reducing friction for a quiet and efficient operation, ensuring long-lasting, uninterrupted performance.

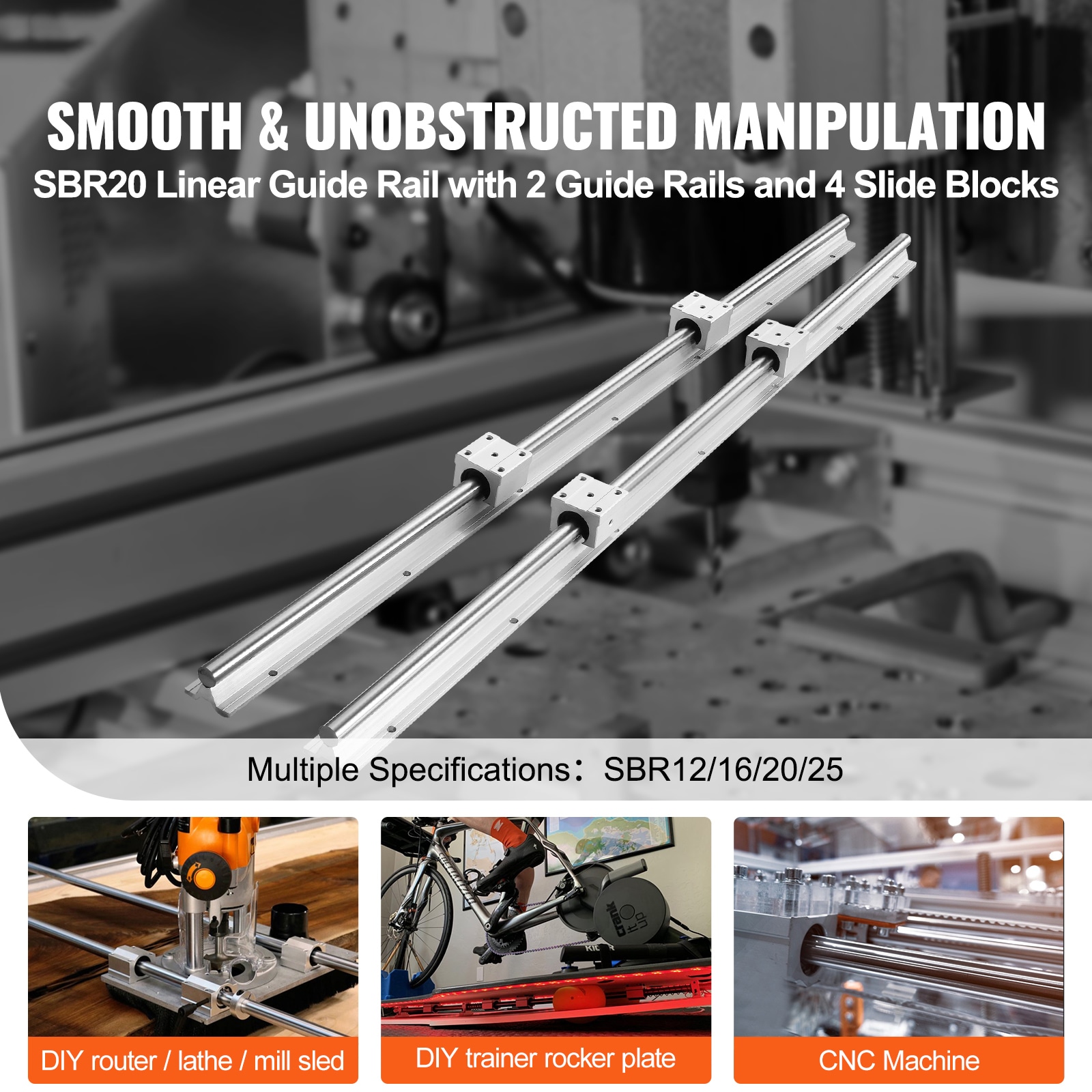

This linear rail kit is perfect for a variety of applications, including DIY CNC routers, 3D printers, laser engravers, and other automation projects, supporting high-load systems with ease and precision.

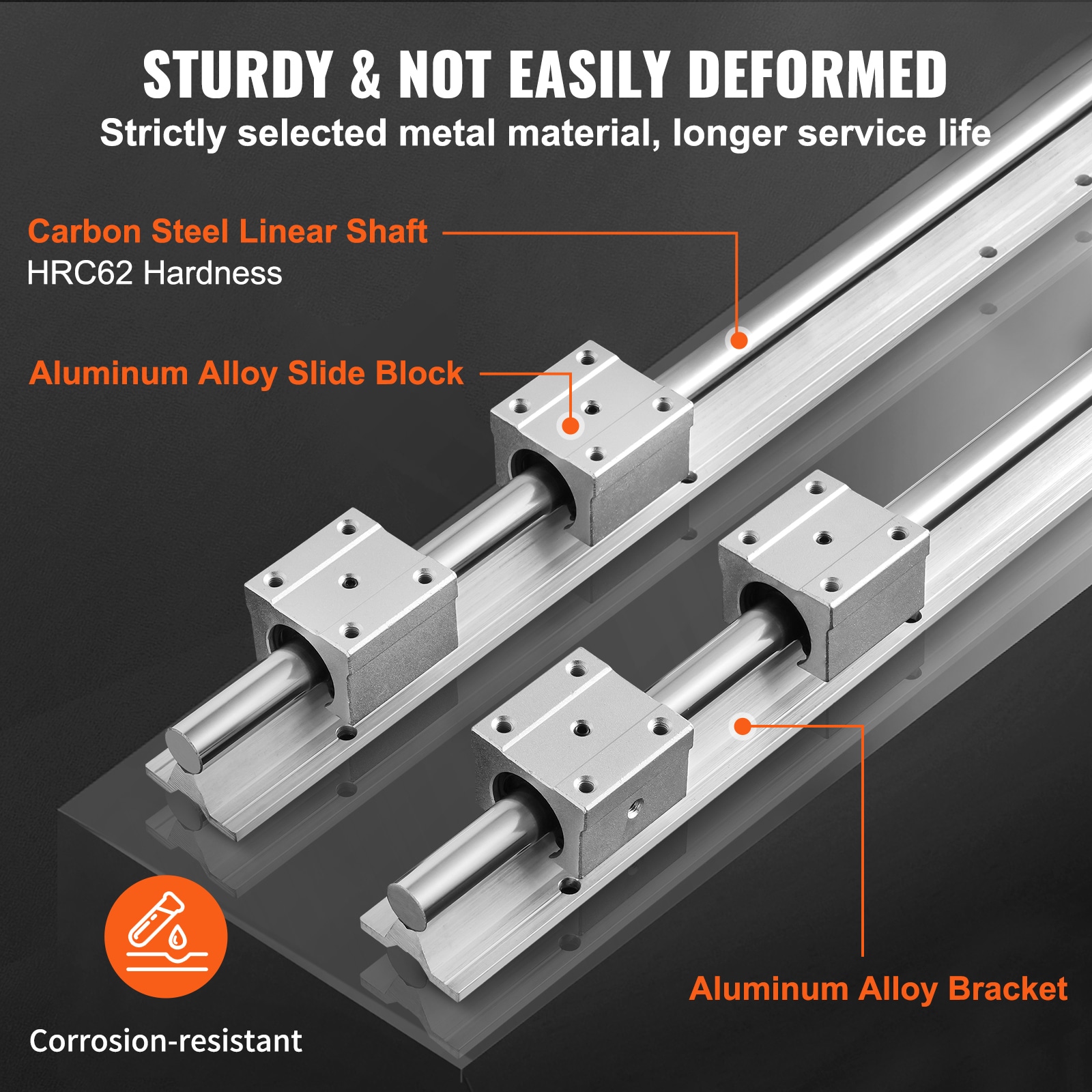

The all-metal design of the linear bearing ensures a strong and stable connection; The slide block is securely fastened to the linear shaft, offering excellent load-bearing capacity for demanding applications.

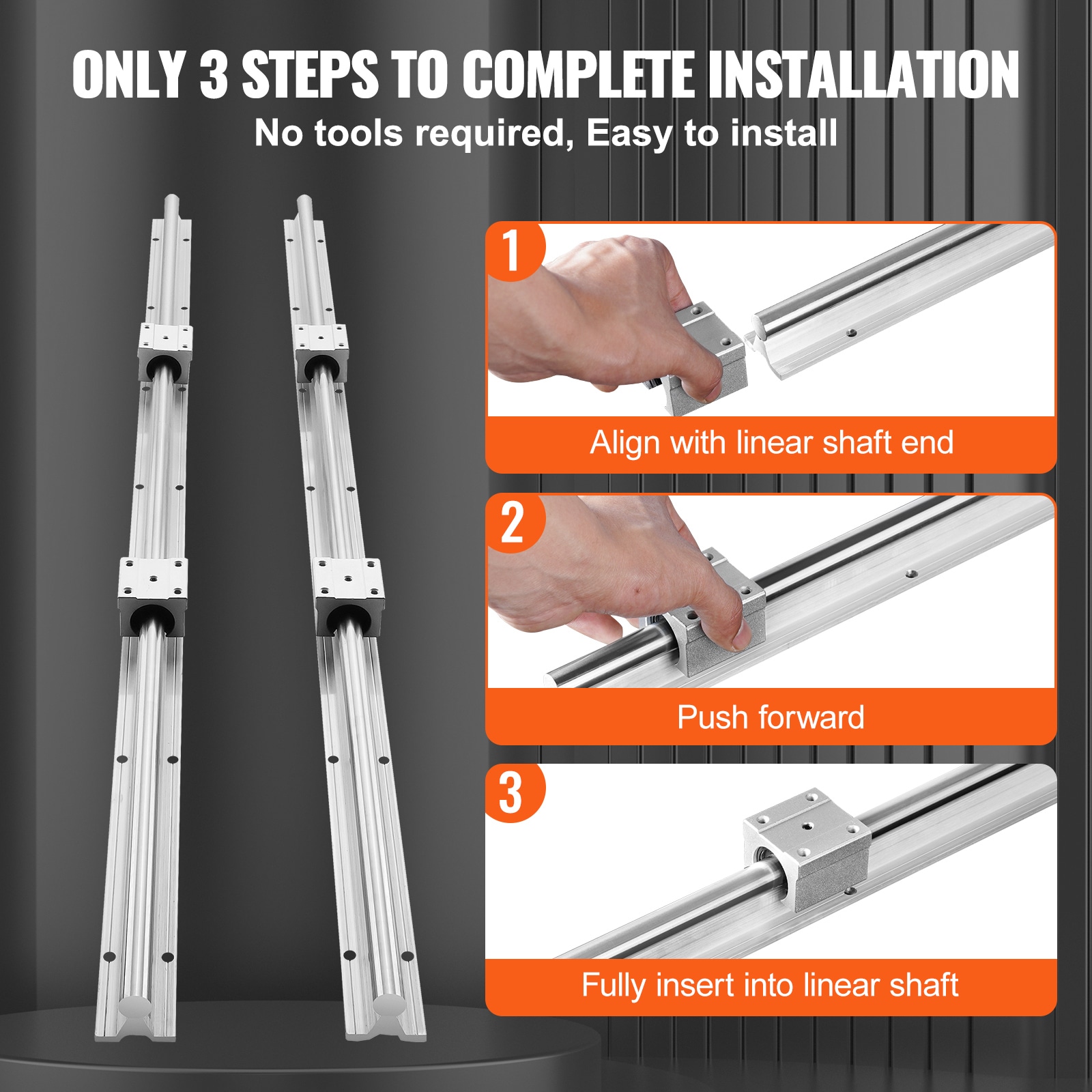

Pre-assembled for convenience, the guide rails include pre-drilled mounting holes; Users can easily adjust the tightness of the sliding bearings through the side screw hole of the block for a secure fit.
The chrome-plated surface of the linear rails provides robust protection against corrosion and humidity; It also offers excellent heat resistance, making it ideal for harsh working conditions or high-temperature environments.
Engineered with exacting hole distances, precise diameters, and standard shaft sizes, this guide rail system guarantees highly accurate alignment and easy installation, ensuring consistent and repeatable movements.
Heavy-Duty Load Capacity: The robust linear bearing system is designed to handle high loads, with each slide block supporting a dynamic load of 882 N and a static load of 1370 N, making it ideal for demanding machinery applications.

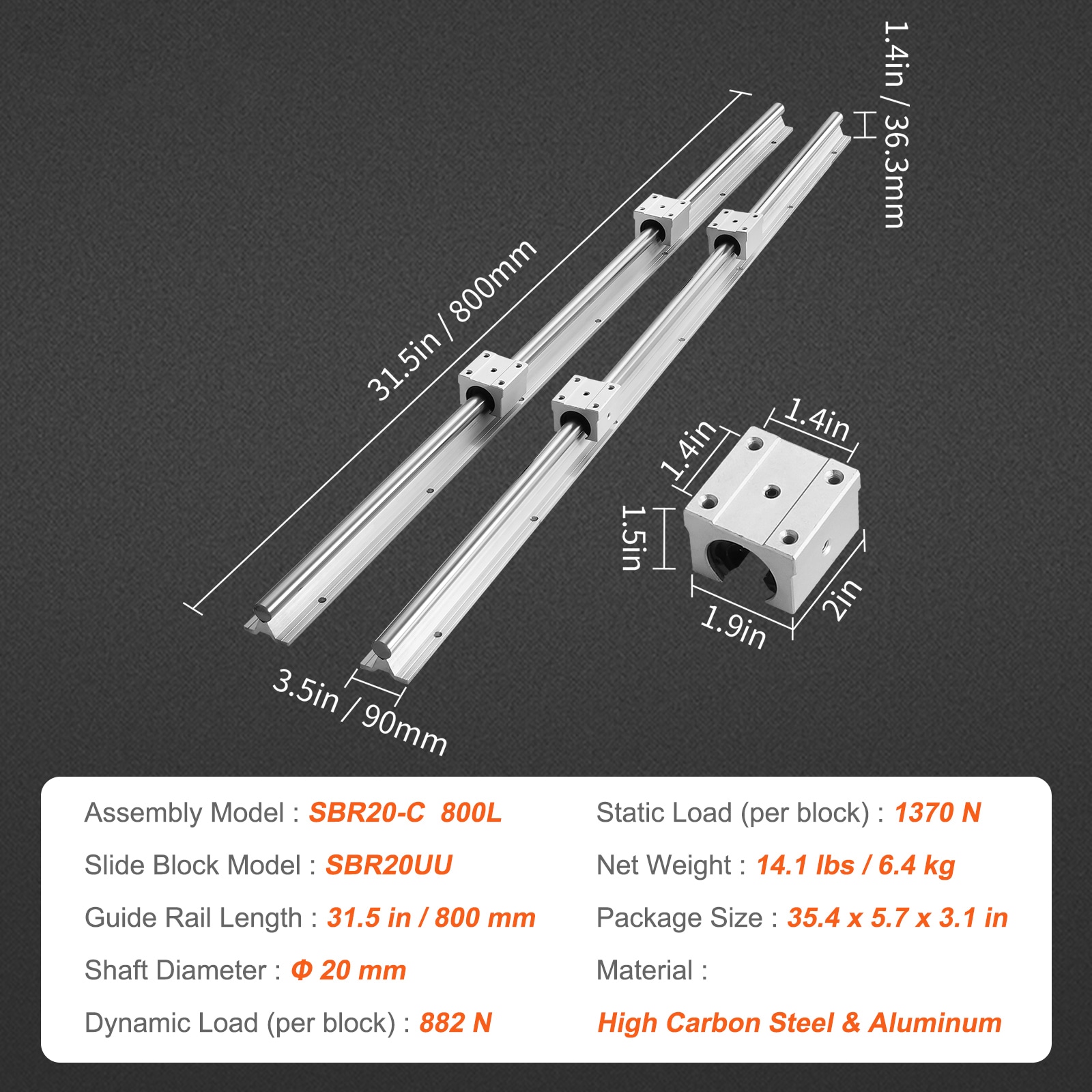

Model Number: SBR20-C 800L,
Slide Block Model: SBR20UU,
Guide Rail Length: 800 mm / 31.5 in,
Shaft Diameter: Φ20 mm,
Dynamic Load (per block): 882 N,
Static Load (per block): 1370 N,
Material: High Carbon Steel & Aluminum,
Mounting Hole Distance A: 35 mm / 1.4 in,
Mounting Hole Distance B: 35 mm / 1.4 in,
Slide Block Size (L x W x H): 50 x 48 x 39 mm / 2 x 1.9 x 1.5 in,
Product Dimensions (L x W x H): 800 x 90 x 36.3 mm / 31.5 x 3.5 x 1.4 in,
Package Size (L x W x H): 900 x 145 x 80 mm / 35.4 x 5.7 x 3.1 in,
Net Weight: 6.4 kg / 14.1 lbs.
4 x SBR20UU Sliding Blocks,
2 x SBR20 800mm Linear Guide Rails with Supports.
