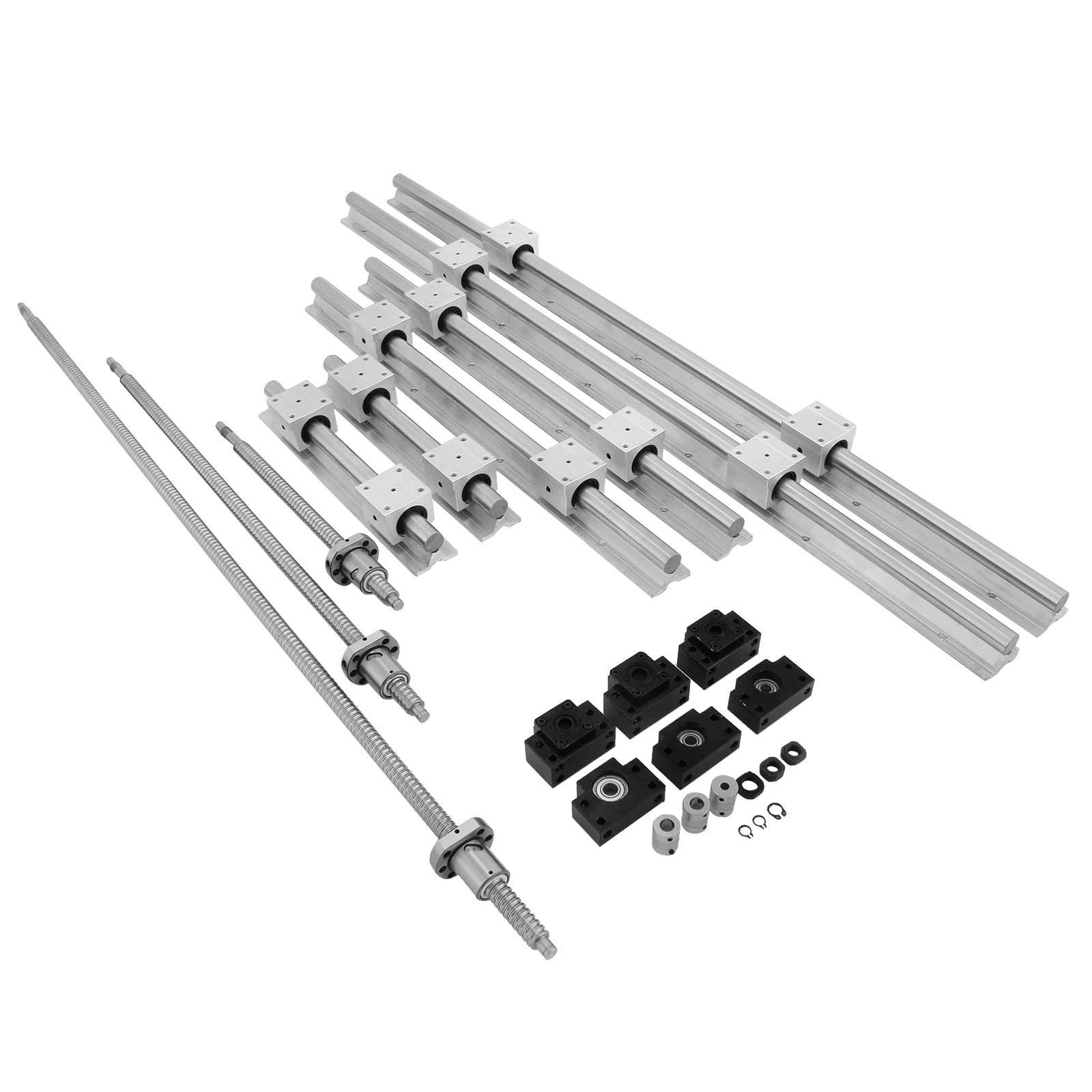

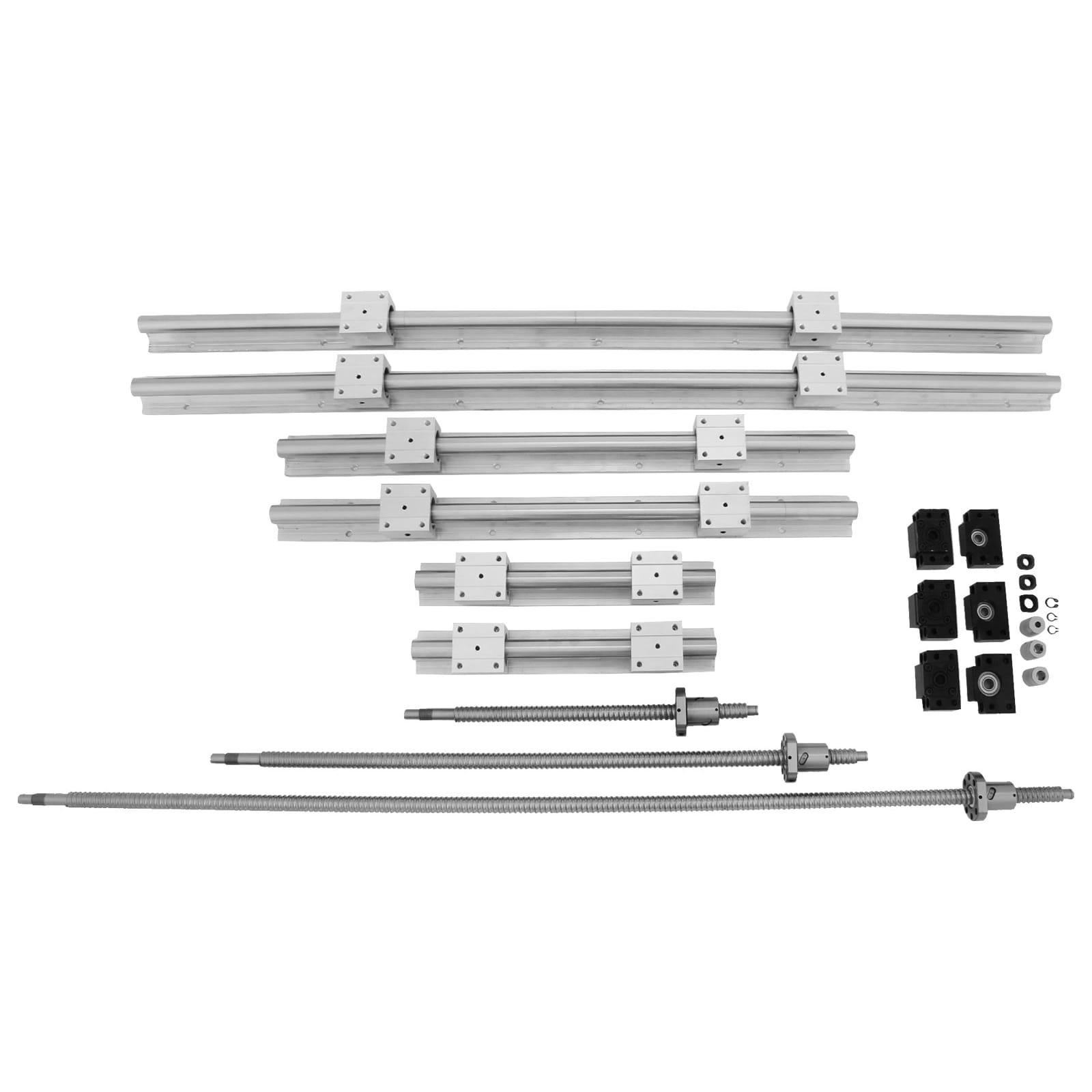

This complete linear guide kit includes 6 rails, 3 ballscrews, 12 bearing blocks, 3 sets of BF/BK12 supports, and 3 flexible couplings, offering everything needed for precise motion; The robust steel main axle ensures a long-lasting, durable setup.
The advanced design features four-row arc grooves on the rail, offering strong rigidity and high bearing capacity; The anti-corrosion treatment further ensures smooth, deflection-free movement for optimal performance.

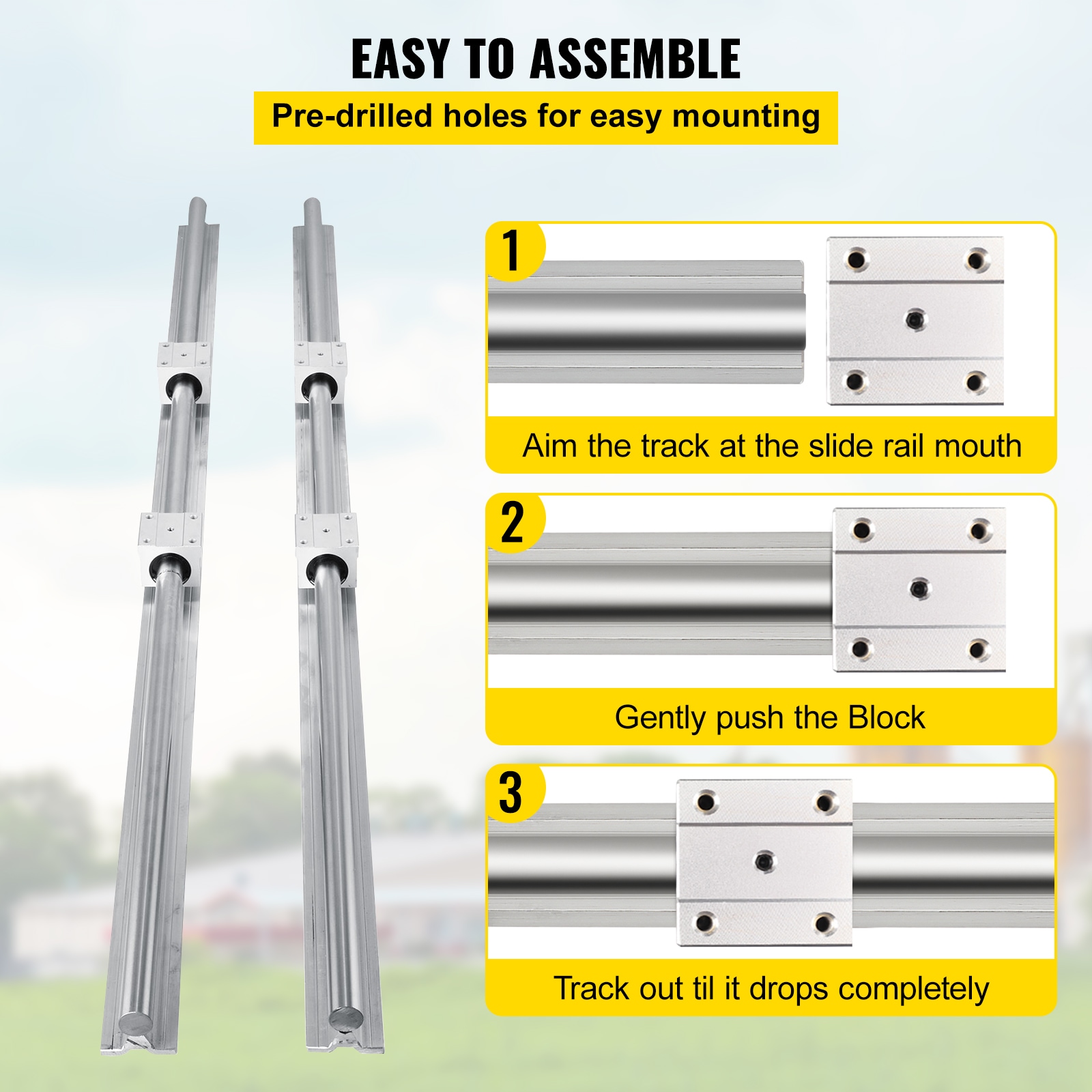

Installation of the linear guide set is straightforward, requiring only a few steps to get up and running; The pre-drilled holes and carefully designed components allow for a hassle-free setup with minimal time spent.

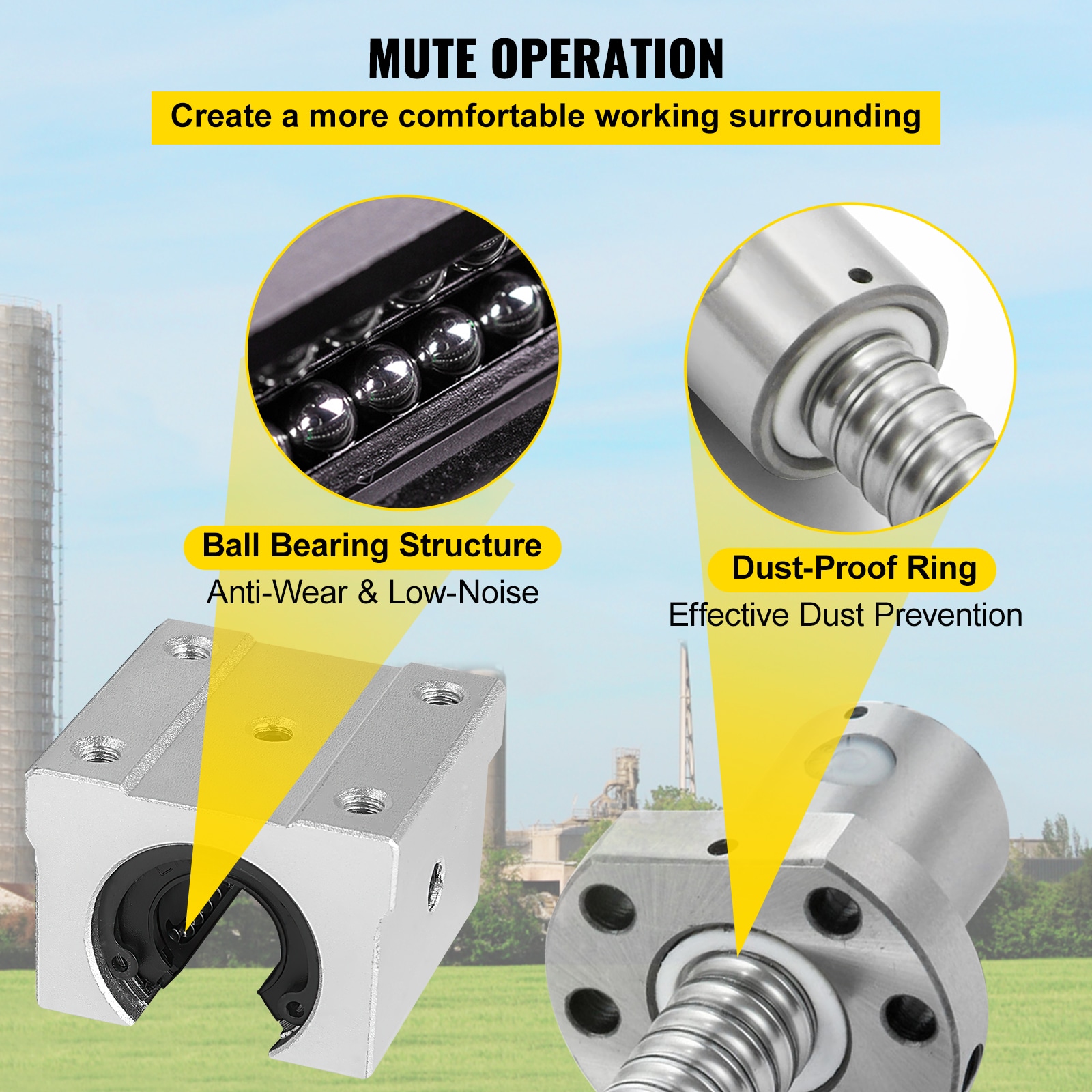

Designed to reduce wear and deflection, the blocks and rails work together to provide quiet and stable motion; This system guarantees low noise and minimal wear over time, resulting in a long service life.

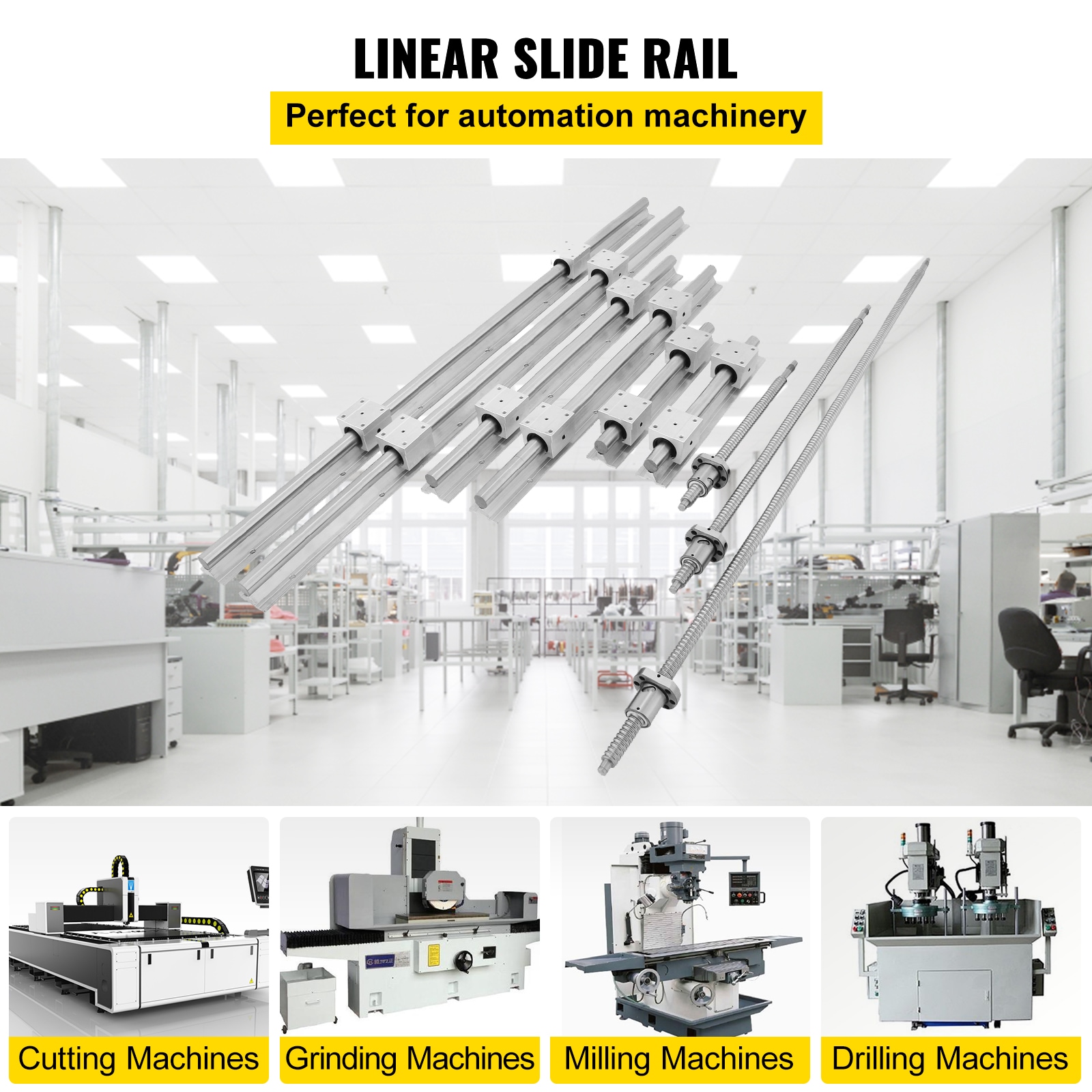

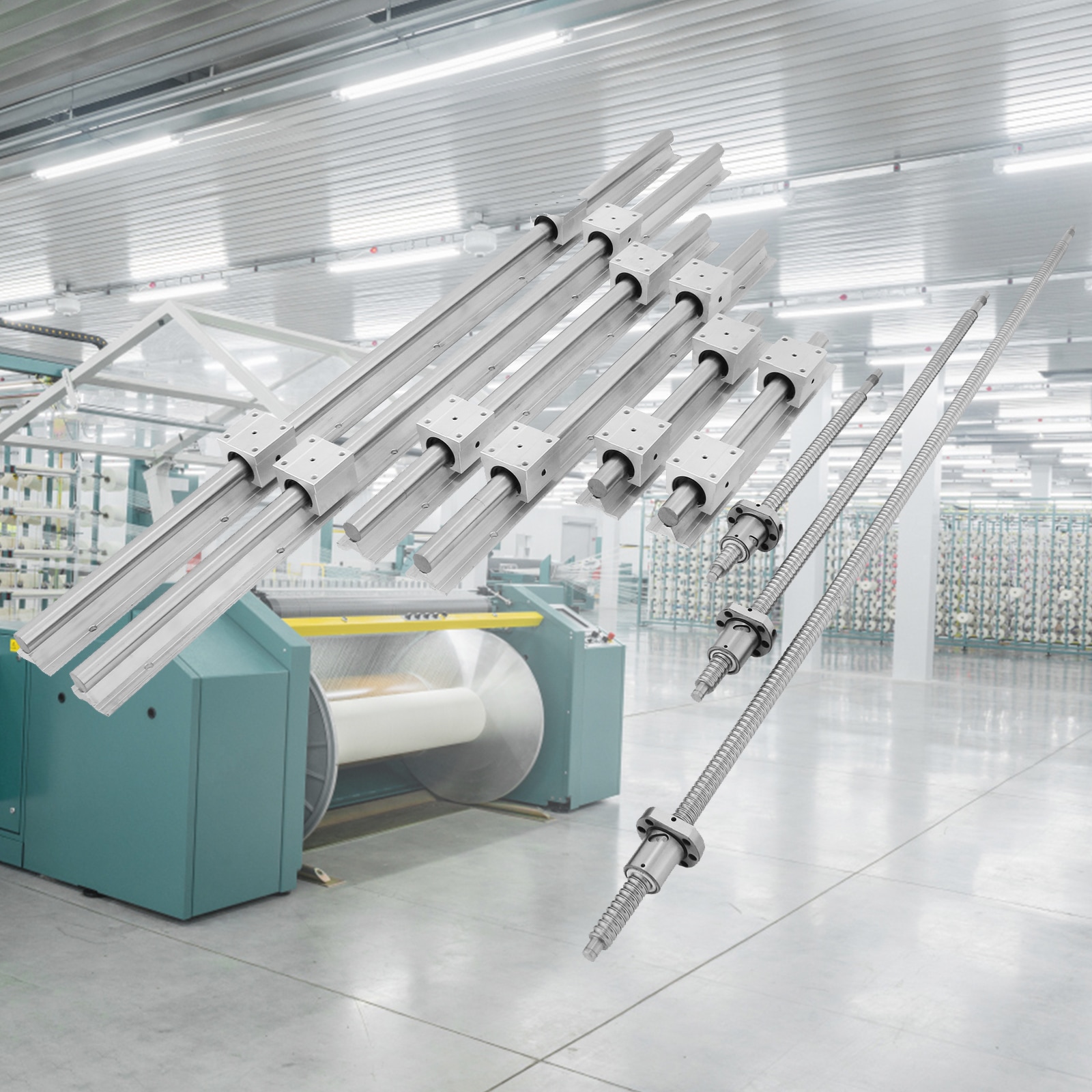

Perfect for CNC machines, lathes, routers, bending machines, and other automation systems; This versatile kit is also ideal for large-scale equipment such as industrial robots and material handling machines.

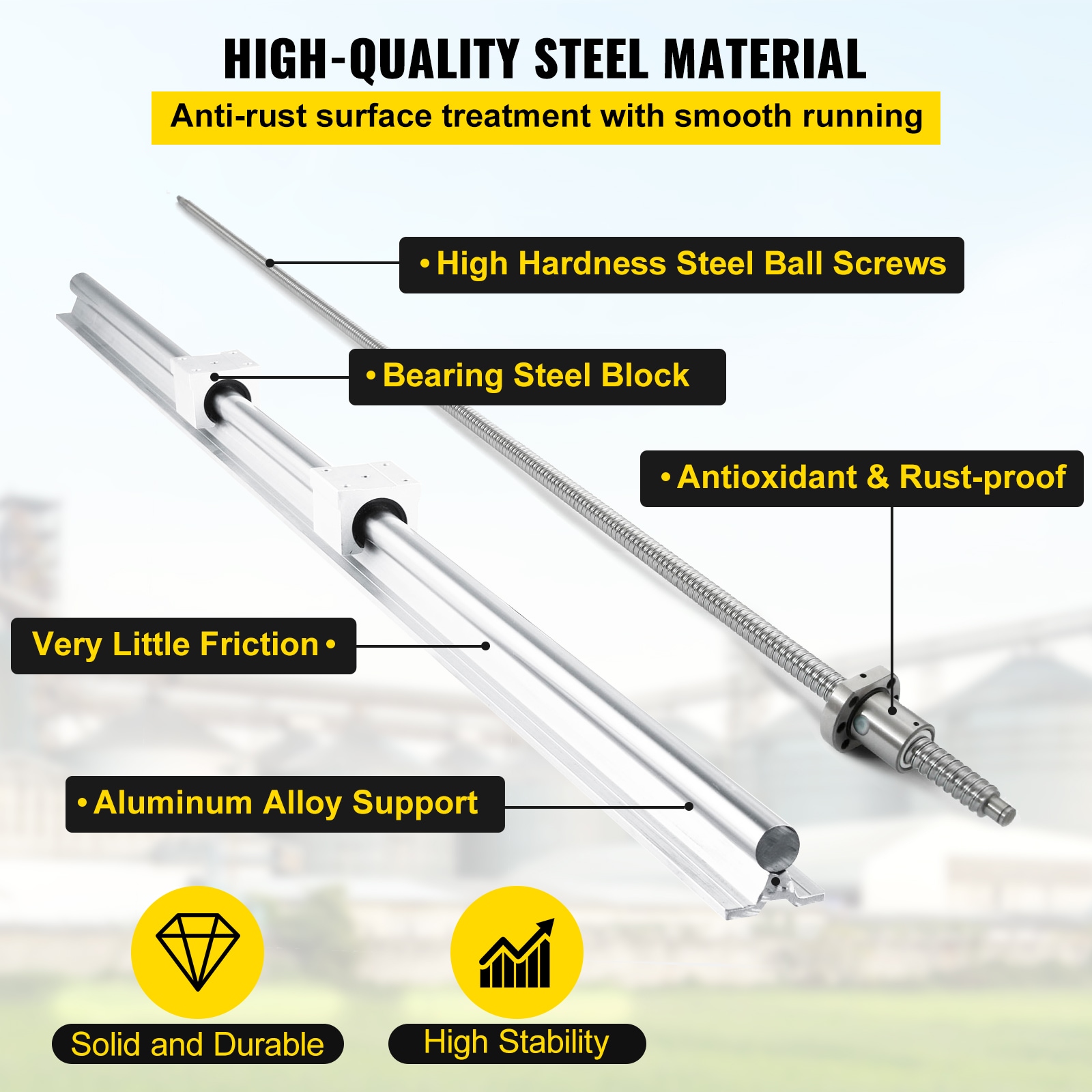

Made from high-hardness steel, these linear rails and ballscrews are treated with a rust-resistant coating to ensure smooth motion; The heat-resistant bearing steel blocks minimize friction and function reliably under high temperatures.

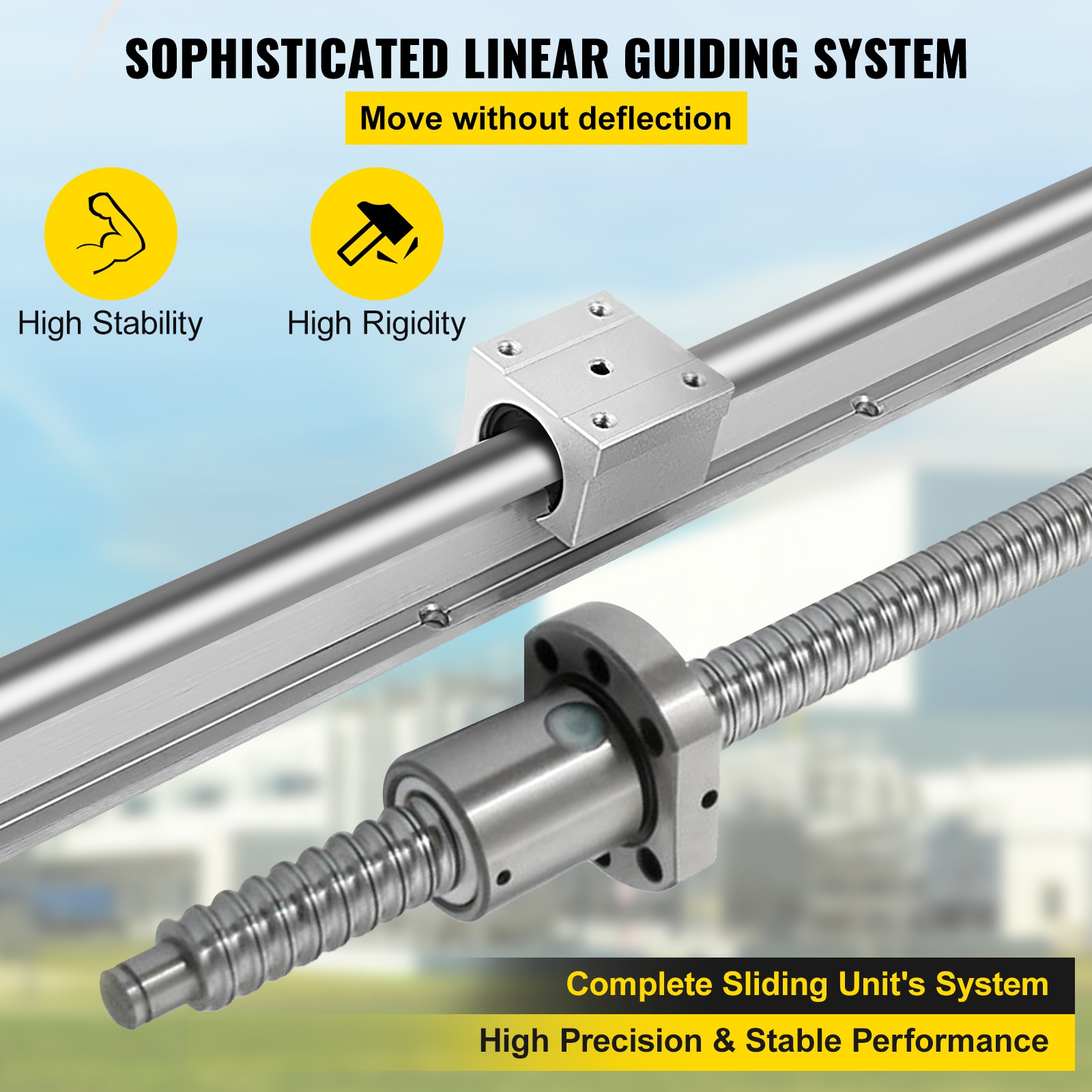

Advanced Linear Motion System: The system is designed to provide smooth and efficient motion; With a ball rolling mechanism between the shaft and nut, this setup enables high-speed, deflection-free operation, ensuring optimal movement efficiency.

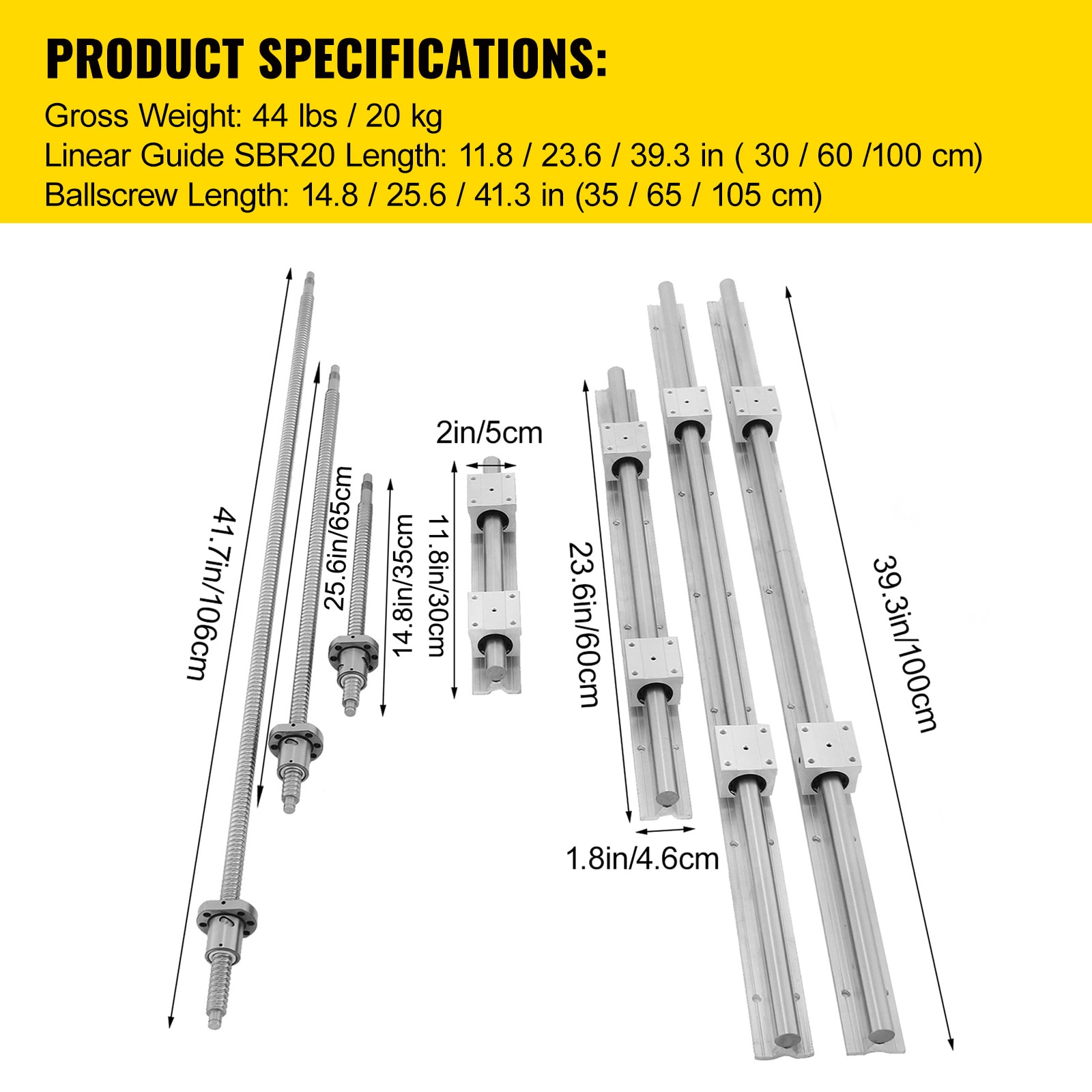

Linear Guide SBR20 Length: 300/600/1000 mm (11.8/23.6/39.4 in),
Ballscrew Length: 350/650/1050 mm (14.8/25.6/41.3 in),
Screw Diameter: 16 mm (0.63 in),
Screw Pitch (Lead): 5 mm (0.197 in),
Screw Length: 200 mm (7.87 in),
Class: C7,
Feature: Anti-friction,
Packing Size: 110 x 20 x 10 cm (44 x 8 x 4 in),
GW (Gross Weight): 20 kg (44 lbs).
2 x SBR20-300mm Linear Rail Guide,
1 x Ballscrew SFU / RM 1605-350mm- C7 with End Machined,
1 x Ballscrew SFU / RM 1605-650mm- C7 with End Machined,
1 x Ballscrew SFU / RM 1605-1050mm- C7 with End Machined,
12 x SBR20UU Linear Blocks,

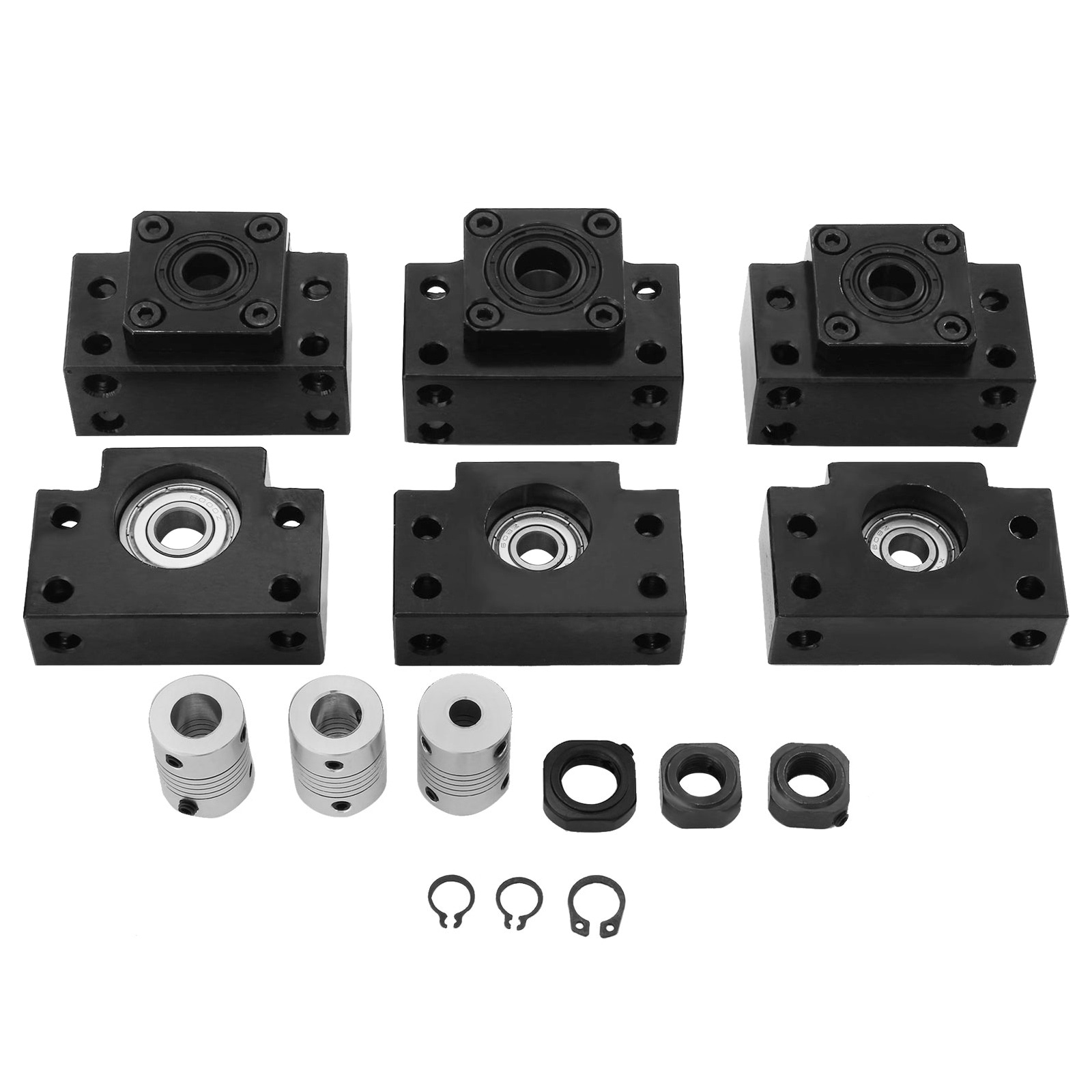

3 x BK/BF 12 Support for Ballscrew,
2 x SBR20-600mm Linear Rail Guide,
2 x SBR20-1000mm Linear Rail Guide,
3 x 6.35x10mm-25x30mm Flexible Couplings.
