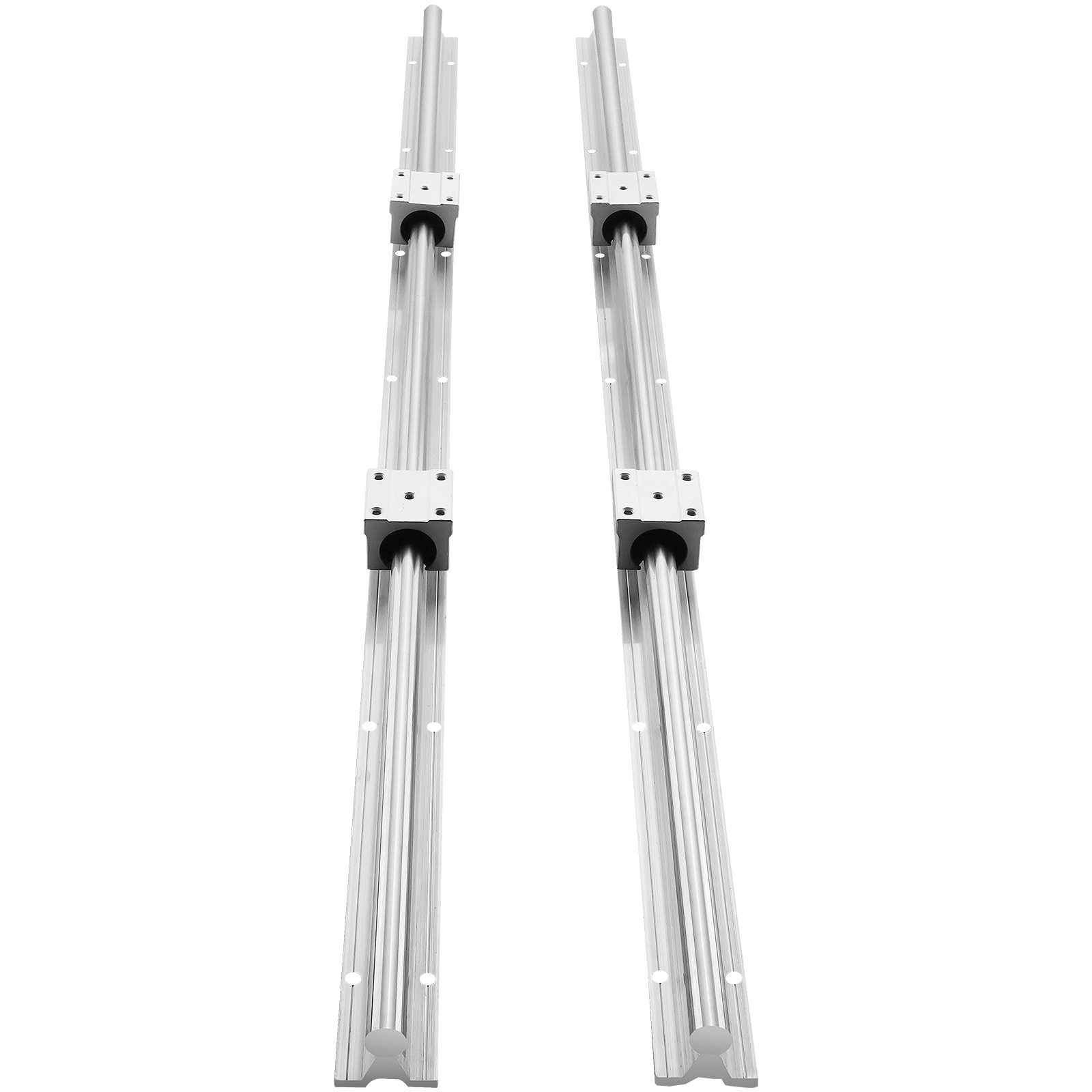

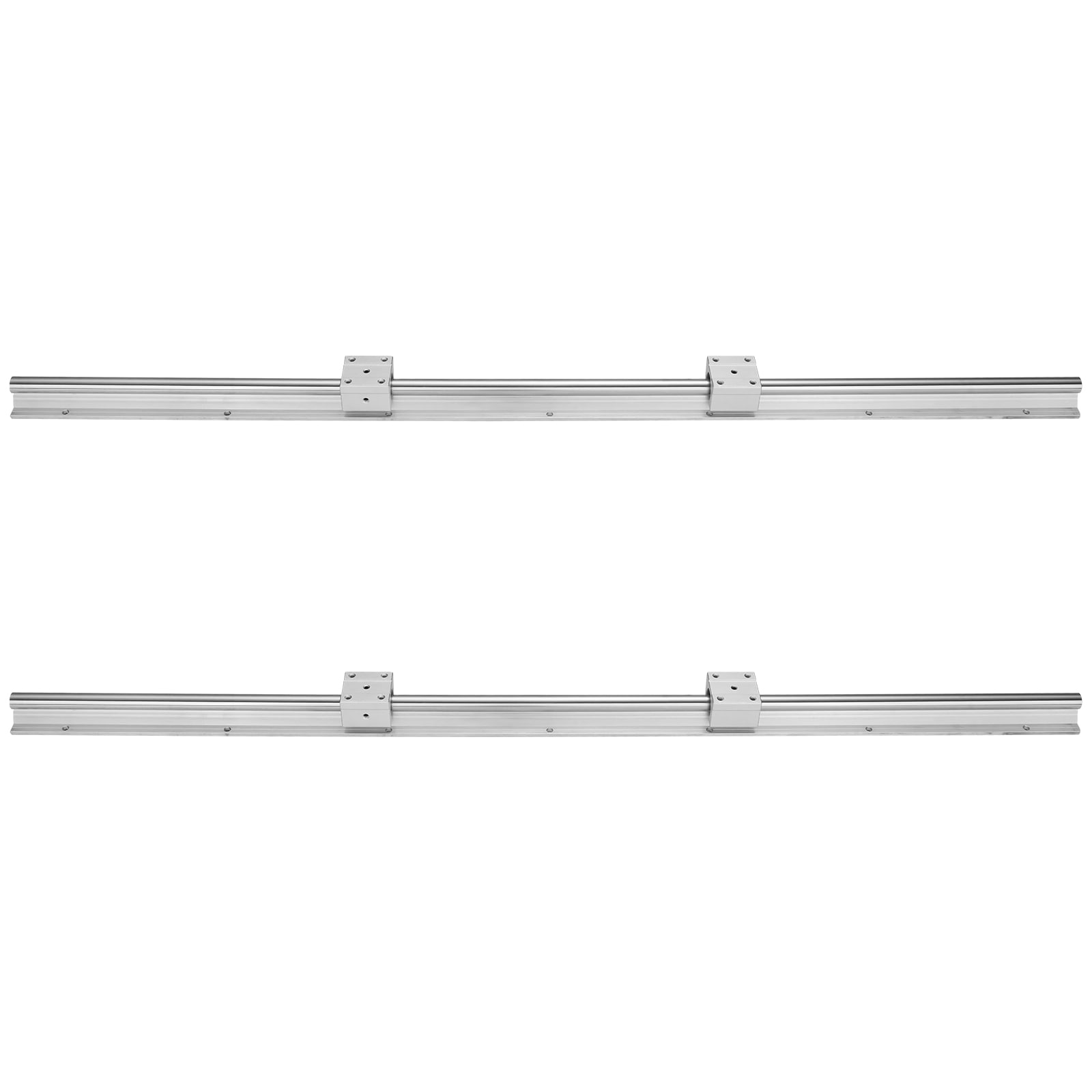

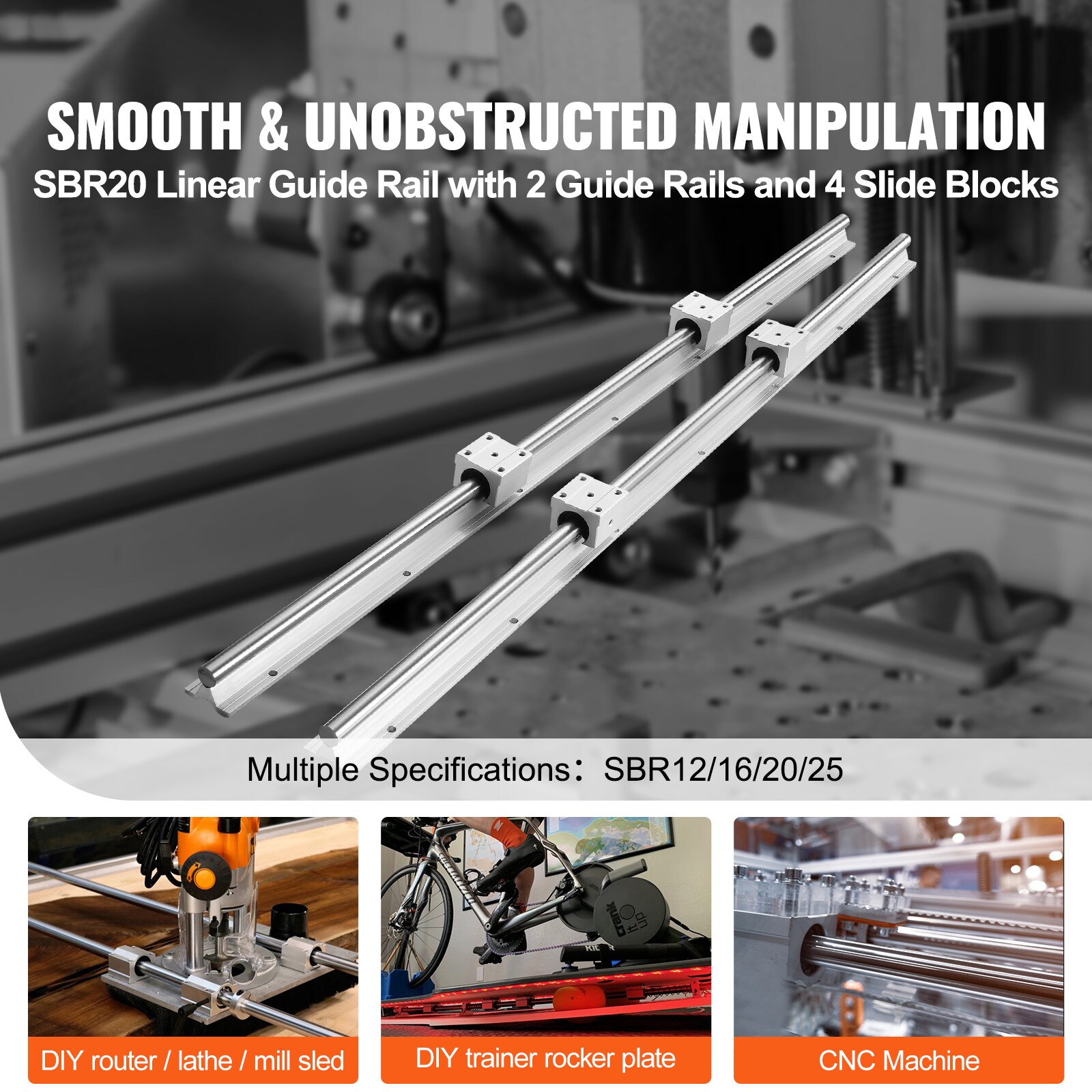

The SVOPES SBR linear guide rail set consists of 2 robust guide rails and 4 smooth slide blocks; Crafted with high-grade aluminum, these rails offer precise hole dimensions and a consistent distance for accurate installation; The slide blocks feature ball bearings, ensuring smooth, uninterrupted movement with minimal noise; This high-performance rail set is perfect for a wide range of DIY and automation projects, from CNC machines to 3D printers.

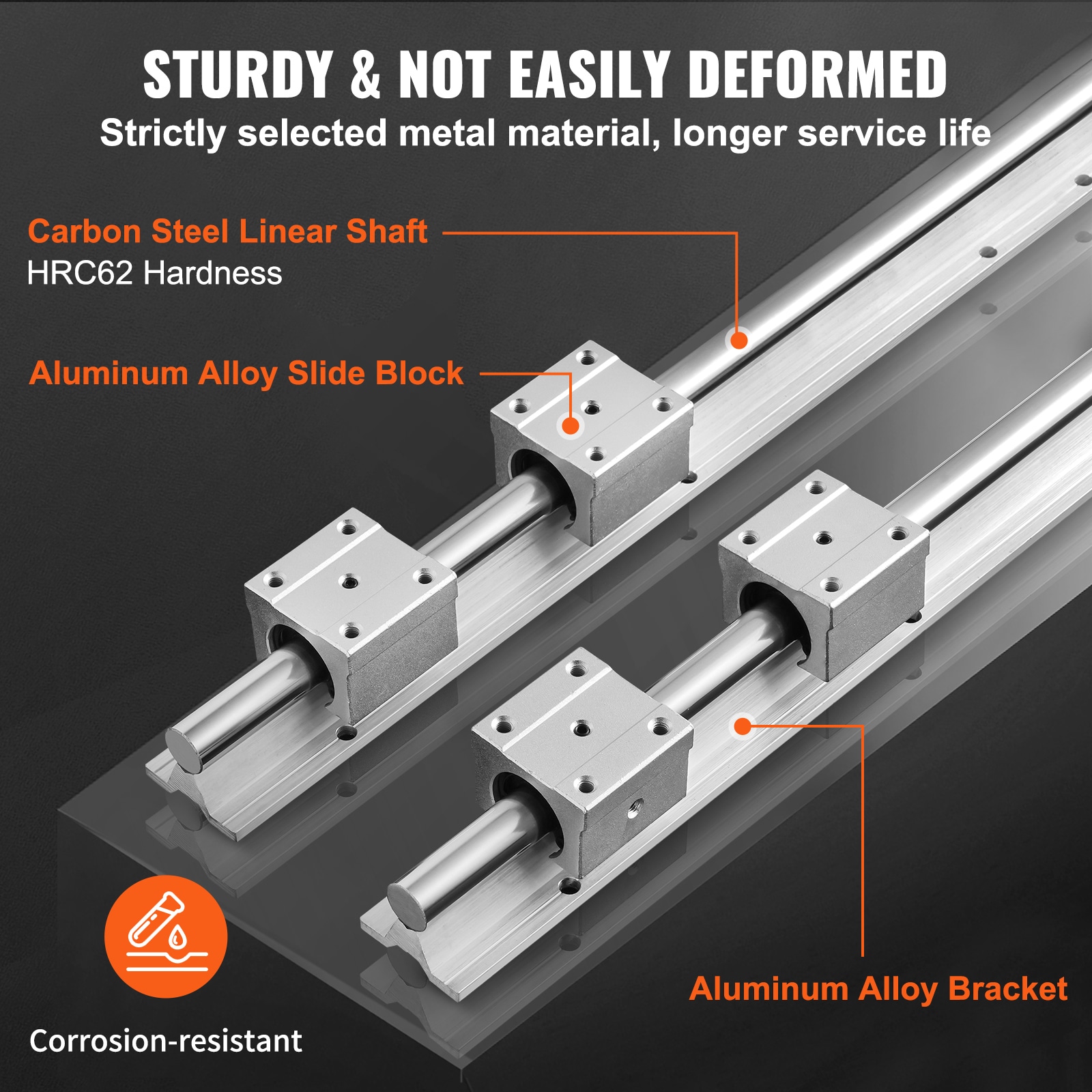

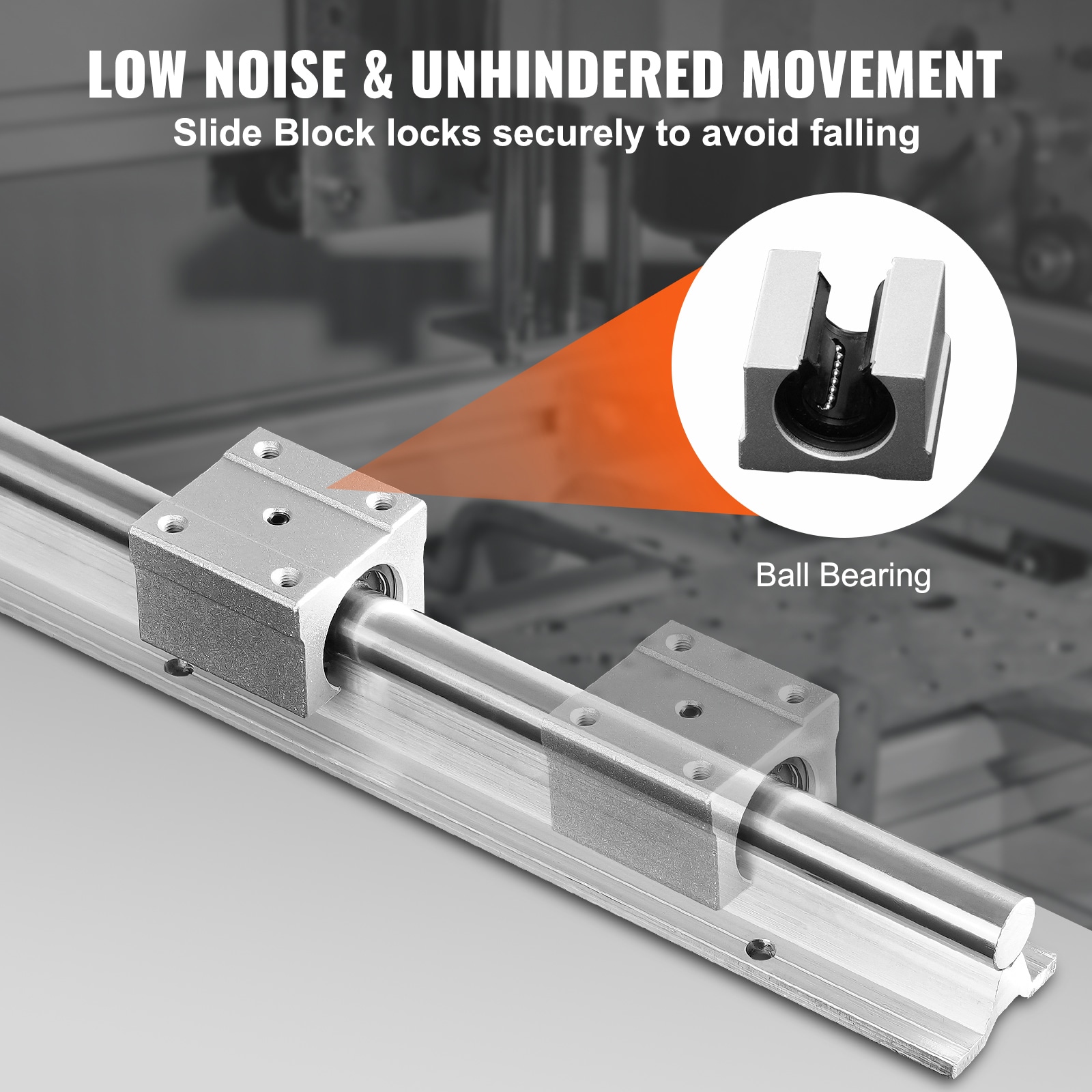

Equipped with high-quality aluminum SBR slide blocks and integrated ball bearings, the system offers smooth, frictionless movement, ensuring long-term reliable and stable performance.
The all-metal linear bearing design ensures the slide block is securely locked onto the linear shaft, offering superior bearing capacity for handling heavy loads with ease and stability.

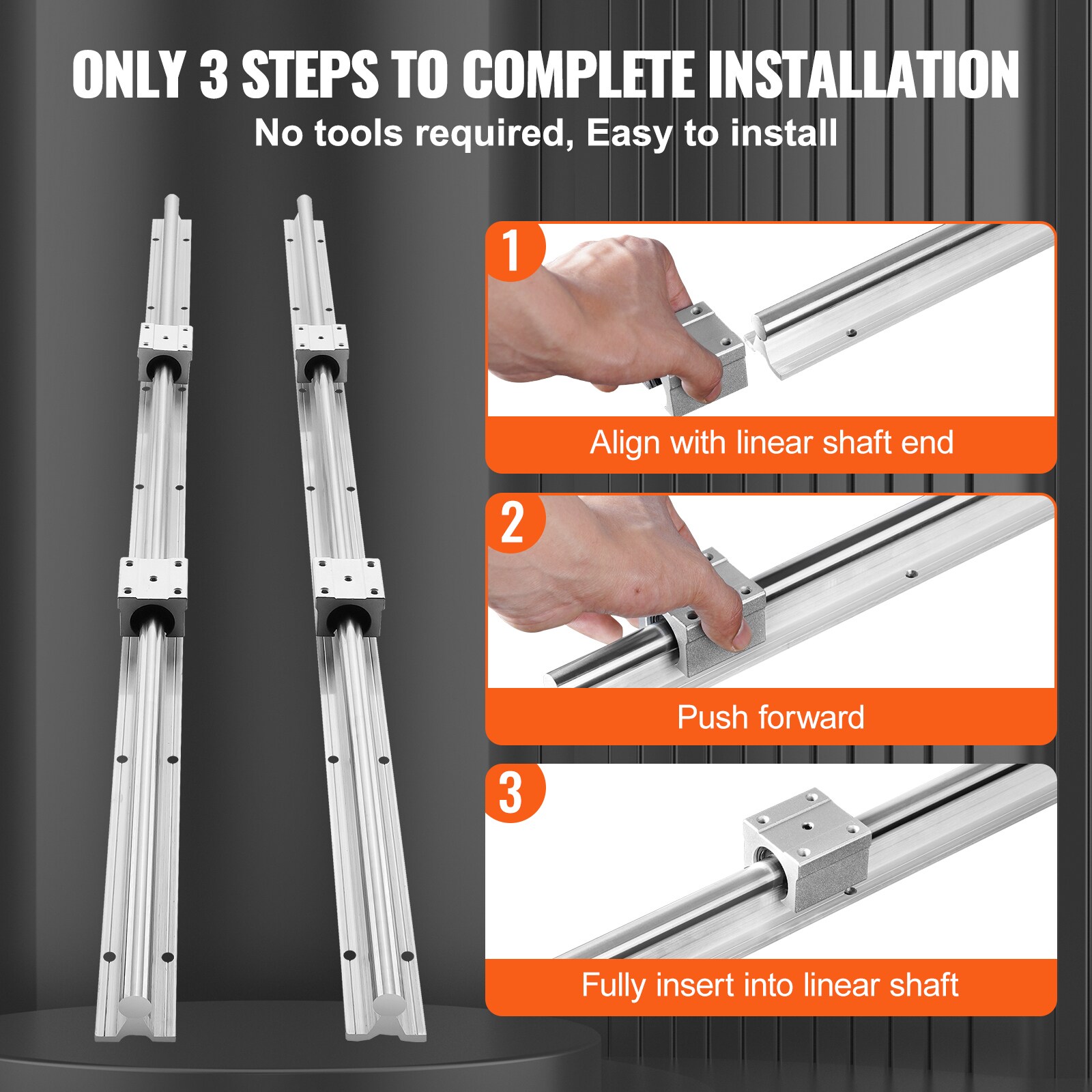

Pre-assembled with rails, shaft, and sliding blocks, the linear guide set includes mounting screw holes for straightforward installation; You can also adjust the bearing tightness for optimal performance.
The chrome-plated surface of the linear shaft protects against moisture, ensuring the rails remain durable even in humid conditions; It also offers excellent resistance to heat for long-term use.
Perfect for a range of automated equipment and DIY projects, such as CNC routers, engraving machines, and lathes, this rail kit is designed to enhance the performance of high-load systems.

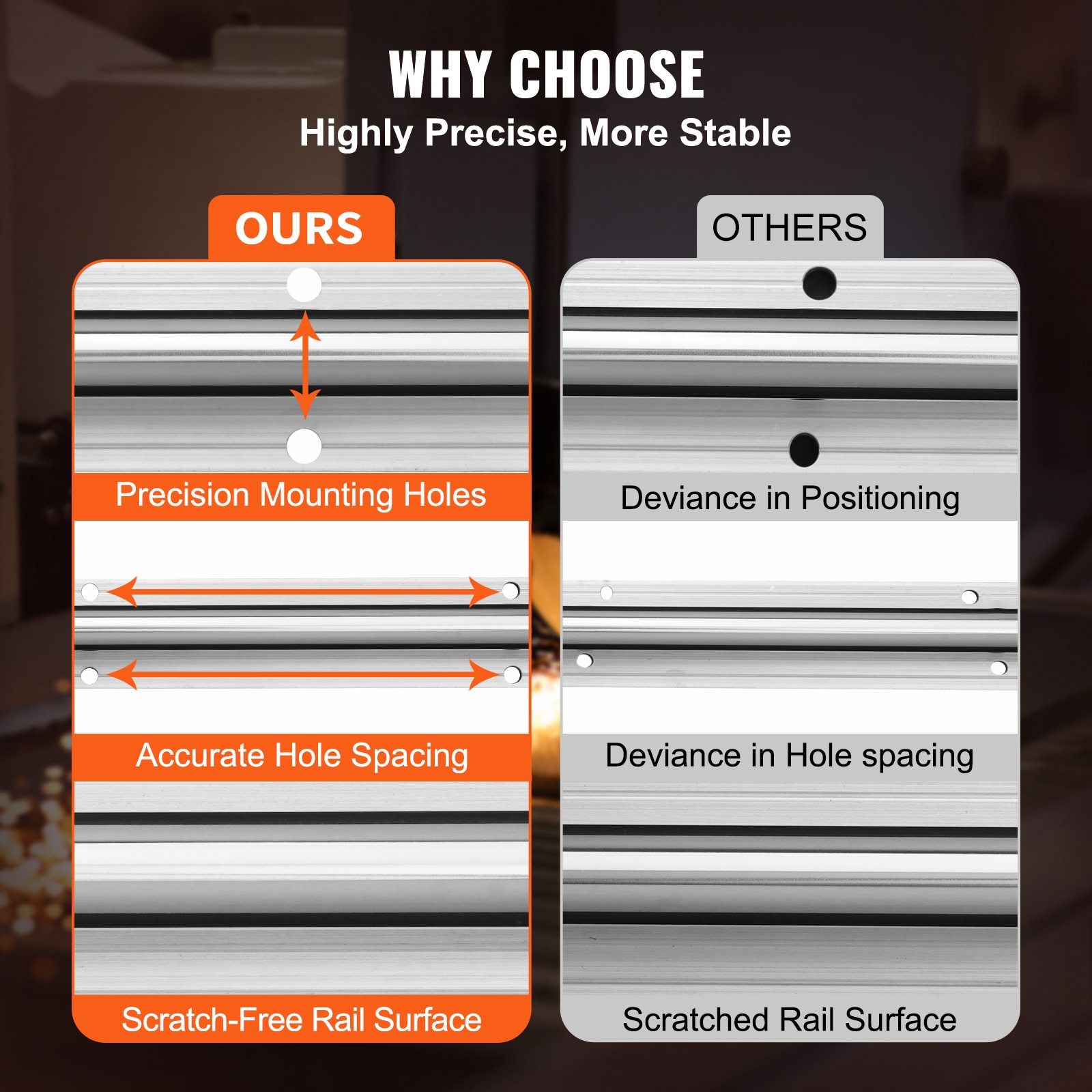

With accurately engineered hole distances and standardized shaft diameters, this guide rail set guarantees precise alignment, making installation easier and improving the accuracy of your machinery.
Heavy Load Capacity: Each slide block can withstand a dynamic load of 882 N and a static load of 1370 N, ensuring the system can handle high weights and demanding tasks without compromising on stability or performance.

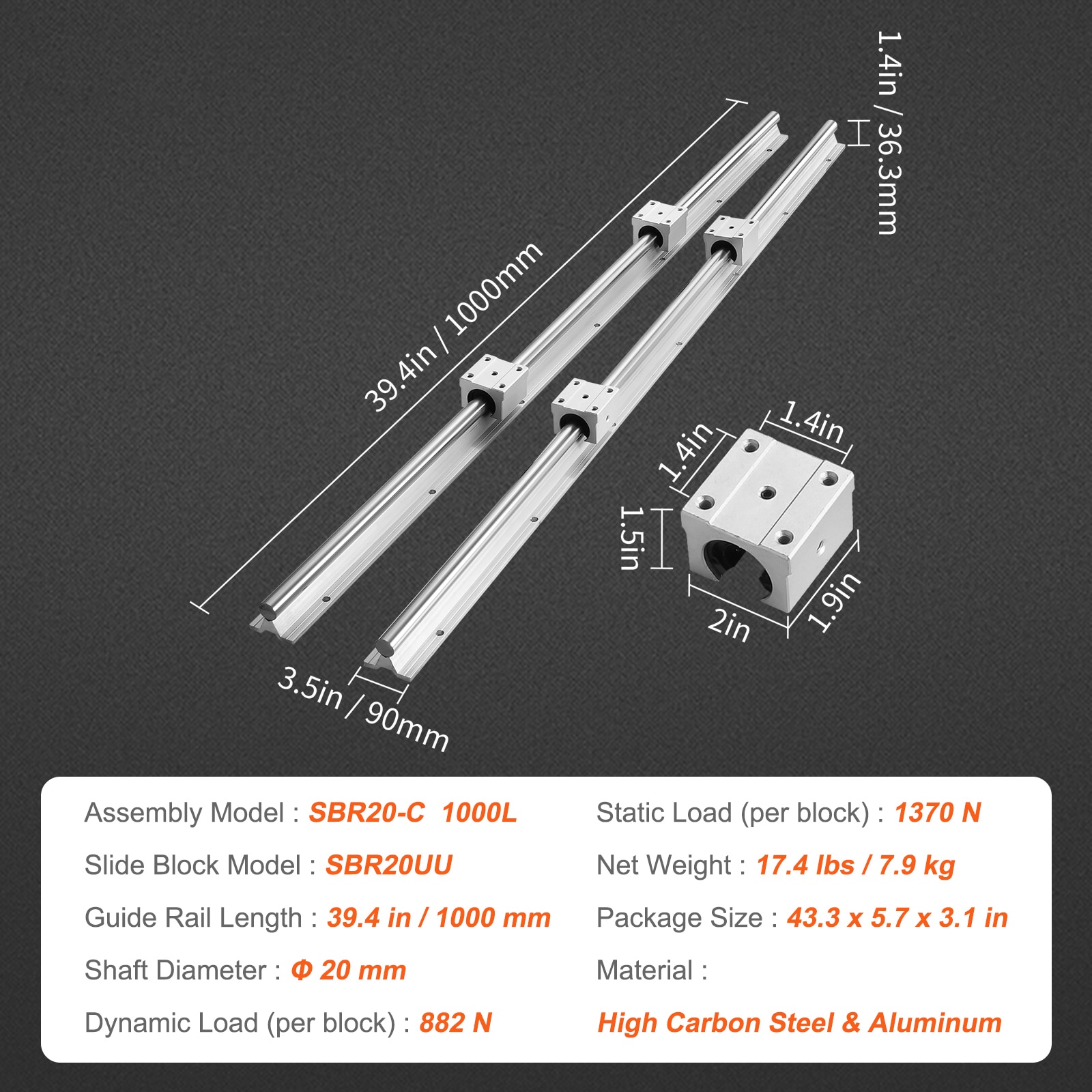

Model Number: SBR20-C 1000L,
Dynamic Load (per block): 882 N,
Static Load (per block): 1370 N,
Material: High Carbon Steel & Aluminum,
Mounting Hole Distance A: 35 mm / 1.4 in,
Mounting Hole Distance B: 35 mm / 1.4 in,
Slide Block Size (L x W x H): 50 x 48 x 39 mm / 2 x 1.9 x 1.5 in,
Product Dimensions (L x W x H): 1000 x 90 x 36.3 mm / 39.4 x 3.5 x 1.4 in,
Package Size (L x W x H): 1100 x 145 x 80 mm / 43.3 x 5.7 x 3.1 in,
Slide Block Model: SBR20UU,
Guide Rail Length: 1000 mm / 39.4 in,
Shaft Diameter: Φ20 mm,
Net Weight: 7.9 kg / 17.4 lbs.

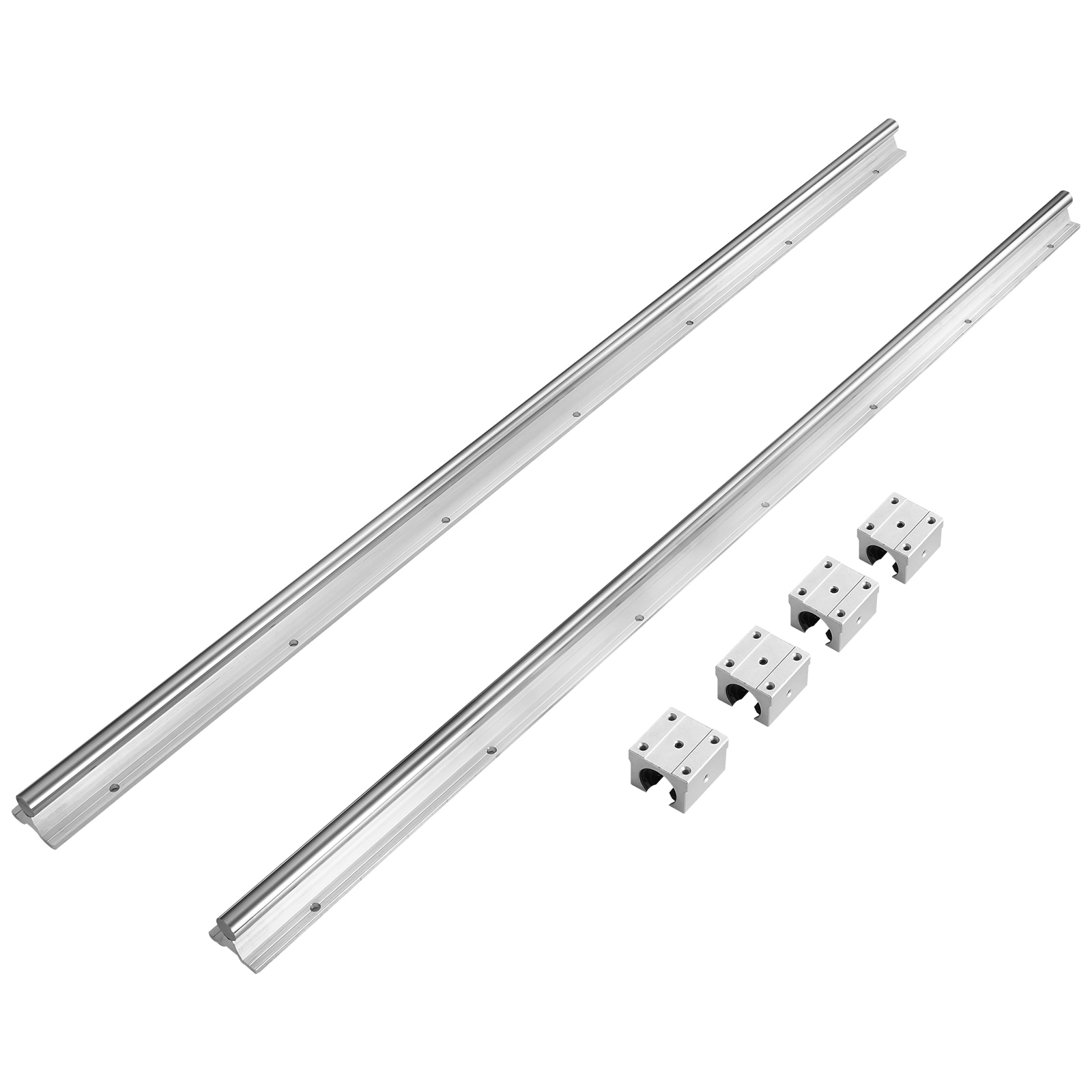

4 x SBR20UU Sliding Blocks,
2 x SBR20 1000mm Linear Guide Rails with Supports.
