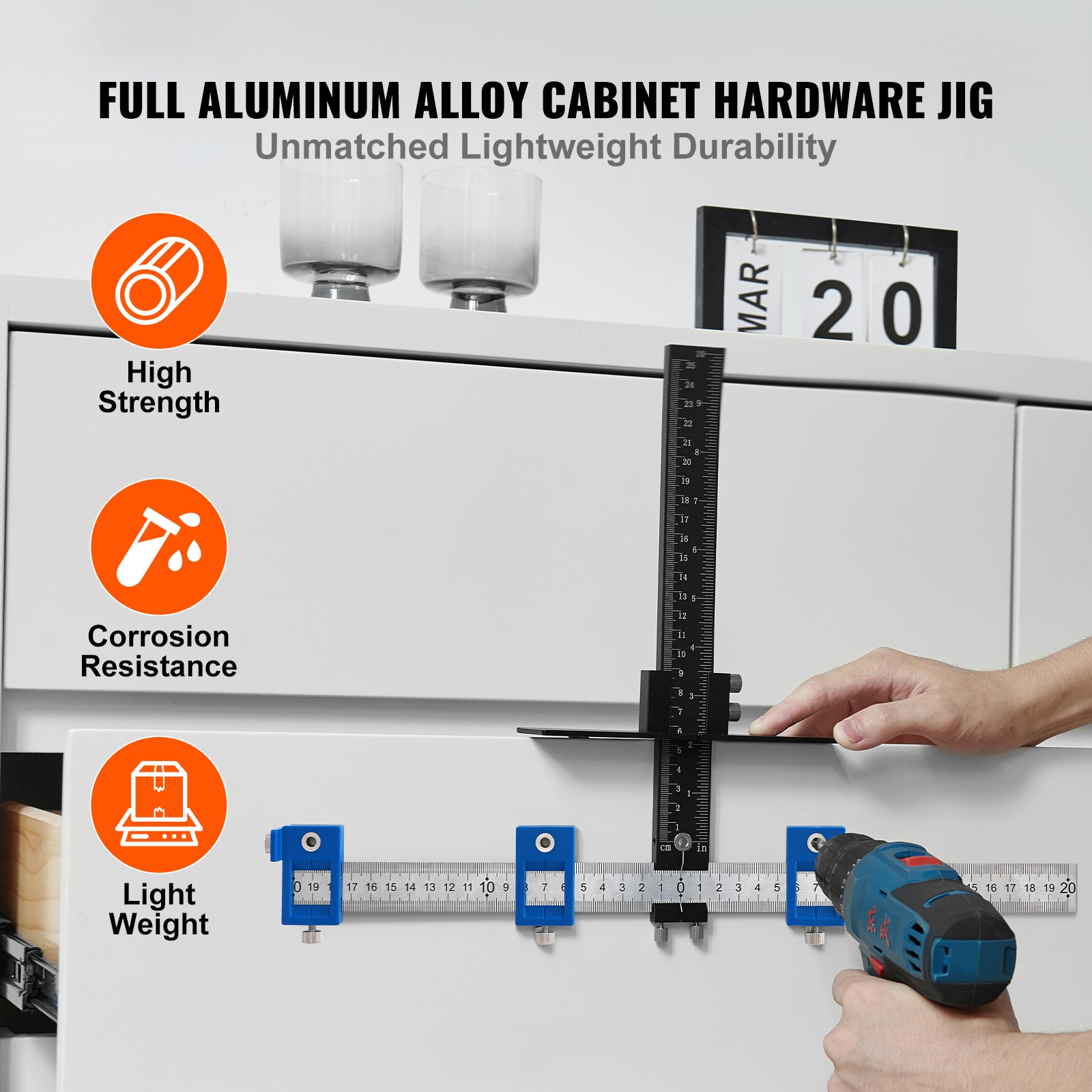

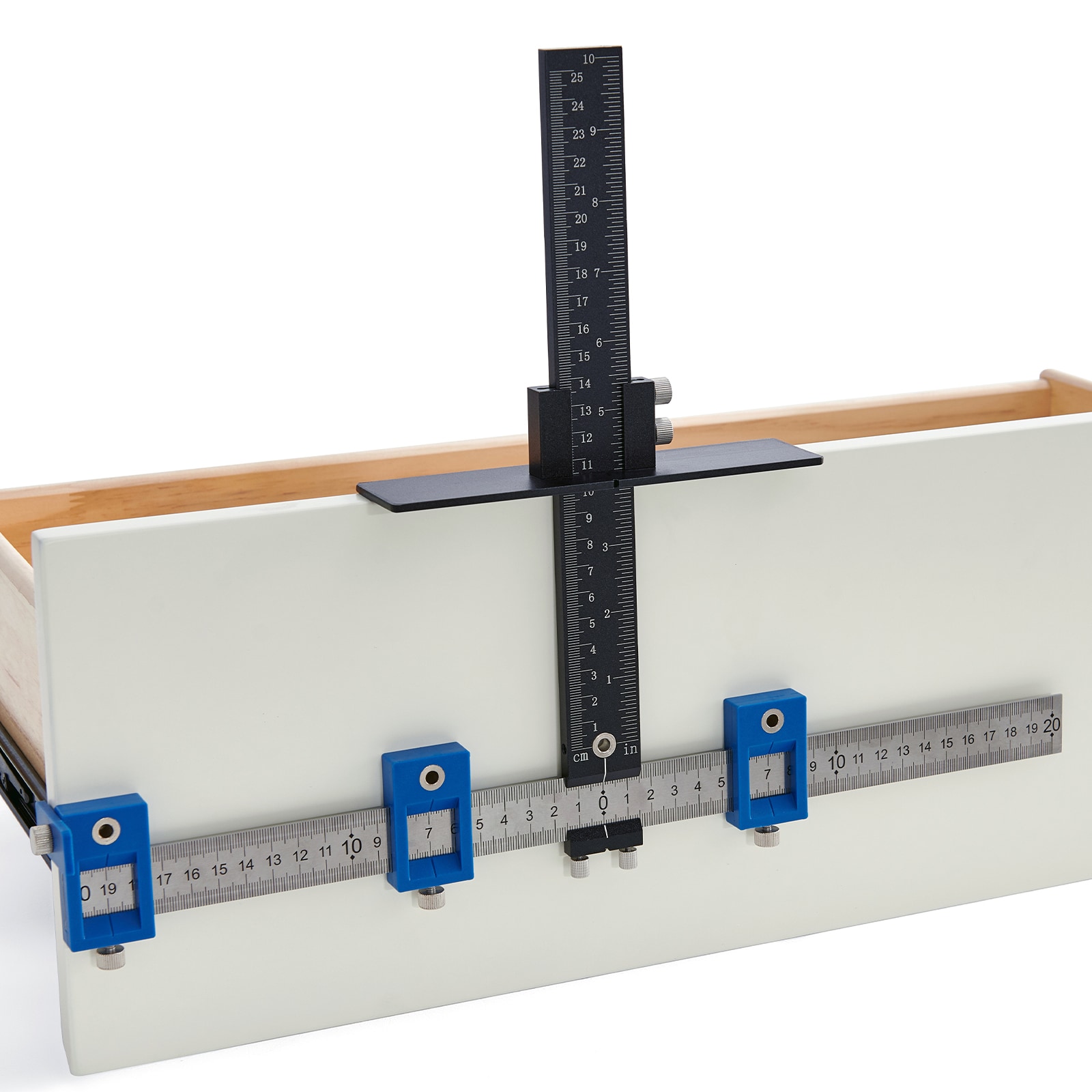

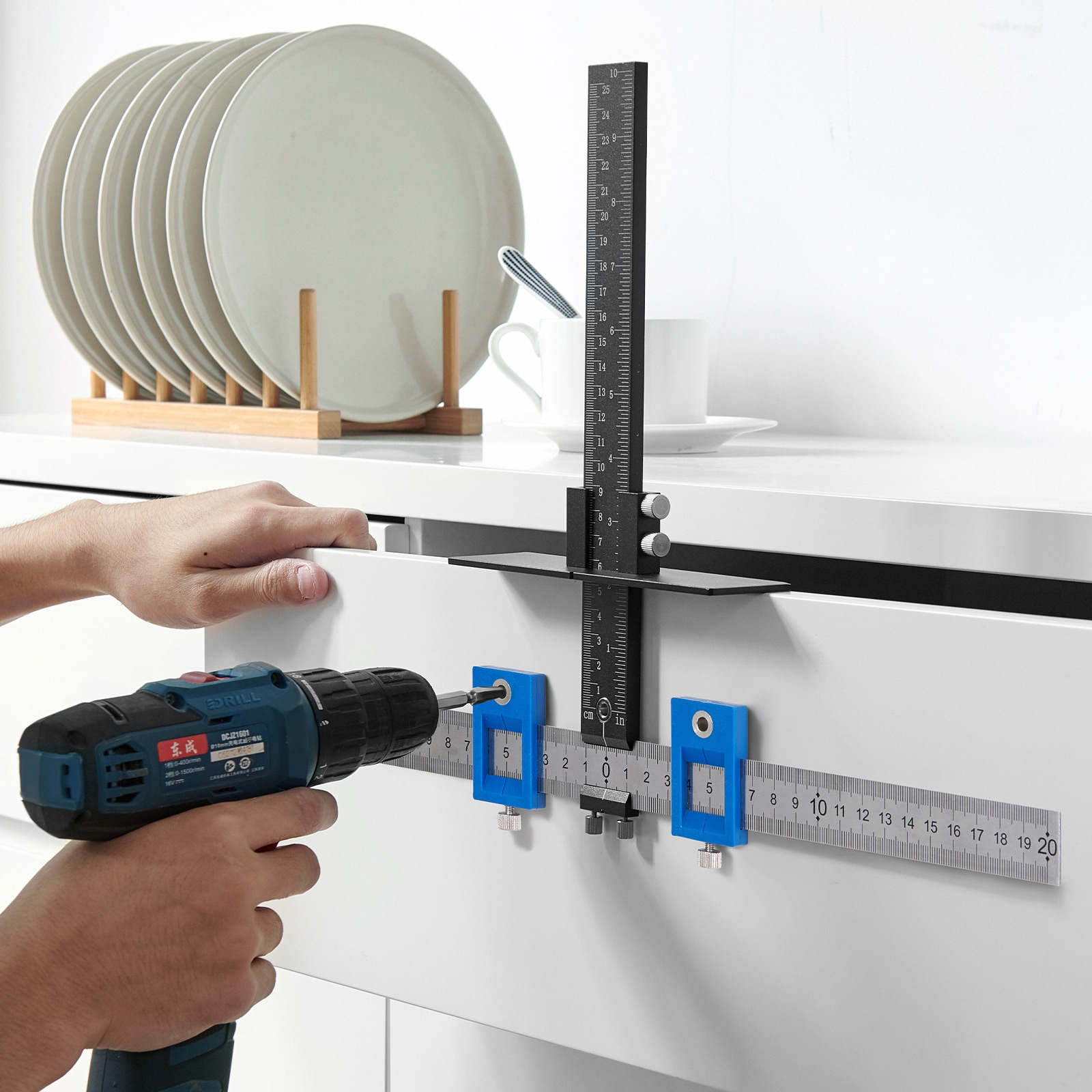

Our cabinet handle jig is made of top-quality aluminum alloy and stainless steel; It's strong, corrosion-resistant, and stable even in challenging environments; The portable and detachable design makes each module easy to install; It's suitable for various applications like cabinets and drawers.

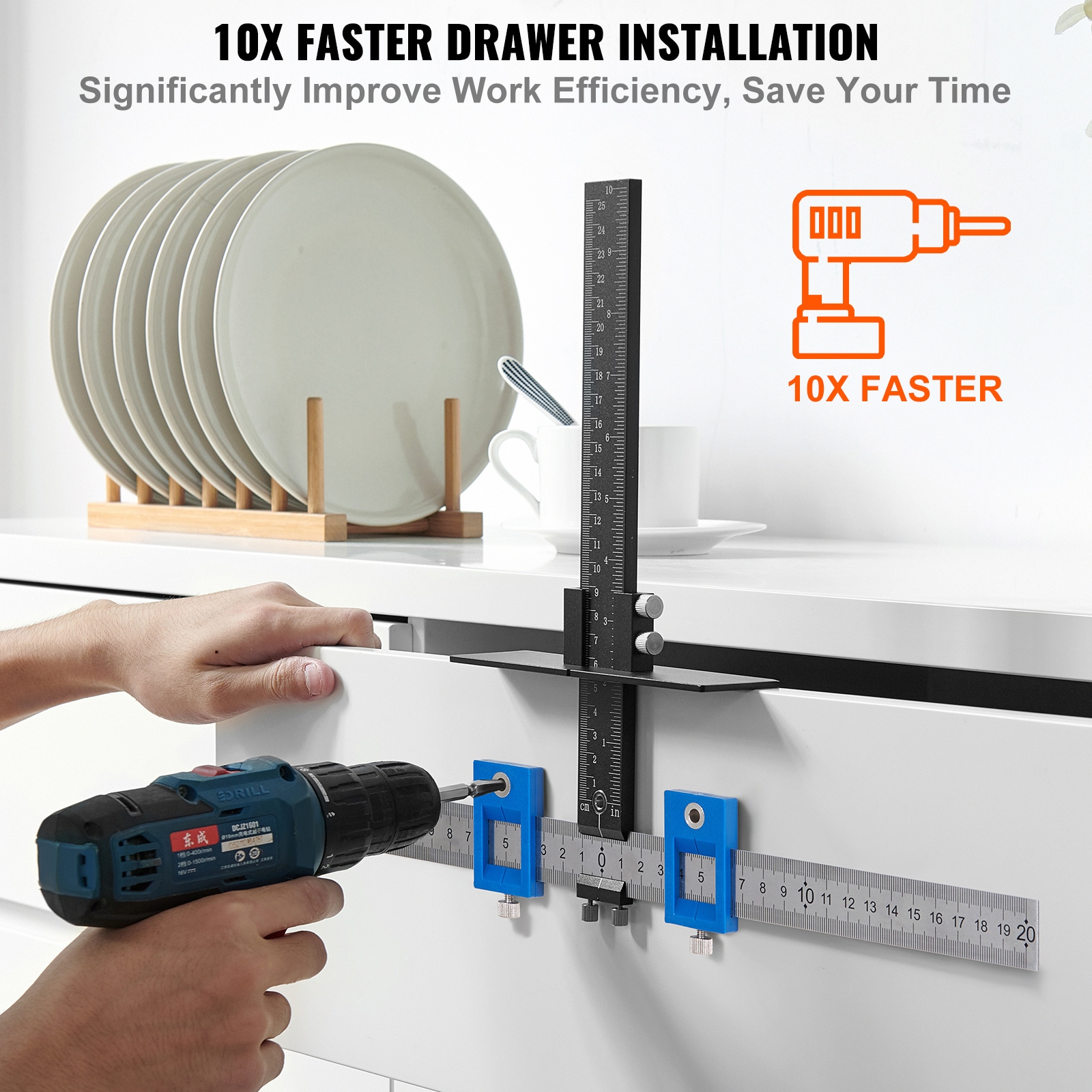

After adjustment, simply flip the jig for precise positioning on the next cabinet door, enabling fast batch operations.

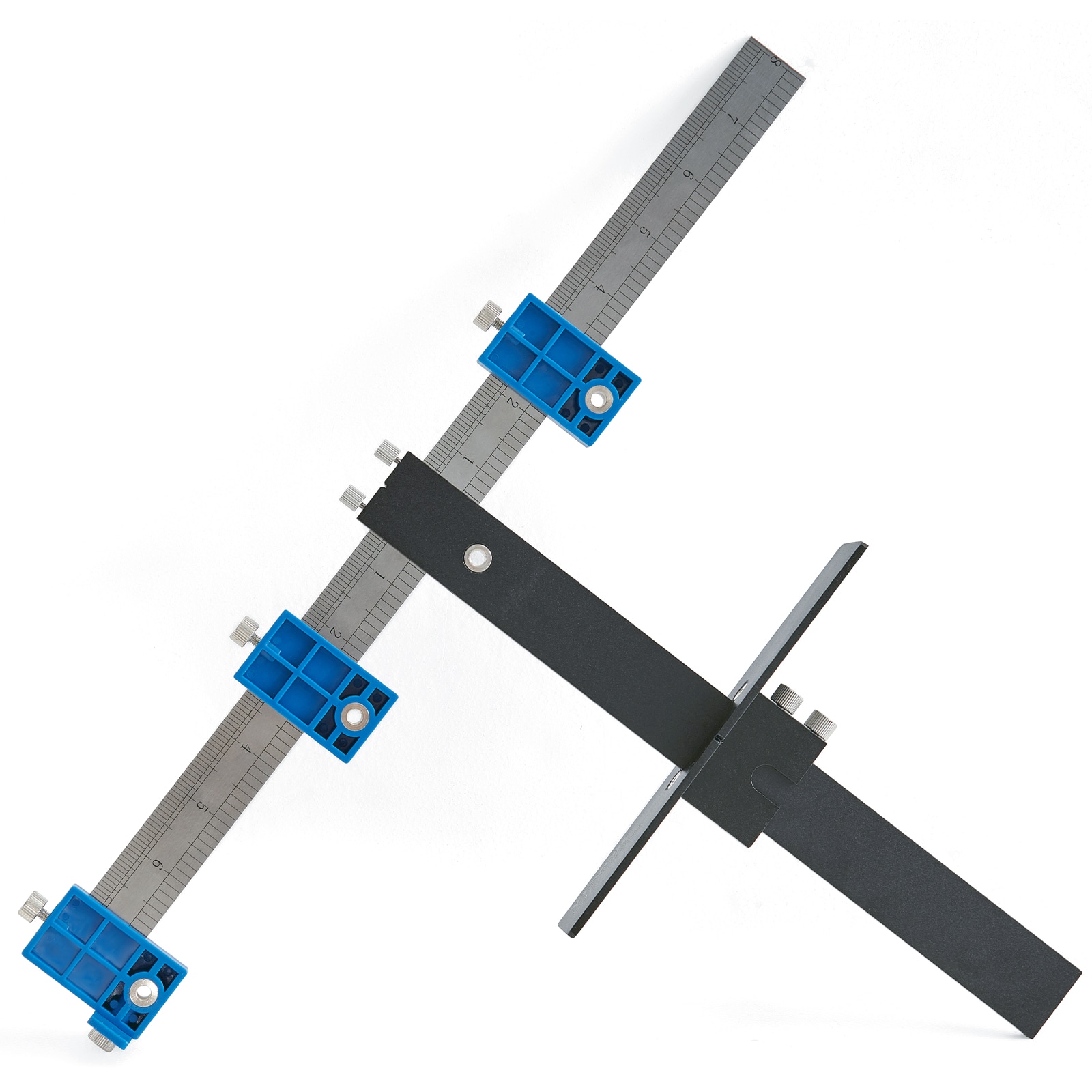

The vertical ruler and slider are of aluminum alloy, and the horizontal ruler is stainless steel, ensuring durability and support.

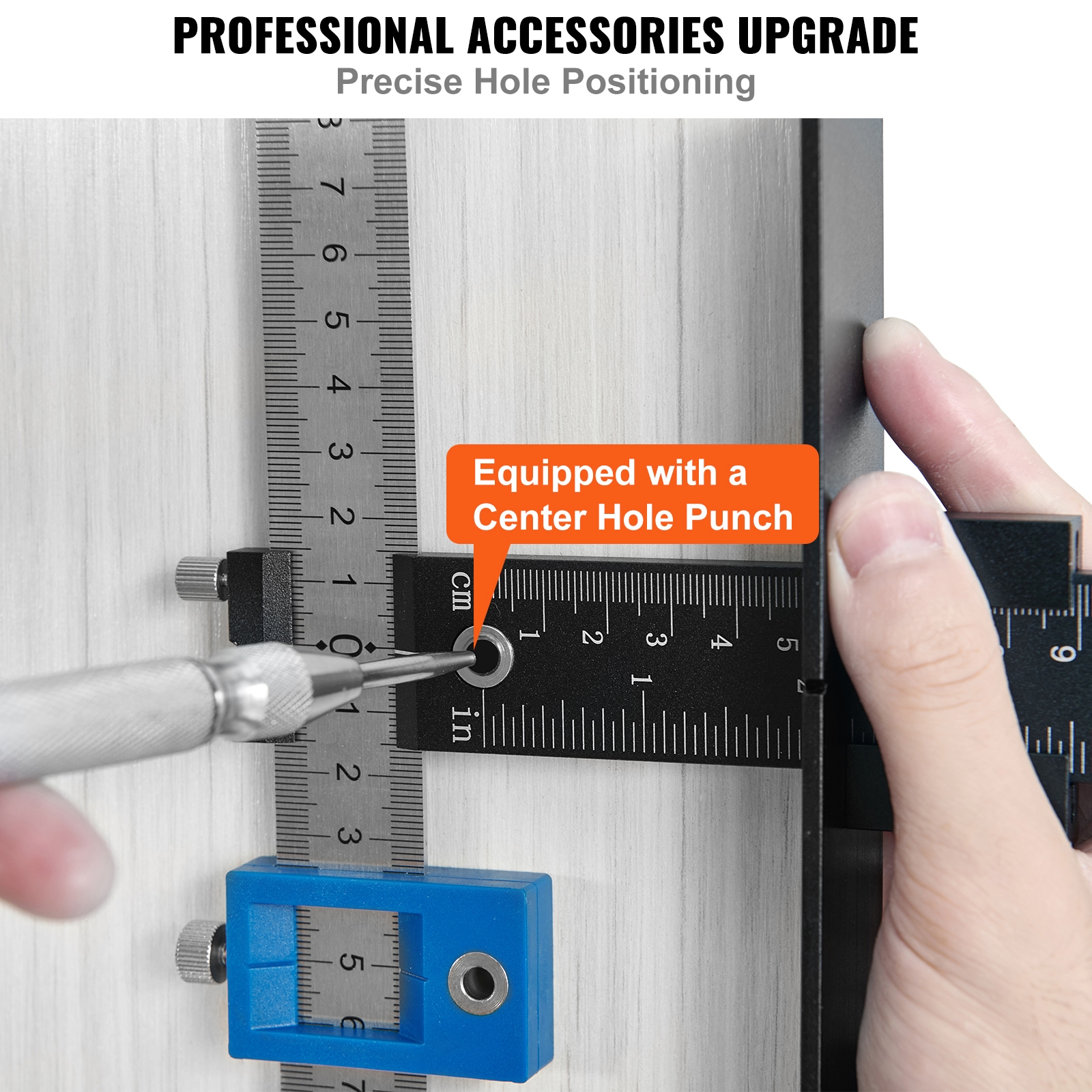

The center hole punch helps locate the center point accurately for precise drilling and measurement.

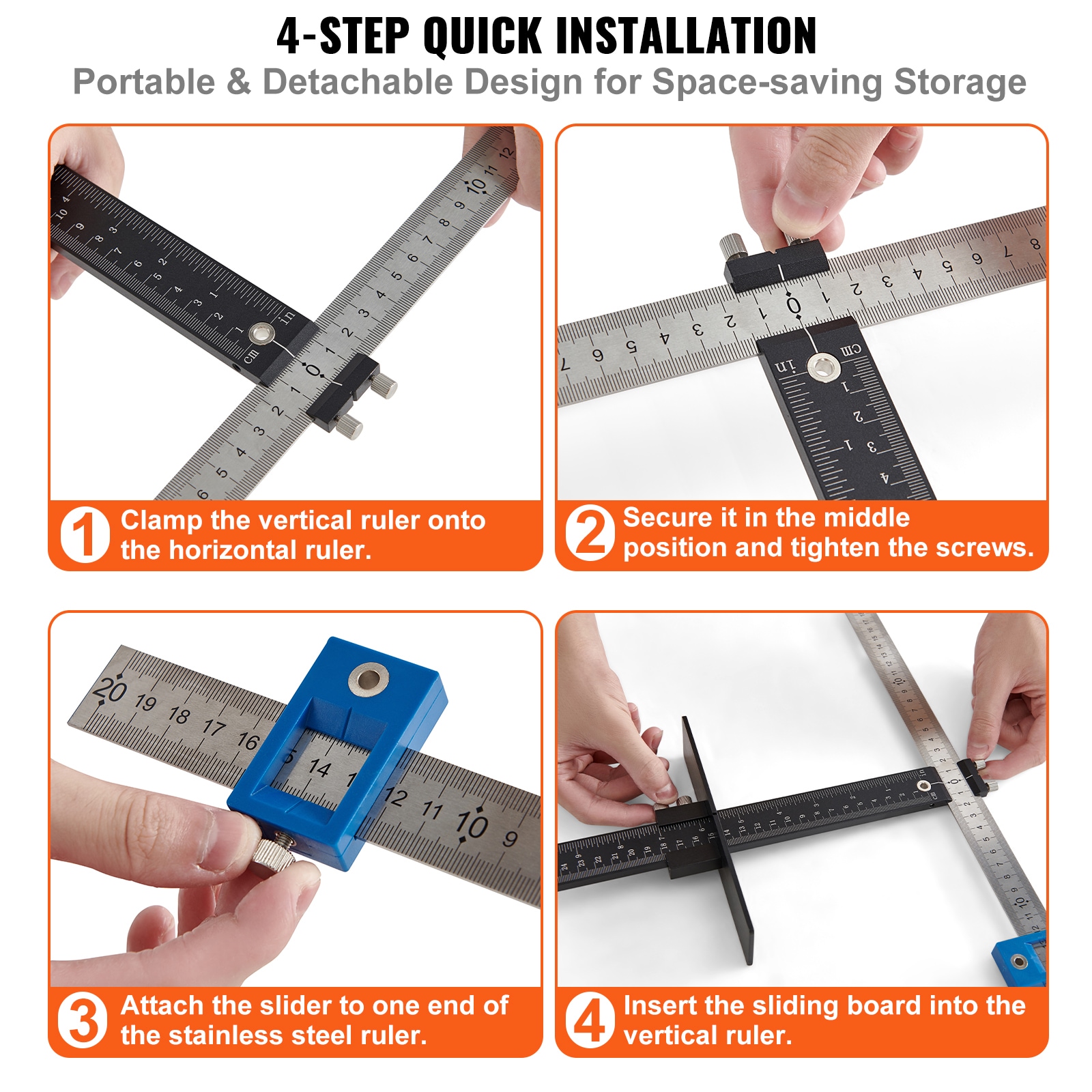

The detachable design makes installation quick and easy, simplifying your tasks and boosting work efficiency.
The high-strength screws extend the jig's lifespan by withstanding stress and environmental factors.
Hand-turn bolts adjust the slider's tightness, and laser-engraved scales offer clear measurements.
Special Accessories for Efficiency: We offer a 'center punch' as a bonus for precise hole punching; Even beginners can achieve professional results with this cabinet jig.

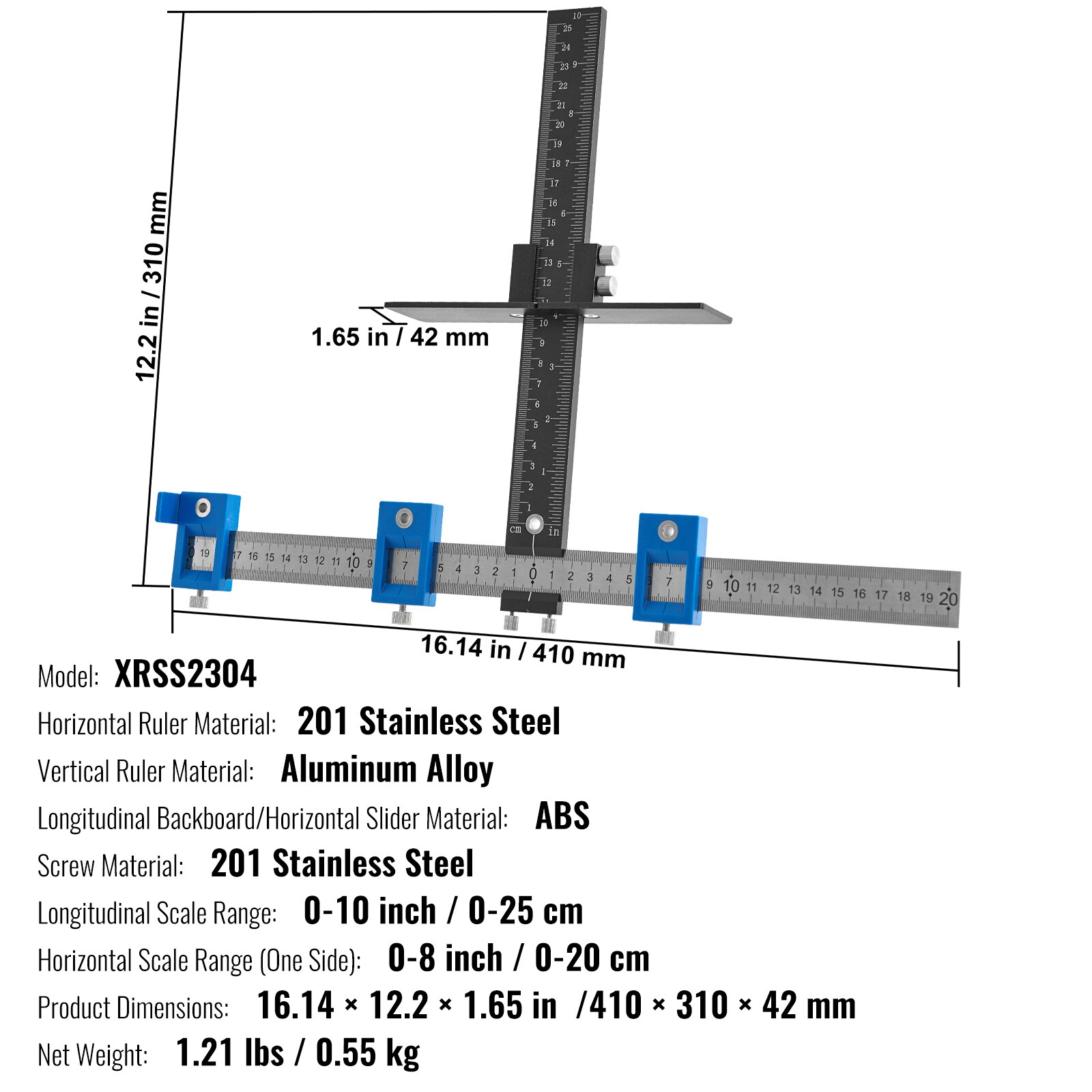

Horizontal Ruler Material: 201 Stainless Steel
Screw Material: 201 Stainless Steel
Longitudinal Backboard/Horizontal Slider Material: ABS
Product Dimensions (L x W x He): 410 x 310 x 42 mm / 16.14 x 12.2 x 1.65 in
Net Weight (Including all accessories): 0.55 kg / 1.21 lbs
Item Model Number: XRSS2304
Longitudinal Scale Range: 0 - 25 cm / 0 - 10 inch
Horizontal Scale Range (One Side): 0 - 20 cm / 0 - 8 inch
Vertical Ruler Material: Aluminum Alloy
1 x Instruction Manual
1 x Horizontal Ruler
1 x Oxford Cloth Bag
1 x Vertical Ruler (including screws)
1 x Vertical Backplate (including screws)
1 x Slider End Stopper (including screws + stop plate)
1 x Center Hole Punch
1 x 5mm Twist Drill Bit
2 x Hex Wrench
3 x Horizontal Slider (including screws + 5mm Drill Guide Bushing)(one extra, totaling 3)
3 x 5mm Drill Guide Bushing (in addition to the one installed on the device, you'll receive 3 extra)
