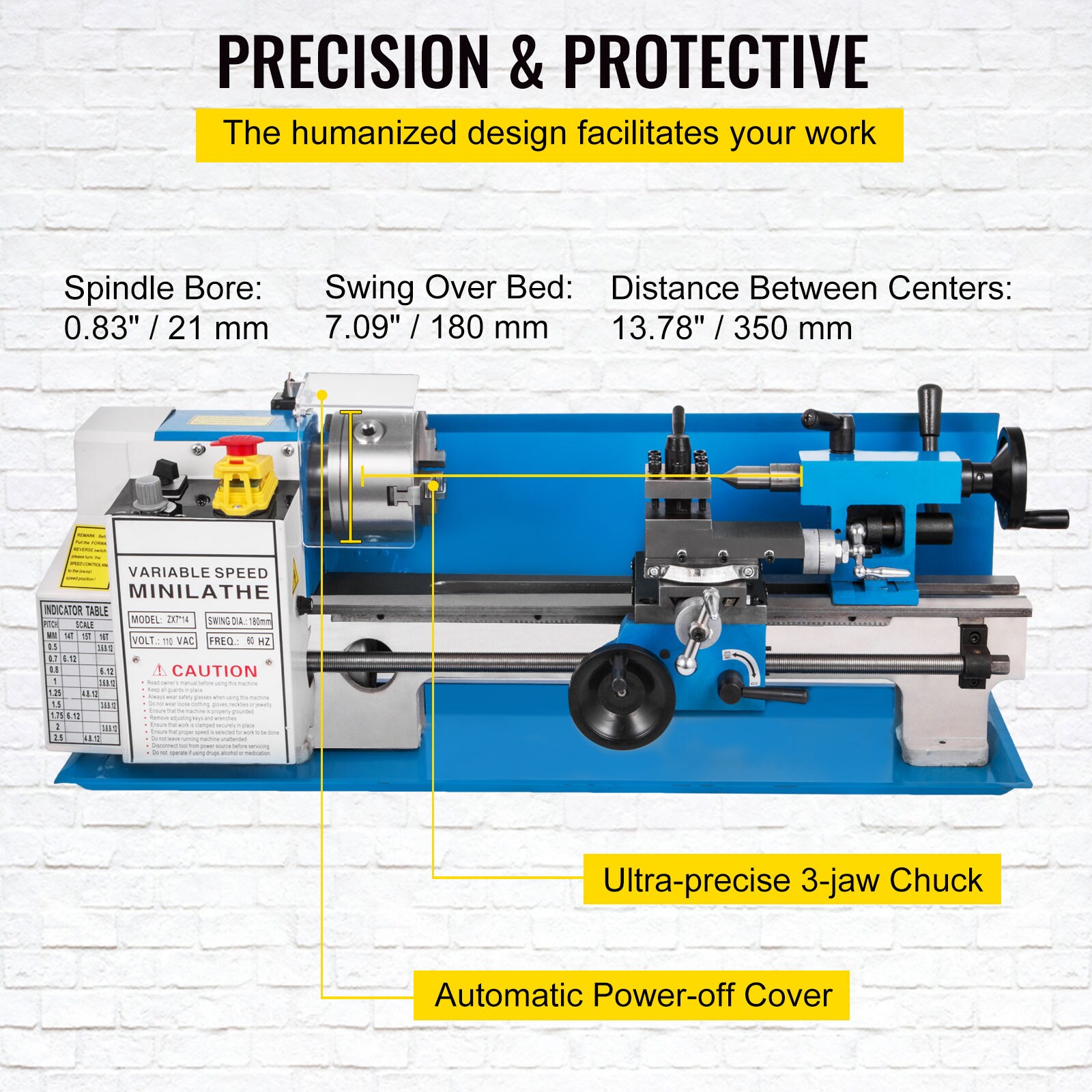

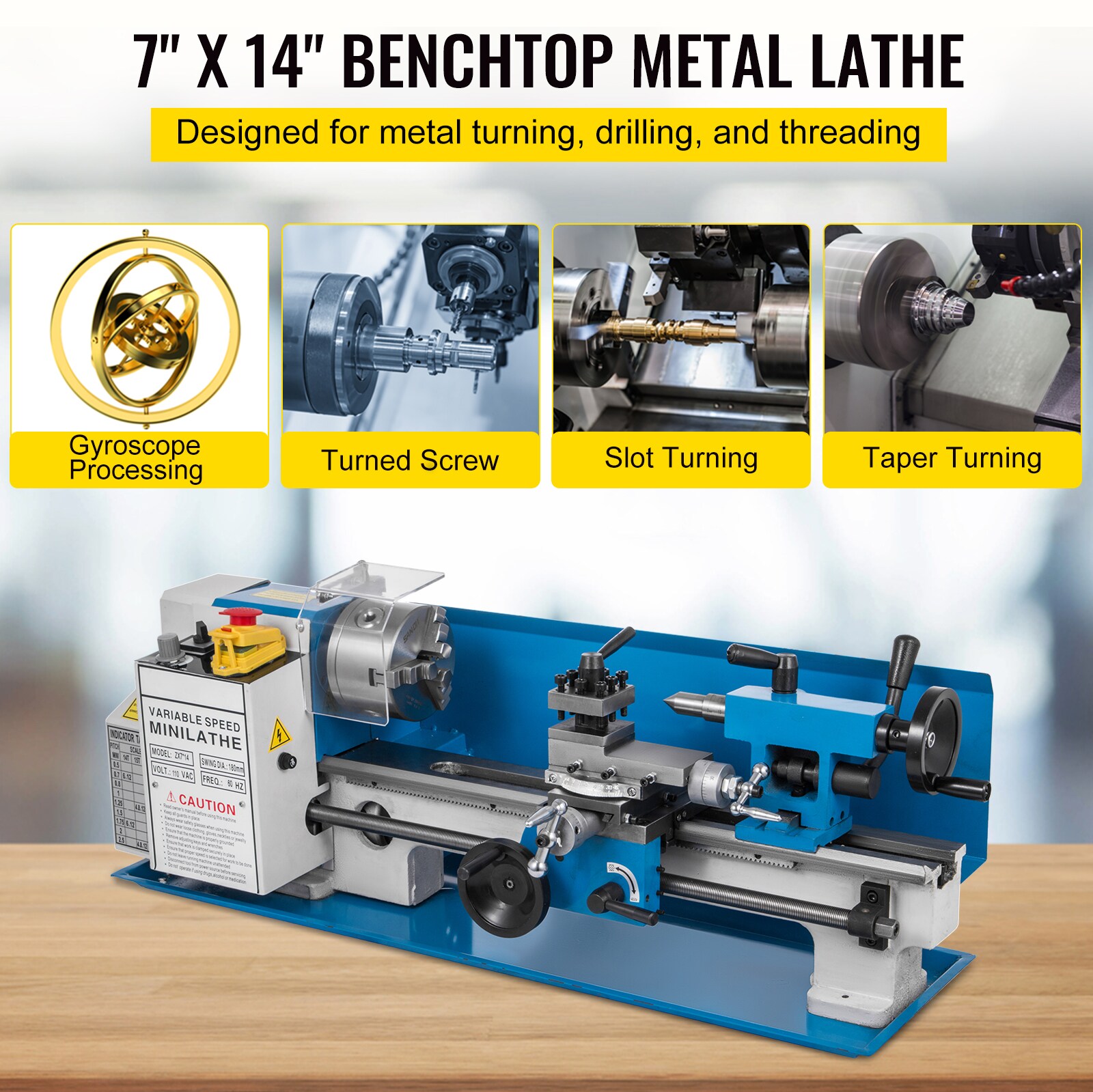

Crafted from high-quality iron, this lathe is built to last for years of reliable use; It features a 7-inch swing over the bed and a 13.78-inch distance between centers, offering ample space for working on longer, thinner pieces like axles, shafts, bushings, and pins.

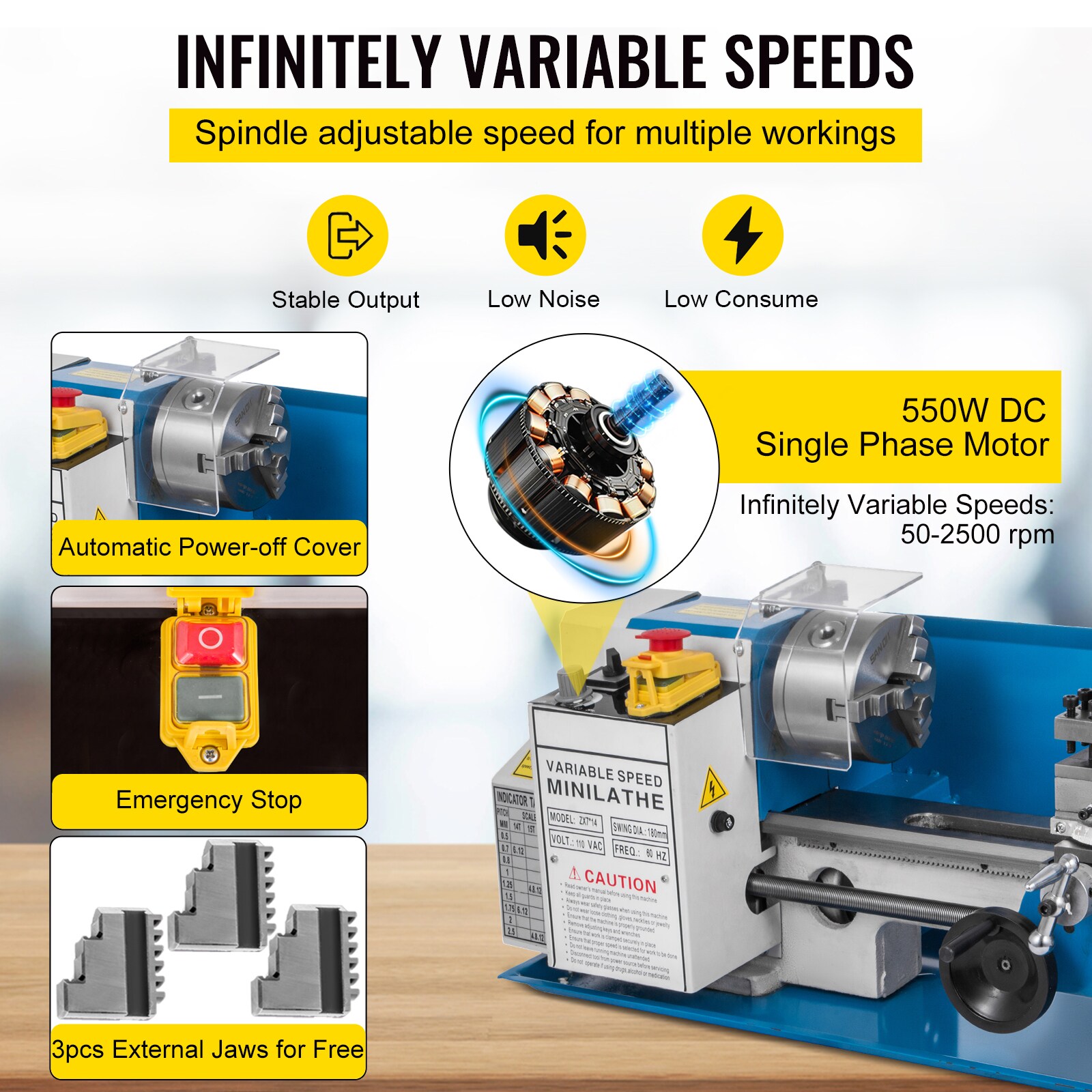

The lathe offers a wide variable speed range from 50 to 2500 RPM, with both forward and reverse operation; You can control the speed manually or set an adjustable auto-feed rate, which allows precise control based on the specific requirements of different workpieces.
The 3-jaw chuck is self-centering and provides consistent accuracy and repeatability for holding cylindrical materials securely; The spindle is supported by precision tapered roller bearings, ensuring that spindle accuracy is maintained within 0.01 mm; A splash guard is also included for added safety.

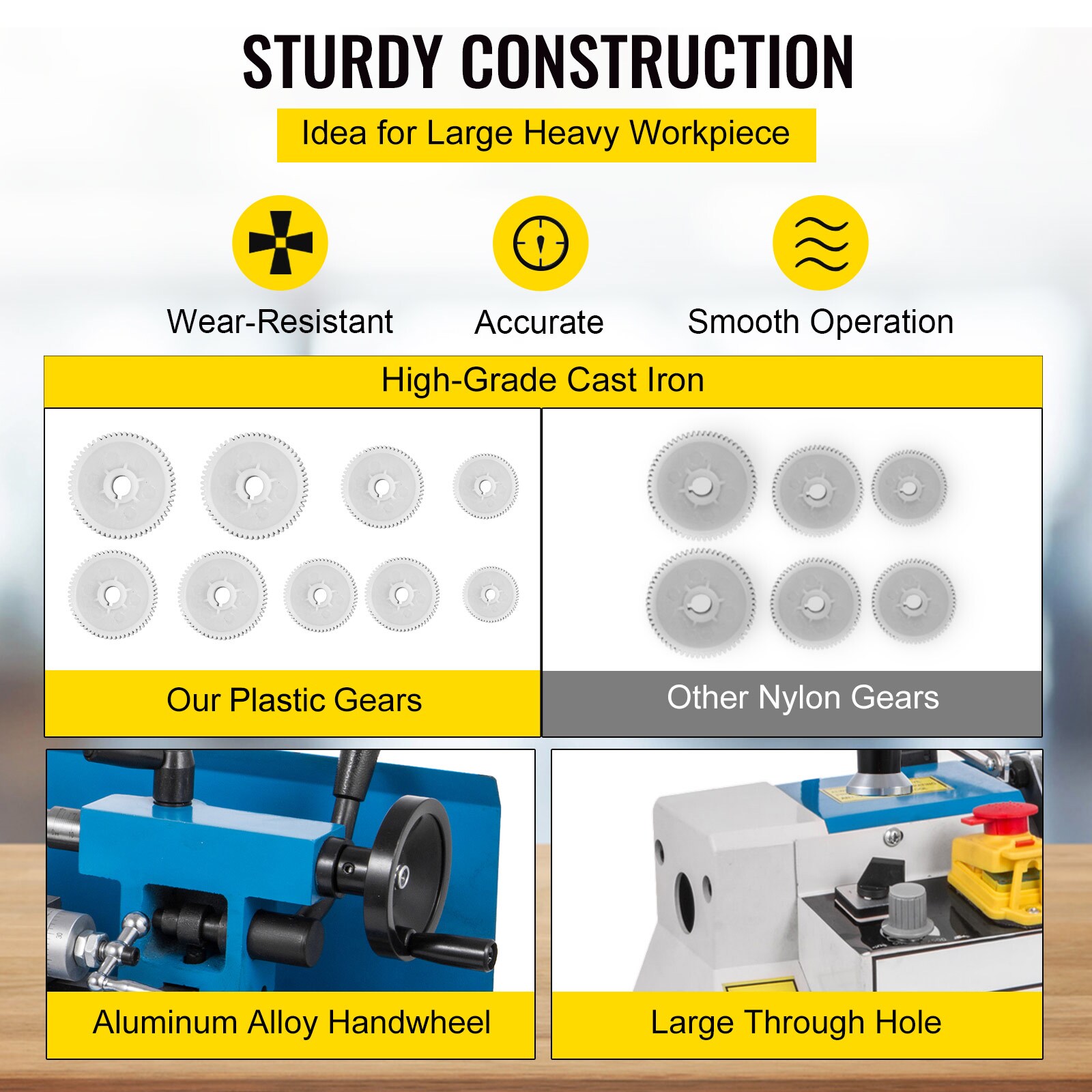

Built for durability with abrasion-resistant components, the cross slide allows smooth, precise movement of blades; The lathe also features a 16 TPI reversible lead screw and V-slideways with a 13.78"" (350 mm) center distance, offering smooth operation; A built-in lamp ensures precise work even in low-light conditions.
The tailstock can be adjusted to accommodate any MT2 taper and slides along the bed to support workpieces of various lengths, ensuring stability and secure operation during machining.
Equipped with a T-slotted compound slide and a four-way tool post, this lathe allows for quick tool changes; The compound rest can be adjusted for bevel cutting by modifying the angle, making it versatile for various cutting applications.
Broad Application Range: Powered by a DC motor, this mini lathe is ideal for precision tasks such as mini part processing, sample crafting, and model work; Its compact size makes it suitable for small-scale precision projects while maintaining high accuracy and stability.
Power of Motor: 550W DC Single Phase,
Variable Speed Range: 50-2500 RPM,
Swing Over Bed: 180 mm (7.09"),
Chuck Diameter: 100 mm (3.94"),
Centers Distance: 350 mm (13.78"),
Spindle Bore: 21 mm (0.82"),
Inch Thread Range: 12-52 T,P,I,
Metric Thread Range: 0.5-2.5 mm,
Item Weight: 40 kg (88.18 lbs),
Item Dimensions: 69.9 × 21.7 × 29.7 cm (27.5 × 8.5 × 11.6 in).

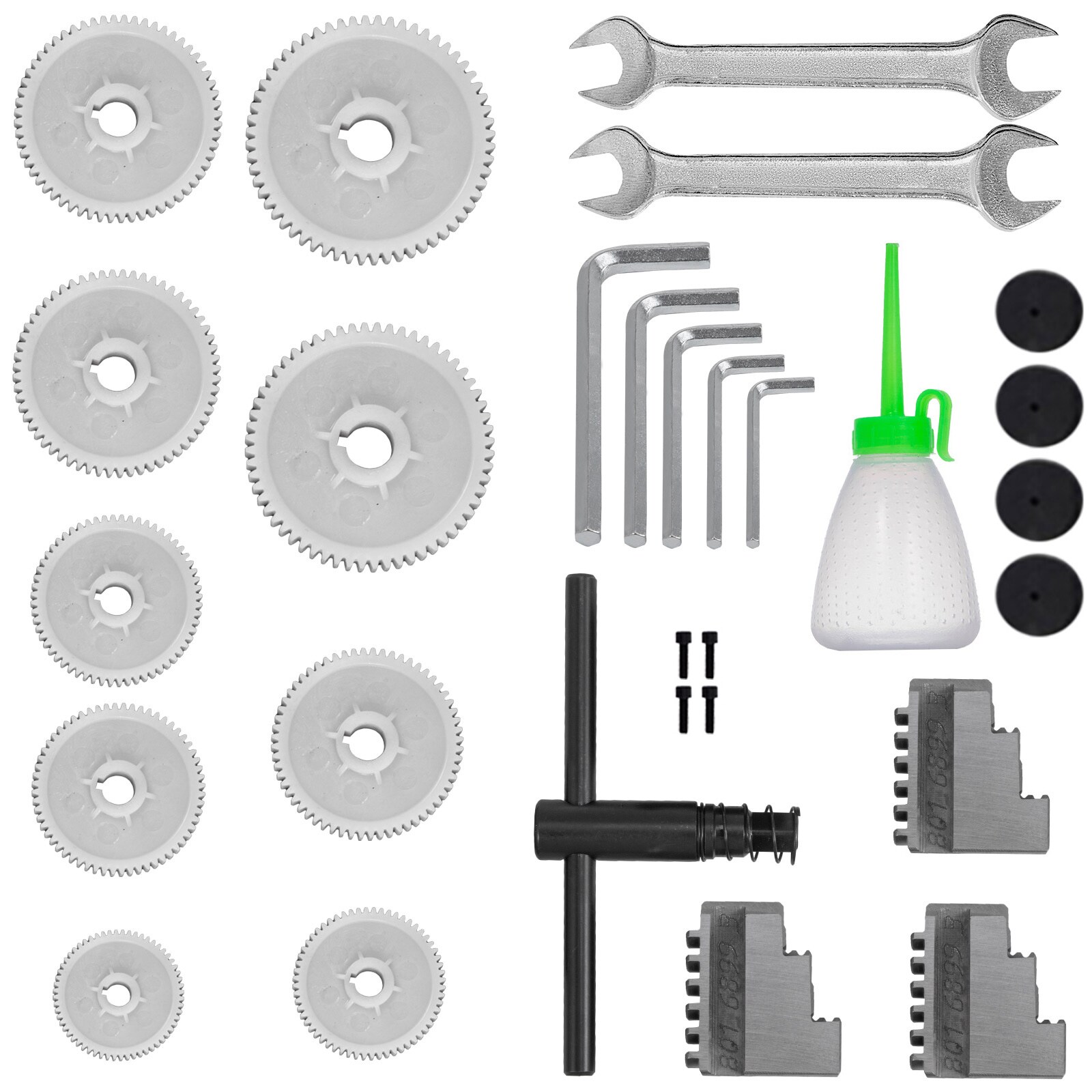

3 x Chuck Jaws,
1 x Chuck Wrench,
2 x Wrenches,
1 x Oil Can,
5 x Hex Wrenches,
9 x Plastic Nylon Gears,
2 x Handles,
4 x Rubber Feet,
4 x Screws,
1 x Tool Box,

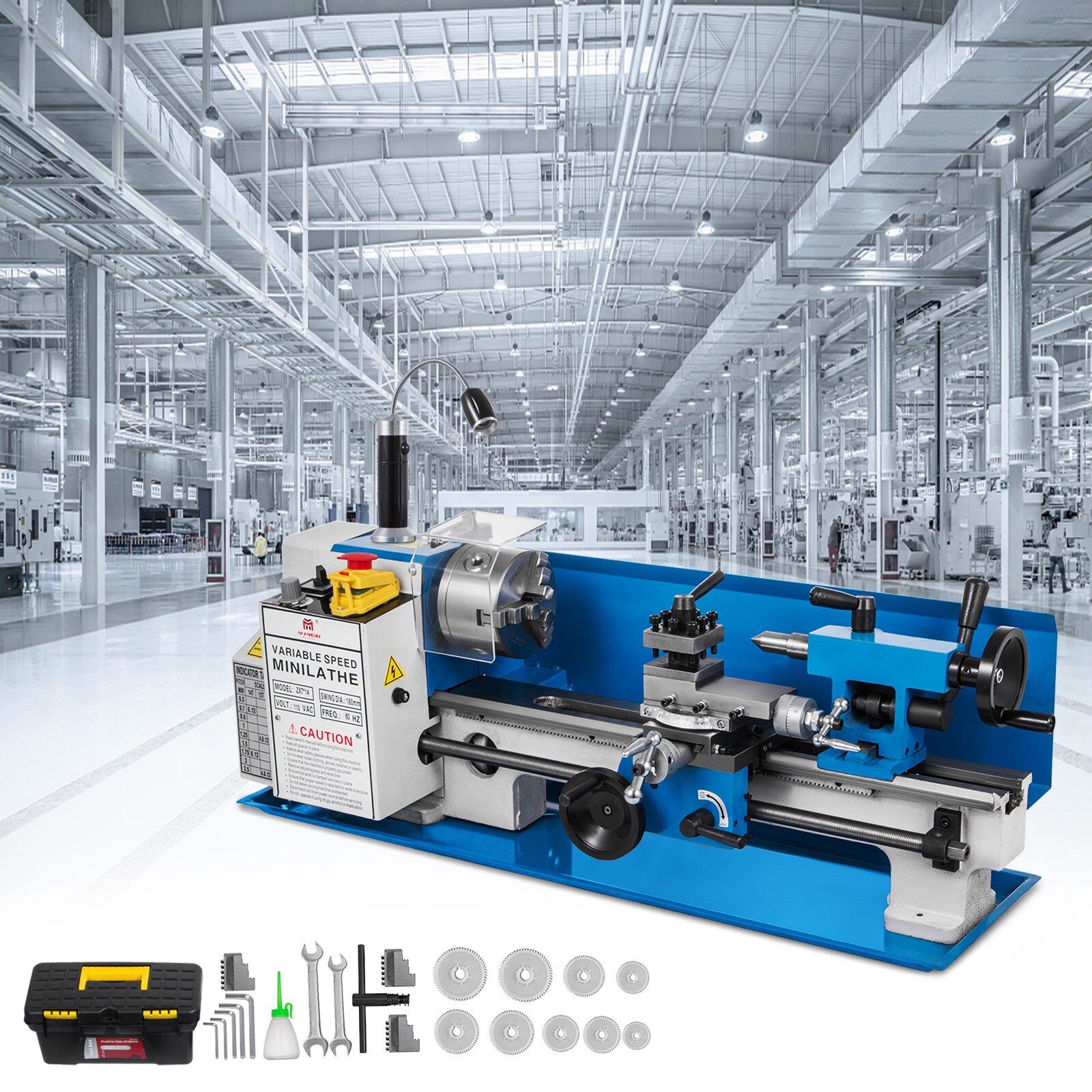

1 x Mini Metal Lathe,
1 x Working Light.
