This 3-jaw lathe chuck is crafted from durable HT300 material, offering excellent resistance to compression and ensuring a prolonged lifespan; The jaws are constructed from 20Cr steel, boasting a hardness rating of 53HRC or higher, while the scroll is made from 40Cr steel with a hardness of at least 45HRC.
This 3-jaw chuck is equipped with a self-aligning mechanism and a bevel gear, enabling precise control over the positioning of the clamped workpiece for accurate machining tasks; With a bearing tolerance of ≤ 0.05 mm / 0.002", it ensures reliable structural integrity and consistent precision during operation.
This product includes two jaw types: internal and external, designed to securely hold larger industrial components; The jaws can be effortlessly adjusted by turning the T-shaped key.
This chuck is composed of a chuck body, adjustable chuck, and jaw drive, featuring a straightforward design; It automatically centers and secures workpieces during clamping, ensuring precision; Proper installation of the components is all that's required for operation.
This 3-jaw self-centering lathe chuck is designed to enhance machining efficiency and provide greater flexibility and precision for tasks such as woodworking, metalworking, drilling, and milling.

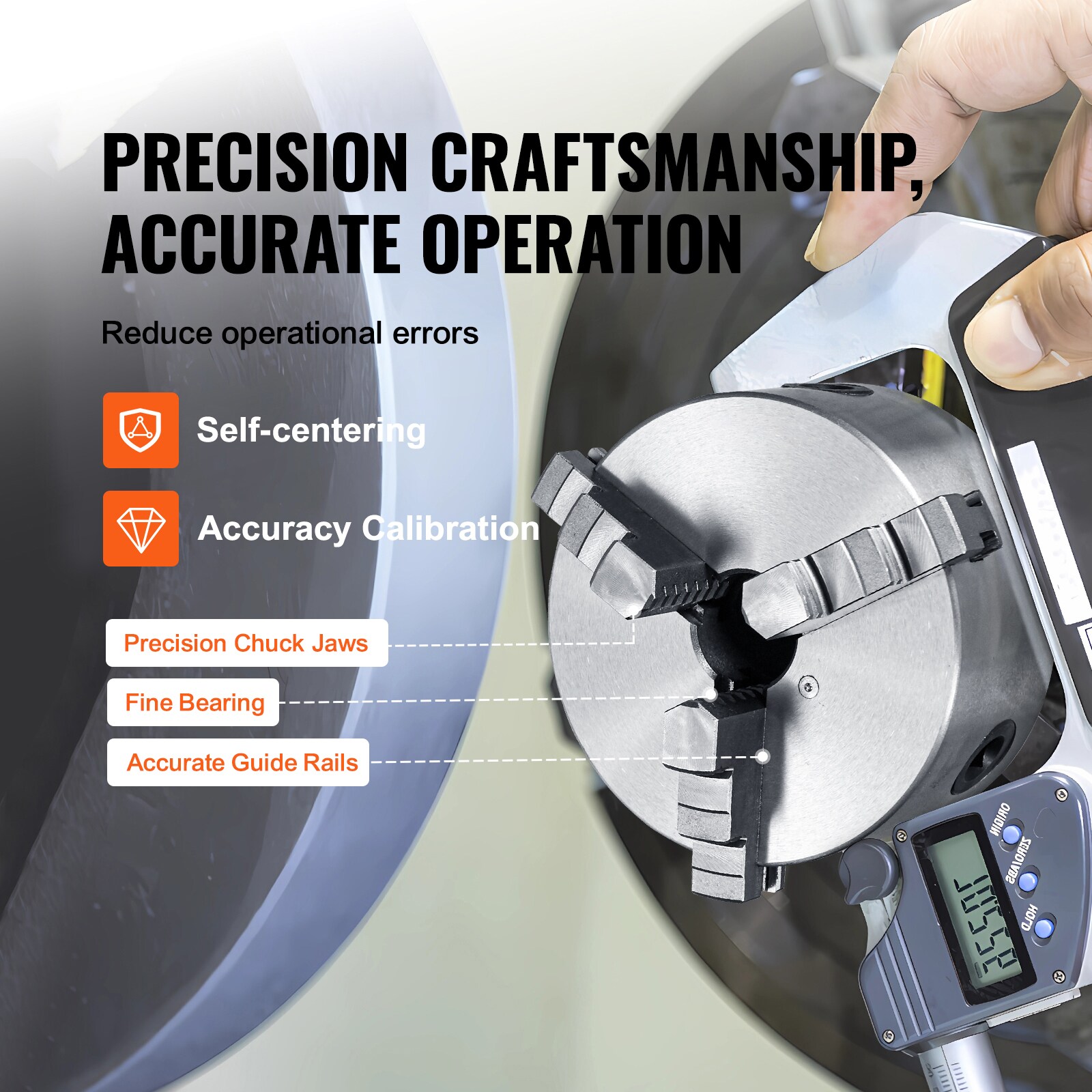

The 3-jaw lathe chuck is equipped with an auto-centering mechanism that enhances precision during machining and boosts operational efficiency; This feature eliminates the need for repeated adjustments and ensures the jaws automatically align with the chuck's centerline.
Versatile Compatibility with Lathes: This self-centering lathe chuck is designed to accommodate a wide range of applications, including metalworking, drilling, and milling tasks; Its adaptability enhances machining efficiency and operational versatility, ensuring precise and uniform outcomes for your projects.
Item Model Number: K11-160,
Chuck O,D: 6 in / 160 ± 5 mm,
Clamping Range: 0.138-2.36"/3.5-60 mm,
External Jaw Clamping Range: 2.2-6.3"/56-160 mm,
Fixed Thread: 3-M8,
Bore: φ45 mm,
Surface Treatment: ＜Ra0.8, Oil Coated,
Main Material: HT300,
Net Weight: 17.8 lb / 8.1 kg,
Product Size: φ160 x 140 mm,
Jaw: 3-Jaw, 20Cr, ≥53HRC,
Scroll: 40Cr, ≥45HRC.
1 x T-key,
3 x Fixing Screws,
1 x Reverse Jaws,
1 x User Manual.
