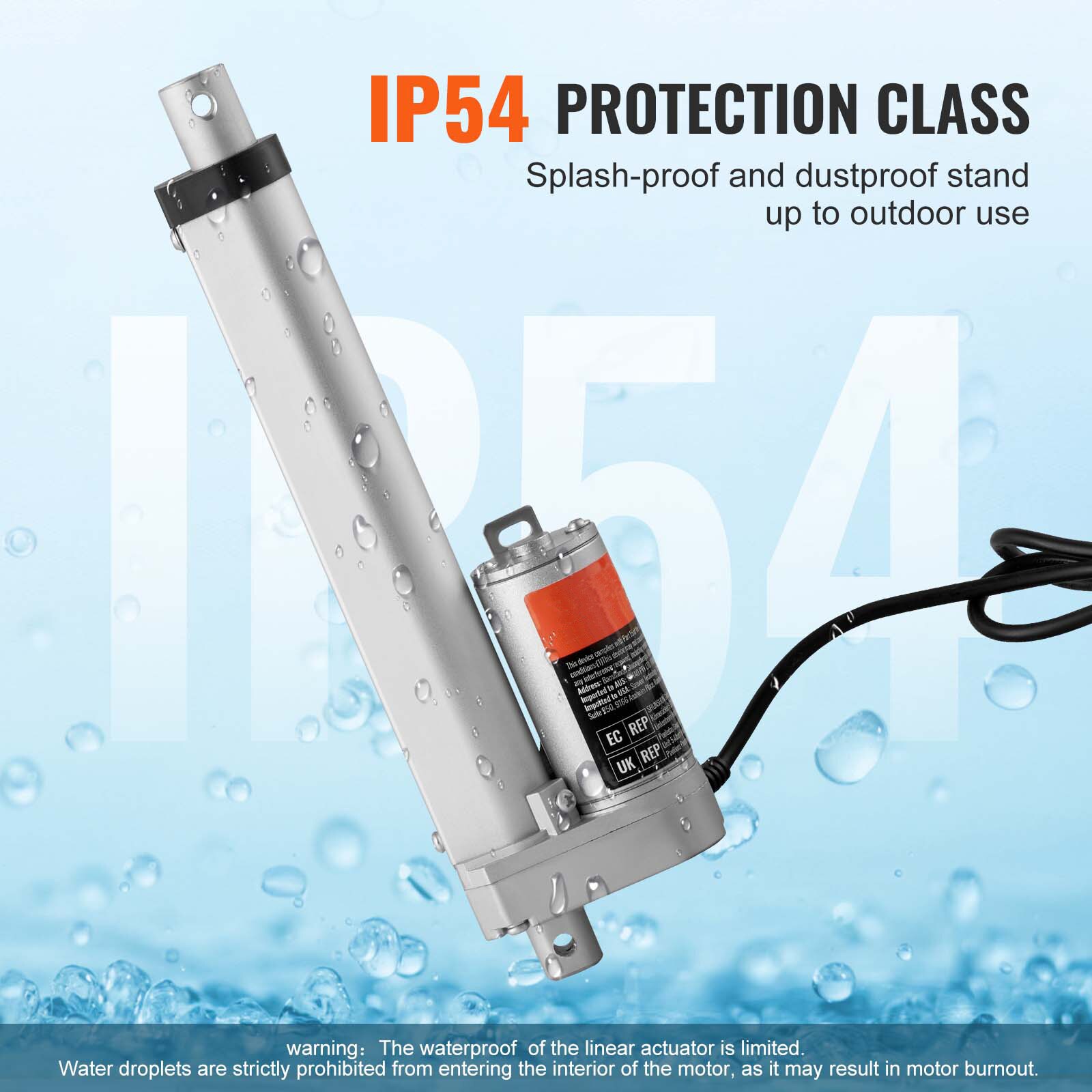

This electric linear actuator is designed with an IP54 protection rating, ensuring dependable performance by resisting dust, splashes, and mild humidity; (Note: Avoid water entering the motor's interior to prevent potential damage or malfunction;)
Effortlessly blending into your home or workspace, this linear motion actuator is designed to automate curtain movement, adjust height systems, and operate electric door mechanisms; It enhances convenience, comfort, and smart functionality in your daily life.

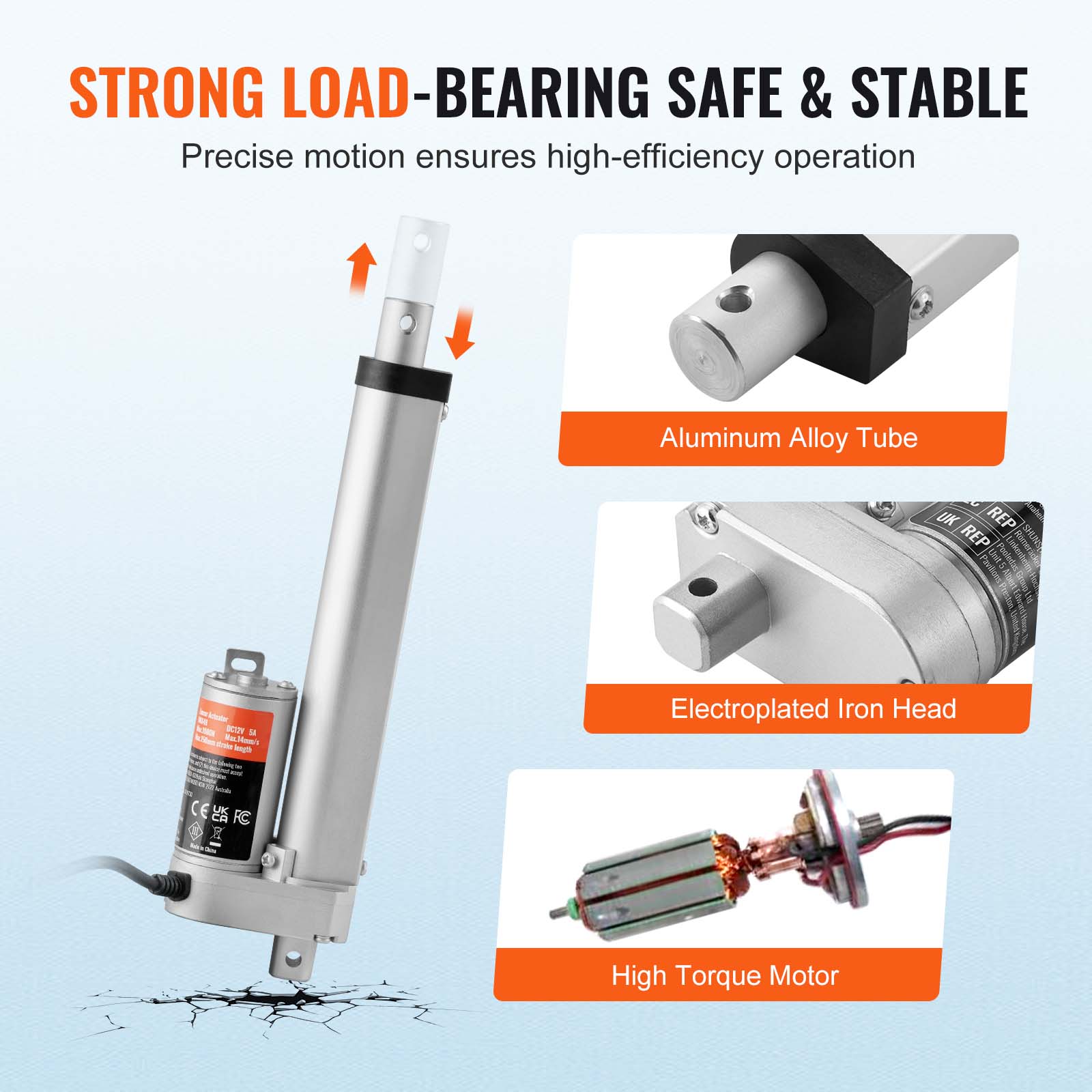

Designed with care and constructed from durable materials, this stroke linear actuator delivers reliable accuracy and robust performance, enhancing its longevity; Built to withstand regular operation, it provides consistent stability, ensuring dependable support for a wide range of applications.
To achieve precise movement control, it is recommended to pair the linear actuator with a compatible controller; Please be aware that this package includes only the push rod, and any additional installation components must be acquired separately.
Caution: The linear actuator has limited water resistance; Ensure that no water droplets enter the motor's interior, as this could lead to motor damage.

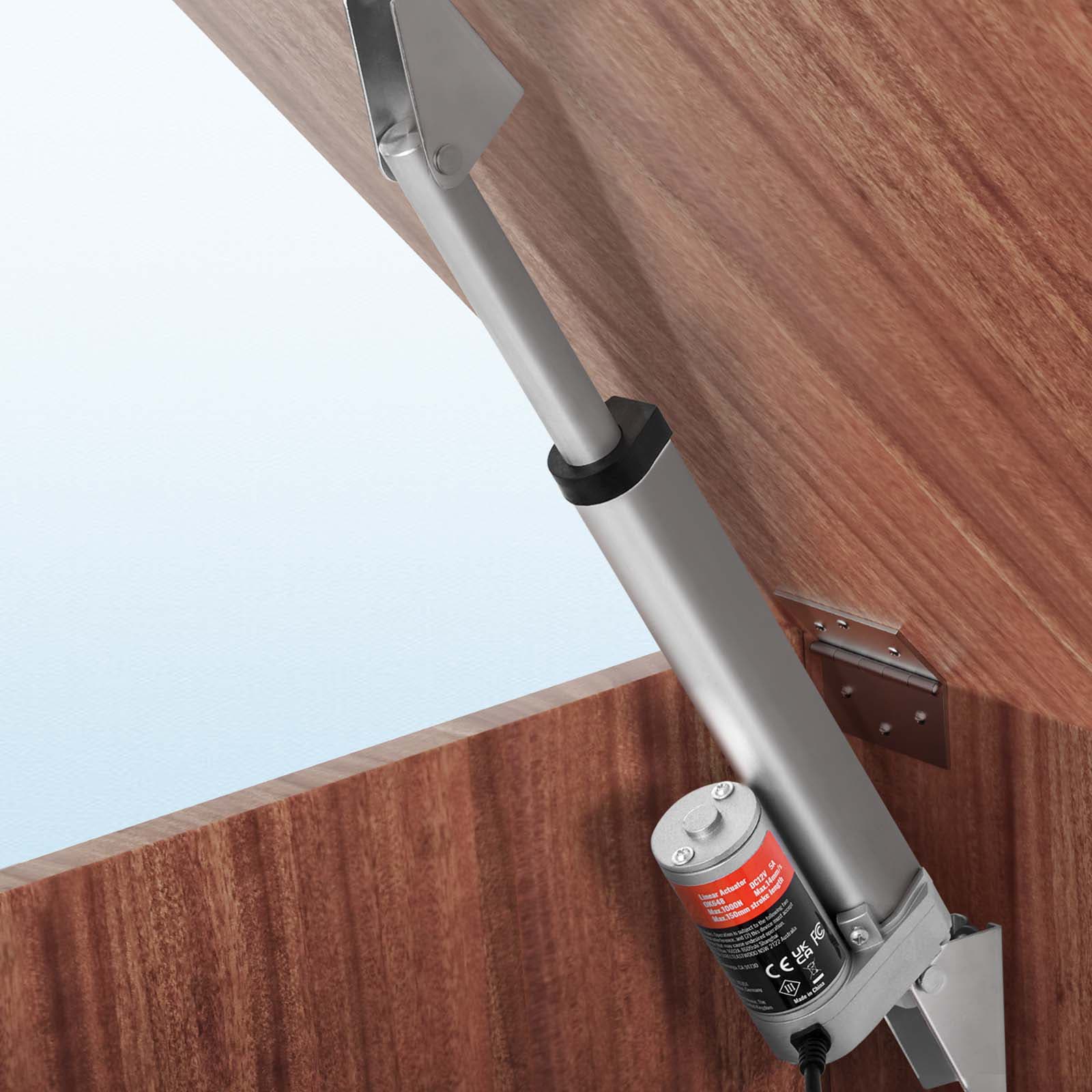

Perfect for scenarios requiring frequent height adjustments, such as modifying the height of furniture or elevating and lowering office desks and chairs.

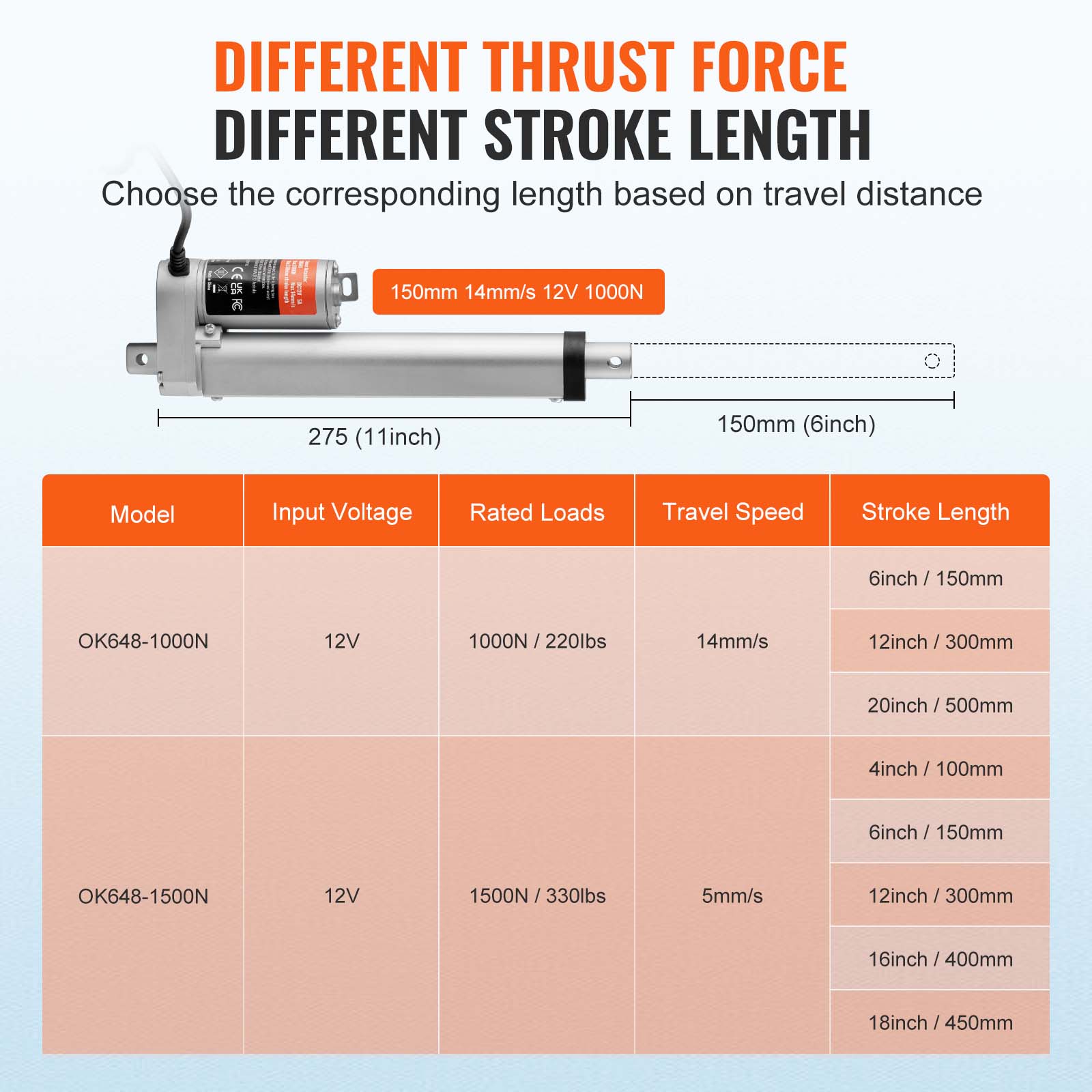

Key Specifications: Stroke Length: 6 inches (150 mm); Movement Speed: 0.55 inches per second (14 mm/s); Collapsed Length: 10.82 inches (275 mm); Fully Extended Length: 16.82 inches (425 mm); Power Consumption: 5 amps; Operating Voltage: DC 12V; Duty Cycle: 25%
Item Model Number: OK648-1000N,
Rated Voltage: DC12V,
Maximum Load/Actuation Force: 1000N,
Travel Speed: >0.55 inch/s / >14mm/s,
Stroke Length: 6 inch / 150 mm,
Protection Class: IP54,
Noise Level: ≤50dB,
Main Material: Aluminum Alloy,
Net Weight: 2.29 lbs / 1.04 kg (including all accessories),
Product Dimensions: 10.82 x 2.95 x 1.57 inch / 275 x 75 x 40 mm.
1 x Linear Actuator,
2 x Mounting Brackets,
2 x Screw Rods,
2 x R-Type Pins.
