This electric linear actuator is designed with an IP54 protection rating, ensuring dependable performance against dust, water splashes, and mild humidity; (Note: Avoid allowing water to enter the motor's interior, as it could cause damage or motor failure;)
Effortlessly blending into your home or office environment, this linear motion actuator supports automated curtain control, adjustable height mechanisms, and electric door operations; It enhances convenience, comfort, and smart living solutions.
Designed with meticulous attention to detail and constructed from durable materials, this stroke linear actuator delivers reliable accuracy and robust performance, enhancing its longevity; Built to withstand regular operation, it provides consistent stability, making it a dependable choice for a range of applications.
To achieve precise motion control, it is recommended to pair the linear actuator with a compatible controller; Please be aware that this product includes only the push rod, and any additional installation components must be acquired separately.
Caution: The linear actuator has limited water resistance; Ensure that water droplets do not enter the motor's interior, as this could lead to motor damage or failure.
Perfect for scenarios requiring frequent height adjustments, such as modifying the height of furniture or elevating and lowering office desks and chairs.

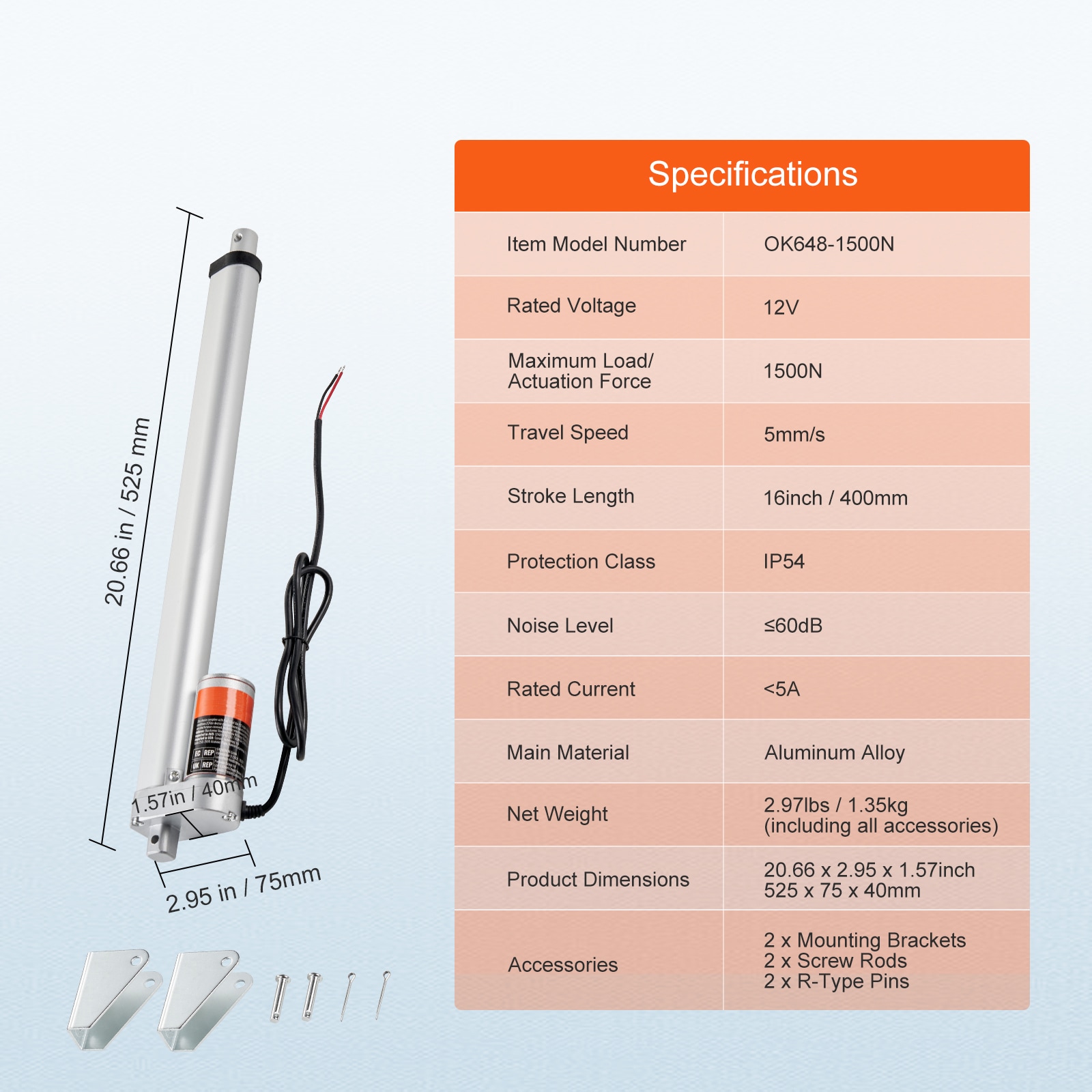

Specifications: Stroke Length: 16 inches (400mm); Movement Speed: 0.19 inches per second (5mm/s); Collapsed Length: 20.66 inches (525mm); Fully Extended Length: 36.66 inches (925mm); Power Consumption: 5 amps; Operating Voltage: DC12V; Duty Cycle: 25%
Item Model Number: OK648-1500N,
Rated Voltage: DC12V,
Maximum Load/Actuation Force: 1500N,
Travel Speed: 0.19 inch/s / 5 mm/s,
Stroke Length: 16 inch / 400 mm,
Protection Class: IP54,
Noise Level: ≤60dB,
Main Material: Aluminum Alloy,
Net Weight: 2.97 lbs / 1.35 kg (including all accessories),
Product Dimensions: 20.66 x 2.95 x 1.57 inch / 525 x 75 x 40 mm.

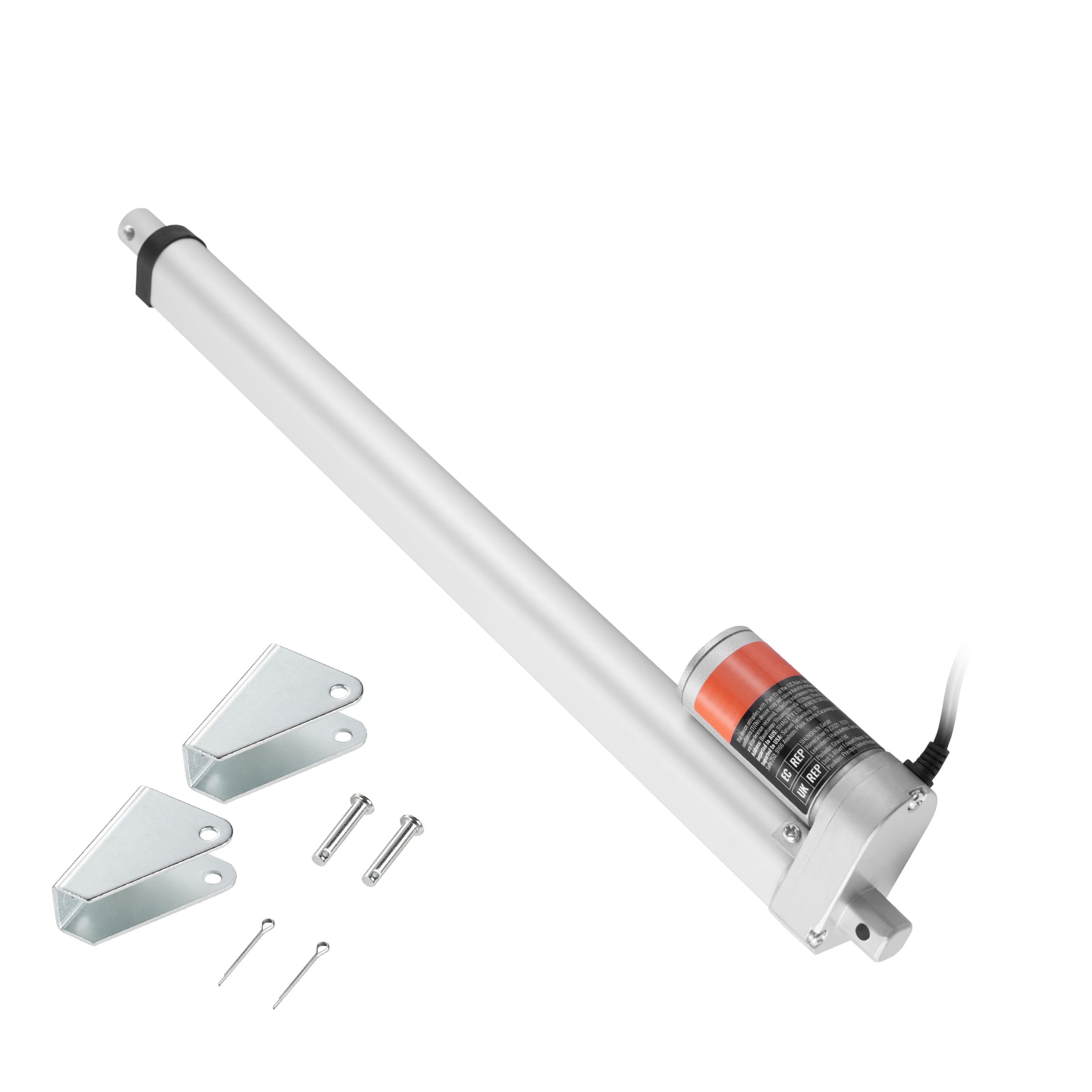

1 x Linear Actuator,
2 x Mounting Brackets,
2 x Screw Rods,
2 x R-Type Pins.
