This linear motion actuator is designed with an IP44 protection rating, offering dependable resistance against dust, solid particles, and minor water splashes; (Note: Ensure that water does not enter the motor's interior, as it could lead to motor damage;)
These linear motion actuators operate with a noise level below 50db, making them ideal for use in furniture adjustments, automation systems, mechanical devices, transportation applications, and more.
Designed to blend effortlessly into your living environment, this robust linear actuator supports height adjustment mechanisms, electric door operations, and powers various mechanical and industrial automation systems; It enhances convenience, comfort, and smart functionality in everyday life.
Designed with meticulous attention to detail and constructed from durable materials, this stroke linear actuator delivers reliable performance and durability; Built to withstand regular operation, it ensures consistent stability, making it a dependable choice for a wide range of applications.
To achieve precise movement control, it is recommended to pair the linear actuator with a compatible controller; Please be aware that this product includes only the push rod, and any additional installation components must be acquired separately.
Caution: The linear actuator has limited water resistance; Ensure no water droplets enter the motor's interior, as this could cause motor damage or failure.

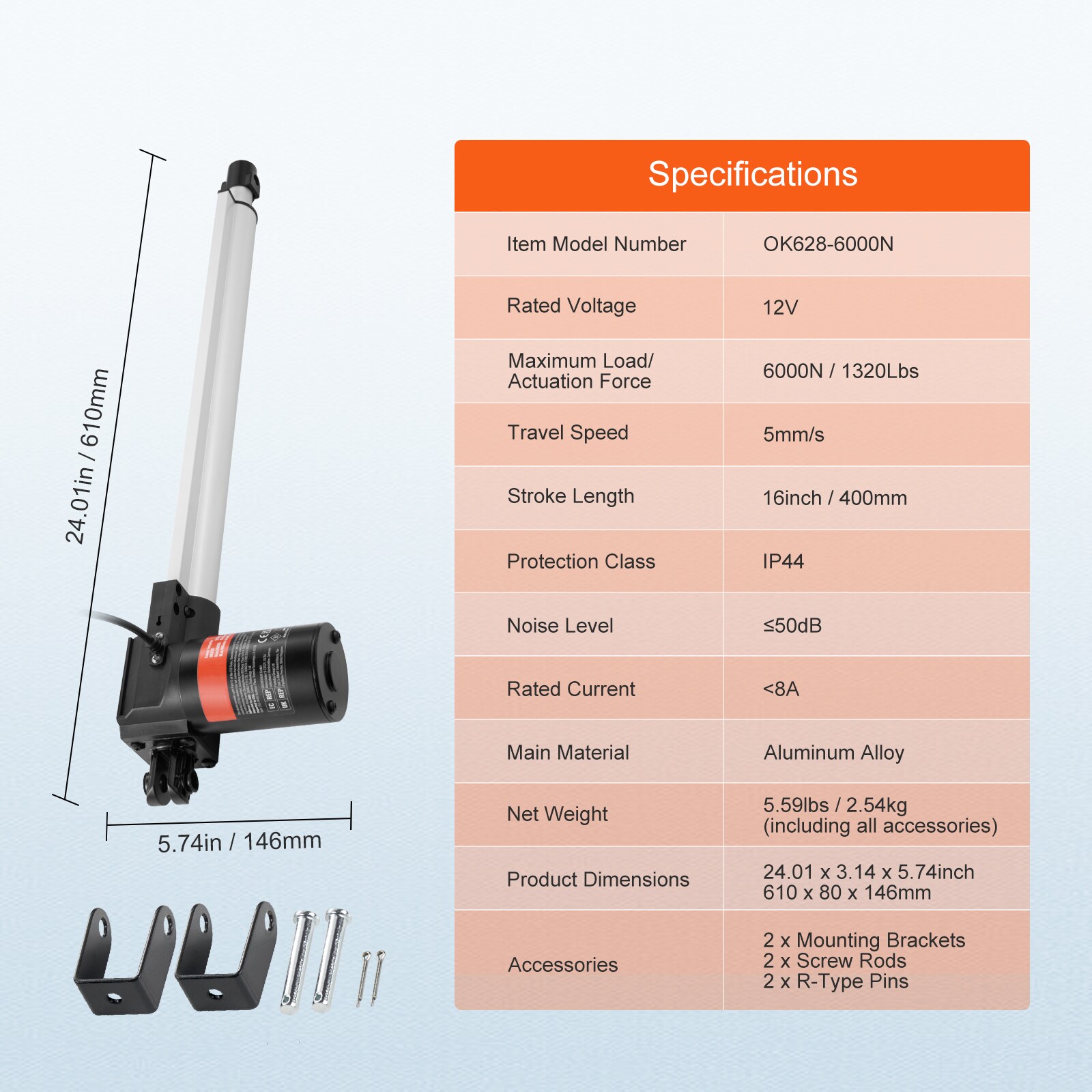

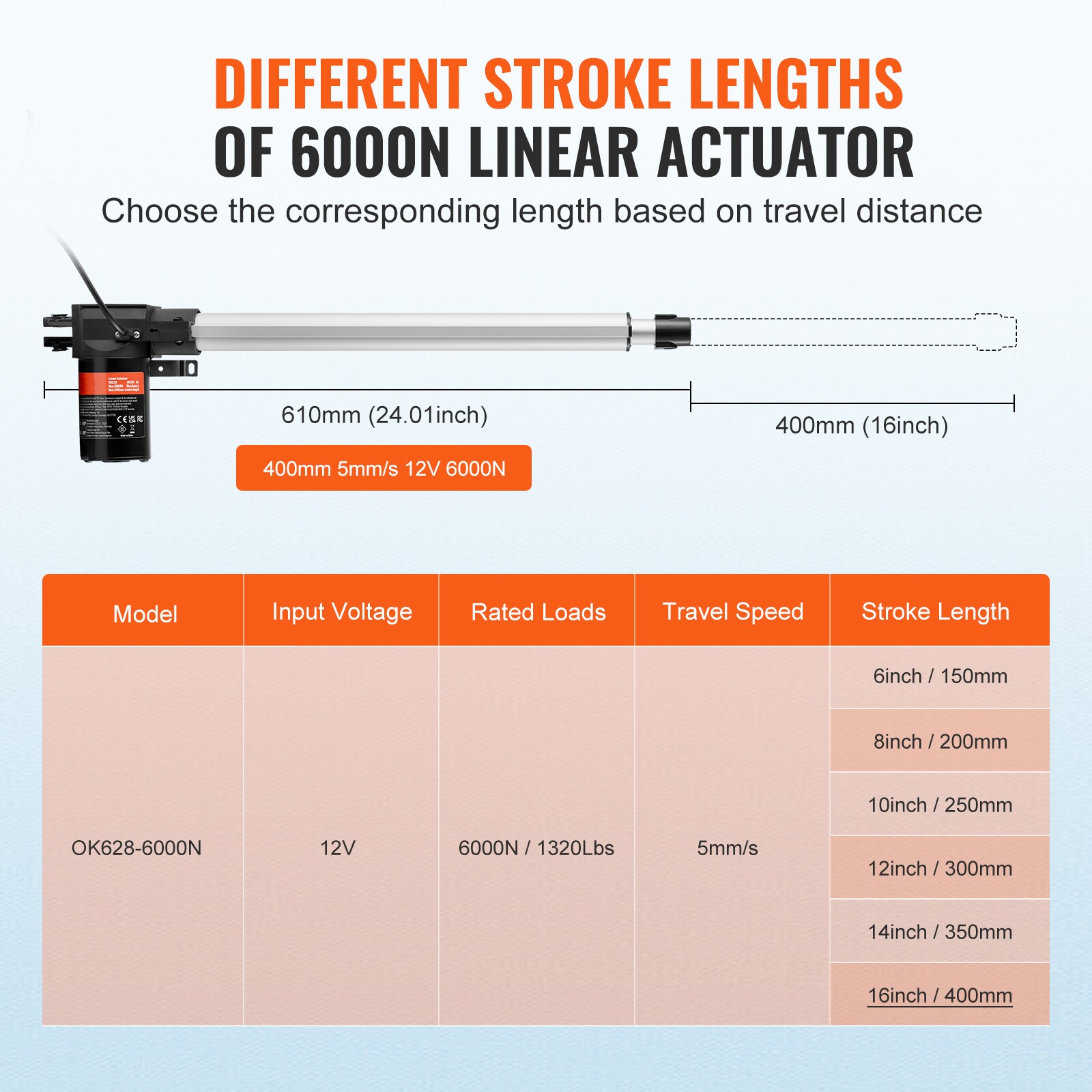

Specifications Overview: Stroke Range: 16 inches (400mm); Movement Speed: 0.19 inches per second (5mm/s); Collapsed Length: 24.01 inches (610mm); Fully Extended Length: 40.01 inches (1010mm); Power Consumption: 8 amps; Operating Voltage: DC12V; Usage Cycle: 10%
Item Model Number: OK628-6000N,
Rated Voltage: DC12V,
Maximum Load/Actuation Force: 6000N,
Travel Speed: 0.19inch/s / 5mm/s,
Stroke Length: 16 inch / 400 mm,
Protection Class: IP44,
Noise Level: ≤50dB,
Main Material: Aluminum Alloy,
Net Weight: 5.59 lbs / 2.54 kg (including all accessories),
Product Dimensions: 24.01 x 3.14 x 5.74 inch / 610 x 80 x 146 mm.
1 x Linear Actuator,
2 x Mounting Brackets,
2 x Screw Rods,
2 x R-Type Pins.
