This linear motion actuator is designed with an IP44 protection rating, ensuring dependable performance against dust, solid particles, and minor water splashes; (Note: Avoid allowing water to enter the motor's interior, as it could lead to motor damage;)
These linear motion actuators operate with a noise level below 50db, making them ideal for use in furniture adjustments, automation systems, mechanical devices, transportation applications, and more.
Effortlessly blending into various environments, this robust linear actuator supports height adjustment mechanisms, electric door operations, and powers industrial machinery and automation systems; It enhances convenience, comfort, and smart functionality in everyday life.

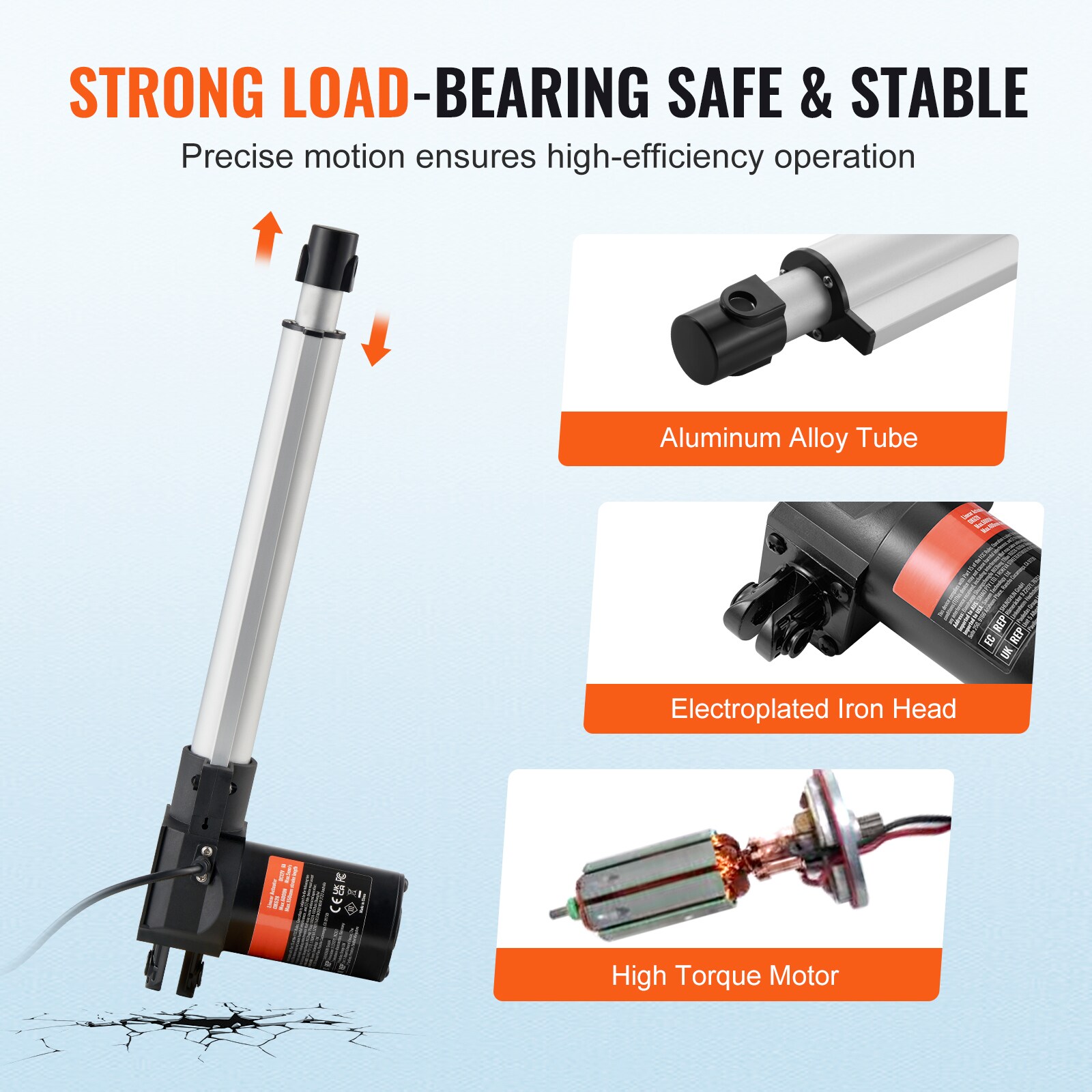

Designed with attention to detail and constructed from durable materials, this stroke linear actuator delivers reliable performance and robust strength, contributing to an extended service life; Built to withstand regular operation, it ensures consistent stability, providing dependable assistance for a wide range of applications.
To achieve precise movement control, it is recommended to pair the linear actuator with a compatible controller; Please be aware that this product includes only the push rod, and any additional installation components must be acquired separately.
Caution: The linear actuator has limited water resistance; It is crucial to prevent water droplets from entering the motor's interior, as this could lead to motor damage or failure.

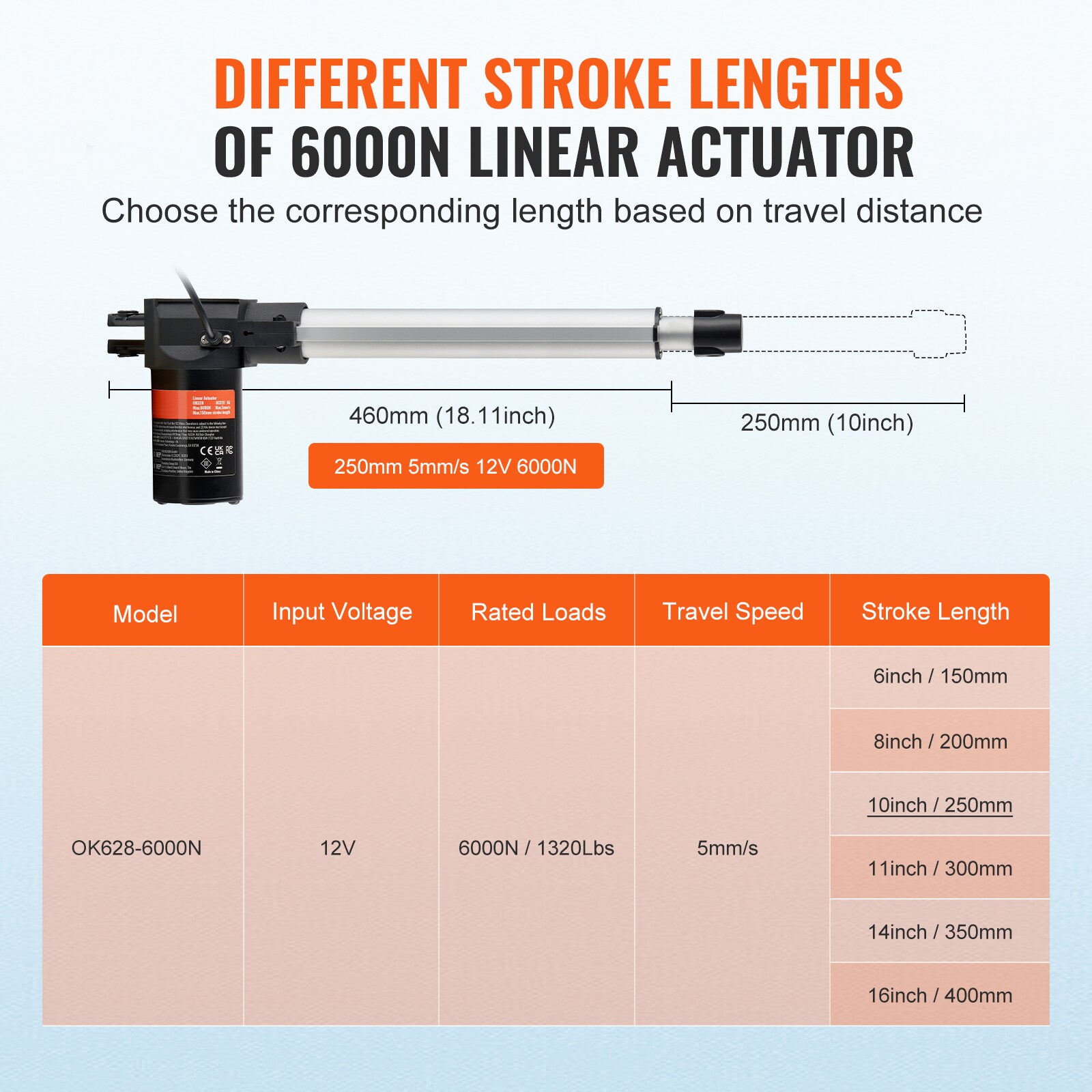

Key Specifications: Stroke Length: 10 inches (250 mm); Movement Speed: 0.19 inches per second (5 mm/s); Collapsed Length: 18.11 inches (460 mm); Fully Extended Length: 28.11 inches (710 mm); Current Consumption: 8 amps; Operating Voltage: DC 12V; Duty Cycle: 10%
Item Model Number: OK628-6000N,
Rated Voltage: DC12V,
Maximum Load/Actuation Force: 6000N,
Travel Speed: 0.19inch/s / 5mm/s,
Stroke Length: 10 inch / 250 mm,
Protection Class: IP44,
Noise Level: ≤50dB,
Main Material: Aluminum Alloy,
Net Weight: 4.91 lbs / 2.23 kg (including all accessories),
Product Dimensions: 18.11 x 3.14 x 5.74 inch / 460 x 80 x 146 mm.

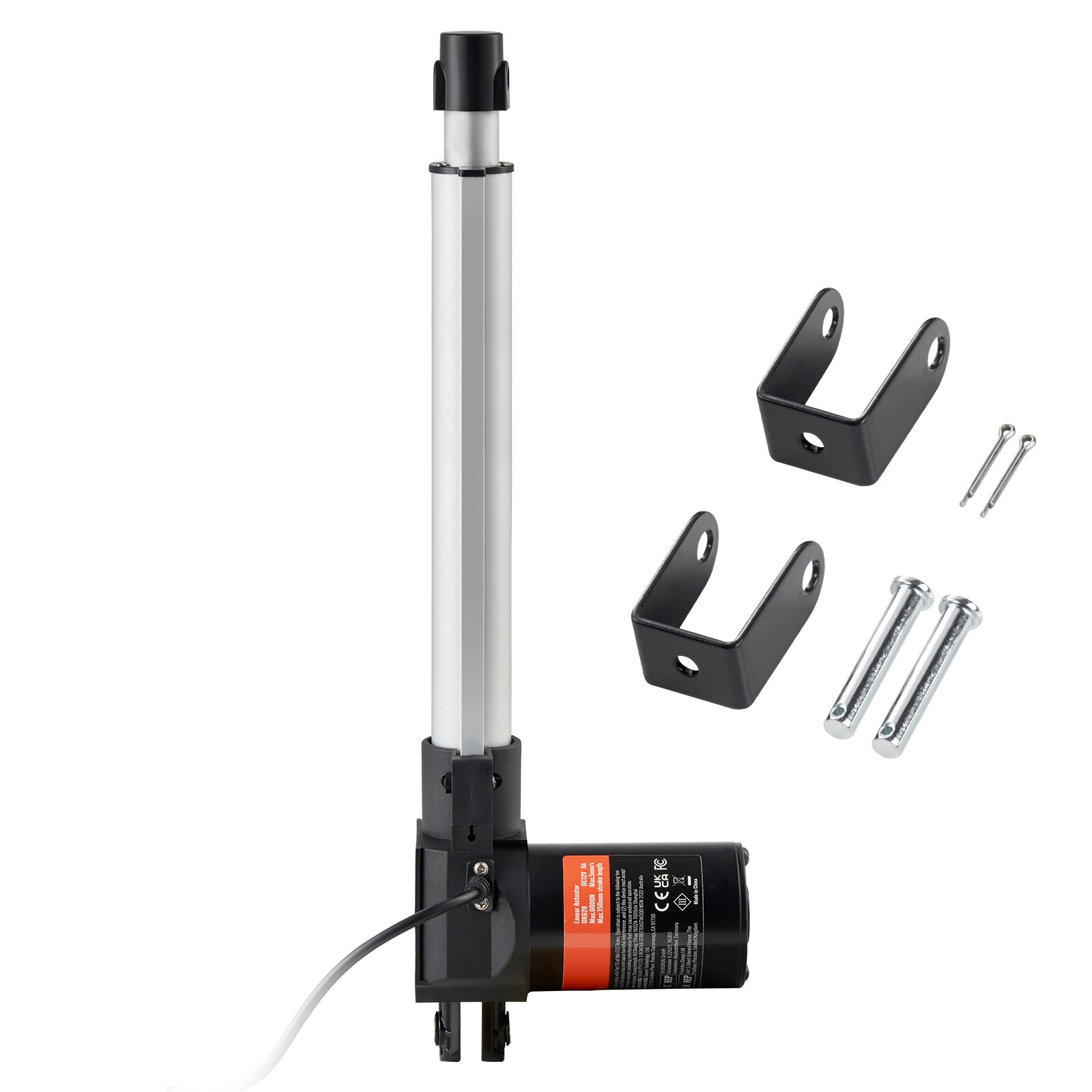

1 x Linear Actuator,
2 x Mounting Brackets,
2 x Screw Rods,
2 x R-Type Pins.
