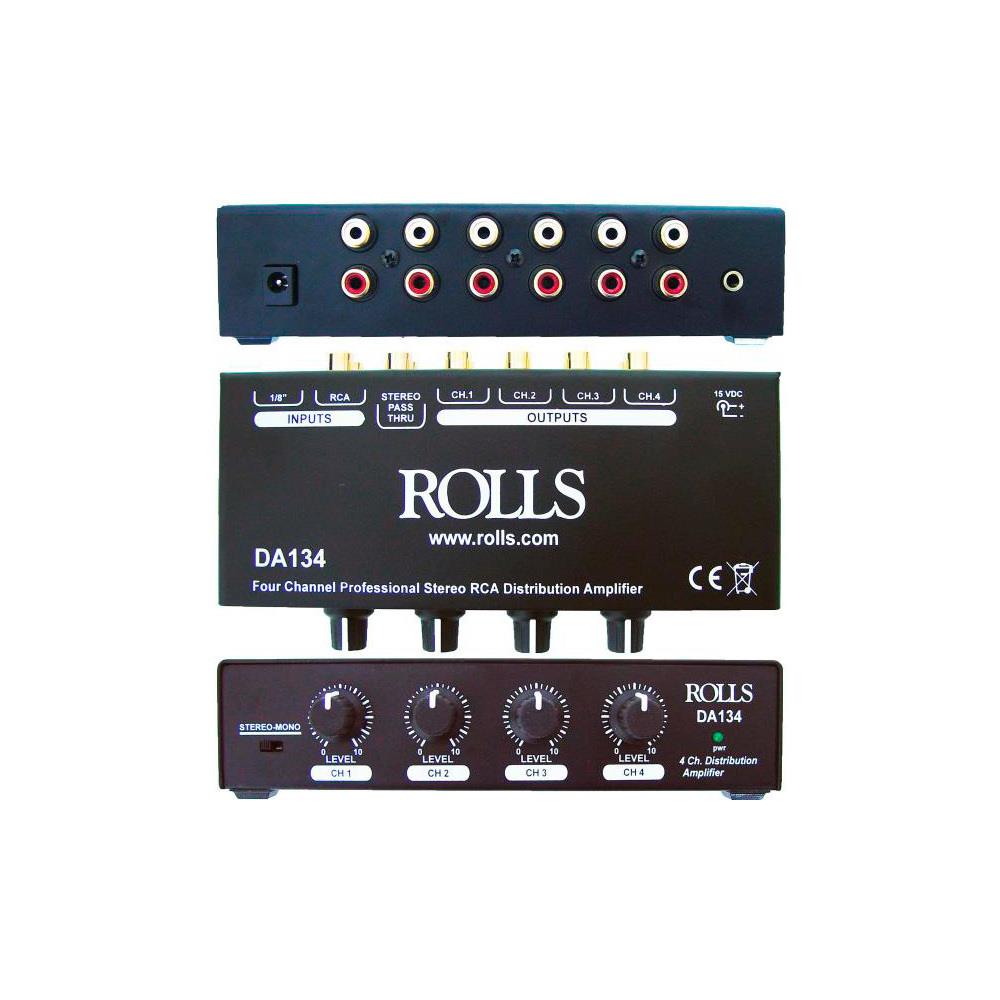

Rolls Rolls RLS-DA134 4 Channel RCA Distribution Amplifier

4 Channel RCA Distribution Amplifier Designed for high end RCA audio distribution the Rolls DA134 is a four channel distribution amplifier. RCA and 1/8-" inputs that can be switched from mono or stereo. The DA134 will distribute a mono signal to eight outputs, or a stereo signal to four stereo outputs. The outputs are designed to drive line level signals. The DA134 is the perfect distribution amp anywhere high quality sound distribution is required.Features: Expands the output of a stereo device to multiple outputs Can raise the output level to true line level for any output Stereo 4 channel distribution amplifier Front panel volume controls Mono or Stereo operation DC low end frequency for audiophile frequency response Small compact design Accepts inputs directly from I-pad/I-pod or laptop Included Rolls PS27s power supply. Stereo pass thru: For connection to another DA134 Specifications: Input Impedance: 10 Kand #8486-Max Input Level: +12 dBV Output Impedance: 470 and #8486-Max Output Level: +12 dB Max Gain: 20 dB S/N Ratio: >90 dB Cross Talk: -70 dB ( stereo) Frequency Response: DC - 60 kHz, +/- 1 dB THD: <.008 Power: 15 VDC Size: 6.5-" x 3.5-" x 1.5-" Weight: 1 lbs. 3 oz.
