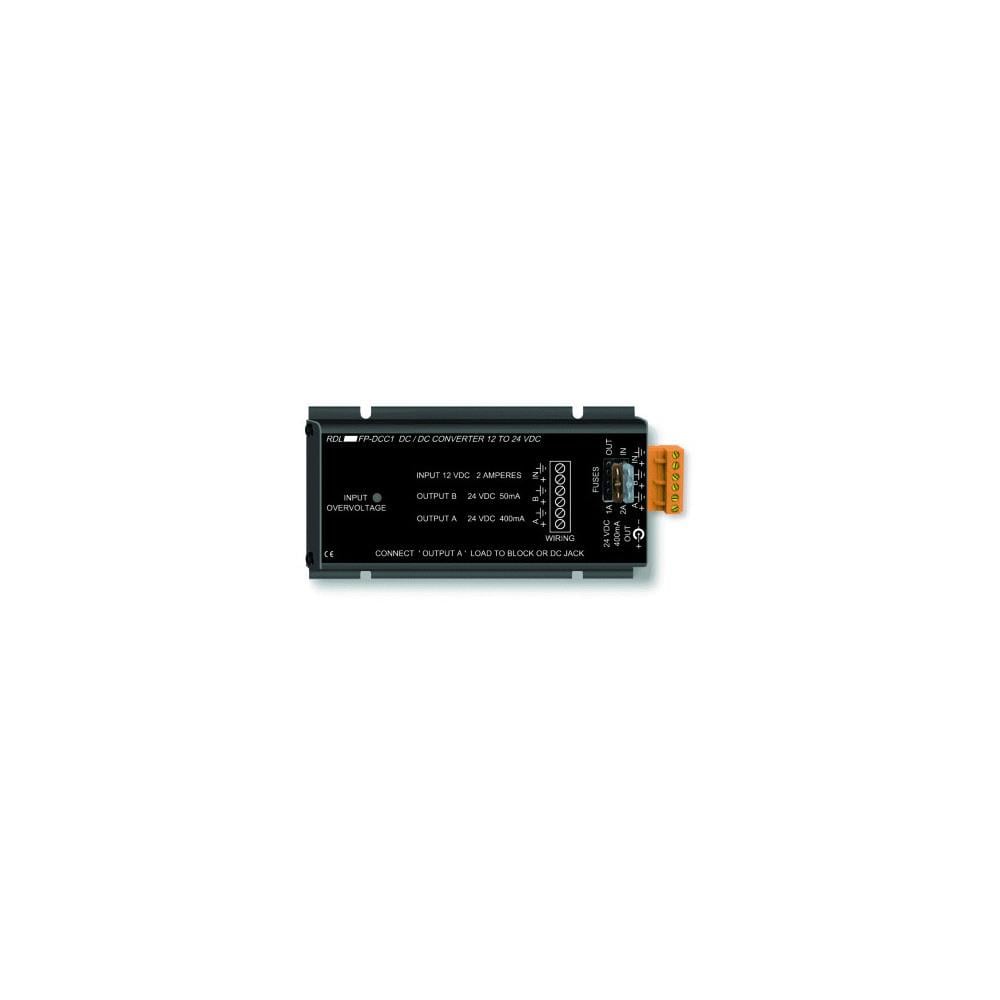

Radio Design Labs 12 VDC to 24 VDC Converter

The FP-DCC1 is the ideal choice in many applications where audio or video modules need to be powered from a 12 Vdc source. Ground-referenced RDL modules may be operated from one of the FP-DCC1's two outputs. One is a high current output providing 400 mA 24 Vdc intended to power multiple modules see RDL ST-PD5 Power Supply Distributor for multiple module installations or RDL audio power amplifiers such as ST-PA2 or ST-PA6. A second low noise output is heavily filtered and provides 50 mA 24 Vdc specifically to power microphone level high gain modules such as microphone preamplifiers. Both outputs may be used simultaneously. The FP-DCC1 outputs are regulated to provide 24 Vdc for input voltages normally encountered in 12 Vdc battery circuits. If voltage in excess of 15 Vdc possible if a vehicle's regulator should fail is connected to the FP-DCC1 input the module protects itself by shutting down its internal circuitry and illuminating the INPUT OVERVOLTAGE LED. The FP-DCC1 input and outputs are protected against excessive currents and reverse voltages. The FP-DCC1 is not intended to power floating bipolar modules. Features24 Vdc Power from 12 Vdc SourceMobile Powering of 24 Vdc Modules24 Vdc Ground-Referenced Power OutputSeparate High-Current and Low-Noise OutputsTerminal Block and DC Jack OutputsUltra-Compact All Metal ConstructionConvenience of RDL FLAT-PAKs
