Prime-Line Adjustable 1.5-in Aluminum Sliding Patio Door Roller Assembly
Item #154170 |
Model #D 1831
Shipping
Mon, Aug 17
35 available
Delivery
Unavailable
Used by a variety of sliding patio door manufacturers
Plain back housing with 1/4-20 threaded mounting hole on back
1-1/2 inch diameter concave steel roller
Stamped steel housing with ball bearing roller
Features rear screw adjustment
Used on metal and vinyl framed sliding patio doors
A Phillips head screwdriver is required for installation
Please refer to the line art drawing for dimensions and compare with your needs before ordering (not universal)
General | |||
|---|---|---|---|
Color/Finish Family | Gold | Design Type | Axle |
Material | Aluminum | Mounting Location | Bottom |
Package Quantity | 1 | Roller Edge Type | Concave |
Package Contents | 1 roller assembly | ||
Dimensions | |||
|---|---|---|---|
Housing Length (Inches) | 2.625 | Roller Diameter (Inches) | 1.5 |
Housing Width (Inches) | 0.75 | Roller Housing Height (Inches) | 1.125 |
Overall Housing Width (Inches) | 0.75 | Roller Width (Inches) | 0.31 |
Features | |||
|---|---|---|---|
Adjustable | Yes | Tandem | No |
Housing Style | F-tab | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | No | ||
Warranty | |||
|---|---|---|---|
Warranty | 1-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 31161600 | ||
Check out the Best Selling Sliding Patio Door Roller Assemblies on Lowes.com
Ratings may include incentivized customer reviews.
Great Product
My door got so Bad it would not roll the house was built in 1974 so I thought my chances of finding parts to repair was slim to none but to my surprise there was alot of parts available this roller Assy was they same as what I removed from my old Door it rolls like Brand New it even locks better than the old one ever did these roller assemblies saved me Three Hundred dollars or more on a new door so I am very happy with this purchase, there is one thing I would tell anybody buying this product ...
Verified PurchaserSweepstakes
50 year old sliding door works like new again
These were a perfect fit on my nearly 50 year old sliding glass door. For $20, I finally correctly fixed this door that has not worked very well for the 15 years I’ve been living here. You will need to reuse two (2) screws from the old part, one of which is only accessible after you remove the bottom channel of the door. I did not know exactly what I was getting into, but the fix was really easy and this product worked very well.
Beware- doesn’t adjust

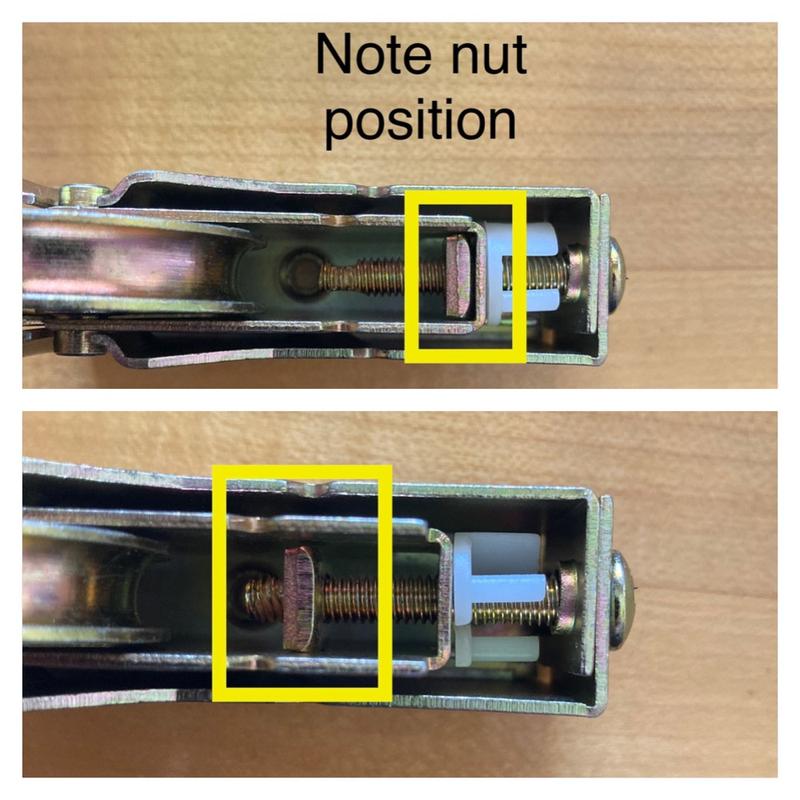

Got these to repair a patio door. They “looked” just like the 25+ year old originals I removed from the door, until I tested the roller adjustment screw. The original was threaded so that turning the screw moved the assembly back & forth for up and down. These just have a nut, not attached to the assembly, so the nut just goes back and forth and the assembly doesn’t move. I bet other buyers didn’t even check this.
Worked even on an old factory door

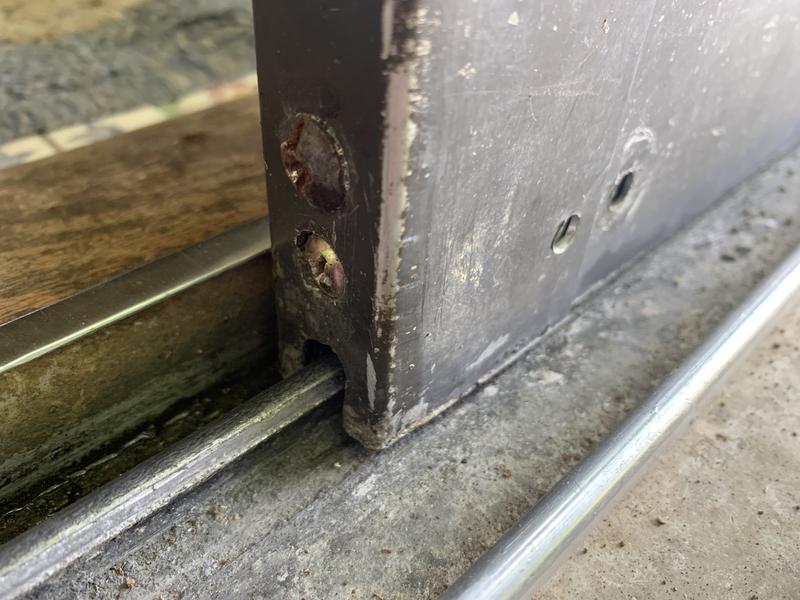

Our sliding glass door to the sun room was an inexpensive long door- unknown brand. We just chose these rollers hoping they'd work and they did! Easy to install. Ended up saving us 850$ bc we had a handyman come out and tell us we needed a whole new door. We thought we could surely fix on our own and we did! I'll attach a pic of the original rollers that these replaced.
Verified Purchaser
Works Great!
These rollers are a little larger than the ones we have replaced in the past on our sliding door, these work great! Hopefully they will not need replaced for a long time.
Verified Purchaser
Good product
Very good product, solved my problem. Somewhat difficult to install due to location and design of Patio Doors. Would be better if mounting screws were provided since location of these screws almost ensures that the old screws will be weathered and perhaps unuseable. BTW these screws are specific for this application and hard to find replacements.
Verified Purchaser
Good product
Installed two of these rollers on a 26 year old sliding glass door and the door operates like new. Also easy to install. So glad I made the investment.
Verified PurchaserSweepstakes
Great Product
This is a great direct replacement for patio doors. Used it to replace 25 year old set and fit perfect.
Verified PurchaserSweepstakes
Roller replacement
I followed instructions and quickly changed the old roller out for a new one.
Verified PurchaserSweepstakes
Roller replacement
I followed instructions and quickly changed the old roller out for a new one.
Verified PurchaserSweepstakes
