This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5-HP motor and 20-inch planing capacity will handle the most demanding work. The 5-inch dust port connects easily to any dust collector. The cutterhead has four high speed steel knives and turns at 5,000 RPM producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to four-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.
460V operation requires an additional 460V magnetic switch: 209-5016G
Cutterhead contains four high-speed steel straight knives for clean, smooth cuts
Fast speed changes at 24 and 31 FPM (and gearbox can be changed to run at lower speeds of 16 and 20 FPM)
Cast iron table with extensions creates a big 55-1/2" x 20" working area
Chip breaker and pressure bar helps to reduce snipe
Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8-inch depth of cut and 8-inch planing thickness
Chrome-plated, ergonomic handwheel makes adjustments smooth and easy

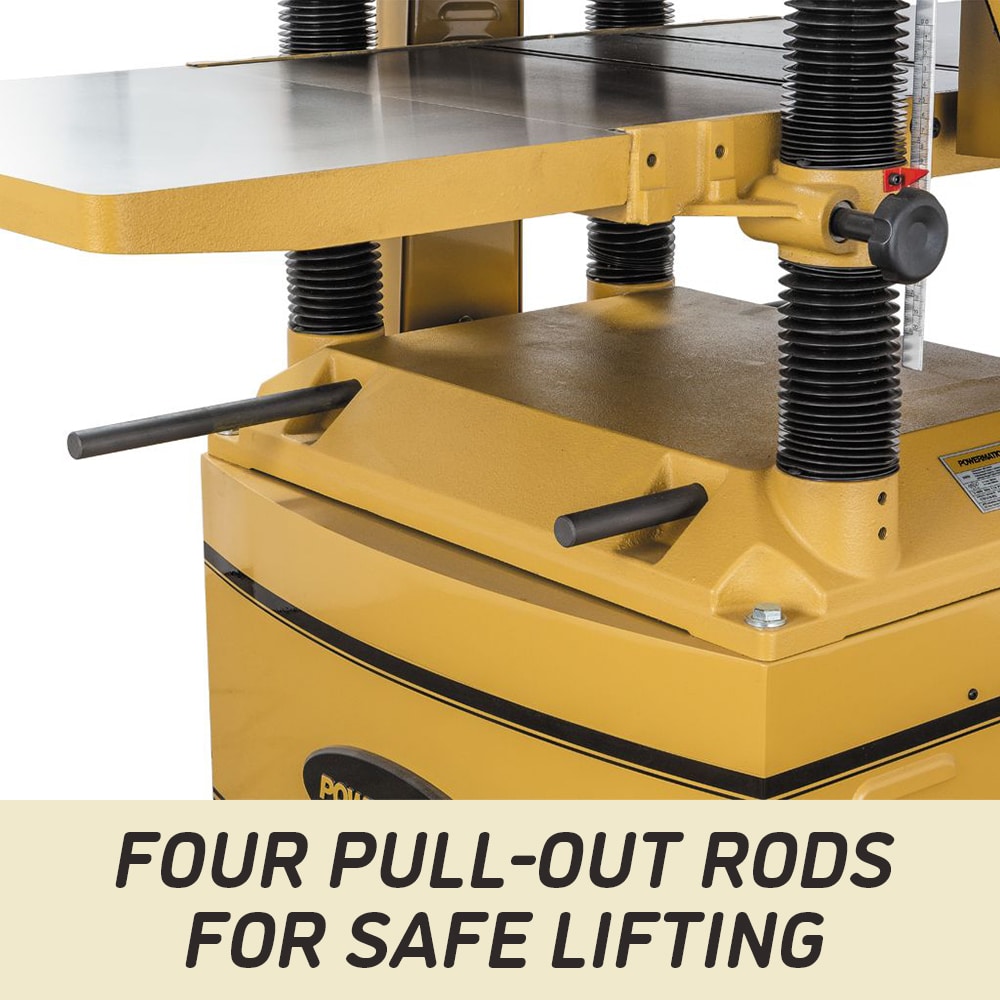

Integrated locking casters and pull-out lifting rods provide easy shop mobility
