Pioneer® A-Series speakers are your ticket to a premium audio experience that won't leave your wallet feeling lighter. These speakers not only deliver better audio details with rich bass notes, louder output, and clear and balanced audio but also do it in an affordable manner. Their sound design purposefully matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high-impact bass that lets you hear and feel the music, all without breaking the bank. The company's OPEN & SMOOTH sound concept delivers uniform off-axis frequency response optimized for automotive applications where 1 or more speakers are often aimed away from the listeners’ ears. This provides a better audio quality that will not fade away wherever you are in the car. The TS-A6901C is a pair of 6-in. x 9-in. component speakers with 2 woofers and 2 tweeters. They are custom-fit for original equipment (OE) 6-in. x 9-in. speaker sizes for improved acoustic performance. Included are multi-fit installation adapters, tweeter mounts for surface mounting, flush mounting, and specially designed multi-fit adapters for mounting in original equipment (OE) tweeter locations. With the integrated/in-line crossover network, you increase installation flexibility without the need of an outboard module. With the Pioneer® A-Series, replacing your factory speakers has never been easier.
450-watt maximum, 100-watt RMS power output; 4 ohms impedance
Designed to replace existing, older OEM speakers or add new ones to enhance a vehicle’s audio system; compatible with Pioneer® CarSoundFit® in-car sound simulator app
Frequency response: 29 Hz to 58 kHz; sensitivity: 92 dB; crossover frequency: 3.8 kHz

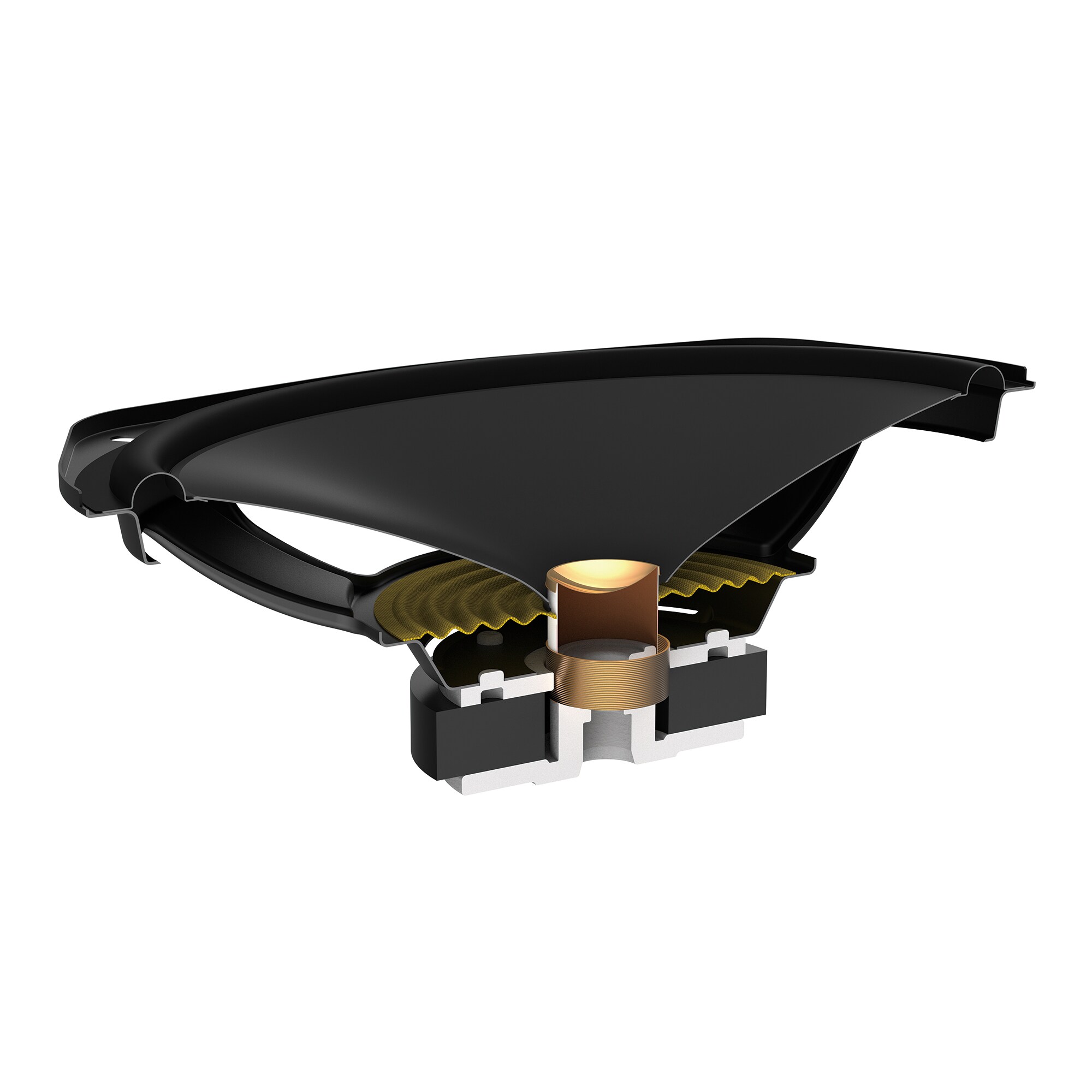

6-in x 9-in cones made from carbon and mica-reinforced injection-molded polypropylene; elastic polymer surrounds; ferrite magnets
Glass imide voice coil bobbin; copper voice coil wire
Iron plate press woofer basket; universal design expands installation
0.787-in (20-mm) component PEI hard dome tweeters with neodymium magnets
Mounting depth: 2-7/8 in
Includes 2 woofers, 2 tweeters (with attached 10-in speaker leads terminated with quick-connects), 2 lengths of speaker wire (each has quick slides to connect to the woofer - a 40-in tweeter output leg with integrated crossover and an 11-in input leg), 2 tweeter angled-surface mount housings, 2 tweeter flush-mount rings, 2 tweeter factory-mount brackets, screws, speed clips, adhesive-backed foam discs, 1-year warranty sheet, and installation template and specs on box
