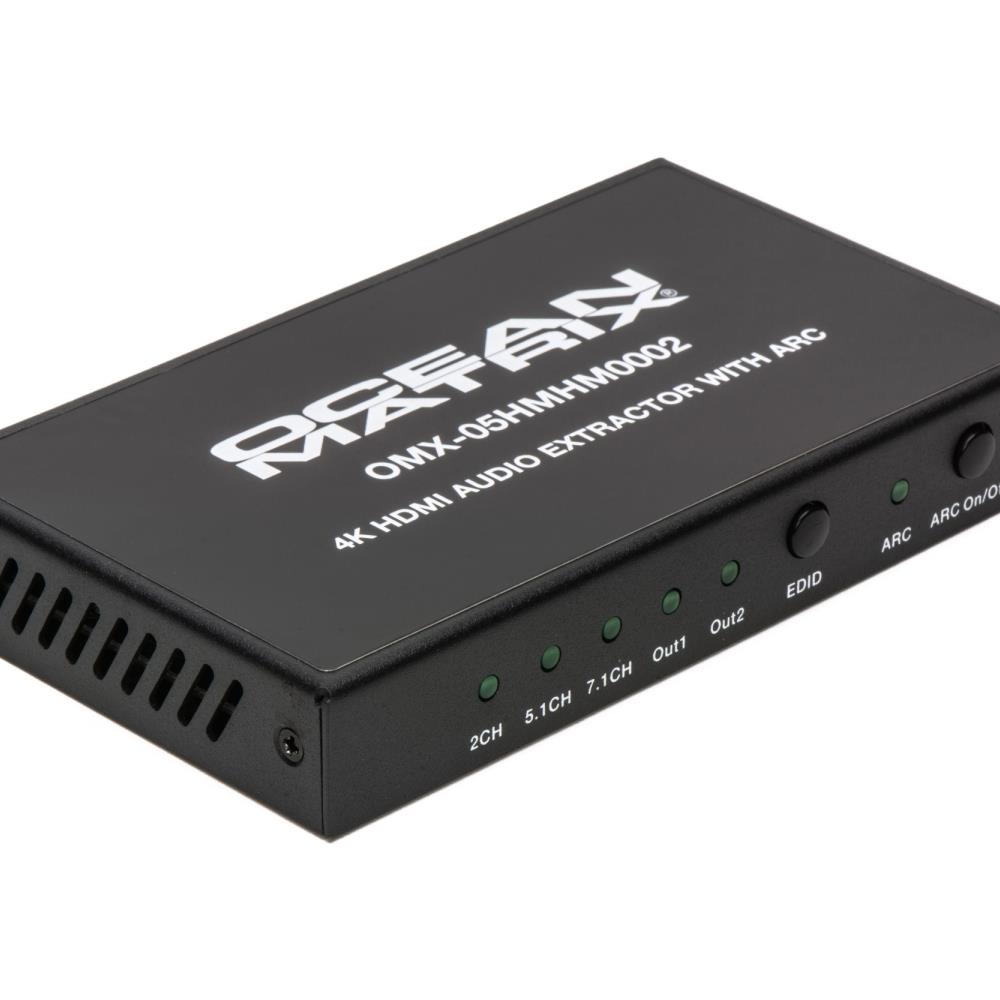

Ocean Matrix OMX-05HMHM0002 Audio Extractor and De-Embedder, 4K HDMI to Dedicated HDMI Output with ARC and EDID

If you're looking to breakout the audio signal from an HDMI signal, the Ocean Matrix OMX-05HMHM0002 HDMI audio extractor is the right tool for the job. The 05HMHM0002 extracts L/R analog RCA audio, Toslink optical and HDMI audio from any HDMI source. It includes an HDMI looping output for monitor and TV connection. The Ocean Matrix 05HMHM0002 HDMI extractor features 10-bit HDR pass through and a smart EDID management system to preserve the original video. It supports resolutions up to/60Hz. The ARC ( audio return channel) function allows audio to be sent back from the receiver to the transmitter, eliminating the need for extra audio cables. Features. Dedicated HDMI Out for Audio Only with 720p60 Black Screen. Smart EDID Management - 2CH, 5.1CH, 7.1CH, OUT1, OUT2. Multi-channel Optical ( S/PDIF) and L/R Analog Audio Output on 3.5mm Stereo Mini Jack. Audio Return Channel ( ARC) Function. Video Resolutions up to/60Hz YUV4:4:4. HDMI 10-bit HDR Pass Through. Optical Audio Supports LPCM 2CH, Dolby Digital -2/5.1CH, DTS -2/5.1CH. Supports CEC Bypass. LED Indicators for EDID Routing and ARC ON/OFF. Rugged Metal Enclosure Specifications. Compliance: HDMI 2.0b, HDCP 2.22 and HDCP 1.4. Video Bandwidth: 18GBPS. Audio Sampling Rate: up to 192 kHz. Color Space: RGB, YCbCr. Color Depth: 10-bit, 12-bit. HDMI Audio Pass-Through Formats: Optical Audio Formats. L/R Audio Formats: Analog Stereo 2 CH. Power Consumption: 2W. Input Power: AC100-240V 50/60Hz. Dimensions: 5.12 x 2.95 x 0.75 in.
