Draining areas filled with heavy mulch is no problem for the 6 in. Atrium Drain Grate. Leaves, mulch, and debris are trapped at the base, while the raised dome grate continues to drain water through from the top into drain pipe. The specially designed drain grate is designed to handle moderate flows of stormwater in mulched landscape beds, natural areas, and window wells. The 6 in. atrium dome drain grate has an open surface area of 28.0 sq. in. and a flow rate of 87 GPM. Connects to Spee-D® Catch Basin Drain, 6 in. sewer and drain pipe and fittings, and 6 in. single-wall corrugated pipe for a soil-tight fit. Built to stand up to the elements, the drain grate (or drain cover) is made of polyethylene, a type of plastic, using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking from the sun. As part of a complete drainage system, the grate blocks mulch, leaves, and debris as it drains water entering drain pipes. The pipes carry the water to a discharge point downstream such as a pop-up emitter, or percolates into the ground with a dry well or infiltration trench.NDS offers free tools such as the Home Drainage Center, Calculators, and NDS Stormwater Drainage mobile app to help make your project a success. Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management solutions.
Drain grate fits Spee-D® Basin, 6 inch drain pipes and fittings
Drain cover blocks debris from entering and clogging drainage pipes
87 GPM flow rate, drain mulched beds, natural areas, window wells
Protect your drainage system by using a grate on top of drain pipe to block debris from entering and potentially clogging the pipeline while letting excess surface water flow through
Ideal for draining moderate water flows from mulched landscape beds, natural areas, and window wells
Works with connected Spee-D® Catch Basin Drain, drain pipe, or fitting to capture and convey excess surface water for proper release downstream

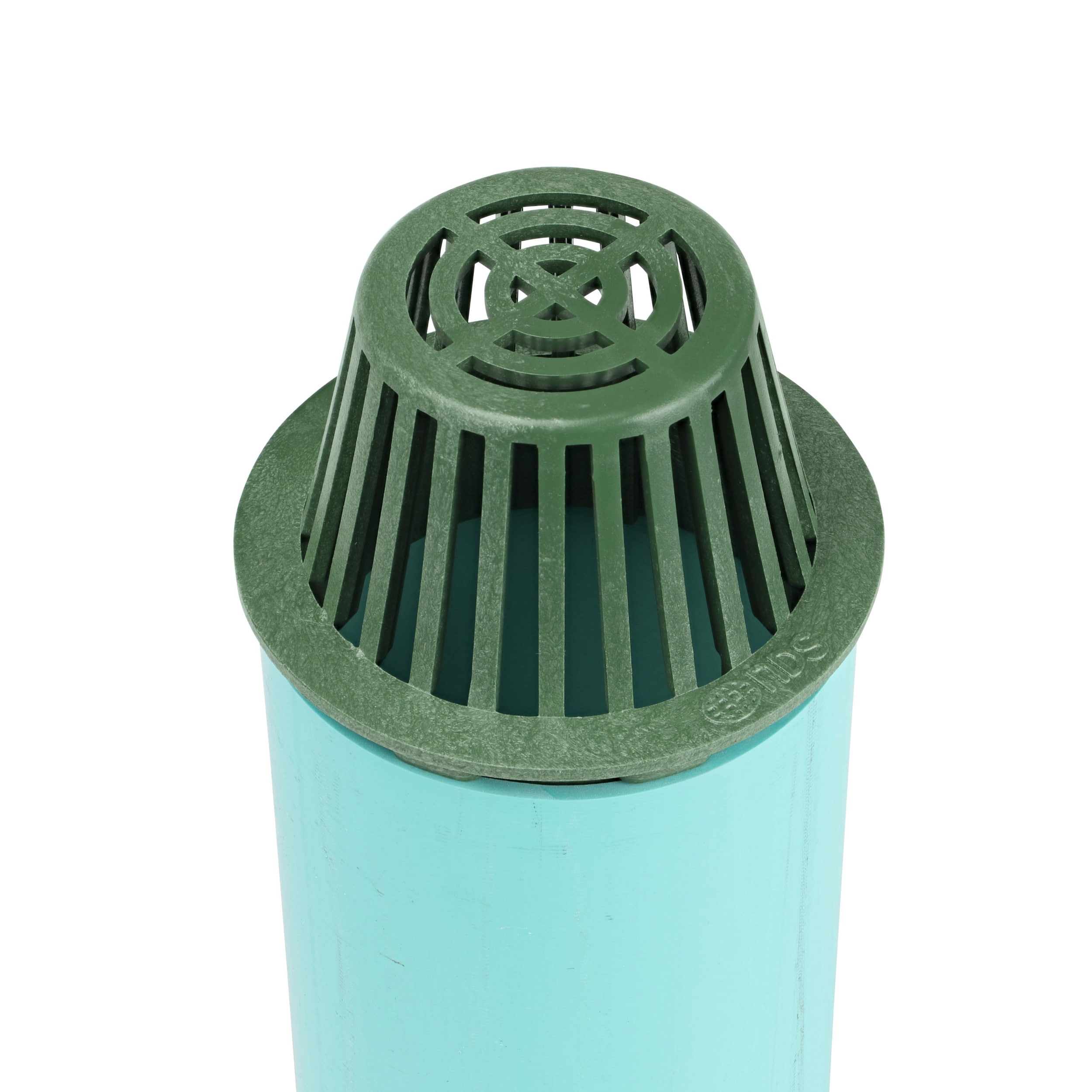

Place on top of Spee-D® Catch Basin Drain, drain pipe, or fitting for a soil-tight fit

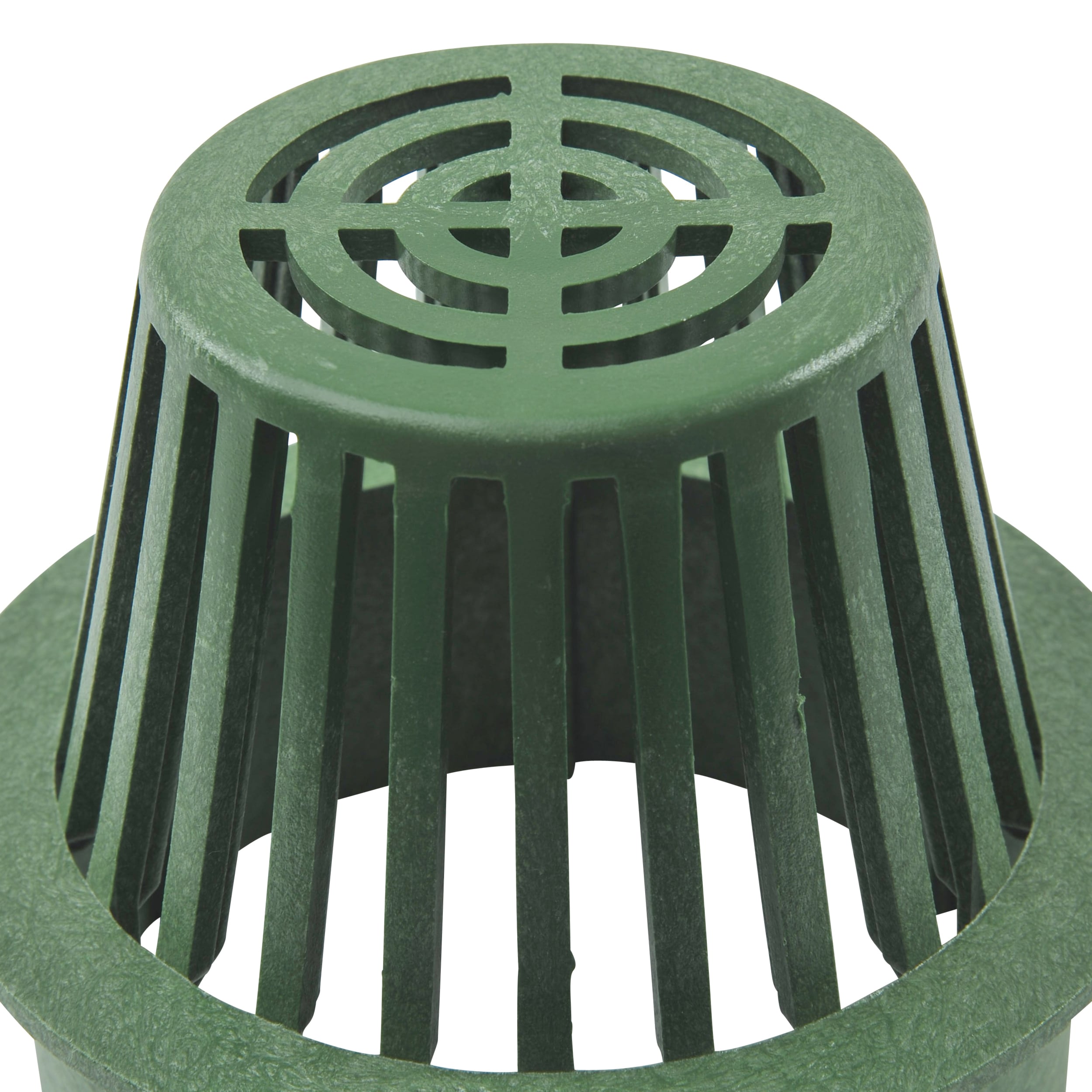

Grate is 5-3/4 inch high, top is 3-7/8 inch diameter, grate openings are 1/4 inch wide , High-density polyethylene (HDPE) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking, slight color variations may occur
Comes with one 6 inch Atrium Grate
