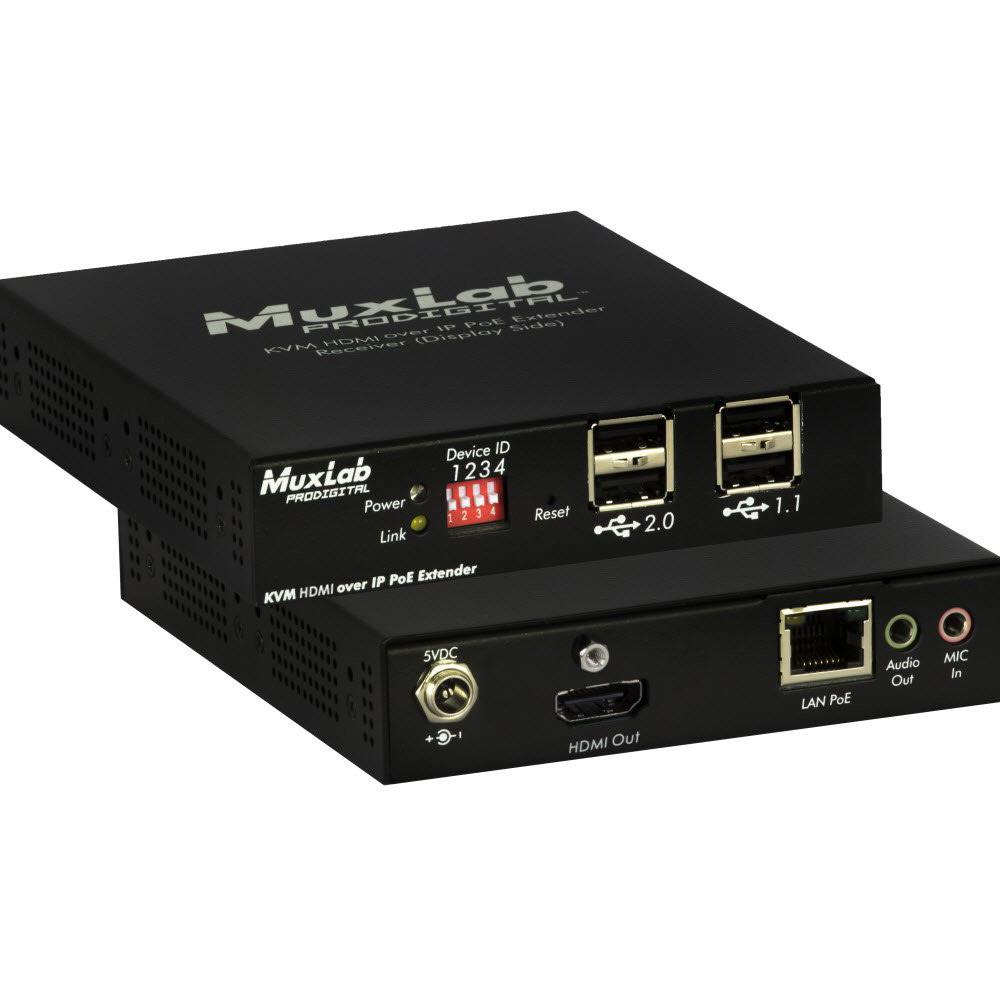

The Muxlab 500770-RX USB KVM Extender over IP PoE allows HDMI and USB equipment to be connected up to 330ft ( 100m) over an Ethernet LAN, supporting 1920x1200 and 1080p resolution 60Hz via Cat5e/6 cable in multiple point-to-point and point-to-multipoint configurations. The Transmitter ( 500770-TX) and Receiver ( 500770-RX) support PoE ( PD) if used with a PoE ( PSE) Ethernet Switch. The Transmitter terminates to a computer server/workstation via an HDMI and USB port, The Receiver terminates to an HDMI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad, storage device, camera, etc., via a 4 port USB hub. A single Receiver can be switched via hotkey sequences to any Transmitter on the network, allowing a single operator to manage numerous servers/workstations, in a distributed KVM application. Features Receiver side includes a 4-port USB hub, for KVM applications One operator can manage multiple servers/workstations Supports HDMI up to 1920x1200 and 1080p 60Hz Up to 330ft ( 100m) over Cat5e/6 Supports 100's of Transmitters and Receivers depending on network bandwidth Supports multiple point-to-point, and point-to-multipoint applications Supports audio insert and mic-out ( TX), and audio extract and micin ( RX) Connectors: One ( 1) HDMI receptacle One ( 1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair Two ( 2) 3.5mm jacks for audio insert ( on TX)/audio extract ( on RX) One ( 1) 2.1mm locking barrel jack for power One ( 1) or Four ( 4) USB Connector( s) for Host ( on TX)/Client ( on RX) Four ( 4) DIP Switches for device ID addressing RJ45 Link: Pin 1 Pin 2 ( T) Pin 3 Pin 6 ( T) Pin 4 Pin 5 ( T) Pin 7 Pin 8 ( T) Applications: Management of multi-server systems supporting HDMI displays in IT departments within corporations Educational institutions CAD Design Graphic Design Media Servers Data Centers Specifications Environment: HDMI 1.4 Devices: Computers and servers with HDMI monitor ports. Transmission: Transparent to the user
The Muxlab 500770-RX USB KVM Extender over IP PoE allows HDMI and USB equipment to be connected up to 330ft ( 100m) over an Ethernet LAN, supporting 1920x1200 and 1080p resolution 60Hz via Cat5e/6 cable in multiple point-to-point and
