Matrix Switch MSC-SFL-101 1 Channel 12G-SDI- SDI and HDSDI Over Fiber Extender for Fiber Link Product Solution

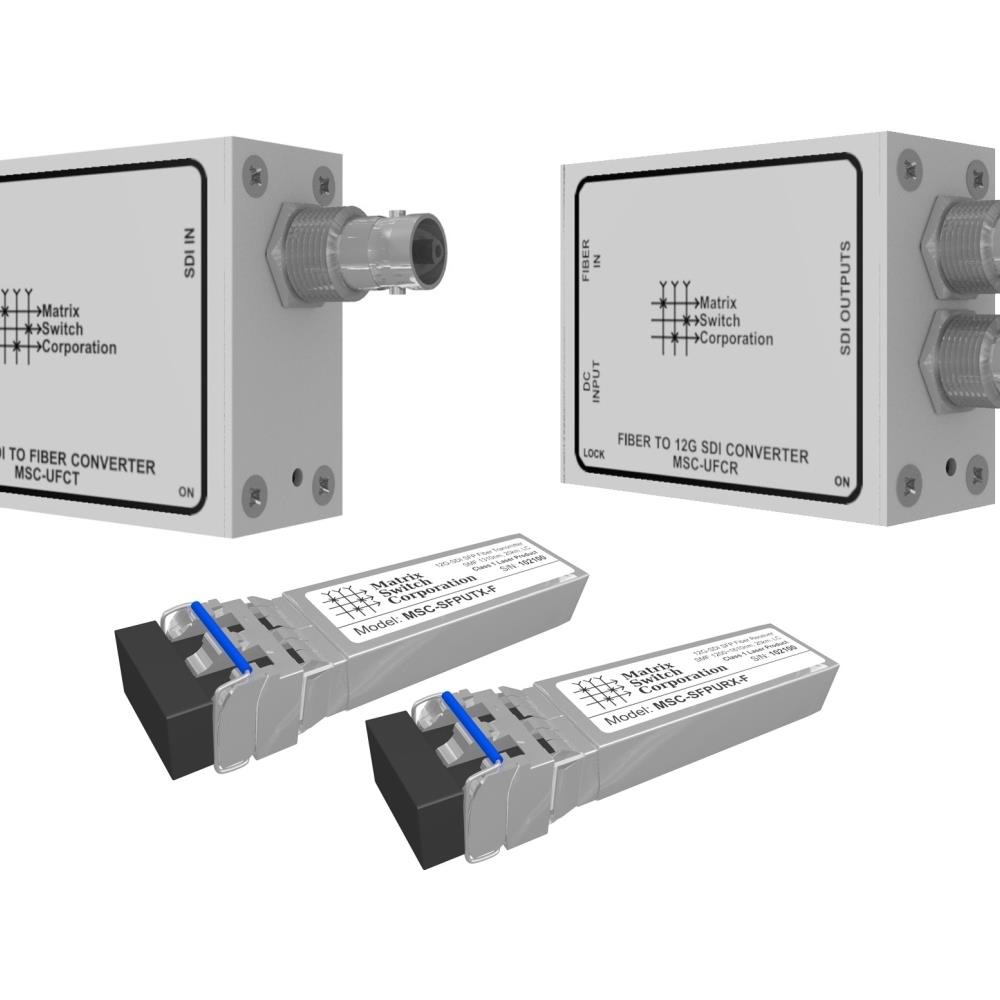

Matrix Switch Corporation MSC-SFL-101 fiber solutions are complete systems. These systems take SDI copper BNC inputs and then convert them using SMPTE MSA SFP plug in's, to single mode optical fiber for distances of up to 20KM and back to SDI BNC copper video outputs. The Model MSC-SFL-101 System provides a single fiber optic connection to transport SDI video with data rates up to 12GBPS. Both converter units are housed in very compact, extra rugged thick wall aluminum extrusions. Features Re-clocks standard SDI rates 12G/6G/3G/HD/SD ( 11.88/5.94/2.97/1.485/0.270 Gbit/s) Auto bypass of non-standard SDI rates from 20 Mbit/s to 12 Gbit/s Passes SDI embedded audio and ancillary data Complies with all relevant FCC, U/L, CE, and RoHS requirements Specifications Outputs: 1 Made in: USA MTBF: 50,000+ Hours MTTR: SDI Inputs Connector Type: BNC Data Rates: 19 Mbit/s through 12.0 Gbit/s Input Return Loss: 15dB HD, 12dB 3G Input Impedance: 75 Ohms +/- 1 Input Level: 800 mV P-P +/- 20 Connector Type: BNC Data Rates: 19 Mbit/s through 12.0 Gbit/s Output Return Loss: 15dB HD, 12dB 3G Re-clocking Data Rates: 11.88 Gbit/s, 5.94 Gbit/s, 2.97 Gbit/s, 1.485 Gbit/s, 270 Mbit/s Output Impedance: 75 Ohms +/- 1 Dimension: 2.50-" x 1-" x 2-" Weight: 2.1 lbs
